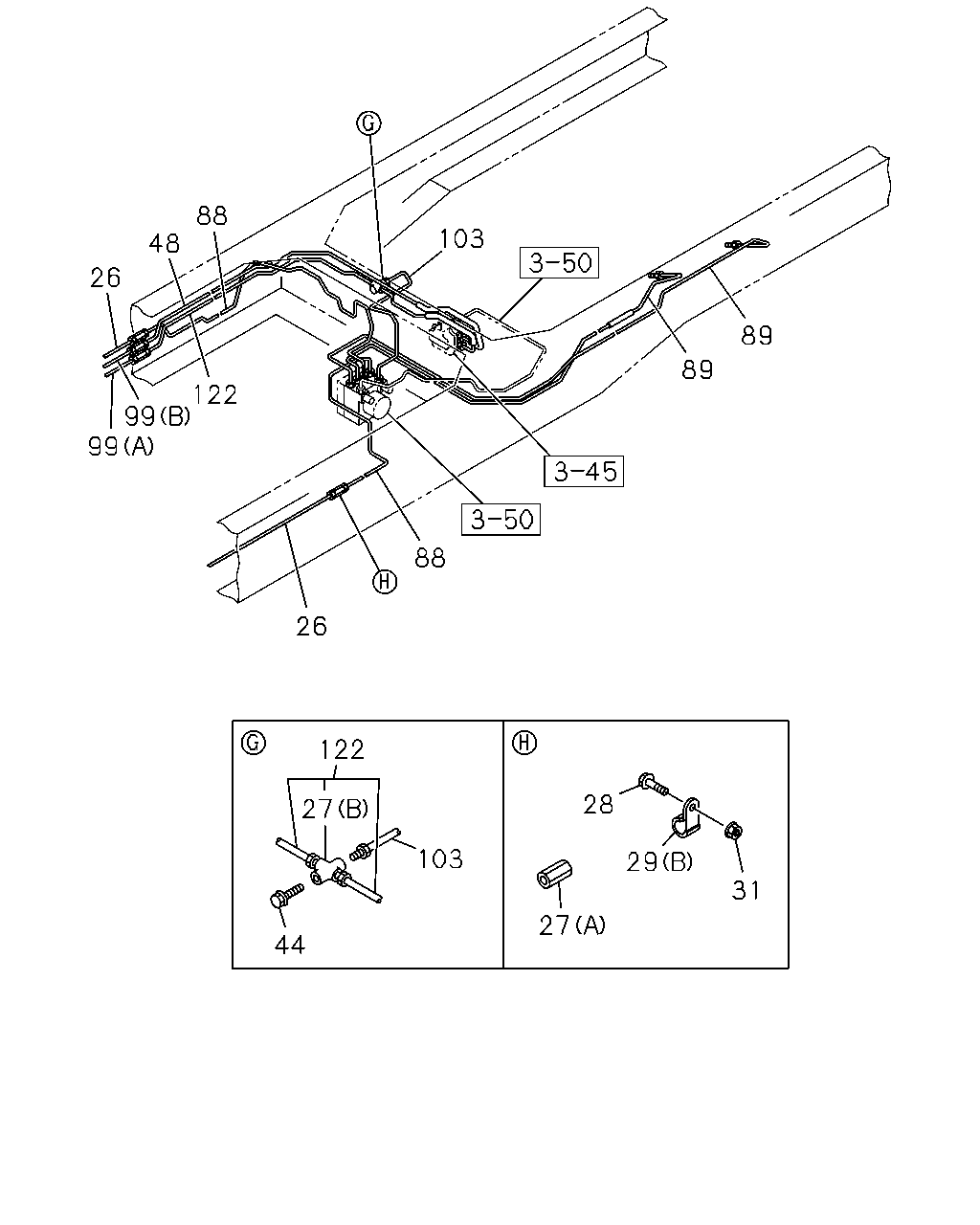

3-52 — BRAKE PIPING; OIL,FRONT (#37526) — 145 parça

88 103 48 26 89 89 122 99 99 88 26 122 28 27 103 29 31 27 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
26	05.476 PIPE; BRK,JOINT TO 2 WAY	8-98002-751-1	01	1	0502-	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY	8-98002-753-1	01	1	0502-	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY	8-98002-750-1	01	1	0502-			●
26	05.476 PIPE; BRK,JOINT TO 2 WAY	8-98002-752-2	01	1	0502-			●
27	04.686 UNION; BRK PIPE (B)	8-97314-636-0	01	1	0502-	●	●	●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0502-0607	●	●	●
27	04.686 UNION; BRK PIPE (A) M10 STRAIGHT	0-92107-005-0	01	1	0608-	●	●	●
27	04.686 UNION; BRK PIPE (C)	8-97259-943-0	01	1	0211-0501	●	●	●
27	04.686 UNION; BRK PIPE (D)	8-97257-650-1	01	1	0502-	●	●	●
28	04.686 BOLT; UNION CLIP 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0502-0512	●	●
28	04.686 BOLT; UNION CLIP 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0601-	●	●
28	04.686 BOLT; UNION CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512			●
28	04.686 BOLT; UNION CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-			●
29	04.686 CLIP; UNION 04.785 (B) ID=16 H=30 L=30	1-09701-080-0	01	1	0502-			●
29	04.686 CLIP; UNION 02.343 (A) ID=16 H=24 L=20	9-09527-015-0	01	1	0502-0606	●	●
29	04.686 CLIP; UNION 03.162 (A) ID=16 H=24 L=20	0-95207-315-0	01	1	0607-	●	●
31	04.686 NUT; UNION CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602			●
31	04.686 NUT; UNION CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-			●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0501	●	●	●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602	●	●	●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602	●	●
31	04.686 NUT; UNION CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●
31	04.686 NUT; UNION CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
44	04.686 BOLT; JOINT 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512	●	●	●
44	04.686 BOLT; JOINT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN	8-97325-944-0	01	1	0211-	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN	8-97325-945-0	01	1	0211-		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN	8-97325-943-1	01	1	0211-			●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT	8-97325-962-0	01	1	0502-	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT	8-97325-965-0	01	1	0502-	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT	8-97325-963-0	01	1	0502-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT	8-97325-966-0	01	1	0502-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT	8-97325-961-0	01	1	0502-			●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT	8-97325-964-1	01	1	0502-			●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR	8-97325-968-0	01	1	0502-	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR	8-97325-971-0	01	1	0502-	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR	8-97325-969-0	01	1	0502-		●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR	8-97325-972-0	01	1	0502-		●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR	8-97325-967-0	01	1	0502-			●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR	8-97325-970-0	01	1	0502-			●
99	04.686 PIPE ASM; 4/5/6 WAY (B) FRONT	8-97325-927-1	01	1	0211-			●
99	04.686 PIPE ASM; 4/5/6 WAY (A) REAR	8-97325-930-1	01	1	0211-			●
99	04.686 PIPE ASM; 4/5/6 WAY (B) FRONT	8-97325-926-1	01	1	0211-0301	●	●
99	04.686 PIPE ASM; 4/5/6 WAY (B) FRONT	8-97363-950-0	01	1	0302-	●	●
99	04.686 PIPE ASM; 4/5/6 WAY (A) REAR	8-97325-929-1	01	1	0211-0301	●	●
99	04.686 PIPE ASM; 4/5/6 WAY (A) REAR	8-97363-974-0	01	1	0302-	●	●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI	8-97325-958-0	01	1	0502-	●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI	8-97325-959-0	01	1	0502-		●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI	8-97325-957-0	01	1	0502-			●
122	04.685 PIPE ASM; BRK,2 WAY	8-97325-941-0	01	1	0502-	●
122	04.685 PIPE ASM; BRK,2 WAY	8-97325-942-0	01	1	0502-		●
122	04.685 PIPE ASM; BRK,2 WAY	8-97325-940-1	01	1	0502-			●

48 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
46	04.685 PIPE; BRK,JOINT TO VLV	8-97325-938-0	01	1	0211-0501	●
46	04.685 PIPE; BRK,JOINT TO VLV	8-97325-939-0	01	1	0211-0501		●
46	04.685 PIPE; BRK,JOINT TO VLV	8-97325-937-1	01	1	0211-0501			●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN	8-97325-944-0	01	1	0211-	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN	8-97325-945-0	01	1	0211-		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN	8-97325-943-1	01	1	0211-			●

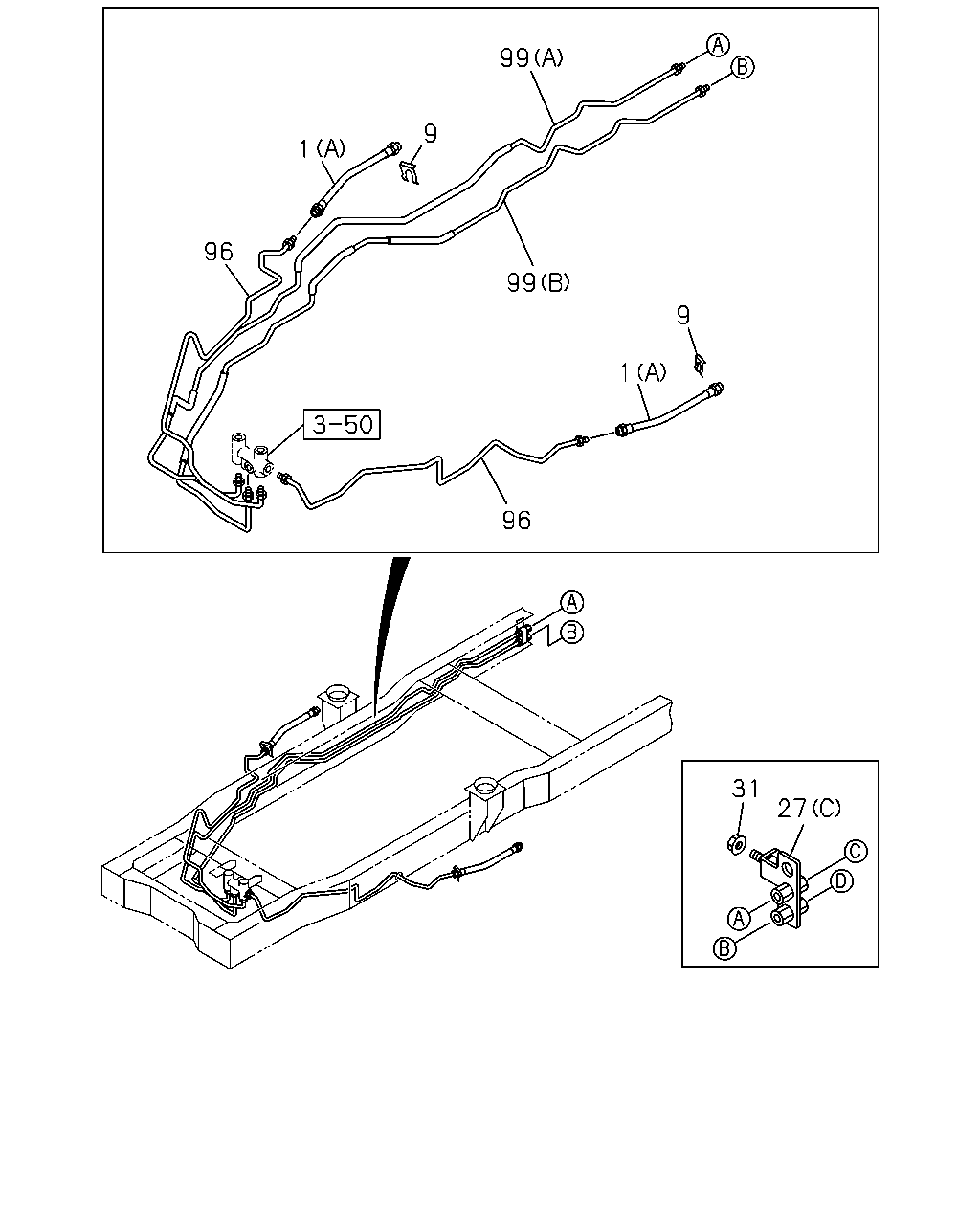

99 9 1 96 99 9 1 96 31 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.680 HOSE; FLEX,FRT BRK (A) L=310	8-97035-063-0	02	1	0211-0501	●	●	●
1	04.680 HOSE; FLEX,FRT BRK (B)	8-97316-734-0	02	1	0502-0502	●	●	●
1	04.680 HOSE; FLEX,FRT BRK (B)	8-97366-925-1	02	1	0502-	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0211-0501	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0211-0501	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0502-0610	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-	●	●	●
27	04.686 UNION; BRK PIPE (B)	8-97314-636-0	01	1	0502-	●	●	●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0502-0607	●	●	●
27	04.686 UNION; BRK PIPE (A) M10 STRAIGHT	0-92107-005-0	01	1	0608-	●	●	●
27	04.686 UNION; BRK PIPE (C)	8-97259-943-0	01	1	0211-0501	●	●	●
27	04.686 UNION; BRK PIPE (D)	8-97257-650-1	01	1	0502-	●	●	●
31	04.686 NUT; UNION CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602			●
31	04.686 NUT; UNION CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-			●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0501	●	●	●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602	●	●	●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602	●	●
31	04.686 NUT; UNION CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●
31	04.686 NUT; UNION CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
96	04.686 PIPE ASM; 6 WAY	8-97325-915-1	01	1	0211-0501	●	●	●
96	04.686 PIPE ASM; 6 WAY	8-97325-919-1	01	1	0211-0501	●	●	●
99	04.686 PIPE ASM; 4/5/6 WAY (B) FRONT	8-97325-927-1	01	1	0211-			●
99	04.686 PIPE ASM; 4/5/6 WAY (A) REAR	8-97325-930-1	01	1	0211-			●
99	04.686 PIPE ASM; 4/5/6 WAY (B) FRONT	8-97325-926-1	01	1	0211-0301	●	●
99	04.686 PIPE ASM; 4/5/6 WAY (B) FRONT	8-97363-950-0	01	1	0302-	●	●
99	04.686 PIPE ASM; 4/5/6 WAY (A) REAR	8-97325-929-1	01	1	0211-0301	●	●
99	04.686 PIPE ASM; 4/5/6 WAY (A) REAR	8-97363-974-0	01	1	0302-	●	●

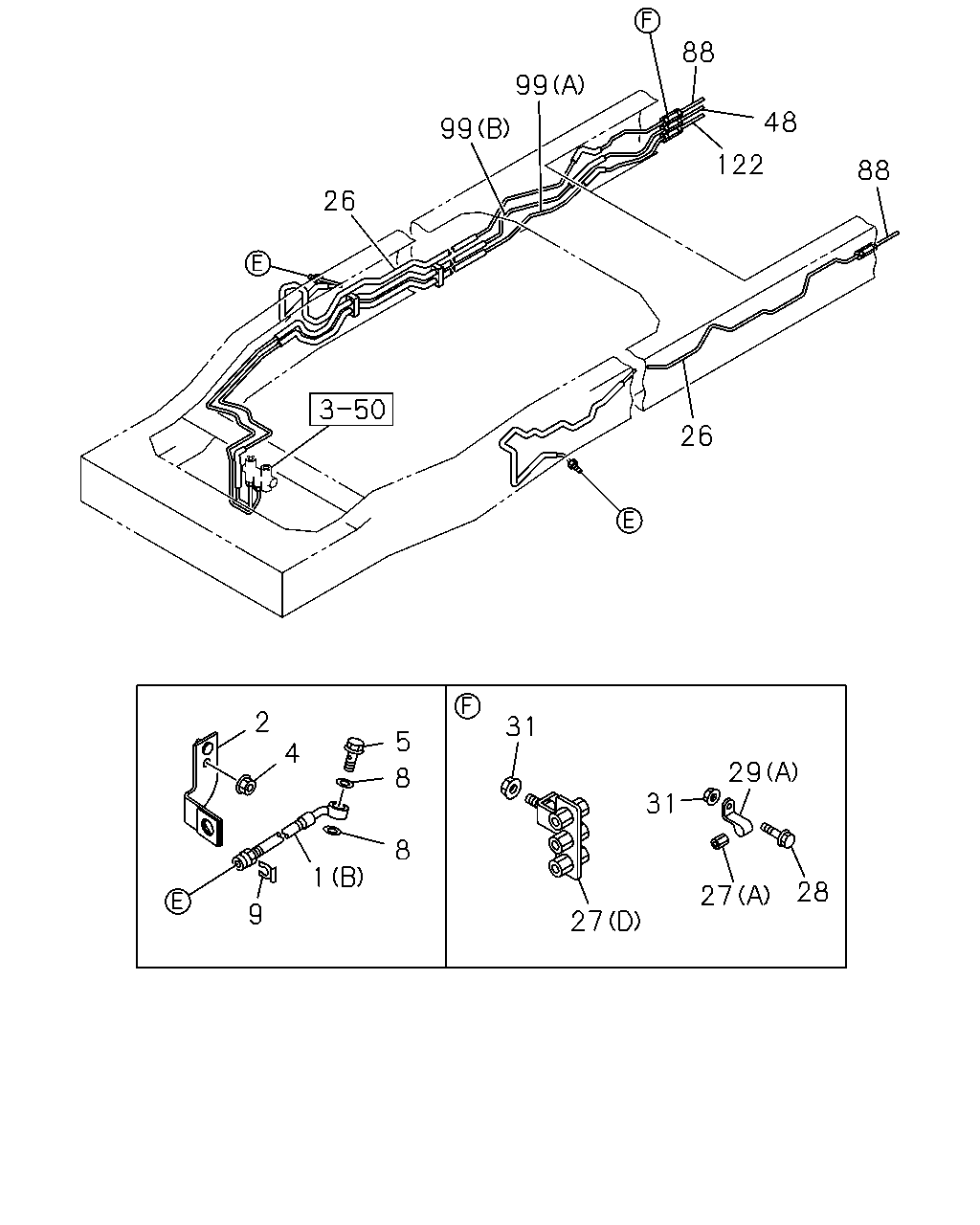

88 99 48 99 122 88 26 26 2 31 5 4 29 8 31 8 1 28 27 9 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.680 HOSE; FLEX,FRT BRK (A) L=310	8-97035-063-0	02	1	0211-0501	●	●	●
1	04.680 HOSE; FLEX,FRT BRK (B)	8-97316-734-0	02	1	0502-0502	●	●	●
1	04.680 HOSE; FLEX,FRT BRK (B)	8-97366-925-1	02	1	0502-	●	●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-98002-746-0	01	1	0502-	●	●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-98002-747-0	01	1	0502-	●	●	●
4	04.686 NUT; FLEX HOSE BRKT,FRT BRK 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●	●	●
4	04.686 NUT; FLEX HOSE BRKT,FRT BRK 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK M10X22	8-97381-454-0	02	1	0502-0610	●	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK M10X22	8-98014-005-0	02	1	0611-	●	●	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	0502-	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0211-0501	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0211-0501	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0502-0610	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY	8-98002-751-1	01	1	0502-	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY	8-98002-753-1	01	1	0502-	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY	8-98002-750-1	01	1	0502-			●
26	05.476 PIPE; BRK,JOINT TO 2 WAY	8-98002-752-2	01	1	0502-			●
27	04.686 UNION; BRK PIPE (B)	8-97314-636-0	01	1	0502-	●	●	●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0502-0607	●	●	●
27	04.686 UNION; BRK PIPE (A) M10 STRAIGHT	0-92107-005-0	01	1	0608-	●	●	●
27	04.686 UNION; BRK PIPE (C)	8-97259-943-0	01	1	0211-0501	●	●	●
27	04.686 UNION; BRK PIPE (D)	8-97257-650-1	01	1	0502-	●	●	●
28	04.686 BOLT; UNION CLIP 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0502-0512	●	●
28	04.686 BOLT; UNION CLIP 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0601-	●	●
28	04.686 BOLT; UNION CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512			●
28	04.686 BOLT; UNION CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-			●
29	04.686 CLIP; UNION 04.785 (B) ID=16 H=30 L=30	1-09701-080-0	01	1	0502-			●
29	04.686 CLIP; UNION 02.343 (A) ID=16 H=24 L=20	9-09527-015-0	01	1	0502-0606	●	●
29	04.686 CLIP; UNION 03.162 (A) ID=16 H=24 L=20	0-95207-315-0	01	1	0607-	●	●
31	04.686 NUT; UNION CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602			●
31	04.686 NUT; UNION CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-			●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0501	●	●	●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602	●	●	●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602	●	●
31	04.686 NUT; UNION CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●
31	04.686 NUT; UNION CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN	8-97325-944-0	01	1	0211-	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN	8-97325-945-0	01	1	0211-		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN	8-97325-943-1	01	1	0211-			●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT	8-97325-962-0	01	1	0502-	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT	8-97325-965-0	01	1	0502-	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT	8-97325-963-0	01	1	0502-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT	8-97325-966-0	01	1	0502-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT	8-97325-961-0	01	1	0502-			●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT	8-97325-964-1	01	1	0502-			●
99	04.686 PIPE ASM; 4/5/6 WAY (B) FRONT	8-97325-927-1	01	1	0211-			●
99	04.686 PIPE ASM; 4/5/6 WAY (A) REAR	8-97325-930-1	01	1	0211-			●
99	04.686 PIPE ASM; 4/5/6 WAY (B) FRONT	8-97325-926-1	01	1	0211-0301	●	●
99	04.686 PIPE ASM; 4/5/6 WAY (B) FRONT	8-97363-950-0	01	1	0302-	●	●
99	04.686 PIPE ASM; 4/5/6 WAY (A) REAR	8-97325-929-1	01	1	0211-0301	●	●
99	04.686 PIPE ASM; 4/5/6 WAY (A) REAR	8-97363-974-0	01	1	0302-	●	●
122	04.685 PIPE ASM; BRK,2 WAY	8-97325-941-0	01	1	0502-	●
122	04.685 PIPE ASM; BRK,2 WAY	8-97325-942-0	01	1	0502-		●
122	04.685 PIPE ASM; BRK,2 WAY	8-97325-940-1	01	1	0502-			●

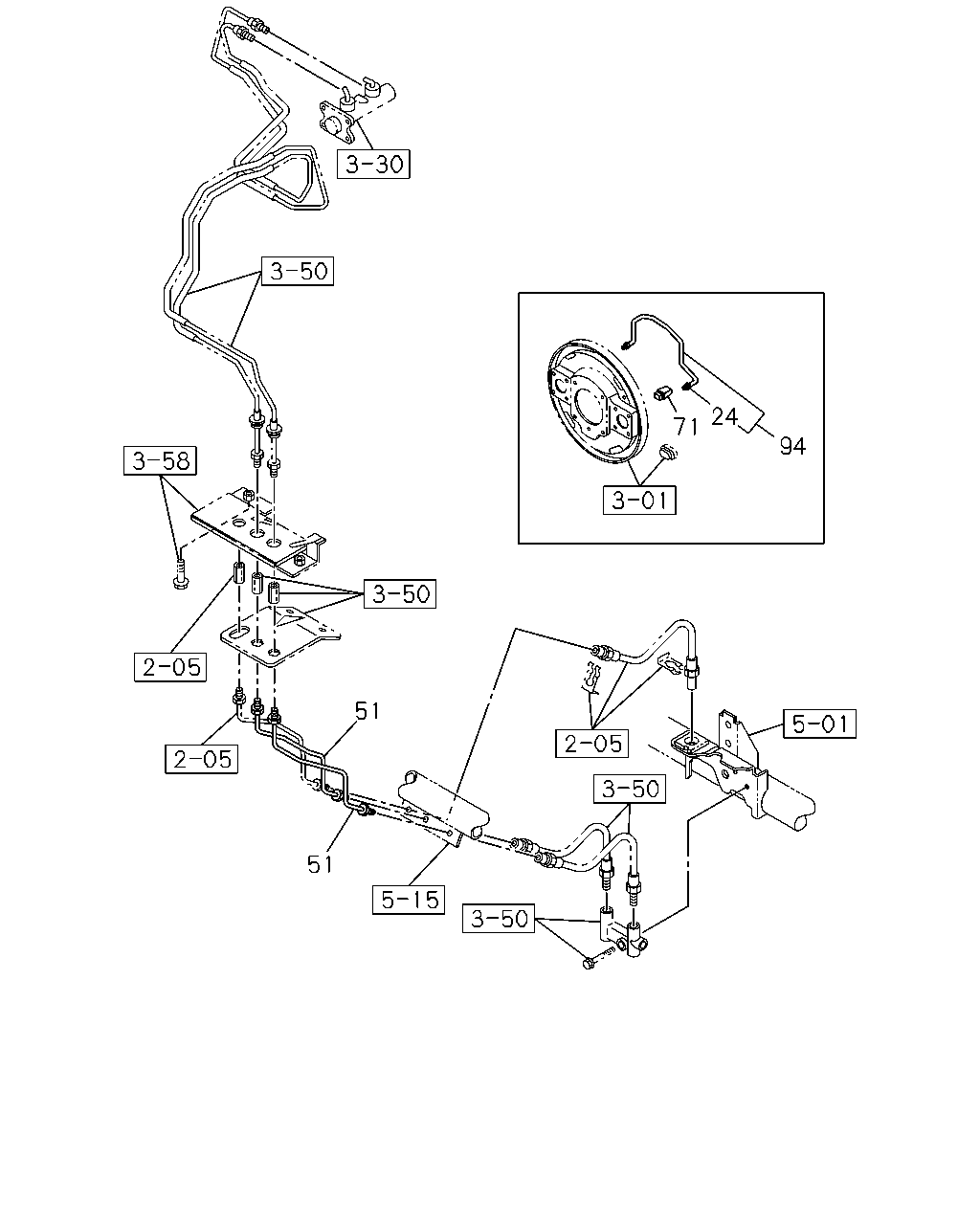

24 71 94 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	04.686 NUT; UNION,OIL PIPE 08.963	9-09217-625-0	02	1	0211-0501			●
51	04.685 PIPE; BRK	8-97035-978-0	02	1	0211-	●	●	●
71	04.686 GROMMET; OIL PIPE 05.002	9-09756-034-0	02	1	0211-0501	●	●	●
94	04.685 PIPE; BRK,W/C TO W/C	8-97019-222-0	01	1	0211-0501			●
94	04.685 PIPE; BRK,W/C TO W/C	8-97019-223-0	01	1	0211-0501			●
