3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#37525) — 63 parça

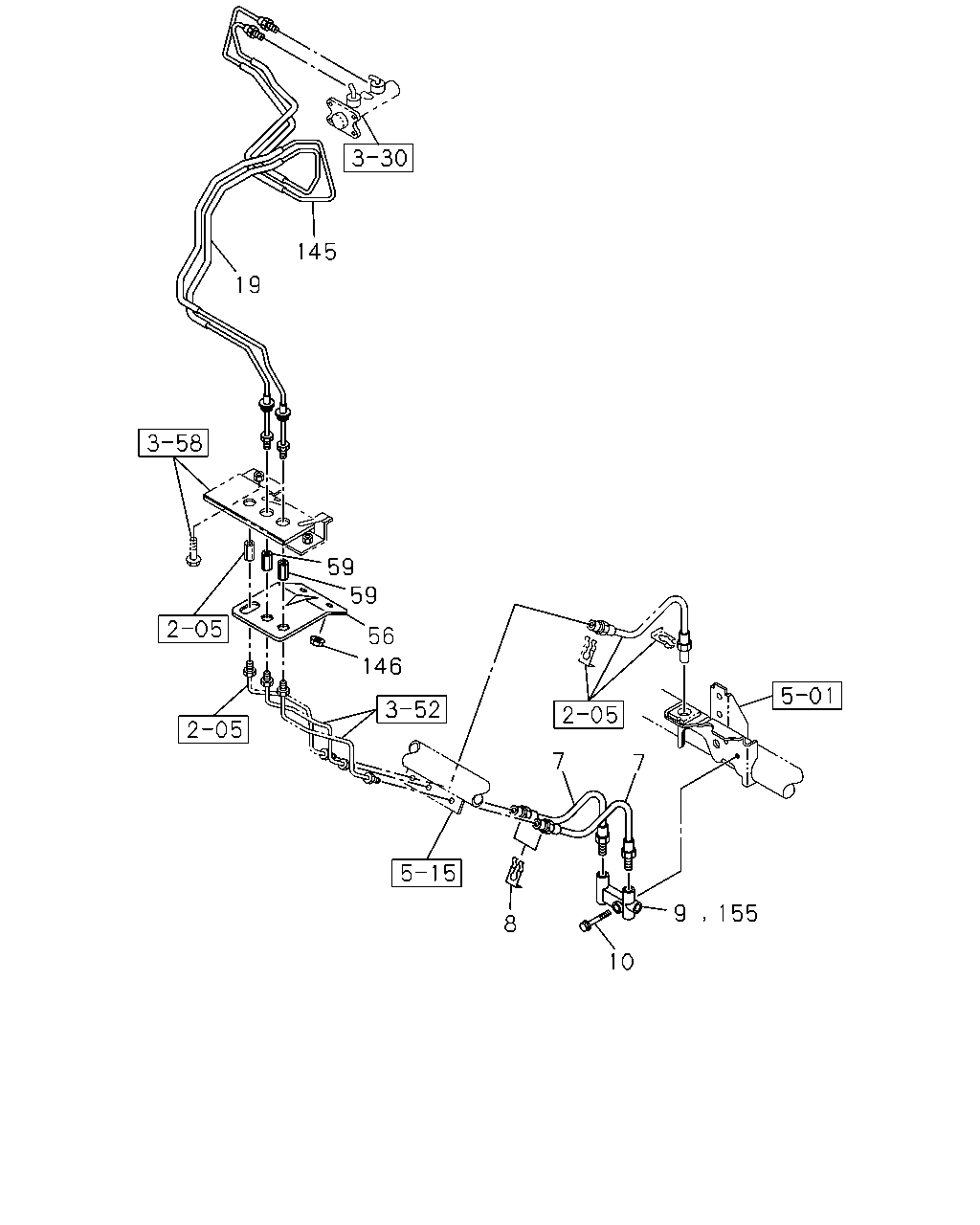

145 19 59 59 56 146 7 7 9 155 8 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	0211-	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 00.785	8-94167-006-0	02	1	0211-0610	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE	8-97365-304-0	02	1	0611-	●	●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE	8-97139-922-1	01	1	0502-	●	●	●
10	04.686 BOLT; JOINT 03.163 M6X40 FLANGE	0-28680-640-0	01	1	0211-0512	●	●	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0601-	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION	8-97314-590-0	01	1	0211-	●	●	●
56	04.686 BRACKET; UNION,BRK	8-97078-564-1	01	1	0211-	●	●	●
59	04.686 UNION; BRK PIPE 08.963 M10 STRAIGHT	9-09227-005-0	02	1	0211-0607	●	●	●
59	04.686 UNION; BRK PIPE M10 STRAIGHT	0-92107-005-0	02	1	0608-	●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97314-583-0	01	1	0211-	●	●	●
146	04.685 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●	●
146	04.685 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
155	04.686 JOINT; 6WAY	8-97120-033-2	01	1	0211-0501	●	●	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	35	04.685 PIPE; BRK,VLV TO RR AXLE	8-97325-948-0	01	1	0211-0501	●	●
	35	04.685 PIPE; BRK,VLV TO RR AXLE	8-97325-946-0	01	1	0211-0501			●

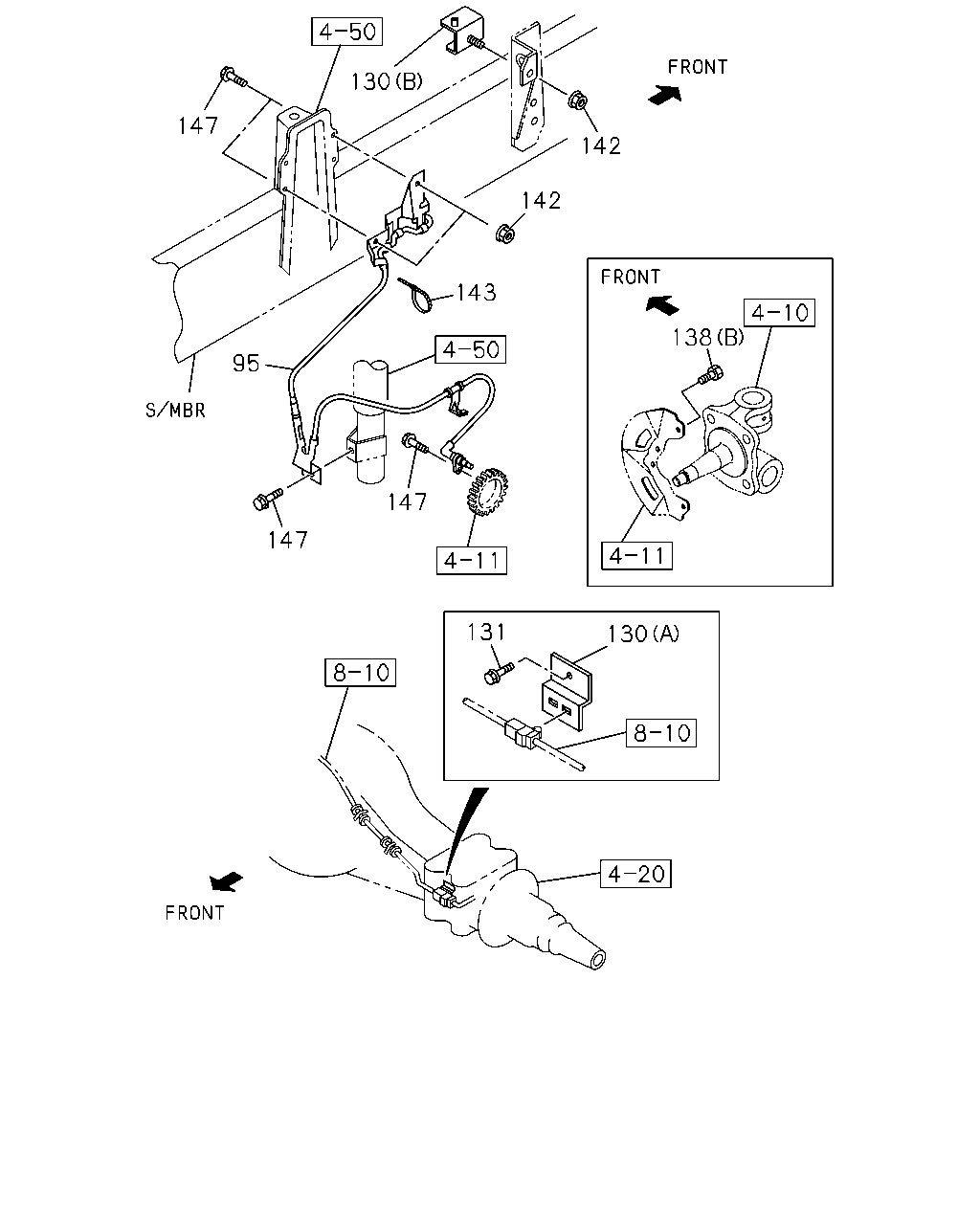

130 147 142 142 143 138 95 147 147 131 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
95	04.710 SENSOR; SPD,FRT WHEEL	8-97258-316-2	01	1	0502-	●	●	●
95	04.710 SENSOR; SPD,FRT WHEEL	8-97258-317-2	01	1	0502-	●	●	●
130	04.686 BRACKET; SPEED SENSOR (A)	8-97080-060-2	02	1	0502-	●	●	●
130	04.686 BRACKET; SPEED SENSOR (B)	8-97254-466-0	01	1	0502-	●	●	●
131	04.710 BOLT; BRKT 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0502-0512	●	●	●
131	04.710 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0601-	●	●	●
138	04.720 BOLT; COVER 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-0512	●	●	●
138	04.720 BOLT; COVER 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●	●	●
138	04.720 BOLT; COVER 04.640 (B) M10X12 FLANGE	0-28081-012-0	02	1	0502-0512	●	●	●
138	04.720 BOLT; COVER 06.225 (B) M10X12 FLANGE	0-28051-012-0	02	1	0601-	●	●	●
142	04.710 NUT; SPEED SENSOR 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602	●	●	●
142	04.710 NUT; SPEED SENSOR 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●
142	04.710 NUT; SPEED SENSOR 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●	●	●
142	04.710 NUT; SPEED SENSOR 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
143	04.710 CLIP; SPEED SENSOR 03.162 L=140	5-09707-031-1	01	1	0502-	●	●	●
147	04.710 BOLT; SPEED SENSOR 08.900 M8X12 FLANGE	0-28080-812-0	04	1	0502-0512	●	●	●
147	04.710 BOLT; SPEED SENSOR 02.343 M8X12 FLANGE	0-28050-812-0	04	1	0601-	●	●	●
147	04.710 BOLT; SPEED SENSOR 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●	●	●
147	04.710 BOLT; SPEED SENSOR 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●

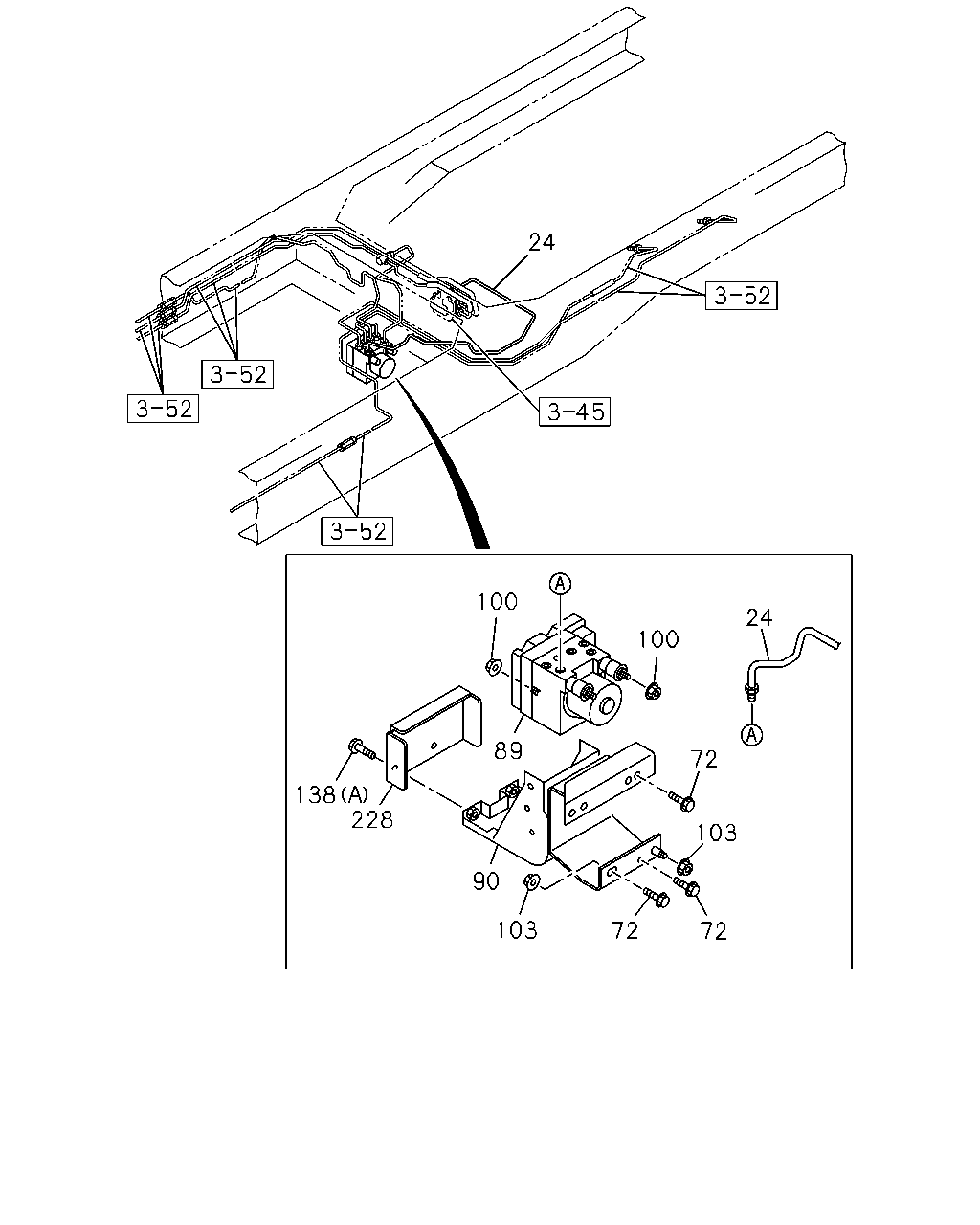

24 100 24 100 89 72 138 228 103 90 103 72 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	04.685 PIPE; BRK,PROPORTIONING VLV	8-97325-954-0	01	1	0502-	●
24	04.685 PIPE; BRK,PROPORTIONING VLV	8-97325-955-0	01	1	0502-		●
24	04.685 PIPE; BRK,PROPORTIONING VLV	8-97325-953-0	01	1	0502-			●
72	04.686 BOLT; BRKT TO BODY 03.405 M10X25 FLANGE	0-28681-025-0	02	1	0502-0504			●
72	04.686 BOLT; BRKT TO BODY 03.405 M10X25 FLANGE	0-28681-025-0	03	1	0502-0504	●	●
72	04.686 BOLT; BRKT TO BODY 03.405 M10X25 FLANGE	0-28681-025-0	03	1	0505-0512	●	●	●
72	04.686 BOLT; BRKT TO BODY 00.029 M10X25 FLANGE	0-28651-025-0	03	1	0601-	●	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-97327-075-1	01	1	0502-0502	●	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-97327-075-3	01	1	0502-1006	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98155-358-1	01	1	1007-	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-97314-218-4	01	1	0502-1006			●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98155-350-0	01	1	1007-			●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS	8-97245-502-2	01	1	0502-0504			●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS	8-97245-498-2	01	1	0502-		●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS	8-97245-501-0	01	1	0502-0504	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS	8-97245-501-0	01	1	0505-	●		●
100	04.730 NUT; HYDRAULIC UNIT 07.633 M8 FLANGE	0-91150-108-0	03	1	0502-0602	●	●	●
100	04.730 NUT; HYDRAULIC UNIT 01.062 M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602	●		●
103	04.730 NUT; HYDRAULIC UNIT BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-	●		●
103	04.730 NUT; HYDRAULIC UNIT BRKT 04.785 M10 FLANGE	0-91150-110-0	03	1	0502-0602		●
103	04.730 NUT; HYDRAULIC UNIT BRKT 03.162 M10 FLANGE	0-91180-110-0	03	1	0603-		●
138	04.720 BOLT; COVER 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-0512	●	●	●
138	04.720 BOLT; COVER 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●	●	●
138	04.720 BOLT; COVER 04.640 (B) M10X12 FLANGE	0-28081-012-0	02	1	0502-0512	●	●	●
138	04.720 BOLT; COVER 06.225 (B) M10X12 FLANGE	0-28051-012-0	02	1	0601-	●	●	●
228	04.730 COVER; ABS	8-97233-083-0	01	1	0502-0611	●	●	●
228	04.730 COVER; ABS	8-97359-760-0	01	1	0612-	●	●	●
