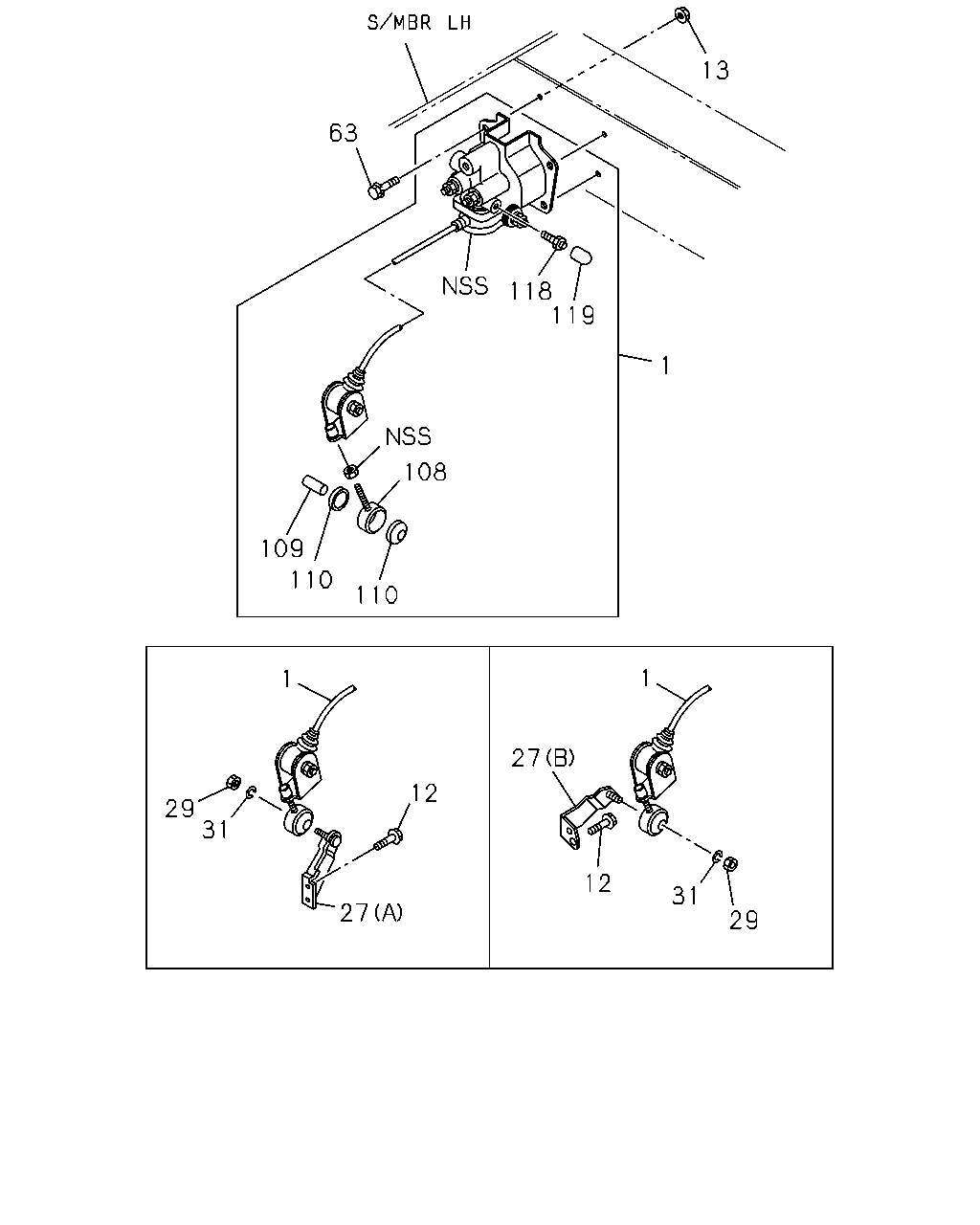

3-45 — LOAD SENSING PROPORTIONING VALVE (#37524) — 21 parça

13 63 118 119 1 108 109 110 110 1 1 27 12 29 31 12 31 27 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.730 VALVE ASM; LOAD SENSING PROPORTI	8-97070-721-0	01	1	0211-	●	●
1	04.730 VALVE ASM; LOAD SENSING PROPORTI	8-94368-455-2	01	1	0211-			●
12	04.730 BOLT; BRKT 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0512	●	●	●
12	04.730 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●
13	04.730 NUT; LSPV TO BRKT 07.633 M8 FLANGE	0-91150-108-0	04	1	0211-0602	●	●	●
13	04.730 NUT; LSPV TO BRKT 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
27	04.730 BRACKET; SHACKLE TO AXLE (B)	8-97165-495-0	01	1	0211-0610	●	●
27	04.730 BRACKET; SHACKLE TO AXLE (B)	8-98029-821-0	01	1	0611-	●	●
27	04.730 BRACKET; SHACKLE TO AXLE (A)	8-97165-499-0	01	1	0211-0610			●
27	04.730 BRACKET; SHACKLE TO AXLE (A)	8-98029-822-0	01	1	0611-			●
29	04.710 NUT; SHACKLE 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●	●
29	04.710 NUT; SHACKLE 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
31	04.710 WASHER; LK,SHACKLE 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0211-0605	●	●	●
31	04.710 WASHER; LK,SHACKLE 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●	●
63	04.710 BOLT; LSPV 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0211-0512	●	●	●
63	04.710 BOLT; LSPV 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●	●
108	04.710 SHACKLE; LSPV	8-97173-366-0	01	1	0211-	●	●	●
109	04.710 COLLAR; LSPV	8-97139-186-0	01	1	0211-	●	●	●
110	04.710 BUSHING; LSPV	8-97145-631-0	02	1	0211-	●	●	●
118	04.710 SCREW; BLEEDER,LSPV 04.685	8-97093-663-0	01	1	0211-	●	●	●
119	04.710 CAP; BLEEDER SCREW,LSPV 04.685	8-97093-662-0	01	1	0211-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
