Isuzu WW
▶
TRUCKS
▶
NKR
▶
51279 - NKR AUSTRALIA
▶
3 - Brakes, Brake System
▶
3-21 - VACUUM TANK
▶

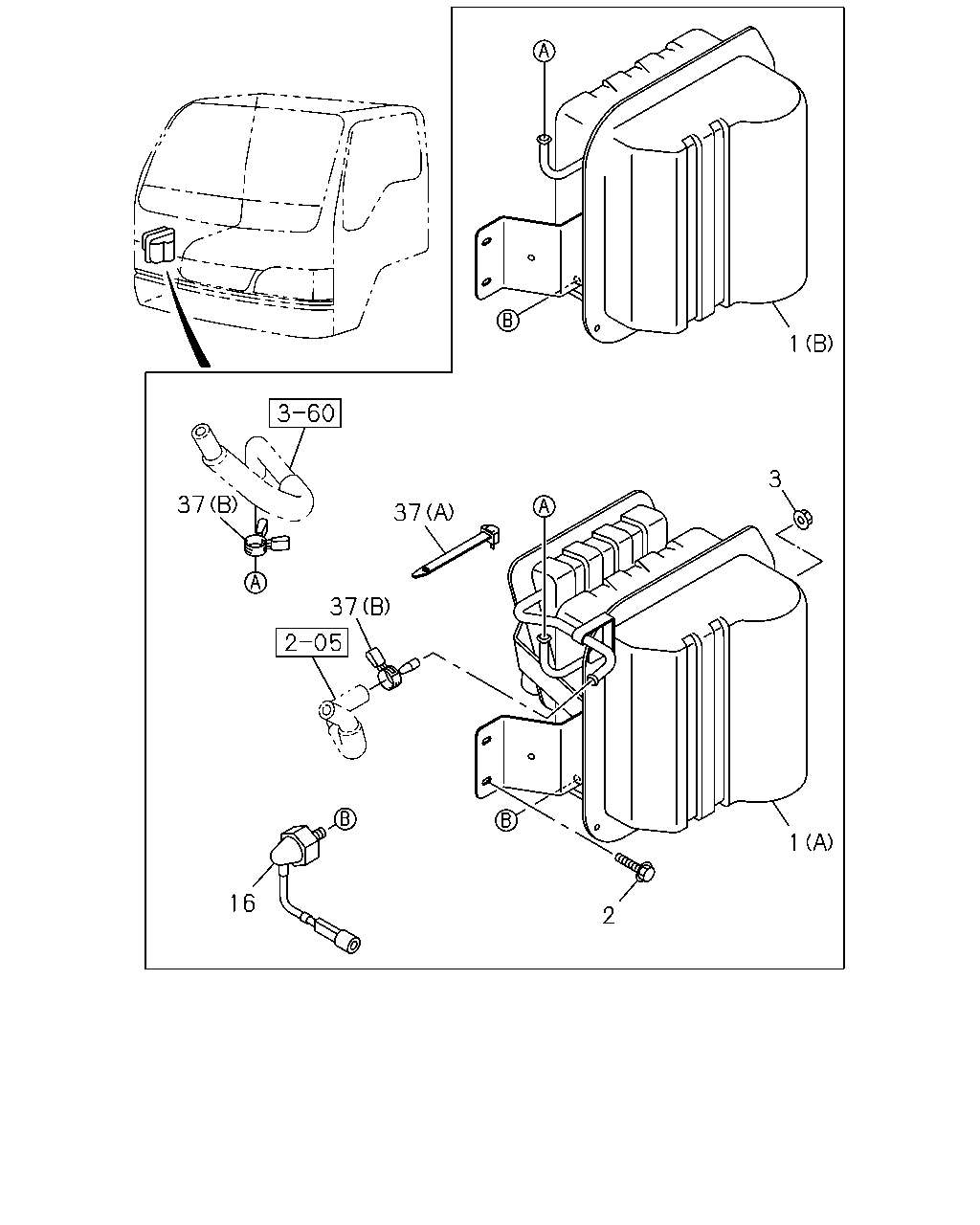

3-21 — VACUUM TANK
(#37521) — 11 parça
Tümü
A - NKC5SC
B - NKC5SF
C - NKN5SC
1
37
3
37
37
1
16
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH<S2T> (A)
8-97062-399-5
01
1
0211-
●
●
●
1
04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH<S2T> (B)
8-97073-471-4
01
1
0211-
●
●
●
2
04.902 BOLT; VAC TANK
02.664 M8X20 FLANGE
0-28680-820-0
02
1
0211-0512
●
●
●
2
04.902 BOLT; VAC TANK
01.531 M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
●
●
3
04.902 NUT; VAC TANK TO BRKT
07.633 M8 FLANGE
0-91150-108-0
02
1
0211-0212
●
●
●
3
04.902 NUT; VAC TANK TO BRKT
07.633 M8 FLANGE
0-91150-108-0
01
1
0301-0602
●
●
●
3
04.902 NUT; VAC TANK TO BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
0603-
●
●
●
16
04.906 SWITCH; VAC
8-97073-374-1
01
1
0211-
●
●
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH<S2T> 02.559 (A) L=219.5
1-09987-136-0
01
1
0211-
●
●
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH<S2T> 04.930 (B) ID=16
8-94238-568-0
02
1
0211-
●
●
●
37
04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH<S2T> 04.930 (B) ID=16
8-94238-568-0
01
1
0211-
●
●
●
