Isuzu WW
▶
TRUCKS
▶
NKR
▶
51279 - NKR AUSTRALIA
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#37519) — 34 parça
Tümü
A - NKC5SC
B - NKC5SF
C - NKN5SC
◀
[311A] FIXING PARTS (8 parça)
[311A] STEM AND CABLE (26 parça)
▶
324
236
225
91
224
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
91
04.785 CLIP; PARKING BRK CABLE
00.799 ID=13 L=20
1-09701-138-1
01
1
0211-
●
●
●
224
04.785 BOLT; CABLE CLIP
03.405 M10X25 FLANGE
0-28681-025-0
01
1
0211-0512
●
●
●
224
04.785 BOLT; CABLE CLIP
00.029 M10X25 FLANGE
0-28651-025-0
01
1
0601-
●
●
●
225
04.785 NUT; CABLE CLIP
M10 FLANGE
0-91150-110-0
01
1
0211-0602
●
●
●
225
04.785 NUT; CABLE CLIP
03.162 M10 FLANGE
0-91180-110-0
01
1
0603-
●
●
●
236
04.785 BOLT; BRKT TO FRAME
02.559 M8X25 FLANGE
0-28680-825-0
02
1
0211-0512
●
●
●
236
04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE
0-28650-825-0
02
1
0601-
●
●
●
324
04.785 BRACKET
8-97289-364-0
01
1
0211-
●
●
●

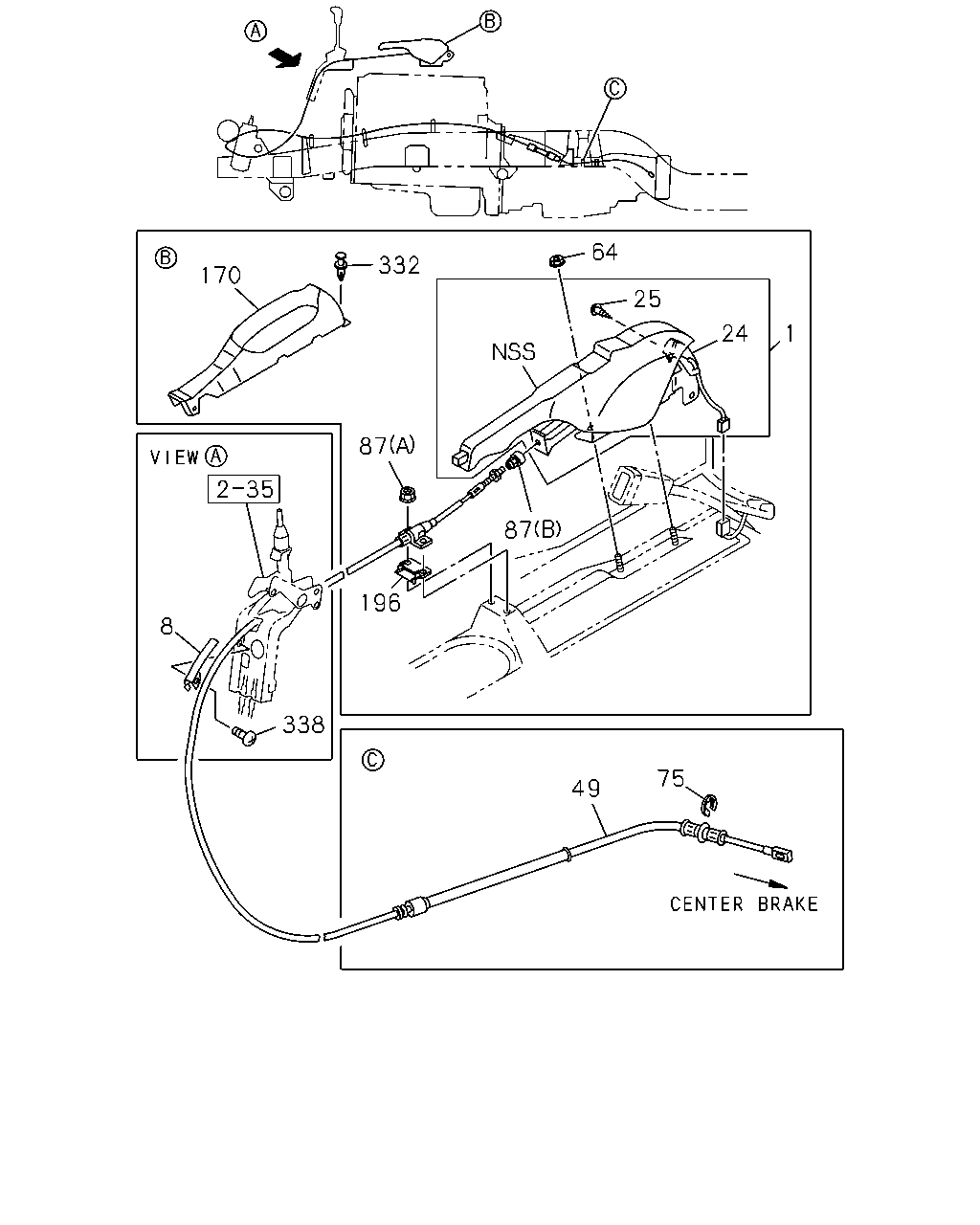

64
332
170
25
24
1
87
196
8
338
75
49
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
04.592 STEM ASM; PARKING BRK
DARK GRAY
8-97996-542-2
01
1
0211-0501
●
●
●
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97582-333-2
01
1
0502-0610
●
●
●
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97409-386-0
01
1
0611-1305
●
●
●
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97427-545-0
01
1
1306-
●
●
●
8
04.592 GUIDE; PARKING BRK
8-97190-672-0
01
1
0211-
●
●
●
24
04.589 SWITCH ASM; PARK BRK
8-97995-828-1
01
1
0211-1305
●
●
●
24
04.589 SWITCH ASM; PARK BRK
8-98238-611-0
01
1
1306-
●
●
●
25
04.589 SCREW; SW,PARKING BRK
8-98152-463-0
01
1
0211-
●
●
●
49
04.779 CABLE; PARKING BRK
8-97350-539-0
01
1
0211-
●
●
●
64
04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER
8-94327-073-0
02
1
0211-0610
●
●
●
64
04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE
0-91380-008-0
02
1
0611-
●
●
●
75
04.790 RING; SNAP,HAND BRK CABLE
04.681 ID=12
9-09185-412-0
01
1
0211-0604
●
●
●
75
04.790 RING; SNAP,HAND BRK CABLE
ID=12
0-91805-512-0
01
1
0605-
●
●
●
87
04.785 NUT
(B) M6
8-97088-730-1
01
1
0211-0310
●
●
●
87
04.785 NUT
(B) M6
1-71996-312-0
01
1
0311-0611
●
●
●
87
04.785 NUT
(B) M6
8-98034-313-1
01
1
0612-
●
●
●
87
04.785 NUT
07.633 (A) M8 FLANGE
0-91150-108-0
02
1
0211-0602
●
●
●
87
04.785 NUT
01.062 (A) M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
●
170
04.595 COVER; PARKING BRK LEVER
DARK GRAY
8-97155-172-0
01
1
0211-0501
●
●
●
170
04.595 COVER; PARKING BRK LEVER
GRAY
8-97396-940-1
01
1
0502-0702
●
●
●
170
04.595 COVER; PARKING BRK LEVER
GRAY
8-97409-480-0
01
1
0703-
●
●
●
196
04.784 SPACER; CABLE TO LEVER
8-97066-277-2
01
1
0211-0611
●
●
●
196
04.784 SPACER; CABLE TO LEVER
8-98034-201-0
01
1
0612-
●
●
●
332
04.785 CLIP; COVER
03.602 D6X12.5
8-94146-425-0
01
1
0211-
●
●
●
338
04.785 SCREW; GUIDE
16.270 M6X10
9-03497-610-0
01
1
0211-0604
●
●
●
338
04.785 SCREW; GUIDE
M6X10
0-34218-610-0
01
1
0605-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
