◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51279 - NKR AUSTRALIA ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#37516) — 108 parça

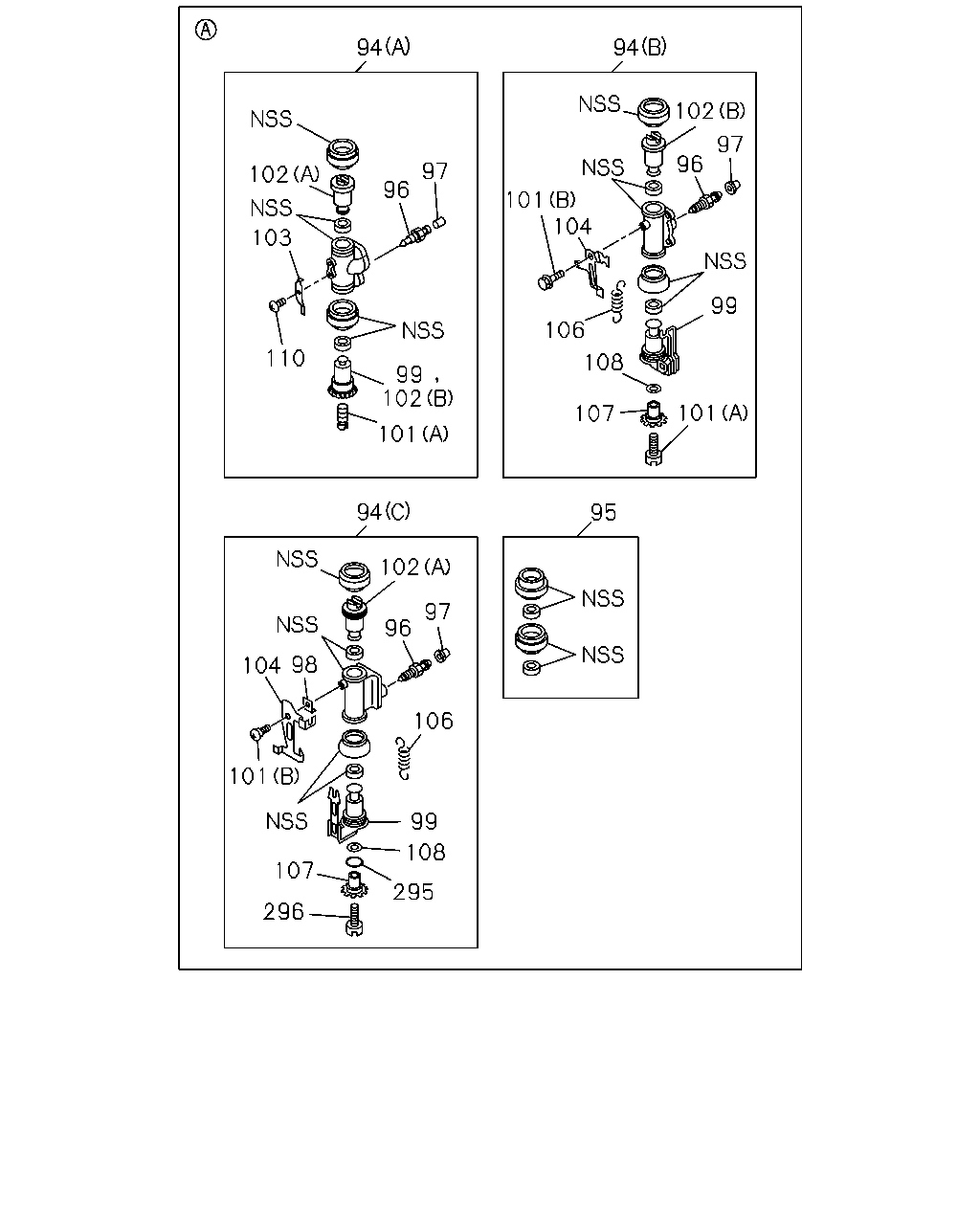

çizim 19031
94 94 102 97 96 97 102 96 101 104 103 99 106 110 108 99 102 101 107 101 94 95 102 97 96 98 104 106 101 99 108 107 295 296
BalonParca AdiParca NoAdetTipApplied Date A B C
94 04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT 		8-97349-692-0 01 1 0502- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
(C) FRONT 		8-97208-389-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) FRONT 		8-97179-350-0 01 1 0211-0501 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) REAR 		8-97349-689-0 01 1 0502- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) REAR 		8-97179-351-0 01 1 0211-0501 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) REAR 		8-97349-690-0 01 1 0502- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) 		8-97179-352-0 02 1 0211-0501 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT 		8-97349-691-0 01 1 0502- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) FRONT 		8-97179-347-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(C) FRONT 		8-97191-722-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) REAR 		8-97179-348-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(C) REAR 		8-97191-723-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) 		8-97179-349-0 02 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(C) REAR 		8-97191-724-0 01 1 0502- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-776-0 01 1 0502- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-621-0 01 1 0211-0501 ● ● ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-622-0 01 1 0502- ● ●
96 04.666 SCREW; BLEEDER,RR BRK 8-97191-759-0 02 1 0502- ●
96 04.666 SCREW; BLEEDER,RR BRK 9-47615-027-0 01 1 0211-0501 ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK 9-47615-027-0 02 1 0502-0707 ● ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-476-0 02 1 0708- ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-97191-774-0 02 1 0502- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 01 1 0211-0501 ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 02 1 0502-0707 ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 02 1 0708- ● ●
98 04.669 SPRING; RR WHEEL CYL 8-97191-768-0 04 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-728-0 02 1 0502- ● ●
99 04.668 PISTON; RR WHEEL CYL 8-97191-730-0 02 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL 8-97078-622-0 03 1 0211-0501 ● ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-727-0 02 1 0502- ● ●
99 04.668 PISTON; RR WHEEL CYL
D=25.4 		8-94128-536-1 03 1 0211-0501 ●
99 04.668 PISTON; RR WHEEL CYL 8-97191-729-0 02 1 0502- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) M12X30.2 LH THREAD 		5-47622-004-1 02 1 0502- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(B) 		8-97349-747-0 04 1 0502- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
05.110 (A) 		8-97078-623-0 04 1 0211-0501 ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) M12X30.2 RH THREAD 		5-47622-003-1 02 1 0502- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
05.110 (A) 		5-47629-027-1 04 1 0211-0501 ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(B) 		8-97191-770-0 04 1 0502- ●
102 04.668 PISTON; REAR WHEEL CYL
(A) D=25.4 		8-94128-531-1 04 1 0211- ● ●
102 04.668 PISTON; REAR WHEEL CYL
(A) D=25.4 		8-94128-537-1 04 1 0211-0501 ●
102 04.668 PISTON; REAR WHEEL CYL
(A) 		8-97191-756-0 04 1 0502- ●
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97078-622-0 01 1 0211-0501 ● ●
102 04.668 PISTON; REAR WHEEL CYL
(B) D=25.4 		8-94128-536-1 01 1 0211-0501 ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 0211-0501 ● ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-487-0 04 1 0211-0501 ●
104 05.103 LEVER; ADJ 8-97349-743-0 02 1 0502- ● ●
104 05.103 LEVER; ADJ 8-97349-744-0 02 1 0502- ● ●
104 05.103 LEVER; ADJ 8-97191-741-0 02 1 0502- ●
104 05.103 LEVER; ADJ 8-97191-742-0 02 1 0502- ●
106 05.107 SPRING; ADJ LEVER 8-97349-745-0 04 1 0502- ● ●
106 05.107 SPRING; ADJ LEVER 8-97191-745-0 02 1 0502- ●
106 05.107 SPRING; ADJ LEVER 8-97191-746-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97349-737-0 02 1 0502- ● ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97349-739-0 02 1 0502- ● ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97191-749-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97191-750-0 02 1 0502- ●
108 05.110 WASHER; THRUST,GEAR ADJ 8-97029-304-0 04 1 0502- ● ●
108 05.110 WASHER; THRUST,GEAR ADJ 8-97191-762-0 04 1 0502- ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 0211-0501 ● ● ●
295 05.110 SEAL; DUST 8-97191-751-0 04 1 0502- ●
296 05.125 BOLT; ADJ,RR WHEEL CYL 8-97191-766-0 02 1 0502- ●
296 05.125 BOLT; ADJ,RR WHEEL CYL 8-97191-767-0 02 1 0502- ●

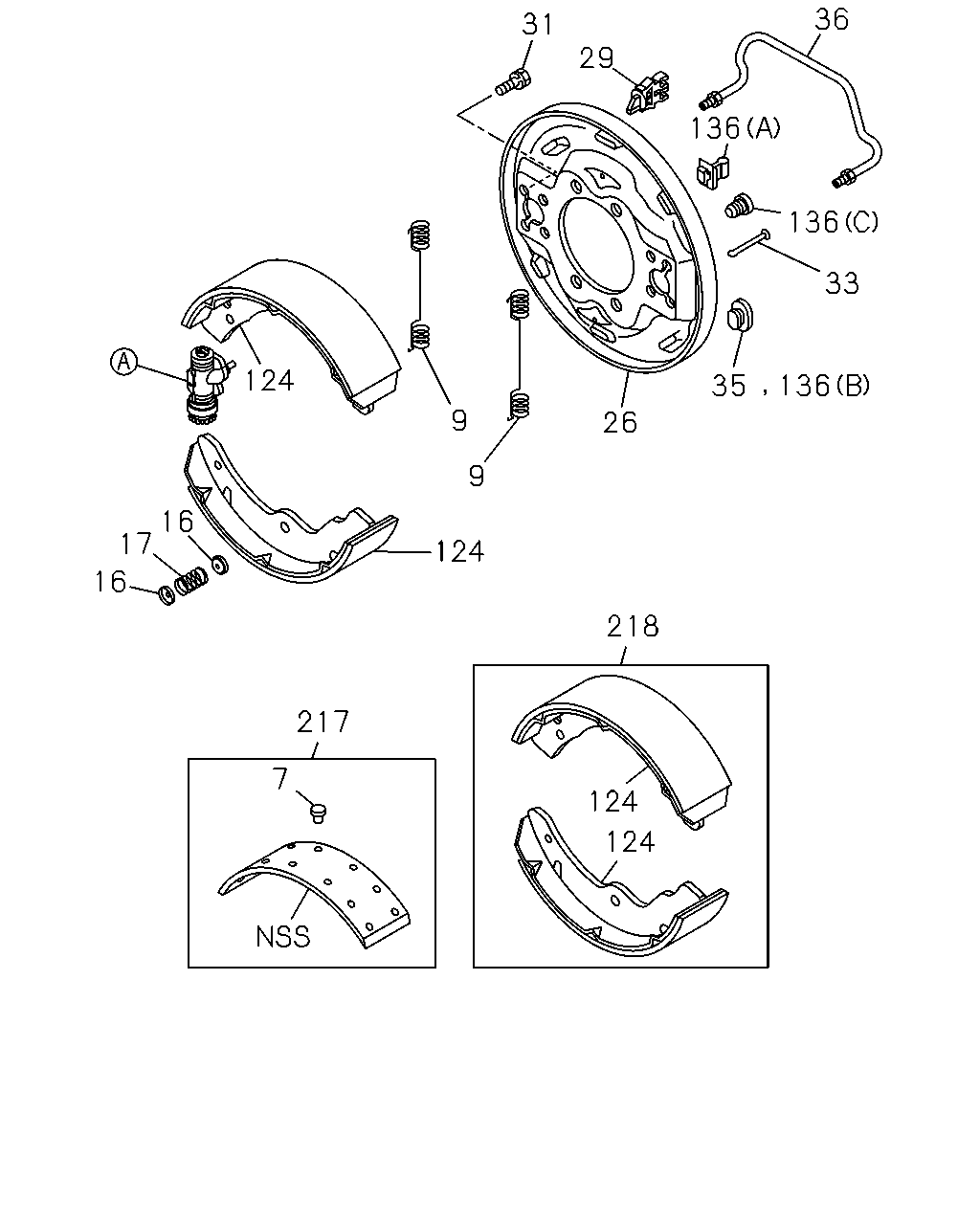

çizim 71545
36 31 29 136 136 33 124 136 35 9 26 9 16 17 124 16 218 217 7 124 124
BalonParca AdiParca NoAdetTipApplied Date A B C
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 40 1 0211- ● ●
9 05.026 SPRING; RETURN,BRK SHOE
FRONT 		8-97191-706-0 02 1 0502- ●
9 05.026 SPRING; RETURN,BRK SHOE 5-09583-118-0 04 1 0211- ● ●
9 05.026 SPRING; RETURN,BRK SHOE 5-47629-026-0 04 1 0211-0501 ●
9 05.026 SPRING; RETURN,BRK SHOE
REAR 		8-97191-705-0 02 1 0502- ●
16 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 0211- ● ●
16 05.043 CUP; SHOE HOLDING 9-47162-033-0 08 1 0211-0501 ●
16 05.043 CUP; SHOE HOLDING 8-97191-712-0 08 1 0502- ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		5-09580-101-1 04 1 0211- ● ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		9-09940-989-1 04 1 0211-0501 ●
17 04.043 SPRING; SHOE HOLD DOWN 8-97191-708-0 04 1 0502- ●
26 05.001 PLATE; BACK,RR BRK 8-97078-605-0 01 1 0211-0501 ● ●
26 05.001 PLATE; BACK,RR BRK 8-97079-854-0 01 1 0502- ● ●
26 05.001 PLATE; BACK,RR BRK 8-97078-606-0 01 1 0211-0501 ● ●
26 05.001 PLATE; BACK,RR BRK 8-97079-855-0 01 1 0502- ● ●
26 05.001 PLATE; BACK,RR BRK 8-97080-786-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK 8-97239-297-0 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK 8-97080-787-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK 8-97239-298-0 01 1 0502- ●
29 04.685 CLIP; PIPE,BRK 8-97191-703-0 02 1 0502- ●
29 04.685 CLIP; PIPE,BRK 8-94128-306-0 02 1 0211- ● ●
31 04.665 BOLT; RR WHEEL CYL 8-97192-214-0 16 1 0502- ●
31 04.665 BOLT; RR WHEEL CYL 5-09030-016-1 16 1 0211-0501 ● ● ●
31 04.665 BOLT; RR WHEEL CYL 5-09030-016-1 16 1 0502- ● ●
33 05.043 PIN; SHOE HOLD DOWN 5-47162-001-0 04 1 0211- ● ●
33 05.043 PIN; SHOE HOLD DOWN
L=52 		9-47162-045-0 04 1 0211-0501 ●
33 05.043 PIN; SHOE HOLD DOWN 8-97191-710-0 04 1 0502- ●
35 05.002 GROMMET; CHECK HOLE 8-97191-720-0 02 1 0502- ●
35 05.002 GROMMET; CHECK HOLE 8-94171-287-0 02 1 0211-0501 ● ● ●
35 05.002 GROMMET; CHECK HOLE 8-94171-287-0 02 1 0502- ● ●
36 04.685 PIPE; OIL,RR BRK 8-94128-190-3 01 1 0211-0501 ●
36 04.685 PIPE; OIL,RR BRK 8-94154-916-0 02 1 0211- ● ●
36 04.685 PIPE; OIL,RR BRK 8-94128-191-3 01 1 0211-0501 ●
36 04.685 PIPE; OIL,RR BRK 8-97191-701-0 02 1 0502- ●
124 05.017 SHOE ASM; BRK,RR 8-97287-778-0 04 1 0211- ● ●
124 05.017 SHOE ASM; BRK,RR 8-97035-083-1 04 1 0211-0501 ●
124 05.017 SHOE ASM; BRK,RR 8-97171-439-0 04 1 0502- ●
136 05.002 GROMMET
04.670 (C) 		1-47154-008-0 04 1 0502- ● ●
136 05.002 GROMMET
(B) 		8-97191-718-0 04 1 0502- ●
136 05.002 GROMMET
(A) 		9-09756-034-0 04 1 0211-0501 ● ● ●
136 05.002 GROMMET
(B) 		8-94171-287-0 04 1 0502- ● ●
217 05.018 LINING KIT; RR BRK 5-87831-801-0 01 1 0211- ● ●
217 05.018 LINING KIT; RR BRK
BEST VALUE PARTS 		5-87610-121-0 01 1 0211- ● ●
218 05.017 SHOE KIT; BRK,RR 5-87832-047-0 01 1 0211- ● ●
218 05.017 SHOE KIT; BRK,RR 5-87832-087-0 01 1 0211-0501 ●
218 05.017 SHOE KIT; BRK,RR 5-87832-109-0 01 1 0502- ●
