◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51279 - NKR AUSTRALIA ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#37514) — 60 parça
çizim 19030
66 66 72
BalonParca AdiParca NoAdetTipApplied Date A B C
66 05.815 BOLT; OIL SHIELD COVER
(C) M14X43 		8-97168-638-1 06 1 0502- ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M12X33 		9-09600-043-3 08 1 0211-0501 ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X23.5 		8-97168-637-0 02 1 0502-0611 ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X23.5 		8-97359-814-0 02 1 0612- ● ● ●
72 05.815 NUT; OIL SHIELD COVER
04.634 M12 		9-99110-512-0 08 1 0211-0501 ● ● ●
72 05.815 NUT; OIL SHIELD COVER
07.347 M14 FLANGE 		8-97167-635-0 06 1 0502-0611 ● ● ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 0612- ● ● ●

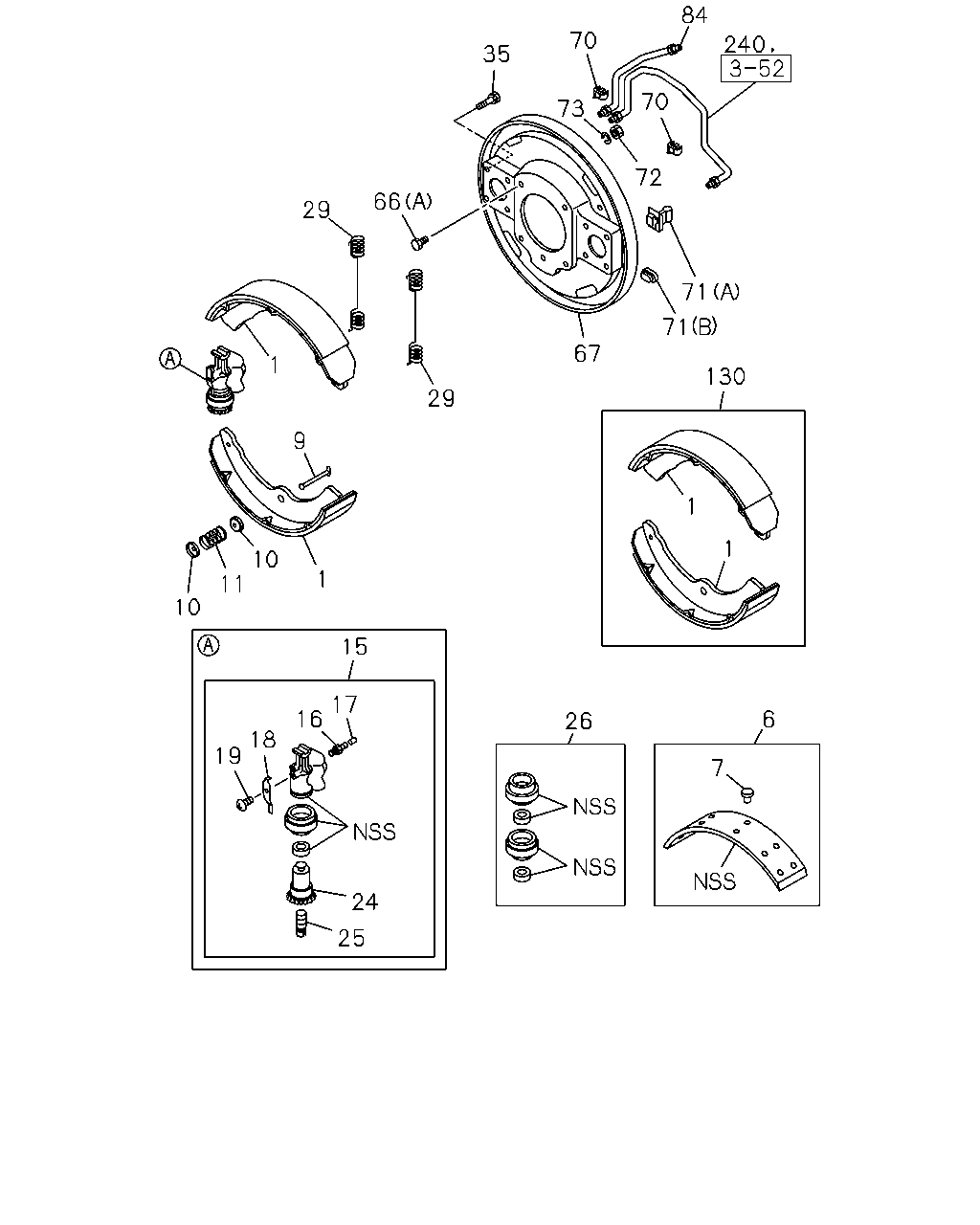

çizim 69451
84 70 240 35 70 73 72 66 29 71 71 67 1 130 29 9 1 1 10 1 11 10 15 17 16 6 26 18 19 7 24 25
BalonParca AdiParca NoAdetTipApplied Date A B C
1 05.017 SHOE; BRK,FRT 8-97287-778-0 04 1 0211-0501 ● ●
1 05.017 SHOE; BRK,FRT 8-97035-085-1 04 1 0211-0501 ●
6 05.018 LINING KIT; FRT BRK 5-87831-801-0 01 1 0211-0501 ● ●
6 05.018 LINING KIT; FRT BRK
BEST VALUE PARTS 		5-87610-121-0 01 1 0211-0501 ● ● ●
7 05.019 RIVET; LINING,FRT BRK 1-09732-029-0 40 1 0211-0501 ● ●
9 05.026 PIN; SHOE HOLDER
05.043 		5-47162-001-0 04 1 0211-0501 ● ●
9 05.026 PIN; SHOE HOLDER
05.043 		9-47162-607-0 04 1 0211-0501 ●
10 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 0211-0501 ● ●
10 05.043 CUP; SHOE HOLDING 9-47162-033-0 08 1 0211-0501 ●
11 05.027 SPRING; SHOE HOLDING
05.043 		5-09580-101-1 04 1 0211-0501 ● ●
11 05.027 SPRING; SHOE HOLDING
05.043 		9-09940-989-1 04 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97170-950-0 01 1 0211-0501 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97170-951-0 01 1 0211-0501 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR 		8-97170-952-0 01 1 0211-0501 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR 		8-97170-953-0 01 1 0211-0501 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR 		8-97179-357-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR 		8-97179-358-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97179-359-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97179-360-0 01 1 0211-0501 ●
16 04.666 SCREW; BLEEDER,FRT BRK 9-47615-027-0 02 1 0211-0501 ● ● ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL 1-47619-009-0 02 1 0211-0501 ● ● ●
18 05.107 STOPPER; ADJ SCREW 8-94128-486-0 04 1 0211-0501 ● ● ●
19 05.107 SCREW; STOPPER SETTING 8-94128-727-0 04 1 0211-0501 ● ● ●
24 04.668 PISTON; FRT WHEEL CYL 8-97078-621-0 04 1 0211-0501 ● ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL 8-97078-623-0 04 1 0211-0501 ● ● ●
26 04.667 CUP SET; FRT WHEEL CYL 5-87831-602-0 01 1 0211-0501 ● ● ●
29 05.026 SPRING; RETURN,FRT BRK SHOE 5-09583-118-0 04 1 0211-0501 ● ●
29 05.026 SPRING; RETURN,FRT BRK SHOE 8-97078-739-0 04 1 0211-0501 ●
35 04.665 BOLT; FRT WHEEL CYL 5-09030-016-1 16 1 0211-0501 ● ●
35 04.665 BOLT; FRT WHEEL CYL 5-09030-036-1 16 1 0211-0501 ●
66 05.815 BOLT; OIL SHIELD COVER
(C) M14X43 		8-97168-638-1 06 1 0502- ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M12X33 		9-09600-043-3 08 1 0211-0501 ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X23.5 		8-97168-637-0 02 1 0502-0611 ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X23.5 		8-97359-814-0 02 1 0612- ● ● ●
67 05.001 PLATE; BACK,FRT BRK 8-97302-588-0 01 1 0211-0501 ● ●
67 05.001 PLATE; BACK,FRT BRK 8-97302-589-0 01 1 0211-0501 ● ●
67 05.001 PLATE; BACK,FRT BRK 8-97302-584-0 01 1 0211-0501 ●
67 05.001 PLATE; BACK,FRT BRK 8-97302-585-0 01 1 0211-0501 ●
70 04.685 CLIP; PIPE HOLD 8-94128-306-0 02 1 0211-0501 ● ●
70 04.685 CLIP; PIPE HOLD 8-94128-306-0 04 1 0211-0501 ●
71 05.002 GROMMET; CHECK HOLE
(B) 		8-94171-287-0 02 1 0211-0501 ● ● ●
71 05.002 GROMMET; CHECK HOLE
(A) 		9-09756-034-0 02 1 0211-0501 ● ● ●
72 05.815 NUT; OIL SHIELD COVER
04.634 M12 		9-99110-512-0 08 1 0211-0501 ● ● ●
72 05.815 NUT; OIL SHIELD COVER
07.347 M14 FLANGE 		8-97167-635-0 06 1 0502-0611 ● ● ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 0612- ● ● ●
73 05.815 WASHER; LK,OIL SHIELD COVER
06.515 ID=12.2 		9-09150-612-0 08 1 0211-0501 ● ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-94154-917-0 01 1 0211-0501 ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-94154-918-0 01 1 0211-0501 ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97019-224-0 01 1 0211-0501 ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97019-225-0 01 1 0211-0501 ●
130 05.017 SHOE KIT; BRK,FRT 5-87832-047-0 01 1 0211-0501 ● ●
130 05.017 SHOE KIT; BRK,FRT 5-87832-045-0 01 1 0211-0501 ●
240 04.685 PIPE; OIL,FRT BRK 8-94154-916-0 02 1 0211-0501 ● ●
