2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#37512) — 101 parça

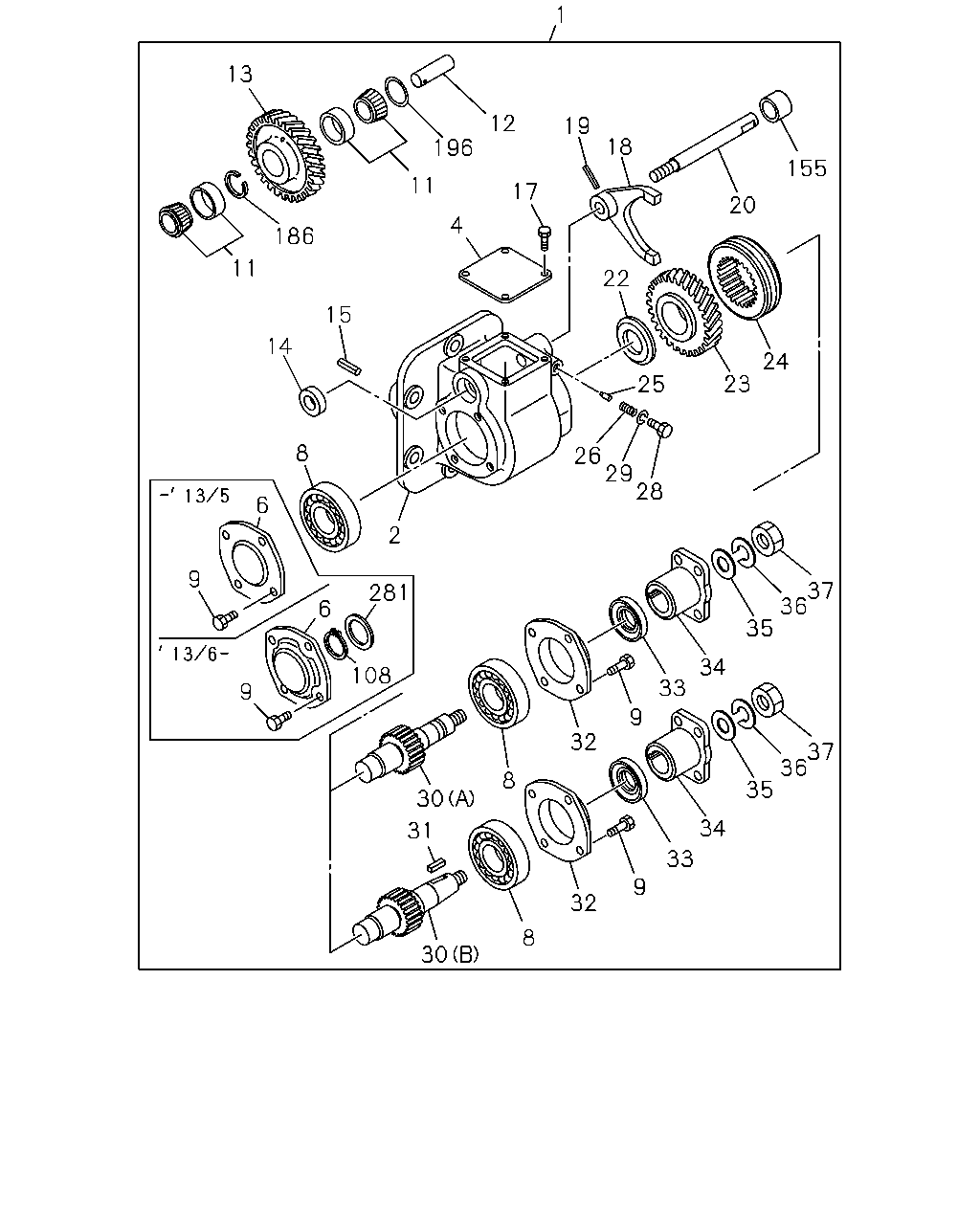

çizim 19029
1 155 20 24 23 25 22 18 19 12 196 11 13 186 11 14 15 4 17 2 26 29 28 37 36 35 34 33 9 32 8 30 31 8 30 32 9 33 34 35 36 37 6 8 9 6 281 108 9
BalonParca AdiParca NoAdetTipApplied Date
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG 		8-97286-908-3 01 1 0211-0501
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG 		8-97286-908-7 01 1 0502-1210
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG 		8-98223-523-0 01 1 1211-1305
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG 		8-98233-783-1 01 1 1306-
2 04.439 CASE; GEAR,TRANS SIDE PTO
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 		8-97308-689-2 01 1 0211-0501
2 04.439 CASE; GEAR,TRANS SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		8-97308-689-2 01 1 0502-1409
2 04.439 CASE; GEAR,TRANS SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		8-98282-381-0 01 1 1410-
4 04.439 COVER; UPR,TRANS SIDE PTO
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 		8-97106-718-1 01 1 0211-0501
4 04.439 COVER; UPR,TRANS SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		8-97106-718-1 01 1 0502-0511
4 04.439 COVER; UPR,TRANS SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		8-98046-613-0 01 1 0512-
6 04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 		9-38151-604-0 01 1 0211-0402
6 04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 		8-97333-347-0 01 1 0403-0501
6 04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		8-97333-347-0 01 1 0502-0511
6 04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		8-98046-612-0 01 1 0512-1305
6 04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		8-98233-778-0 01 1 1306-
8 04.439 BEARING; OUTPUT SHAFT,TRANS SIDE
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) ID=25 OD=62 		8-94343-031-1 02 1 0211-0501
8 04.439 BEARING; OUTPUT SHAFT,TRANS SIDE
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) ID=25 OD=62 		8-94343-031-1 02 1 0502-
9 04.439 BOLT; OUTPUT SHAFT COVER,TRANS S
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE 		0-28680-825-0 08 1 0211-0501
9 04.439 BOLT; OUTPUT SHAFT COVER,TRANS S
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE 		0-28680-825-0 08 1 0502-0511
9 04.439 BOLT; OUTPUT SHAFT COVER,TRANS S
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 04.338 M8X20 FLANGE 		0-28050-820-0 08 1 0512-
11 04.439 BEARING; IDLE GEAR,TRANS SIDE PT
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) NSK 		8-97106-734-0 02 1 0211-0501
11 04.439 BEARING; IDLE GEAR,TRANS SIDE PT
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) NSK 		8-97106-734-0 02 1 0502-
12 04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 		9-38211-606-0 01 1 0211-0501
12 04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		9-38211-606-0 01 1 0502-
13 04.439 GEAR; IDLE,TRANS SIDE PTO
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) Z=31 		8-97308-700-0 01 1 0211-0501
13 04.439 GEAR; IDLE,TRANS SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) Z=31 		8-97308-700-0 01 1 0502-
14 04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 		9-09724-015-0 01 1 0211-0501
14 04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		9-09724-015-0 01 1 0502-0509
14 04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		8-98028-789-0 01 1 0510-
15 04.439 PIN; SPR,TRANS SIDE PTO
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) L=16 		9-09878-613-0 01 1 0211-0501
15 04.439 PIN; SPR,TRANS SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) L=16 		9-09878-613-0 01 1 0502-
17 04.439 BOLT; UPR COVER,TRANS SIDE PTO
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0211-0501
17 04.439 BOLT; UPR COVER,TRANS SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0502-0511
17 04.439 BOLT; UPR COVER,TRANS SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0512-
18 04.439 ARM; GEAR SHIFT,TRANS SIDE PTO
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 		8-97224-702-0 01 1 0211-0501
18 04.439 ARM; GEAR SHIFT,TRANS SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		8-97224-702-0 01 1 0502-
19 04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 04.303 L=25 OD=5 		8-94135-771-0 01 1 0211-0501
19 04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 04.303 L=25 OD=5 		8-94135-771-0 01 1 0502-
20 04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 		8-97308-707-0 01 1 0211-0501
20 04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		8-97308-707-0 01 1 0502-0511
20 04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		8-98046-623-0 01 1 0512-
22 04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 		9-38245-603-1 01 1 0211-0501
22 04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		9-38245-603-1 01 1 0502-
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) Z=27 		8-97308-714-0 01 1 0211-0501
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) Z=27 		8-97308-714-0 01 1 0502-0805
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) Z=27 		8-98120-609-0 01 1 0806-
24 04.439 SLEEVE; DOG CLU,TRANS SIDE PTO
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 		8-97231-316-0 01 1 0211-0501
24 04.439 SLEEVE; DOG CLU,TRANS SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		8-97231-316-1 01 1 0502-
25 04.439 PIN; LK,SIDE PTO
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 		8-94169-071-0 01 1 0211-0501
25 04.439 PIN; LK,SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		8-94169-071-0 01 1 0502-
26 04.439 SPRING; SHIFTER ROD,TRANS SIDE P
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 		9-09940-380-0 01 1 0211-0501
26 04.439 SPRING; SHIFTER ROD,TRANS SIDE P
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		9-09940-380-0 01 1 0502-
28 04.439 BOLT; SPRING,SIDE PTO
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 		8-97318-428-0 01 1 0211-0501
28 04.439 BOLT; SPRING,SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		8-97318-428-0 01 1 0502-0511
28 04.439 BOLT; SPRING,SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) M8 		8-98038-424-0 01 1 0512-
29 04.439 WASHER; LK,SPRING,SIDE PTO
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2 		9-09150-508-0 01 1 0211-0501
29 04.439 WASHER; LK,SPRING,SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2 		9-09150-508-0 01 1 0502-0511
29 04.439 WASHER; LK,SPRING,SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 02.559 ID=8.2 		0-91510-808-0 01 1 0512-
30 04.439 SHAFT; OUTPUT,TRANS SIDE PTO
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) (A) 		8-97118-183-1 01 1 0211-0501
30 04.439 SHAFT; OUTPUT,TRANS SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) (A) 		8-97118-183-1 01 1 0502-1210
30 04.439 SHAFT; OUTPUT,TRANS SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) (B) 		8-98223-518-0 01 1 1211-1305
30 04.439 SHAFT; OUTPUT,TRANS SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) (B) 		8-98233-777-0 01 1 1306-
31 04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) L=25 		8-98068-088-0 01 1 1211-
32 04.439 COVER; RR,OUTPUT SHAFT,TRANS SID
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 		8-97350-757-3 01 1 0211-0501
32 04.439 COVER; RR,OUTPUT SHAFT,TRANS SID
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		8-97350-757-3 01 1 0502-0511
32 04.439 COVER; RR,OUTPUT SHAFT,TRANS SID
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		8-97305-794-0 01 1 0512-
33 04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 		1-38159-007-0 01 1 0211-0501
33 04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		1-38159-007-0 01 1 0502-
34 04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 		8-97350-755-0 01 1 0211-0501
34 04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		8-97350-755-0 01 1 0502-0511
34 04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		8-98046-624-0 01 1 0512-1210
34 04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		8-98223-519-0 01 1 1211-
35 04.439 WASHER; PL,FLANGE FIX,TRANS SIDE
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 02.575 ID=15 		9-09160-514-0 01 1 0211-0501
35 04.439 WASHER; PL,FLANGE FIX,TRANS SIDE
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 02.575 ID=15 		9-09160-514-0 01 1 0502-0511
35 04.439 WASHER; PL,FLANGE FIX,TRANS SIDE
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 04.634 ID=15 		0-91610-514-0 01 1 0512-
36 04.439 WASHER; LK,FLANGE FIX,TRANS SIDE
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 00.796 ID=14.2 		9-09150-514-0 01 1 0211-0501
36 04.439 WASHER; LK,FLANGE FIX,TRANS SIDE
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 00.796 ID=14.2 		9-09150-514-0 01 1 0502-0511
36 04.439 WASHER; LK,FLANGE FIX,TRANS SIDE
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 06.174 ID=14.2 		0-91510-814-0 01 1 0512-
37 04.439 NUT; FLANGE FIX,TRANS SIDE PTO
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 06.172 M14 		9-99111-414-0 01 1 0211-0501
37 04.439 NUT; FLANGE FIX,TRANS SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 06.172 M14 		9-99111-414-0 01 1 0502-0511
37 04.439 NUT; FLANGE FIX,TRANS SIDE PTO
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 06.515 M14 		0-91111-514-0 01 1 0512-
108 04.439 RING; SNAP,OUTPUT SHAFT,TRANS SI
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 08.934 ID=23.2 		9-09180-025-0 01 1 1306-
155 04.439 PLUG; SHIFTER ROD
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 04.105 OD=24 L=31 		9-33545-011-0 01 1 0211-0402
155 04.439 PLUG; SHIFTER ROD
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 		8-97374-349-0 01 1 0403-0501
155 04.439 PLUG; SHIFTER ROD
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		8-97374-349-0 01 1 0502-0511
155 04.439 PLUG; SHIFTER ROD
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		8-98037-770-0 01 1 0512-
186 04.439 RING; SNAP,IDLE GEAR,TRANS SIDE
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 		8-97106-730-0 01 1 0211-0501
186 04.439 RING; SNAP,IDLE GEAR,TRANS SIDE
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 		8-97106-730-0 01 1 0502-
196 04.439 PIECE; THRUST
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) T=1.50 		8-97106-724-0 02 1 0211-0501
196 04.439 PIECE; THRUST
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) T=1.50 		8-97106-724-0 02 1 0502-
196 04.439 PIECE; THRUST
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) T=1.60 		8-97106-725-0 02 1 0211-0501
196 04.439 PIECE; THRUST
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) T=1.60 		8-97106-725-0 02 1 0502-
196 04.439 PIECE; THRUST
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) T=1.65 		8-97106-726-0 02 1 0211-0501
196 04.439 PIECE; THRUST
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) T=1.65 		8-97106-726-0 02 1 0502-
196 04.439 PIECE; THRUST
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) T=1.70 		8-97106-727-0 02 1 0211-0501
196 04.439 PIECE; THRUST
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) T=1.70 		8-97106-727-0 02 1 0502-
196 04.439 PIECE; THRUST
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) T=1.80 		8-97106-728-0 02 1 0211-0501
196 04.439 PIECE; THRUST
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) T=1.80 		8-97106-728-0 02 1 0502-
196 04.439 PIECE; THRUST
4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) T=1.85 		8-97106-729-0 02 1 0211-0501
196 04.439 PIECE; THRUST
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) T=1.85 		8-97106-729-0 02 1 0502-
281 04.439 SHIM; OUTPUT SHAFT
4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) T=1.85 		8-97106-729-0 01 1 1306-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
