2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#37510) — 62 parça

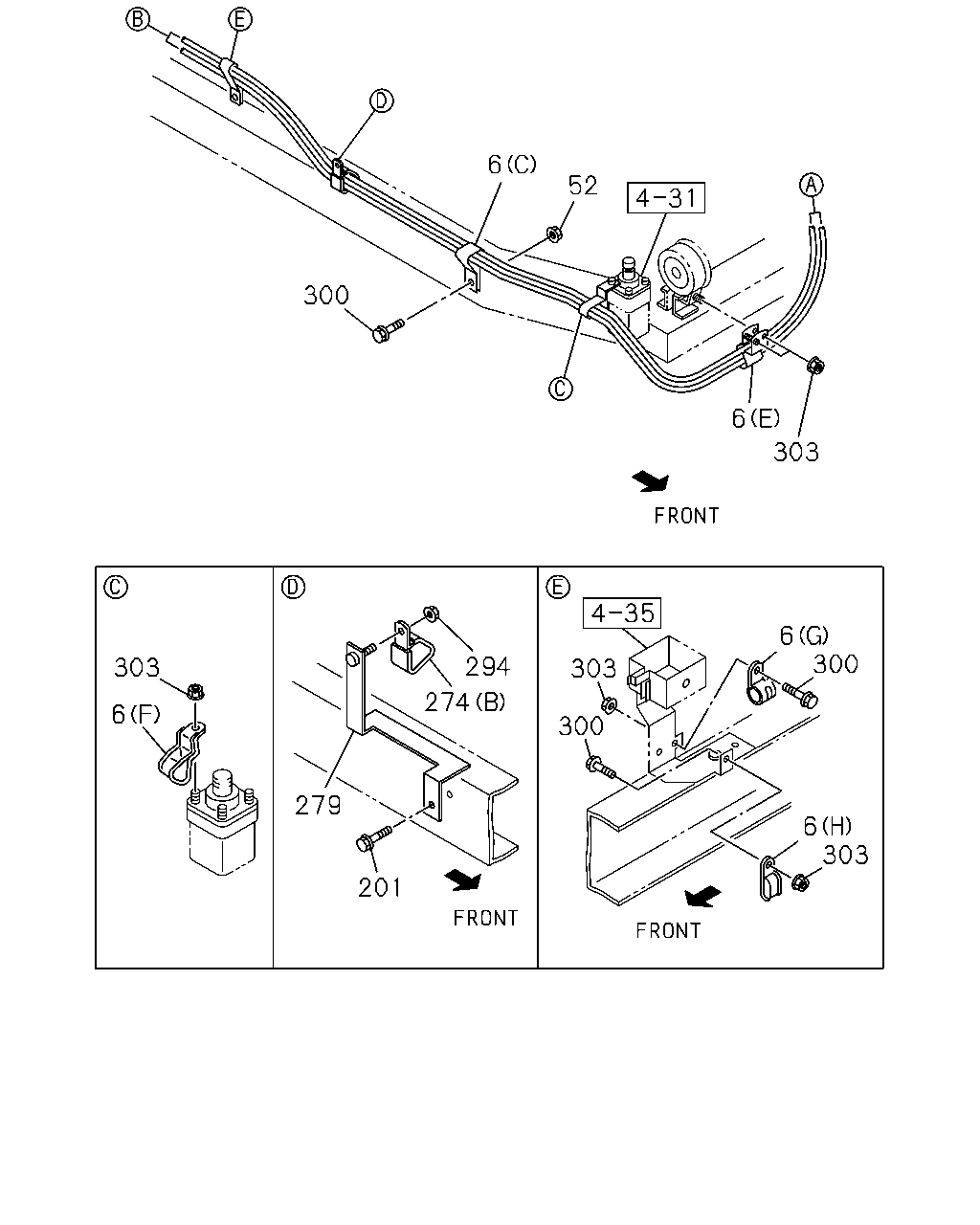

300 6 6 52 303 6 300 6 303 300 303 294 274 279 201 6 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	04.047 CLIP; CABLE 00.854 (D) ID=22.2	1-09701-209-1	01	1	0211-
6	04.047 CLIP; CABLE 04.686 (G) ID=21 L=24	8-94176-807-1	01	1	0211-
6	04.047 CLIP; CABLE 04.785 (H)	8-94458-385-1	01	1	0211-
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	0211-
6	04.047 CLIP; CABLE (C)	8-97036-333-1	01	1	0211-
6	04.047 CLIP; CABLE (F)	8-97036-334-2	01	1	0211-
6	04.047 CLIP; CABLE (E)	8-97147-985-0	01	1	0211-
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0211-
52	04.047 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501
201	04.032 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0512
201	04.032 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-
201	04.032 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501
274	04.008 CLIP; CONT CABLE 04.047 (B)	8-97036-333-1	01	1	0211-
274	04.008 CLIP; CONT CABLE EXC. MANUAL TILT CAB<RWZ> (A)	8-97093-491-1	01	1	0211-
279	04.047 BRACKET; CABLE TO FRAME	8-97351-828-0	01	1	0211-
294	00.854 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0602
294	00.854 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0512
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0512
300	00.854 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-
300	00.854 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-
300	00.854 BOLT; CLIP 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0512
300	00.854 BOLT; CLIP 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0602
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0602
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0602
303	00.855 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
303	00.855 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
303	00.855 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602
303	00.855 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-

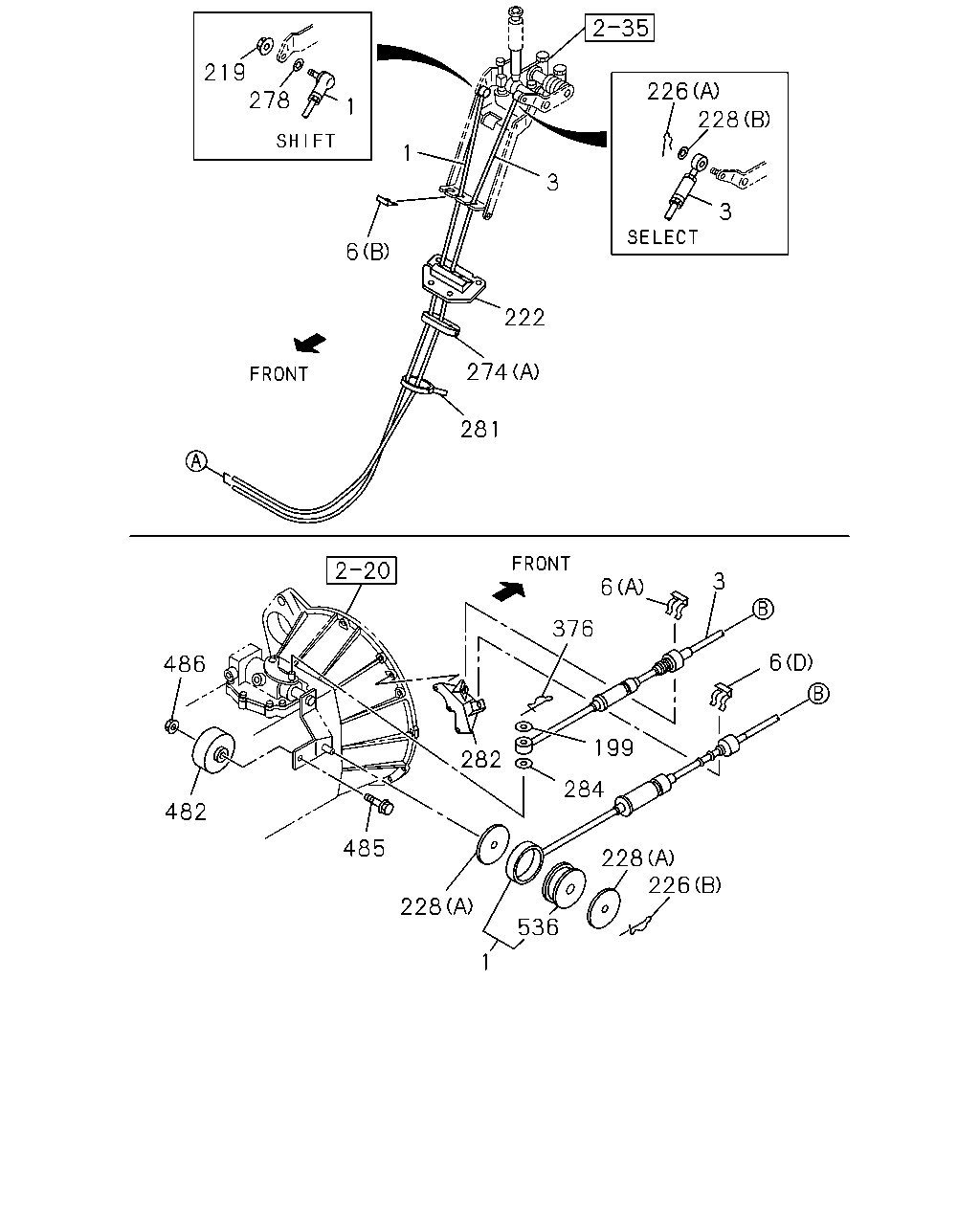

219 1 278 3 1 6 222 274 281 3 228 226 3 6 6 376 282 284 199 228 226 536 228 485 486 482 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.854 CABLE; SHIFT,TRANS CONT L=2805	8-97351-820-1	01	1	0211-
3	00.852 CABLE; SELECT,TRANS CONT L=2890	8-97351-822-0	01	1	0211-
6	04.047 CLIP; CABLE 00.854 (D) ID=22.2	1-09701-209-1	01	1	0211-
6	04.047 CLIP; CABLE 04.686 (G) ID=21 L=24	8-94176-807-1	01	1	0211-
6	04.047 CLIP; CABLE 04.785 (H)	8-94458-385-1	01	1	0211-
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	0211-
6	04.047 CLIP; CABLE (C)	8-97036-333-1	01	1	0211-
6	04.047 CLIP; CABLE (F)	8-97036-334-2	01	1	0211-
6	04.047 CLIP; CABLE (E)	8-97147-985-0	01	1	0211-
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0211-
199	04.012 WASHER; PL,SELECT 16.674 ID=8.4	9-09160-508-0	01	1	0211-0605
199	04.012 WASHER; PL,SELECT 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0606-
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	0211-
222	04.010 GROMMET; CABLE	8-97061-403-2	01	1	0211-
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0211-
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0211-
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0211-
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	0211-0605
228	04.047 WASHER; PL,SHIFT CABLE 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-
274	04.008 CLIP; CONT CABLE 04.047 (B)	8-97036-333-1	01	1	0211-
274	04.008 CLIP; CONT CABLE EXC. MANUAL TILT CAB<RWZ> (A)	8-97093-491-1	01	1	0211-
278	00.854 WASHER; LK,SHIFT WIRE 01.276 ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0211-0604
278	00.854 WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	0605-
281	04.042 CLIP; BAND 03.162 L=140	5-09707-031-1	01	1	0211-
282	04.010 BRACKET; TRANS SIDE	8-97350-449-0	01	1	0211-
284	00.854 WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0211-
376	04.047 PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0211-
482	04.047 WEIGHT; SHIFT CABLE	8-97066-730-2	01	1	0211-0305
485	04.047 BOLT; WEIGHT M12X60 FLANGE	0-28091-260-0	01	1	0211-0305
486	04.047 NUT; WEIGHT 06.509 M12 FLANGE	8-94436-194-0	01	1	0211-0305
536	00.854 DAMPER; CABLE	8-98097-681-0	01	1	0711-
