2-05B — CLUTCH PIPING (#3751) — 178 parça

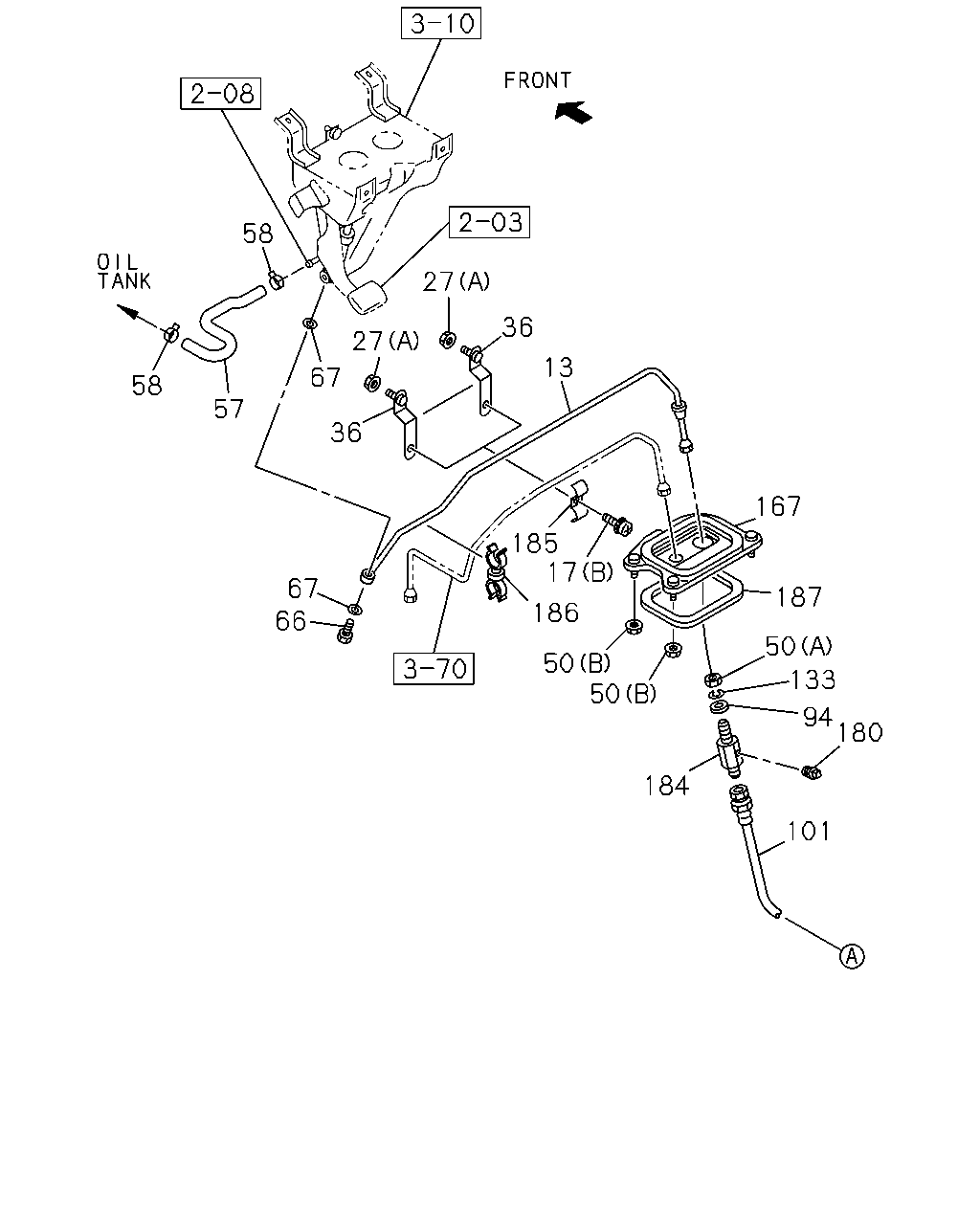

çizim 39756
58 27 36 27 13 67 58 57 36 167 185 17 67 66 187 186 50 50 50 133 94 180 184 101
BalonParca AdiParca NoAdetTipApplied Date A B
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL 1-47429-143-0 01 1 9601-9803 ●
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL 1-47429-143-0 01 1 9804-0607 ●
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL 1-47429-143-0 01 1 0608- ● ●
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ●
17 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9710 ●
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9711-9803 ●
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9804-0512 ●
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0607 ●
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0608- ● ●
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-9803 ●
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9804-0004 ●
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0607 ●
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0608- ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9601-9803 ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9804-0004 ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0005-0607 ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0608- ● ●
27 NUT; BRKT
(B) M8 		9-09110-408-0 02 1 9601-9606 ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 9607-9803 ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 9804-0602 ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603-0607 ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0608- ● ●
36 BRACKET; CLIP 1-79738-186-1 02 1 9601-9803 ●
36 BRACKET; CLIP 1-79738-186-1 02 1 9804-0004 ●
36 BRACKET; CLIP 1-79738-186-1 02 1 0005-0607 ●
36 BRACKET; CLIP 1-79738-186-1 02 1 0608- ● ●
50 NUT; UNION
(B) M8 FLANGE 		8-94279-517-0 03 1 9601-9611 ●
50 NUT; UNION
(B) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 9612-9803 ●
50 NUT; UNION
(B) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 9804-0004 ●
50 NUT; UNION
(B) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 0005-0607 ●
50 NUT; UNION
(B) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 0608- ● ●
50 NUT; UNION
(A) M14 		9-99111-414-0 01 1 9601-9803 ●
50 NUT; UNION
(A) M14 		9-99111-414-0 01 1 9804-0512 ●
50 NUT; UNION
(A) M14 		0-91111-514-0 01 1 0601-0607 ●
50 NUT; UNION
(A) M14 		0-91111-514-0 01 1 0608- ● ●
57 HOSE; CLU M/CYL TO OIL TANK 1-47427-312-0 01 1 9601-9803 ●
57 HOSE; CLU M/CYL TO OIL TANK 1-47427-312-0 01 1 9804-0607 ●
57 HOSE; CLU M/CYL TO OIL TANK 1-47427-312-0 01 1 0608- ● ●
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 9601-9803 ●
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 9804-0607 ●
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 0608- ● ●
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 9601-9803 ●
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 9804-0805 ●
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		8-98037-827-0 01 1 0806- ● ●
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9601-9803 ●
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9804-0607 ●
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0608-1312 ● ●
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
94 WASHER; PL,UNION
ID=15 		9-09160-514-0 01 1 9601-9803 ●
94 WASHER; PL,UNION
ID=15 		9-09160-514-0 01 1 9804-0605 ●
94 WASHER; PL,UNION
ID=15 		0-91610-514-0 01 1 0606-0607 ●
94 WASHER; PL,UNION
ID=15 		0-91610-514-0 01 1 0608- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		1-09364-859-0 01 1 9601-9803 ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		1-09364-859-1 01 1 9804-0703 ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		8-98072-326-0 01 1 0704- ● ●
133 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 9601-9803 ●
133 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 9804-0603 ●
133 WASHER; LK,UNION
ID=14.2 		0-91510-514-0 01 1 0604-0607 ●
133 WASHER; LK,UNION
ID=14.2 		0-91510-514-0 01 1 0608- ● ●
167 BRACKET; UNION 1-79738-204-2 01 1 9601-9803 ●
167 BRACKET; UNION 1-79738-204-2 01 1 9804-9911 ●
167 BRACKET; UNION 1-79738-845-0 01 1 9912-0004 ●
167 BRACKET; UNION 1-79738-845-1 01 1 0005-0607 ●
167 BRACKET; UNION 1-79738-845-1 01 1 0608- ● ●
180 PLUG; PIPE 9-09204-510-0 01 1 9601-9803 ●
180 PLUG; PIPE 9-09204-510-0 01 1 9804-0804 ●
184 UNION; FLEX HOSE
STRAIGHT 		1-09656-679-0 01 1 9601-9803 ●
184 UNION; FLEX HOSE
STRAIGHT 		1-09656-679-0 01 1 9804-0804 ●
184 UNION; FLEX HOSE
STRAIGHT 		1-09654-435-0 01 1 0805- ● ●
185 CLIP; BRKT
ID=5 & 8 		5-09700-165-0 02 1 9601-9803 ●
185 CLIP; BRKT
ID=5 & 8 		5-09700-165-0 02 1 9804-0004 ●
185 CLIP; BRKT
ID=5 & 8 		5-09700-165-0 02 1 0005-0607 ●
185 CLIP; BRKT
ID=5 & 8 		5-09700-165-0 02 1 0608- ● ●
186 HOLDER; CLIP
AIR SUSP DRIVER SEAT<A56> ID=4.75 & 6 		8-94165-403-0 01 1 9601-9706 ●
186 HOLDER; CLIP
AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8 		8-94313-325-0 01 1 9707-9803 ●
186 HOLDER; CLIP
AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8 		8-94313-325-0 01 1 9804-0004 ●
186 HOLDER; CLIP
AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8 		8-94313-325-0 01 1 0005-0607 ●
186 HOLDER; CLIP
AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8 		8-94313-325-0 01 1 0608- ● ●
187 SEAL; BRKT 1-79738-190-0 01 1 9601-9803 ●
187 SEAL; BRKT 1-79738-190-0 01 1 9804-0004 ●
187 SEAL; BRKT 1-79738-190-0 01 1 0005-0607 ●
187 SEAL; BRKT 1-79738-190-0 01 1 0608- ● ●

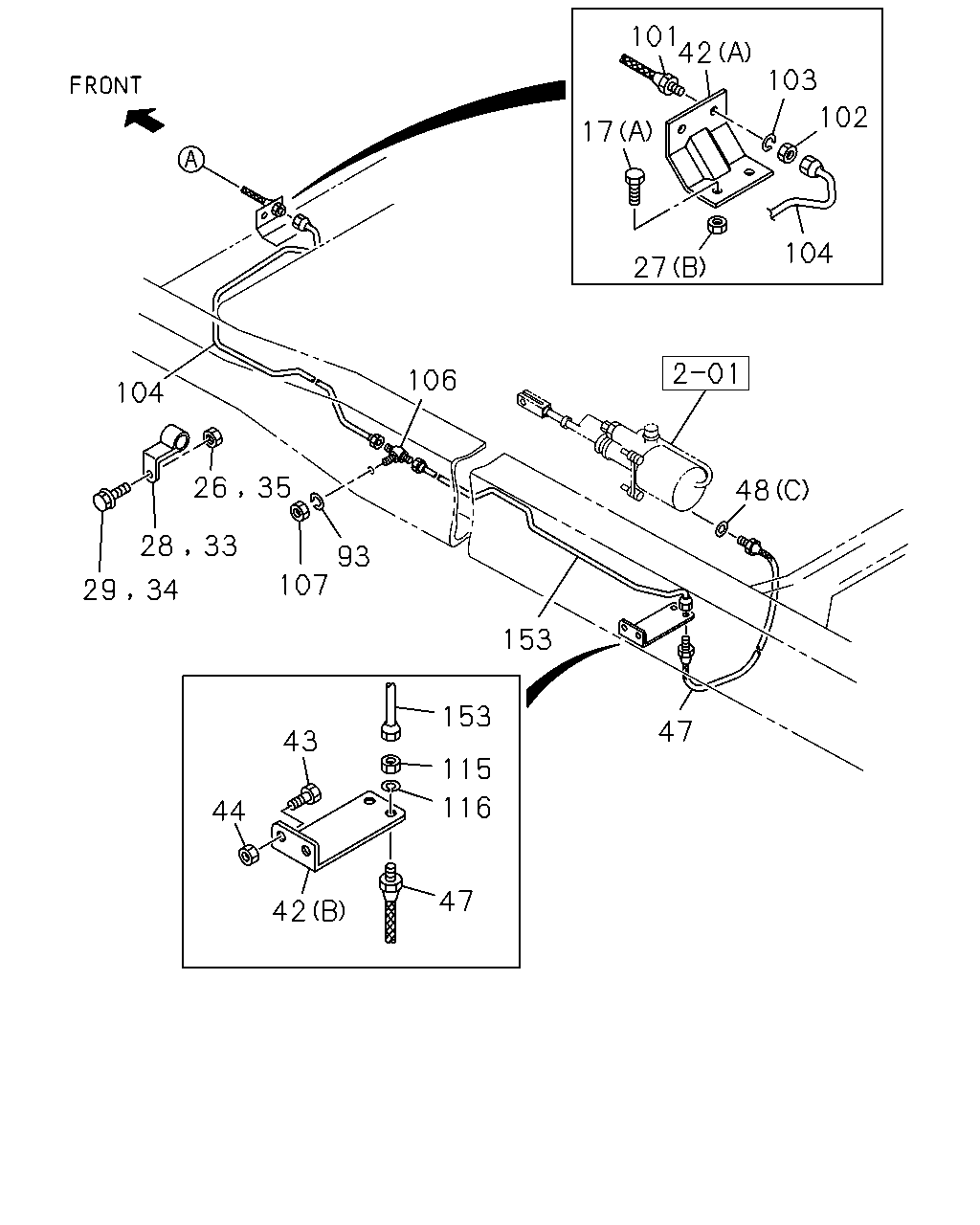

çizim 40437
101 42 103 102 17 104 27 106 104 26 35 48 28 33 93 107 29 34 153 153 47 43 115 116 44 47 42
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ●
17 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9710 ●
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9711-9803 ●
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9804-0512 ●
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0607 ●
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0608- ● ●
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-9803 ●
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9804-0004 ●
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0607 ●
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0608- ● ●
26 NUT; CLIP,OIL PIPE
M8 		9-09110-408-0 02 1 9601-9606 ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 02 1 9607-0602 ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9601-9803 ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9804-0004 ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0005-0607 ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0608- ● ●
27 NUT; BRKT
(B) M8 		9-09110-408-0 02 1 9601-9606 ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 9607-9803 ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 9804-0602 ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603-0607 ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0608- ● ●
28 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 02 1 9601- ●
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9803 ●
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 9804-0512 ●
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
33 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 03 1 9601-9803 ●
33 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 05 1 9804-9807 ●
33 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 03 1 9808-0607 ●
33 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 03 1 0608- ● ●
34 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28080-825-0 03 1 9601-9606 ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 03 1 9607-9803 ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 05 1 9804-9807 ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 03 1 9808-0512 ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 0601-0607 ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 0608- ● ●
35 NUT; PIPE CLIP
M8 		9-09110-408-0 03 1 9601-9606 ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9607-9803 ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9804-0004 ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 03 1 0005-0602 ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603-0607 ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0608- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-781-0 01 1 9601-9803 ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-781-0 01 1 9804-0607 ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-781-0 01 1 0608- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47476-047-0 01 1 9601-9612 ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47476-047-0 01 1 9701-9702 ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47477-944-0 01 1 9703-9803 ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47477-944-0 01 1 9804-0004 ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47477-944-0 01 1 0005-0612 ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47477-944-0 01 1 0701- ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28080-830-0 02 1 9601-9606 ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE 		0-28680-835-0 02 1 9607-0512 ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE 		0-28650-835-0 02 1 0601- ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 		9-09110-408-0 02 1 9601-9606 ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 9607-9803 ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 9804-0602 ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 0603-0607 ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 0608- ● ●
47 HOSE; FLEX,CLU CONT
L=390 		1-09364-475-0 01 1 1103- ●
47 HOSE; FLEX,CLU CONT
L=350 		1-09364-446-0 01 1 9601- ●
48 GASKET; FLEX HOSE,CLU CONT
(C) ID=10.2 OD=16.0 		9-09571-410-0 01 1 9601-0004 ●
48 GASKET; FLEX HOSE,CLU CONT
(C) ID=10.2 OD=16.0 		9-09571-410-0 01 1 0005-0607 ●
48 GASKET; FLEX HOSE,CLU CONT
(C) ID=10.2 OD=16.0 		9-09571-410-0 01 1 0608- ● ●
93 WASHER; LK,UNION,OIL PIPE
ID=12.2 		9-09150-512-0 01 1 9601-0603 ●
93 WASHER; LK,UNION,OIL PIPE
ID=12.2 		0-91510-512-0 01 1 0604- ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		1-09364-859-0 01 1 9601-9803 ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		1-09364-859-1 01 1 9804-0703 ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		8-98072-326-0 01 1 0704- ● ●
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9601-9803 ●
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9804-0512 ●
102 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0601-0607 ●
102 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0608- ● ●
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9601-9803 ●
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9804-0603 ●
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0604-0607 ●
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0608- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1656 SERVICED BY L=1700 		1-47426-391-0 01 1 9601-0607 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1656 SERVICED BY L=1700 		1-47426-391-0 01 1 0608- ● ●
106 UNION; OIL PIPE
M14 2WAY 		1-09654-176-2 01 1 9601- ●
107 NUT; UNION,OIL PIPE
M12 		9-99111-412-0 01 1 9601-0512 ●
107 NUT; UNION,OIL PIPE
M12 		0-91111-512-0 01 1 0601- ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9601-9803 ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9804-0512 ●
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0601-0607 ●
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0608- ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9601-9803 ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9804-0603 ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0604-0607 ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0608- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=1328 SERVICED BY L=1400 		1-47426-389-0 01 1 9601-9602 ●
153 PIPE ASM; CLU,UNION TO FLEX
L=1322 SERVICED BY L=1400 		1-47426-389-0 01 1 9603-0004 ●
153 PIPE ASM; CLU,UNION TO FLEX
L=1349 SERVICED BY L=1400 		1-47426-389-0 01 1 0005-0202 ●
153 PIPE ASM; CLU,UNION TO FLEX
L=1342 SERVICED BY L=1400 		1-47426-389-0 01 1 0203-0607 ●
153 PIPE ASM; CLU,UNION TO FLEX
L=1342 SERVICED BY L=1400 		1-47426-389-0 01 1 0608- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
