◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51279 - NKR AUSTRALIA ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#37503) — 74 parça

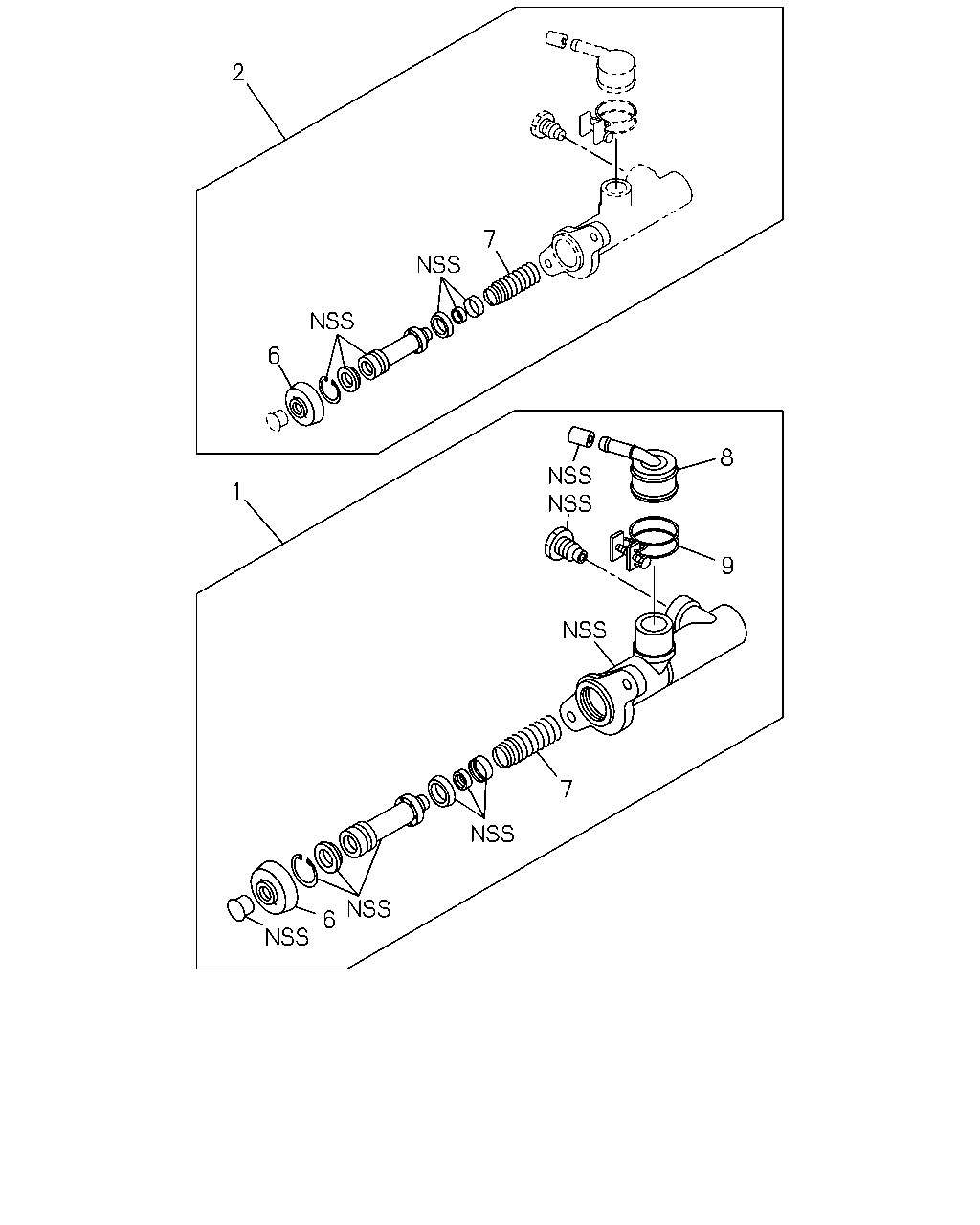

çizim 71160
2 7 6 8 1 9 7 6
BalonParca AdiParca NoAdetTipApplied Date
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> KD PREPARATORY PACK VAR.4<7TV> 		8-98098-250-0 01 1 0710-
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-97210-747-1 01 1 0211-0610
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-98004-782-2 01 1 0611-0709
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98062-277-0 01 1 0710-
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH<S2T> 		8-97300-210-0 01 1 0211-0803
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH<S2T> 		8-98117-641-0 01 1 0804-
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 0211-0803
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87832-226-0 01 1 0804-
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87831-617-0 01 1 0211-0709
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87832-221-0 01 1 0710-
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-153-0 01 1 0211-0709
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 0211-
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 0211-
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-148-0 01 1 0211-0709
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-98077-784-0 01 1 0710-
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-154-0 01 1 0211-0709
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97163-191-0 01 1 0211-0709
8 00.777 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 0710-
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-143-0 01 1 0211-0610
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-98061-352-0 01 1 0611-0709
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 0211-0709
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0710-
çizim 71508
8 1 9 64 7 2 7
BalonParca AdiParca NoAdetTipApplied Date
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> KD PREPARATORY PACK VAR.4<7TV> 		8-98098-250-0 01 1 0710-
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-97210-747-1 01 1 0211-0610
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-98004-782-2 01 1 0611-0709
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98062-277-0 01 1 0710-
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH<S2T> 		8-97300-210-0 01 1 0211-0803
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH<S2T> 		8-98117-641-0 01 1 0804-
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 0211-0803
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87832-226-0 01 1 0804-
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87831-617-0 01 1 0211-0709
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87832-221-0 01 1 0710-
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 0211-
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-148-0 01 1 0211-0709
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-98077-784-0 01 1 0710-
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-154-0 01 1 0211-0709
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97163-191-0 01 1 0211-0709
8 00.777 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 0710-
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-143-0 01 1 0211-0610
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-98061-352-0 01 1 0611-0709
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 0211-0709
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0710-
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-767-0 01 1 0211-0709
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 0710-

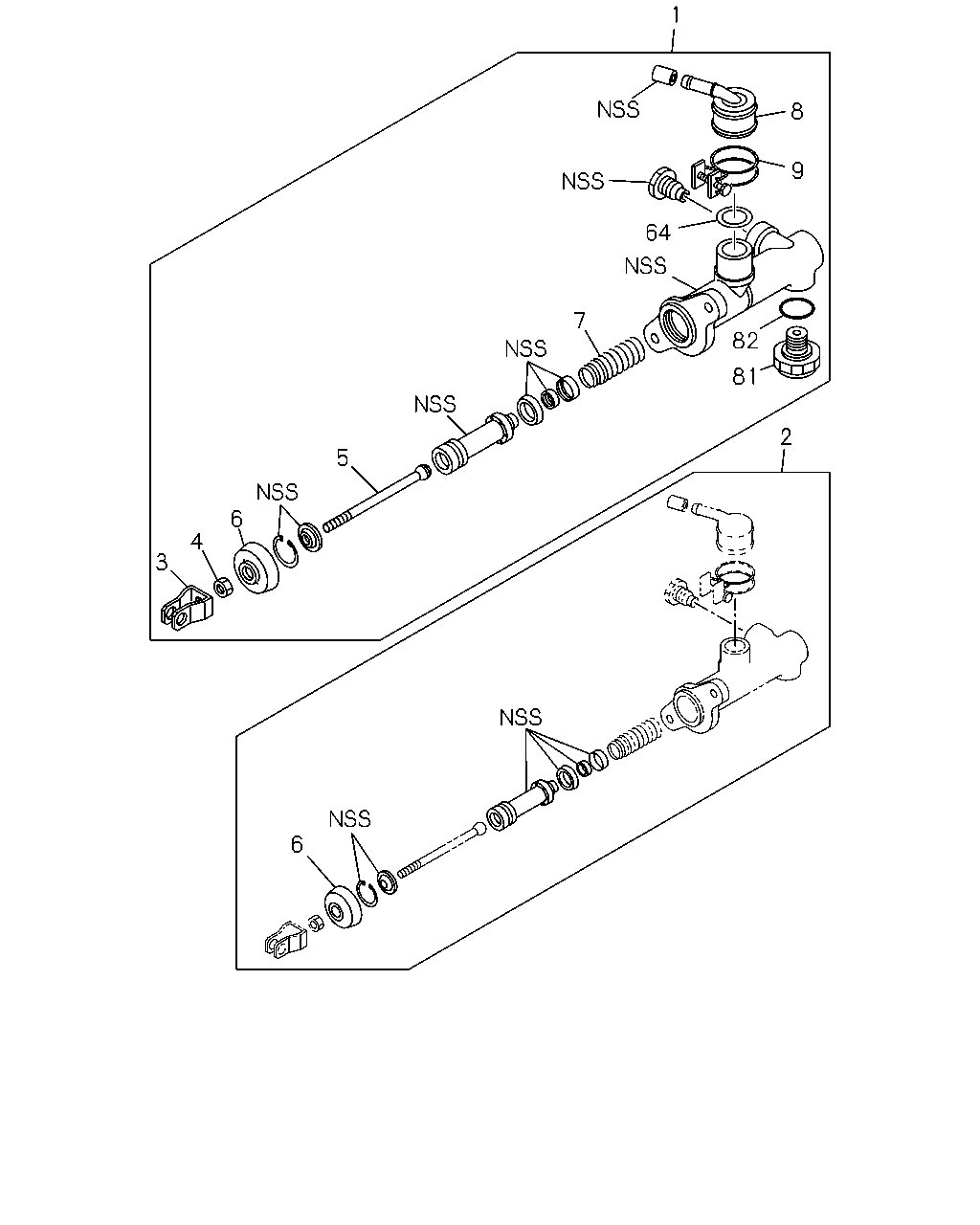

çizim 74175
1 8 9 64 7 82 81 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> KD PREPARATORY PACK VAR.4<7TV> 		8-98098-250-0 01 1 0710-
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-97210-747-1 01 1 0211-0610
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-98004-782-2 01 1 0611-0709
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98062-277-0 01 1 0710-
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH<S2T> 		8-97300-210-0 01 1 0211-0803
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH<S2T> 		8-98117-641-0 01 1 0804-
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 0211-0803
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87832-226-0 01 1 0804-
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87831-617-0 01 1 0211-0709
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87832-221-0 01 1 0710-
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-770-0 01 1 0211-
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH<S2T> 00.787 M8 		9-09111-408-0 01 1 0211-0511
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH<S2T> M8 		0-91111-508-0 01 1 0512-
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-768-0 01 1 0211-
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-153-0 01 1 0211-0709
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 0211-
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 0211-
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-148-0 01 1 0211-0709
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-98077-784-0 01 1 0710-
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-154-0 01 1 0211-0709
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97163-191-0 01 1 0211-0709
8 00.777 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 0710-
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-143-0 01 1 0211-0610
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-98061-352-0 01 1 0611-0709
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 0211-0709
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0710-
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-767-0 01 1 0211-0709
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 0710-
81 00.777 DAMPER; MASTER CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97190-913-0 01 1 0211-
82 00.777 GASKET; DAMPER
EXC. POWER ASSIST CLUTCH<S2T> 		8-97191-396-0 01 1 0211-
