Sayfa 2-05A - Isuzu EPC

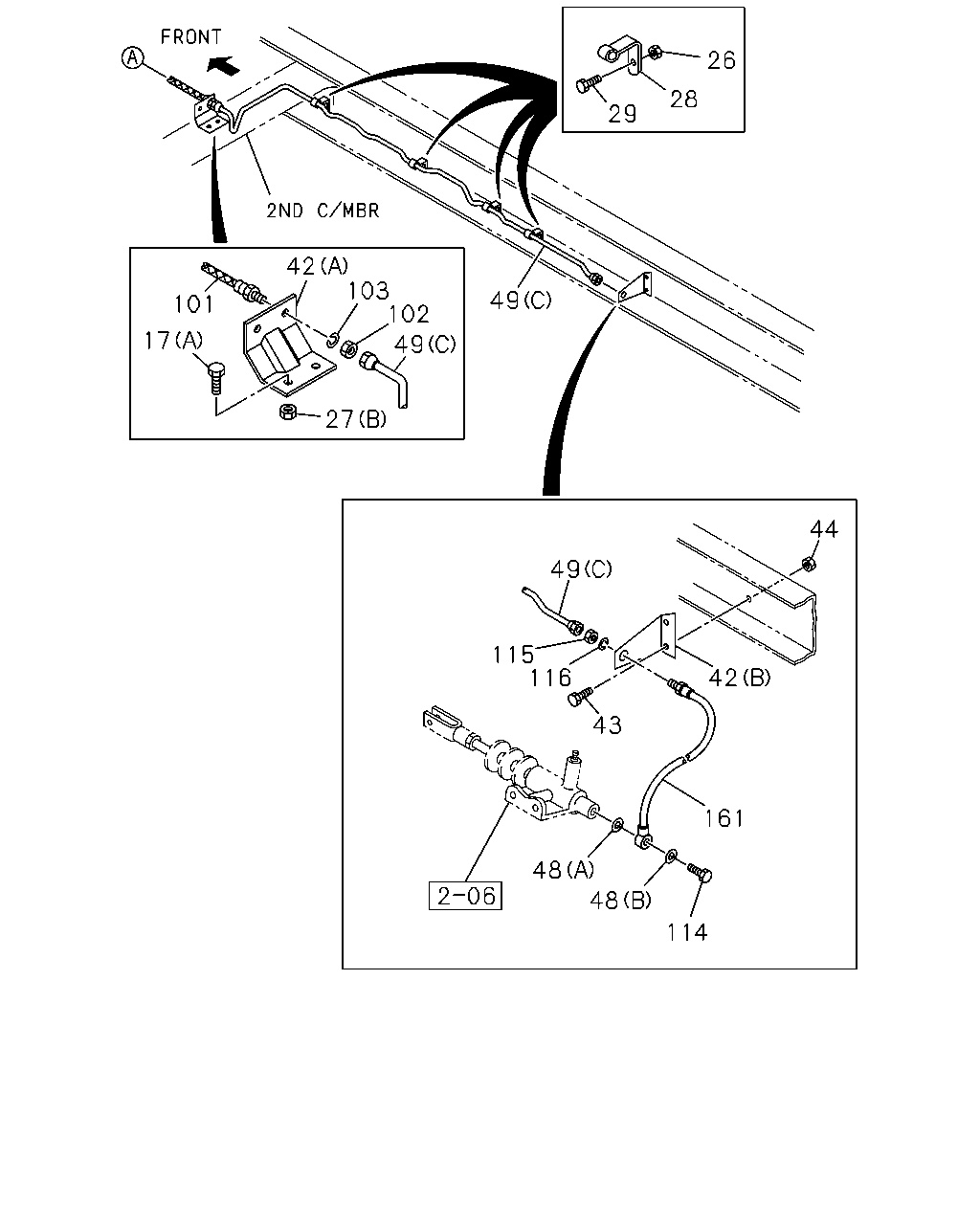

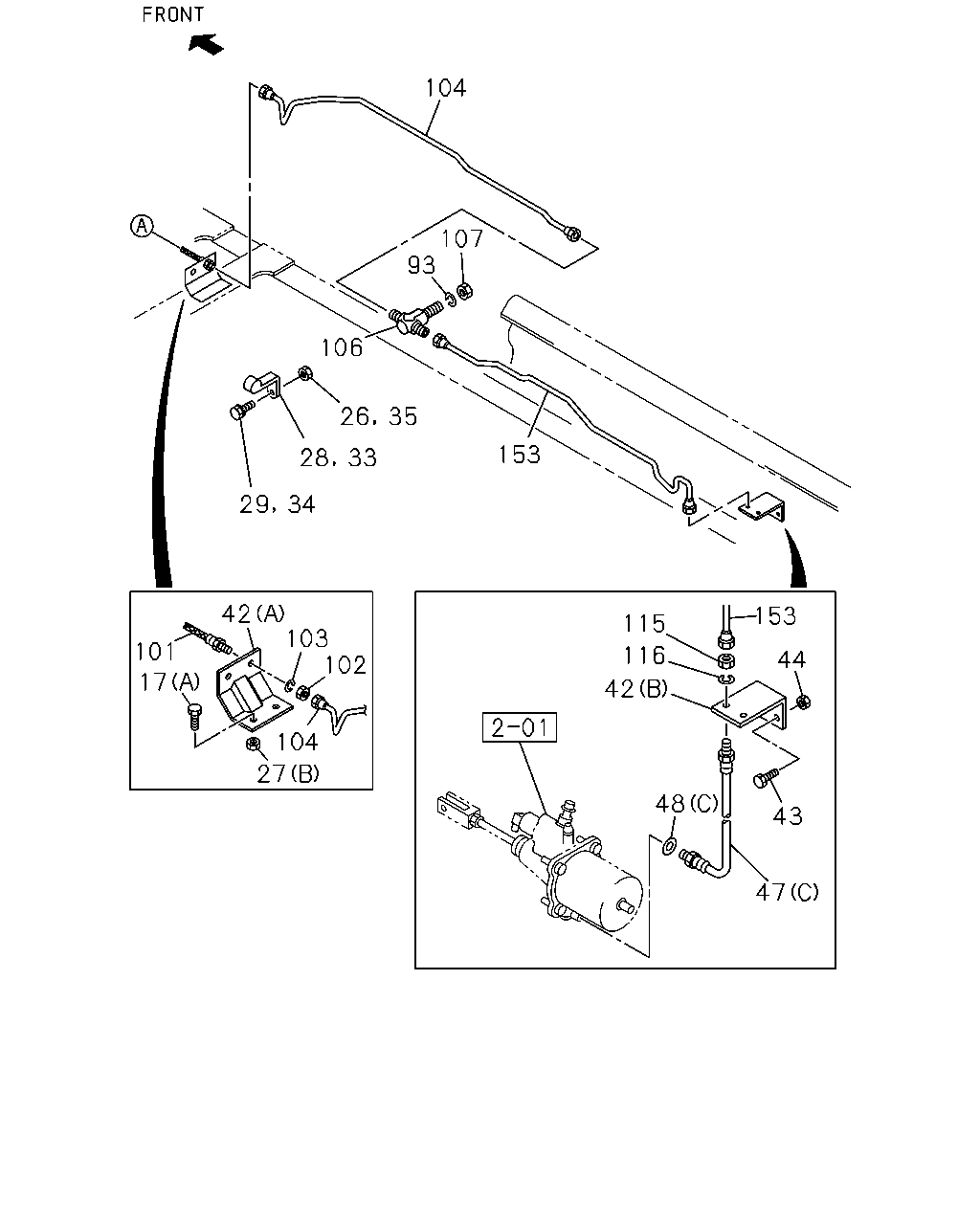

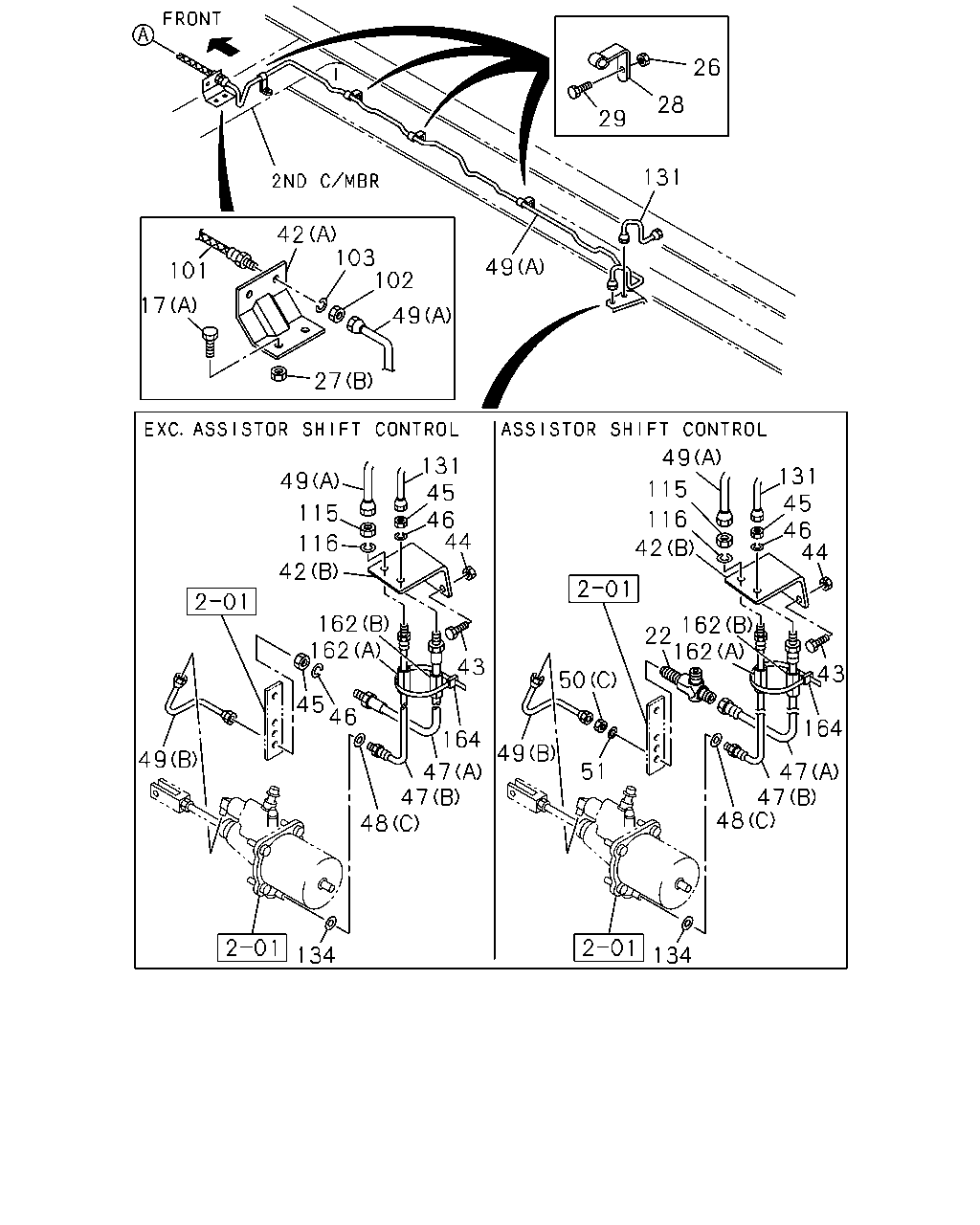

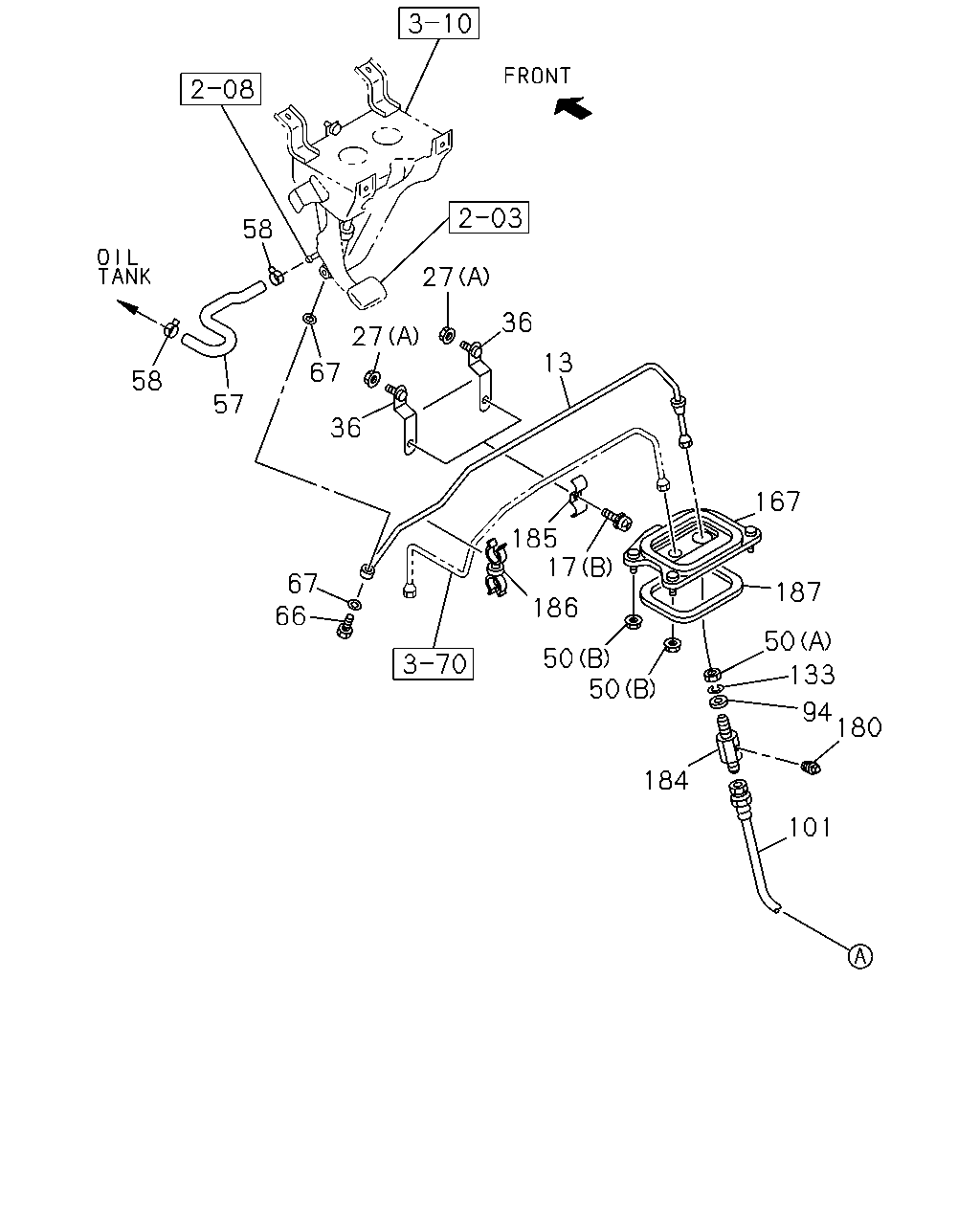

2-05A — CLUTCH PIPING (#3750) — 530 parça

26 28 29 131 42 103 102 49 101 17 49 27 49 131 45 46 44 131 45 46 44 49 115 115 116 116 42 42 162 22 162 162 162 43 43 50 45 46 164 164 49 49 51 47 47 48 47 47 48 134 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●	●	●	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9803	●	●	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9804-0512	●	●	●	●		●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0607	●	●	●	●		●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0608-	●	●	●	●		●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9803	●	●	●	●	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9804-0004	●	●	●	●		●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0607	●	●	●	●		●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0608-	●	●	●	●		●
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> M12 & M20X2 3WAY	1-09656-395-3	01	1	9601-9803	●	●			●
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	9-09228-706-1	01	1	9804-0607	●	●
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	0608-	●	●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	02	1	9601-9606						●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9607-0602						●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-						●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	04	1	9601-9606	●		●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9607-0004	●	●	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0005-0602	●	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●
26	NUT; CLIP,OIL PIPE MIDDLE CHASSIS(FV***F) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9705-9803		●			●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9804-9806	●	●			●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9807-0602	●	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-9803	●	●	●	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9804-0004	●	●	●	●		●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0607	●	●	●	●		●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0608-	●	●	●	●		●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9601-9606	●	●	●	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●	●	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9804-0602	●	●	●	●		●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-0607	●	●	●	●		●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0608-	●	●	●	●		●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	9601-						●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	9601-0004	●	●	●	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	0005-	●	●	●	●
28	CLIP; OIL PIPE MIDDLE CHASSIS(FV***F) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8 H=20 L=20	1-09700-604-0	01	1	9705-9803		●			●
28	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8 H=20 L=20	1-09700-604-0	01	1	9804-9806	●	●			●
28	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8 H=20 L=20	1-09700-604-0	01	1	9807-	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9601-9606						●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9607-9803						●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9804-0512						●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0601-						●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	01	1	9601-9704			●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	03	1	9601-9606			●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9607-9704			●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	9705-0004	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	0005-0512	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	04	1	9601-9606	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	9607-9704	●
29	BOLT; CLIP,OIL PIPE MIDDLE CHASSIS(FV***F) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9705-9803		●			●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9804-9806	●	●			●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9807-0512	●	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9601-9803	●	●	●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9804-0607	●	●	●	●		●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0608-	●	●	●	●		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47476-047-0	01	1	9601-9612	●					●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47476-047-0	01	1	9701-9702	●	●			●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9703-9803	●	●			●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9804-0004	●	●				●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	0005-0612						●
42	BRACKET; FLEX HOSE,CLU CONT EXC. VERTICAL TAIL PIPE<NC4> (B)	1-47477-944-0	01	1	0005-0612	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	0701-						●
42	BRACKET; FLEX HOSE,CLU CONT EXC. VERTICAL TAIL PIPE<NC4> (B)	1-47477-944-0	01	1	0701-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	9601-			●	●
42	BRACKET; FLEX HOSE,CLU CONT VERTICAL TAIL PIPE<NC4> (B)	1-47476-912-1	01	1	0005-0612	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28080-830-0	02	1	9601-9606						●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	9607-0512						●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	0601-						●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9601-9803	●	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9804-0512	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9601-9606	●	●	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9804-0602	●	●	●	●		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-0607	●	●	●	●		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0608-	●	●	●	●		●
45	NUT; FLEX HOSE,CLU CONT 6HK1 TCC ENG(81L) M12	9-09840-280-0	02	1	0608-0904	●
45	NUT; FLEX HOSE,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	02	1	0905-	●			●
45	NUT; FLEX HOSE,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	02	1	9707-9803	●				●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	9601-9706	●	●			●
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	9707-9803	●	●			●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	9804-0904	●	●
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	0905-	●			●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0905-		●	●
46	WASHER; LK,FLEX HOSE,CLU CONT 6HK1 TCC ENG(81L) ID=12.2	0-91510-512-0	02	1	0608-0904	●
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	02	1	0905-	●			●
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	02	1	9707-9803	●				●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	9601-9706	●	●			●
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	9707-9803	●	●			●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	9804-0603	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0604-0904	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0905-	●			●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0905-		●	●
47	HOSE; FLEX,CLU CONT (C) L=430	1-09364-725-0	01	1	9601-						●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=420	0-07120-420-0	01	1	9601-9803	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=420	1-09363-633-0	01	1	9804-0004	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=370	1-09364-646-0	01	1	9601-9602	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=415	1-09364-490-0	01	1	9603-0004	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=560	0-07030-560-0	01	1	9707-9803	●				●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=520	1-09363-657-0	01	1	9804-9806	●				●
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=520	1-09363-657-0	01	1	9807-0004		●
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=520	1-09363-657-0	01	1	0005-0503	●	●
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=560	1-09363-689-0	01	1	0504-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=500	0-07120-500-0	01	1	9610-9612		●			●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=450	0-07120-450-0	01	1	9701-9706		●			●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=450	0-07120-450-0	01	1	9707-9803	●	●			●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) OD=12.7 L=450	1-09363-631-0	01	1	9804-9806	●	●			●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) OD=12.7 L=450	1-09363-631-0	01	1	9807-0004	●
47	HOSE; FLEX,CLU CONT (A) OD=12.7 L=450	1-09363-631-0	01	1	9807-0004					●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> (A) OD=12.7 L=450	1-09363-631-0	01	1	9807-0004		●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> (A) OD=12.7 L=450	1-09363-631-0	01	1	0005-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=470	1-09364-692-0	01	1	9706-9708		●			●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=500	1-09364-329-0	01	1	9709-9806		●			●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=500	1-09364-329-0	01	1	9807-0004	●
47	HOSE; FLEX,CLU CONT (B) L=500	1-09364-329-0	01	1	9807-0004		●			●
47	HOSE; FLEX,CLU CONT (B) L=500	1-09364-329-0	01	1	0005-	●	●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	9601-0004	●	●			●	●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0005-0607	●	●				●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0608-	●	●				●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	9601-			●	●
48	GASKET; FLEX HOSE,CLU CONT (B) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	9601-			●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=2263 SERVICED BY L=2400	1-47426-395-0	01	1	9601-			●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=2909 SERVICED BY L=3000	1-47426-397-0	01	1	9601-9803	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=2909 SERVICED BY L=3000	1-47426-397-0	01	1	9804-9804	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=2900 SERVICED BY L=3000	1-47426-397-0	01	1	9805-0004	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER VERTICAL TAIL PIPE<NC4> (A) L=2998 SERVICED BY L=3200	1-47426-365-0	01	1	0005-0612	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=216	1-47493-418-1	01	1	9601-9709	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=216	1-47493-418-1	01	1	9710-9803	●	●			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=204	1-49117-400-0	01	1	9804-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=2870 SERVICED BY L=3000	1-47426-397-0	01	1	9706-9806		●			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=2870 SERVICED BY L=3000	1-47426-397-0	01	1	9807-0004	●	●			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. VERTICAL TAIL PIPE<NC4> (A) L=2870 SERVICED BY L=3000	1-47426-397-0	01	1	0005-0612	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=2870 SERVICED BY L=3000	1-47426-397-0	01	1	0701-	●	●
50	NUT; UNION (B) M8 FLANGE	8-94279-517-0	03	1	9601-9611	●	●	●	●	●	●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-9803	●	●	●	●	●	●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9804-0004	●	●	●	●		●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-0607	●	●	●	●		●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0608-	●	●	●	●		●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9601-9803	●	●	●	●	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9804-0512	●	●	●	●		●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-0607	●	●	●	●		●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0608-	●	●	●	●		●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	9601-9803	●	●			●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	9804-	●	●
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	9601-9803	●	●			●
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	9804-0603	●	●
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0604-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9601-9803	●	●	●	●	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	9804-0703	●	●	●	●		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●	●	●	●		●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-9803	●	●	●	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9804-0512	●	●	●	●		●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-0607	●	●	●	●		●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0608-	●	●	●	●		●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-9803	●	●	●	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9804-0603	●	●	●	●		●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-0607	●	●	●	●		●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0608-	●	●	●	●		●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-9803	●	●	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9804-0512	●	●	●	●		●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-0607	●	●	●	●		●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0608-	●	●	●	●		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-9803	●	●	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9804-0603	●	●	●	●		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-0607	●	●	●	●		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0608-	●	●	●	●		●
131	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49114-903-0	01	1	9601-9804	●
131	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49119-462-0	01	1	9805-0004	●
134	GASKET ID=11 OD=18	9-09572-510-0	01	1	9601-9803	●	●			●
134	GASKET ID=11 OD=18	9-09572-510-0	01	1	9804-9912	●	●
162	COVER; RUBBER,FLEX HOSE (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	9705-9803	●	●			●
162	COVER; RUBBER,FLEX HOSE (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	9804-	●	●
162	COVER; RUBBER,FLEX HOSE (B) ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	9705-9803	●	●			●
162	COVER; RUBBER,FLEX HOSE (B) ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	9804-	●	●
164	CLIP; BAND,FLEX HOSE L=140	5-09707-031-0	01	1	9705-9803	●	●			●
164	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	9804-	●	●

58 27 36 27 13 67 58 57 36 167 185 17 67 66 187 186 50 50 50 133 94 180 184 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47429-143-0	01	1	9601-9803	●	●	●	●	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47429-143-0	01	1	9804-0607	●	●	●	●		●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47429-143-0	01	1	0608-	●	●	●	●		●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●	●	●	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9803	●	●	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9804-0512	●	●	●	●		●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0607	●	●	●	●		●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0608-	●	●	●	●		●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9803	●	●	●	●	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9804-0004	●	●	●	●		●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0607	●	●	●	●		●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0608-	●	●	●	●		●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-9803	●	●	●	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9804-0004	●	●	●	●		●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0607	●	●	●	●		●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0608-	●	●	●	●		●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9601-9606	●	●	●	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●	●	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9804-0602	●	●	●	●		●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-0607	●	●	●	●		●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0608-	●	●	●	●		●
36	BRACKET; CLIP	1-79738-186-1	02	1	9601-9803	●	●	●	●	●	●
36	BRACKET; CLIP	1-79738-186-1	02	1	9804-0004	●	●	●	●		●
36	BRACKET; CLIP	1-79738-186-1	02	1	0005-0607	●	●	●	●		●
36	BRACKET; CLIP	1-79738-186-1	02	1	0608-	●	●	●	●		●
50	NUT; UNION (B) M8 FLANGE	8-94279-517-0	03	1	9601-9611	●	●	●	●	●	●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-9803	●	●	●	●	●	●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9804-0004	●	●	●	●		●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-0607	●	●	●	●		●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0608-	●	●	●	●		●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9601-9803	●	●	●	●	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9804-0512	●	●	●	●		●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-0607	●	●	●	●		●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0608-	●	●	●	●		●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	9601-9803	●	●			●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	9804-	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9601-9803	●	●	●	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9804-0607	●	●	●	●		●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0608-	●	●	●	●		●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9601-9803	●	●	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9804-0607	●	●	●	●		●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0608-	●	●	●	●		●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9601-9803	●	●	●	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9804-0805	●	●	●	●		●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●	●	●	●		●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9803	●	●	●	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0607	●	●	●	●		●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0608-1312	●	●	●	●		●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●	●		●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9601-9803	●	●	●	●	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9804-0605	●	●	●	●		●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-0607	●	●	●	●		●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0608-	●	●	●	●		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9601-9803	●	●	●	●	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	9804-0703	●	●	●	●		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●	●	●	●		●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9601-9803	●	●	●	●	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9804-0603	●	●	●	●		●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-0607	●	●	●	●		●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0608-	●	●	●	●		●
167	BRACKET; UNION	1-79738-204-2	01	1	9601-9803	●	●	●	●	●	●
167	BRACKET; UNION	1-79738-204-2	01	1	9804-9911	●	●	●	●		●
167	BRACKET; UNION	1-79738-845-0	01	1	9912-0004	●	●	●	●		●
167	BRACKET; UNION	1-79738-845-1	01	1	0005-0607	●	●	●	●		●
167	BRACKET; UNION	1-79738-845-1	01	1	0608-	●	●	●	●		●
180	PLUG; PIPE	9-09204-510-0	01	1	9601-9803	●	●	●	●	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9804-0804	●	●	●	●		●
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	9601-9803	●	●	●	●	●	●
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	9804-0804	●	●	●	●		●
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-	●	●	●	●		●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	9601-9803	●	●	●	●	●	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	9804-0004	●	●	●	●		●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	0005-0607	●	●	●	●		●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	0608-	●	●	●	●		●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=4.75 & 6	8-94165-403-0	01	1	9601-9706	●	●	●	●	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	01	1	9707-9803	●	●	●	●	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	01	1	9804-0004	●	●	●	●		●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	01	1	0005-0607	●	●	●	●		●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	01	1	0608-	●	●	●	●		●
187	SEAL; BRKT	1-79738-190-0	01	1	9601-9803	●	●	●	●	●	●
187	SEAL; BRKT	1-79738-190-0	01	1	9804-0004	●	●	●	●		●
187	SEAL; BRKT	1-79738-190-0	01	1	0005-0607	●	●	●	●		●
187	SEAL; BRKT	1-79738-190-0	01	1	0608-	●	●	●	●		●

104 107 93 106 26 35 153 33 28 29 34 42 103 102 153 115 101 116 44 17 42 104 27 48 43 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●	●	●	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9803	●	●	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9804-0512	●	●	●	●		●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0607	●	●	●	●		●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0608-	●	●	●	●		●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9803	●	●	●	●	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9804-0004	●	●	●	●		●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0607	●	●	●	●		●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0608-	●	●	●	●		●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	02	1	9601-9606						●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9607-0602						●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-						●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	04	1	9601-9606	●		●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9607-0004	●	●	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0005-0602	●	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●
26	NUT; CLIP,OIL PIPE MIDDLE CHASSIS(FV***F) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9705-9803		●			●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9804-9806	●	●			●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9807-0602	●	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-9803	●	●	●	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9804-0004	●	●	●	●		●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0607	●	●	●	●		●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0608-	●	●	●	●		●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9601-9606	●	●	●	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●	●	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9804-0602	●	●	●	●		●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-0607	●	●	●	●		●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0608-	●	●	●	●		●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	9601-						●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	9601-0004	●	●	●	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	0005-	●	●	●	●
28	CLIP; OIL PIPE MIDDLE CHASSIS(FV***F) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8 H=20 L=20	1-09700-604-0	01	1	9705-9803		●			●
28	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8 H=20 L=20	1-09700-604-0	01	1	9804-9806	●	●			●
28	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8 H=20 L=20	1-09700-604-0	01	1	9807-	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9601-9606						●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9607-9803						●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9804-0512						●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0601-						●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	01	1	9601-9704			●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	03	1	9601-9606			●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9607-9704			●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	9705-0004	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	0005-0512	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	04	1	9601-9606	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	9607-9704	●
29	BOLT; CLIP,OIL PIPE MIDDLE CHASSIS(FV***F) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9705-9803		●			●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9804-9806	●	●			●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9807-0512	●	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9601-9803						●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	05	1	9804-9807						●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9808-0607						●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0608-						●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	9703-						●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	03	1	9601-9606						●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	9607-9803						●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	05	1	9804-9807						●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	9808-0512						●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	03	1	0601-0607						●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	03	1	0608-						●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9703-0512						●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	02	1	0601-						●
35	NUT; PIPE CLIP M8	9-09110-408-0	03	1	9601-9606						●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9607-9803						●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0005-0602						●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0603-0607						●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0608-						●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9703-0602						●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-						●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9601-9803	●	●	●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9804-0607	●	●	●	●		●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0608-	●	●	●	●		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47476-047-0	01	1	9601-9612	●					●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47476-047-0	01	1	9701-9702	●	●			●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9703-9803	●	●			●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9804-0004	●	●				●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	0005-0612						●
42	BRACKET; FLEX HOSE,CLU CONT EXC. VERTICAL TAIL PIPE<NC4> (B)	1-47477-944-0	01	1	0005-0612	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	0701-						●
42	BRACKET; FLEX HOSE,CLU CONT EXC. VERTICAL TAIL PIPE<NC4> (B)	1-47477-944-0	01	1	0701-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	9601-			●	●
42	BRACKET; FLEX HOSE,CLU CONT VERTICAL TAIL PIPE<NC4> (B)	1-47476-912-1	01	1	0005-0612	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28080-830-0	02	1	9601-9606						●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	9607-0512						●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	0601-						●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9601-9803	●	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9804-0512	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9601-9606	●	●	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9804-0602	●	●	●	●		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-0607	●	●	●	●		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0608-	●	●	●	●		●
47	HOSE; FLEX,CLU CONT (C) L=430	1-09364-725-0	01	1	9601-						●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=420	0-07120-420-0	01	1	9601-9803	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=420	1-09363-633-0	01	1	9804-0004	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=370	1-09364-646-0	01	1	9601-9602	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=415	1-09364-490-0	01	1	9603-0004	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=560	0-07030-560-0	01	1	9707-9803	●				●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=520	1-09363-657-0	01	1	9804-9806	●				●
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=520	1-09363-657-0	01	1	9807-0004		●
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=520	1-09363-657-0	01	1	0005-0503	●	●
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=560	1-09363-689-0	01	1	0504-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=500	0-07120-500-0	01	1	9610-9612		●			●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=450	0-07120-450-0	01	1	9701-9706		●			●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=450	0-07120-450-0	01	1	9707-9803	●	●			●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) OD=12.7 L=450	1-09363-631-0	01	1	9804-9806	●	●			●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) OD=12.7 L=450	1-09363-631-0	01	1	9807-0004	●
47	HOSE; FLEX,CLU CONT (A) OD=12.7 L=450	1-09363-631-0	01	1	9807-0004					●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> (A) OD=12.7 L=450	1-09363-631-0	01	1	9807-0004		●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> (A) OD=12.7 L=450	1-09363-631-0	01	1	0005-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=470	1-09364-692-0	01	1	9706-9708		●			●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=500	1-09364-329-0	01	1	9709-9806		●			●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=500	1-09364-329-0	01	1	9807-0004	●
47	HOSE; FLEX,CLU CONT (B) L=500	1-09364-329-0	01	1	9807-0004		●			●
47	HOSE; FLEX,CLU CONT (B) L=500	1-09364-329-0	01	1	0005-	●	●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	9601-0004	●	●			●	●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0005-0607	●	●				●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0608-	●	●				●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	9601-			●	●
48	GASKET; FLEX HOSE,CLU CONT (B) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	9601-			●	●
93	WASHER; LK,UNION,OIL PIPE ID=12.2	9-09150-512-0	01	1	9601-0603						●
93	WASHER; LK,UNION,OIL PIPE ID=12.2	0-91510-512-0	01	1	0604-						●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9601-9803	●	●	●	●	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	9804-0703	●	●	●	●		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●	●	●	●		●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-9803	●	●	●	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9804-0512	●	●	●	●		●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-0607	●	●	●	●		●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0608-	●	●	●	●		●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-9803	●	●	●	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9804-0603	●	●	●	●		●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-0607	●	●	●	●		●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0608-	●	●	●	●		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1492 SERVICED BY L=1550	1-47426-390-0	01	1	9601-0109						●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1498 SERVICED BY L=1550	1-47428-766-0	01	1	0110-0205						●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1492 SERVICED BY L=1550	1-47426-390-0	01	1	0206-						●
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	9601-						●
107	NUT; UNION,OIL PIPE M12	9-99111-412-0	01	1	9601-0512						●
107	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	0601-						●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-9803	●	●	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9804-0512	●	●	●	●		●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-0607	●	●	●	●		●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0608-	●	●	●	●		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-9803	●	●	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9804-0603	●	●	●	●		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-0607	●	●	●	●		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0608-	●	●	●	●		●
153	PIPE ASM; CLU,UNION TO FLEX L=1334 SERVICED BY L=1400	1-47426-389-0	01	1	9601-0109						●
153	PIPE ASM; CLU,UNION TO FLEX L=1335 SERVICED BY L=1400	1-47426-389-0	01	1	0110-						●

26 28 29 42 103 102 49 101 17 49 27 44 49 115 116 42 43 161 48 48 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●	●	●	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9803	●	●	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9804-0512	●	●	●	●		●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0607	●	●	●	●		●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0608-	●	●	●	●		●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9803	●	●	●	●	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9804-0004	●	●	●	●		●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0607	●	●	●	●		●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0608-	●	●	●	●		●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	02	1	9601-9606						●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9607-0602						●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-						●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	04	1	9601-9606	●		●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9607-0004	●	●	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0005-0602	●	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●
26	NUT; CLIP,OIL PIPE MIDDLE CHASSIS(FV***F) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9705-9803		●			●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9804-9806	●	●			●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9807-0602	●	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-9803	●	●	●	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9804-0004	●	●	●	●		●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0607	●	●	●	●		●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0608-	●	●	●	●		●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9601-9606	●	●	●	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●	●	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9804-0602	●	●	●	●		●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-0607	●	●	●	●		●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0608-	●	●	●	●		●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	9601-						●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	9601-0004	●	●	●	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	0005-	●	●	●	●
28	CLIP; OIL PIPE MIDDLE CHASSIS(FV***F) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8 H=20 L=20	1-09700-604-0	01	1	9705-9803		●			●
28	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8 H=20 L=20	1-09700-604-0	01	1	9804-9806	●	●			●
28	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8 H=20 L=20	1-09700-604-0	01	1	9807-	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9601-9606						●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9607-9803						●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9804-0512						●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0601-						●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	01	1	9601-9704			●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	03	1	9601-9606			●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9607-9704			●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	9705-0004	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	0005-0512	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	04	1	9601-9606	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	9607-9704	●
29	BOLT; CLIP,OIL PIPE MIDDLE CHASSIS(FV***F) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9705-9803		●			●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9804-9806	●	●			●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9807-0512	●	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9601-9803	●	●	●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9804-0607	●	●	●	●		●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0608-	●	●	●	●		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47476-047-0	01	1	9601-9612	●					●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47476-047-0	01	1	9701-9702	●	●			●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9703-9803	●	●			●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9804-0004	●	●				●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	0005-0612						●
42	BRACKET; FLEX HOSE,CLU CONT EXC. VERTICAL TAIL PIPE<NC4> (B)	1-47477-944-0	01	1	0005-0612	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	0701-						●
42	BRACKET; FLEX HOSE,CLU CONT EXC. VERTICAL TAIL PIPE<NC4> (B)	1-47477-944-0	01	1	0701-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	9601-			●	●
42	BRACKET; FLEX HOSE,CLU CONT VERTICAL TAIL PIPE<NC4> (B)	1-47476-912-1	01	1	0005-0612	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28080-830-0	02	1	9601-9606						●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	9607-0512						●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	0601-						●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9601-9803	●	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9804-0512	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9601-9606	●	●	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9804-0602	●	●	●	●		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-0607	●	●	●	●		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0608-	●	●	●	●		●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	9601-0004	●	●			●	●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0005-0607	●	●				●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0608-	●	●				●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	9601-			●	●
48	GASKET; FLEX HOSE,CLU CONT (B) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	9601-			●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=2263 SERVICED BY L=2400	1-47426-395-0	01	1	9601-			●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=2909 SERVICED BY L=3000	1-47426-397-0	01	1	9601-9803	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=2909 SERVICED BY L=3000	1-47426-397-0	01	1	9804-9804	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=2900 SERVICED BY L=3000	1-47426-397-0	01	1	9805-0004	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER VERTICAL TAIL PIPE<NC4> (A) L=2998 SERVICED BY L=3200	1-47426-365-0	01	1	0005-0612	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=216	1-47493-418-1	01	1	9601-9709	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=216	1-47493-418-1	01	1	9710-9803	●	●			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=204	1-49117-400-0	01	1	9804-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=2870 SERVICED BY L=3000	1-47426-397-0	01	1	9706-9806		●			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=2870 SERVICED BY L=3000	1-47426-397-0	01	1	9807-0004	●	●			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. VERTICAL TAIL PIPE<NC4> (A) L=2870 SERVICED BY L=3000	1-47426-397-0	01	1	0005-0612	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=2870 SERVICED BY L=3000	1-47426-397-0	01	1	0701-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9601-9803	●	●	●	●	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	9804-0703	●	●	●	●		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●	●	●	●		●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-9803	●	●	●	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9804-0512	●	●	●	●		●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-0607	●	●	●	●		●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0608-	●	●	●	●		●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-9803	●	●	●	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9804-0603	●	●	●	●		●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-0607	●	●	●	●		●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0608-	●	●	●	●		●
114	BOLT; EYE,FLEX HOSE	1-09675-158-0	01	1	9601-			●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-9803	●	●	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9804-0512	●	●	●	●		●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-0607	●	●	●	●		●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0608-	●	●	●	●		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-9803	●	●	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9804-0603	●	●	●	●		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-0607	●	●	●	●		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0608-	●	●	●	●		●
161	HOSE; FLEX,SLAVE CYL L=400	1-09364-597-0	01	1	9601-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
