Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#375) — 139 parça

87 27 152 93 118 103 161 96 152 102 28 31 159 27 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1660 SERVICED BY L=1700	1-47434-412-0	01	1	9202-9212	●	●
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1660 SERVICED BY L=1700	1-47426-391-0	01	1	9301-	●	●
28	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1686 SERVICED BY L=1700	1-47434-412-0	01	1	9202-9212	●	●
28	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1686 SERVICED BY L=1700	1-47426-391-0	01	1	9301-	●	●
30	PIPE; AIR,AIR TANK TO JOINT NEW ZEALAND EQUIPMENT(PK5) L=3144 SERVICED BY L=3300	1-47434-416-0	01	1	9202-9212		●
30	PIPE; AIR,AIR TANK TO JOINT NEW ZEALAND EQUIPMENT(PK5) L=3144 SERVICED BY L=3300	1-47426-398-0	01	1	9301-		●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2274 SERVICED BY L=2400	1-47437-959-0	01	1	9202-9207	●	●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2272 SERVICED BY L=2400	1-47437-959-0	01	1	9208-9212	●	●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2272 SERVICED BY L=2400	1-47426-395-0	01	1	9301-	●	●
87	PIPE; AIR,AIR TANK TO UNION L=1204 SERVICED BY L=1400	1-47437-969-0	01	1	9202-9212	●	●
87	PIPE; AIR,AIR TANK TO UNION L=1204 SERVICED BY L=1250	1-47426-416-0	01	1	9301-	●	●
93	PIPE; AIR,UNION TO UNION L=2685 SERVICED BY L=2900	1-47437-974-0	01	1	9202-9207	●	●
93	PIPE; AIR,UNION TO UNION L=2680 SERVICED BY L=2900	1-47437-974-0	01	1	9208-9212	●	●
93	PIPE; AIR,UNION TO UNION L=2680 SERVICED BY L=2900	1-47426-425-0	01	1	9301-	●	●
96	PIPE; AIR,UNION TO UNION L=1684 SERVICED BY L=1700	1-47434-478-0	01	1	9202-9212	●	●
96	PIPE; AIR,UNION TO UNION L=1684 SERVICED BY L=1700	1-47426-420-0	01	1	9301-	●	●
102	PIPE; AIR,UNION TO UNION L=1665 SERVICED BY L=1900	1-47437-971-0	01	1	9202-9212	●	●
102	PIPE; AIR,UNION TO UNION L=1665 SERVICED BY L=1900	1-47426-421-0	01	1	9301-	●	●
103	PIPE; AIR,UNION TO UNION L=2566 SERVICED BY L=2900	1-47437-974-0	01	1	9202-9207	●	●
103	PIPE; AIR,UNION TO UNION L=2561 SERVICED BY L=2900	1-47437-974-0	01	1	9208-9212	●	●
103	PIPE; AIR,UNION TO UNION L=2561 SERVICED BY L=2900	1-47426-425-0	01	1	9301-	●	●
118	PIPE; AIR,UNION TO AIR MASTER	1-47494-310-1	01	1	9202-9212	●	●
118	PIPE; AIR,UNION TO AIR MASTER	1-47499-723-0	01	1	9301-	●	●
152	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=2813 SERVICED BY L=2900	1-47434-400-0	01	1	9202-9212	●
152	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=2813 SERVICED BY L=2900	1-47434-400-0	01	1	9202-9212		●
152	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=2814 SERVICED BY L=3000	1-47426-397-0	01	1	9301-	●
152	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=2814 SERVICED BY L=3000	1-47426-397-0	01	1	9301-		●
152	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) (A) L=2669 SERVICED BY L=3000	1-47437-960-0	01	1	9202-9212		●
152	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) (A) L=2669 SERVICED BY L=2700	1-47426-396-0	01	1	9301-		●
152	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=581 SERVICED BY L=600	1-47426-379-0	01	1	9202-		●
152	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=2523 SERVICED BY L=2700	1-47434-415-0	01	1	9202-9212		●
152	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=2523 SERVICED BY L=2700	1-47426-396-0	01	1	9301-		●
152	PIPE; AIR,UNION TO UNION WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=981 SERVICED BY L=1000	1-47426-386-0	01	1	9202-		●
152	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1381 SERVICED BY L=1400	1-47434-411-0	01	1	9202-9212		●
152	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1381 SERVICED BY L=1400	1-47426-389-0	01	1	9301-		●
152	PIPE; AIR,UNION TO UNION WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1881 SERVICED BY L=1950	1-47434-414-0	01	1	9202-9212		●
152	PIPE; AIR,UNION TO UNION WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1881 SERVICED BY L=1950	1-47426-393-0	01	1	9301-		●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1985 SERVICED BY L=2150	1-47426-394-0	01	1	9202-	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	9202-	●	●

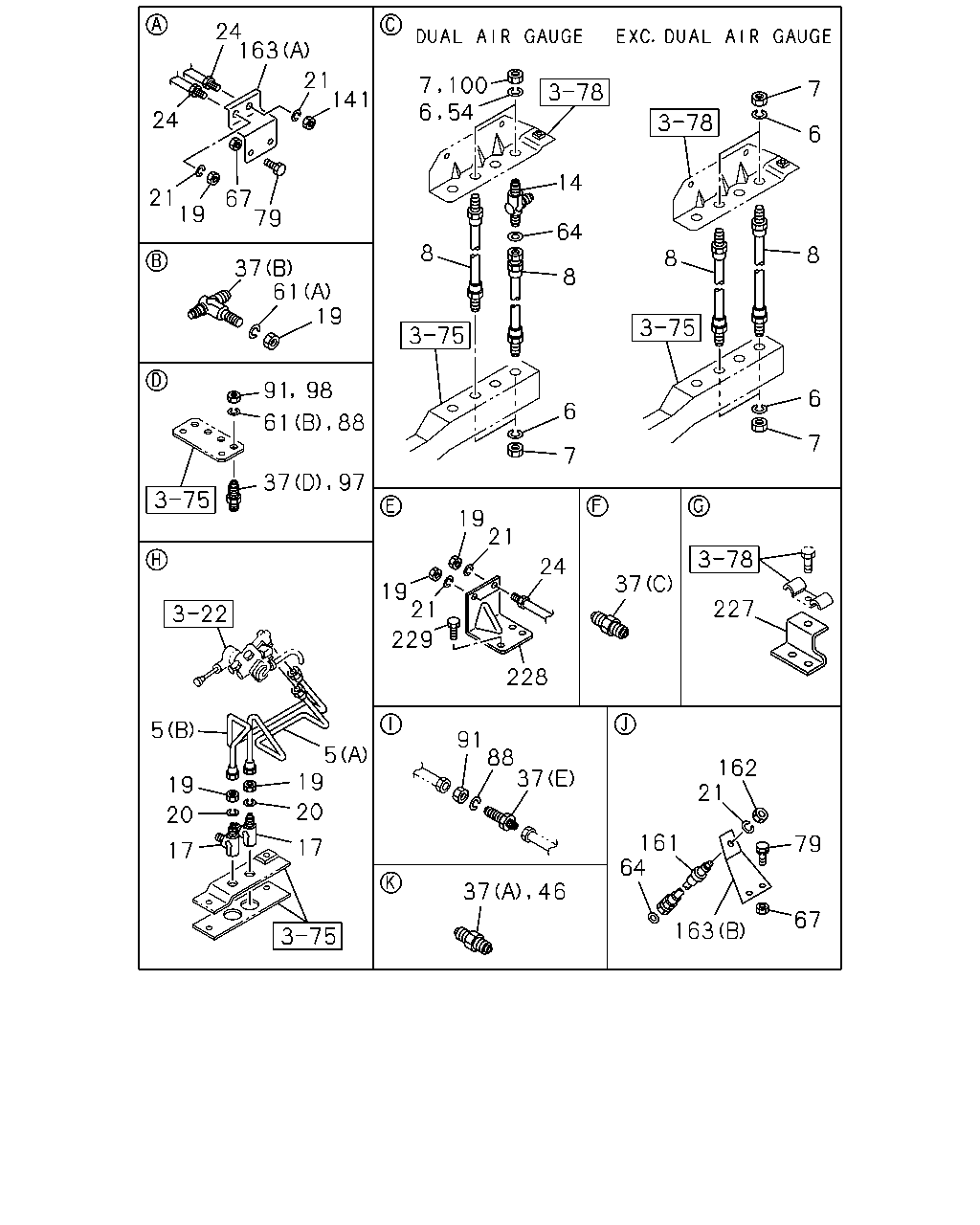

24 163 21 141 100 54 7 24 6 14 67 79 21 19 64 8 8 8 37 61 19 8 91 98 6 6 7 7 19 21 24 37 19 21 227 229 228 5 91 88 37 5 19 162 21 19 20 20 161 64 79 17 17 37 46 67 163 7 6 88 61 97 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	PIPE; AIR,UNION TO PARKING VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=657	1-47482-412-0	01	1	9202-9212	●	●
5	PIPE; AIR,UNION TO PARKING VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=524	1-47497-873-0	01	1	9301-	●	●
5	PIPE; AIR,UNION TO PARKING VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=524	1-47482-413-0	01	1	9202-9212	●	●
5	PIPE; AIR,UNION TO PARKING VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=657	1-47497-874-0	01	1	9301-	●	●
6	WASHER; LK,FLEX HOSE DUAL AIR GAUGE<UG2> ID=16.2	9-09150-516-0	01	1	9202-	●	●
6	WASHER; LK,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> ID=16.2	9-09150-516-0	02	1	9202-	●	●
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9202-	●	●
7	NUT; FLEX HOSE DUAL AIR GAUGE<UG2> M16	9-99111-416-0	01	1	9202-	●	●
7	NUT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M16	9-99111-416-0	02	1	9202-	●	●
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9202-	●	●
8	HOSE; FLEX,AIR,CAB SIDE DUAL AIR GAUGE<UG2> L=520	0-07474-520-1	01	1	9202-9307	●	●
8	HOSE; FLEX,AIR,CAB SIDE DUAL AIR GAUGE<UG2> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=520	0-07474-520-1	01	1	9308-9408	●	●
8	HOSE; FLEX,AIR,CAB SIDE DUAL AIR GAUGE<UG2> L=520	0-07474-520-1	01	1	9409-	●	●
8	HOSE; FLEX,AIR,CAB SIDE EXC. DUAL AIR GAUGE<UG2> L=630	0-07424-630-0	01	1	9202-	●	●
8	HOSE; FLEX,AIR,CAB SIDE L=630	0-07424-630-0	01	1	9202-	●
8	HOSE; FLEX,AIR,CAB SIDE EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=630	0-07424-630-0	01	1	9202-		●
8	HOSE; FLEX,AIR,CAB SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=590	0-07424-590-0	01	1	9308-		●
8	HOSE; FLEX,AIR,CAB SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> DUAL AIR GAUGE<UG2> L=480	0-07474-480-1	01	1	9308-9408		●
14	UNION; AIR PIPE DUAL AIR GAUGE<UG2>	1-09656-451-1	01	1	9202-	●	●
17	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-09225-208-1	02	1	9202-	●	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	9-99111-412-0	01	1	9202-	●	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	04	1	9202-	●	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	9202-9203	●	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-414-0	01	1	9204-	●	●
20	WASHER; LK,PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	02	1	9202-	●	●
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	02	1	9202-	●	●
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	03	1	9202-9312	●	●
24	HOSE; FLEX,PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=380	0-07402-380-0	02	1	9202-	●	●
37	UNION; AIR PIPE (E)	9-09223-310-1	02	1	9202-9312	●	●
37	UNION; AIR PIPE (C) M16 L=42	9-09233-010-1	02	1	9202-	●	●
37	UNION; AIR PIPE (D) M16 L=74	9-09233-310-1	01	1	9202-9312	●	●
37	UNION; AIR PIPE (D) M16 L=74	9-09233-310-1	03	1	9401-	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	9202-	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 STRAIGHT	9-09223-008-1	01	1	9202-	●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 L=41	9-09223-008-1	01	1	9202-	●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 L=41	9-09223-008-1	01	1	9202-		●
54	WASHER; LK,UNION DUAL AIR GAUGE<UG2> ID=16.2	9-09150-516-0	01	1	9202-	●	●
61	WASHER; LK,NIPPLE (B) ID=16.2	9-09150-516-0	01	1	9202-9312	●	●
61	WASHER; LK,NIPPLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=12.2	9-09150-512-0	01	1	9202-9312	●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	9202-	●	●
64	GASKET; FLEX HOSE DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9202-	●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	04	1	9202-	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28010-820-0	04	1	9202-9204	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	04	1	9205-	●	●
88	WASHER; LK,PIPE UNION ID=16.2	9-09150-516-0	03	1	9202-9312	●	●
91	NUT; PIPE UNION M16	9-99111-416-0	03	1	9202-	●	●
97	UNION; AIR PIPE M16 L=74	9-09233-310-1	01	1	9202-	●	●
98	NUT; PIPE UNION M16	9-99111-416-0	01	1	9202-	●	●
100	NUT; UNION DUAL AIR GAUGE<UG2> M16	9-99111-416-0	01	1	9202-	●	●
141	NUT; PIPE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	9202-9203	●	●
141	NUT; PIPE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-414-0	01	1	9204-	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	9202-	●	●
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	9202-	●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47475-464-0	01	1	9202-	●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47475-708-0	01	1	9202-	●	●
227	BRACKET ASM; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-71998-421-0	02	1	9202-	●	●
228	BRACKET; FLEX HOSE JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-098-3	01	1	9202-	●	●
229	BOLT; HOSE UNION BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9202-	●	●

59 1 8 206 8 101 102 96 59 1 206 8 8 101 5 26 27 28 5 26 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=578	1-47482-335-0	01	1	9202-9212	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=578	1-47497-110-0	01	1	9301-9307	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=578	1-47497-110-0	01	1	9308-	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=578	1-47497-110-0	01	1	9308-		●
1	PIPE; AIR,FLEX HOSE TO BRK VLV HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=615	1-47497-150-0	01	1	9308-		●
5	PIPE; AIR,UNION TO PARKING VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=657	1-47482-412-0	01	1	9202-9212	●	●
5	PIPE; AIR,UNION TO PARKING VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=524	1-47497-873-0	01	1	9301-	●	●
5	PIPE; AIR,UNION TO PARKING VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=524	1-47482-413-0	01	1	9202-9212	●	●
5	PIPE; AIR,UNION TO PARKING VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=657	1-47497-874-0	01	1	9301-	●	●
8	HOSE; FLEX,AIR,CAB SIDE DUAL AIR GAUGE<UG2> L=520	0-07474-520-1	01	1	9202-9307	●	●
8	HOSE; FLEX,AIR,CAB SIDE DUAL AIR GAUGE<UG2> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=520	0-07474-520-1	01	1	9308-9408	●	●
8	HOSE; FLEX,AIR,CAB SIDE DUAL AIR GAUGE<UG2> L=520	0-07474-520-1	01	1	9409-	●	●
8	HOSE; FLEX,AIR,CAB SIDE EXC. DUAL AIR GAUGE<UG2> L=630	0-07424-630-0	01	1	9202-	●	●
8	HOSE; FLEX,AIR,CAB SIDE L=630	0-07424-630-0	01	1	9202-	●
8	HOSE; FLEX,AIR,CAB SIDE EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=630	0-07424-630-0	01	1	9202-		●
8	HOSE; FLEX,AIR,CAB SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=590	0-07424-590-0	01	1	9308-		●
8	HOSE; FLEX,AIR,CAB SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> DUAL AIR GAUGE<UG2> L=480	0-07474-480-1	01	1	9308-9408		●
24	HOSE; FLEX,PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=380	0-07402-380-0	02	1	9202-	●	●
26	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47487-288-1	01	1	9202-9212	●	●
26	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47497-872-0	01	1	9301-	●	●
26	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47487-289-0	01	1	9202-9212	●	●
26	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47497-875-0	01	1	9301-	●	●
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1660 SERVICED BY L=1700	1-47434-412-0	01	1	9202-9212	●	●
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1660 SERVICED BY L=1700	1-47426-391-0	01	1	9301-	●	●
28	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1686 SERVICED BY L=1700	1-47434-412-0	01	1	9202-9212	●	●
28	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1686 SERVICED BY L=1700	1-47426-391-0	01	1	9301-	●	●
59	PIPE; AIR,UNION TO FLEX HOSE FRONT AXLE F049(FS4) L=1061 SERVICED BY L=1100	1-47437-967-0	01	1	9202-9212	●	●
59	PIPE; AIR,UNION TO FLEX HOSE FRONT AXLE F049(FS4) L=1062 SERVICED BY L=1100	1-47426-415-0	01	1	9301-	●	●
59	PIPE; AIR,UNION TO FLEX HOSE FRONT AXLE F063(FS7) L=1050 SERVICED BY L=1100	1-47437-967-0	01	1	9202-9212	●	●
59	PIPE; AIR,UNION TO FLEX HOSE FRONT AXLE F063(FS7) L=1050 SERVICED BY L=1100	1-47426-415-0	01	1	9301-	●	●
96	PIPE; AIR,UNION TO UNION L=1684 SERVICED BY L=1700	1-47434-478-0	01	1	9202-9212	●	●
96	PIPE; AIR,UNION TO UNION L=1684 SERVICED BY L=1700	1-47426-420-0	01	1	9301-	●	●
101	PIPE; AIR,FLEX HOSE TO UNION FRONT AXLE F049(FS4) L=1029 SERVICED BY L=1100	1-47437-967-0	01	1	9202-9212	●	●
101	PIPE; AIR,FLEX HOSE TO UNION FRONT AXLE F049(FS4) L=1030 SERVICED BY L=1100	1-47426-415-0	01	1	9301-	●	●
101	PIPE; AIR,FLEX HOSE TO UNION FRONT AXLE F063(FS7) L=1025 SERVICED BY L=1100	1-47437-967-0	01	1	9202-9212	●	●
101	PIPE; AIR,FLEX HOSE TO UNION FRONT AXLE F063(FS7) L=1025 SERVICED BY L=1100	1-47426-415-0	01	1	9301-	●	●
102	PIPE; AIR,UNION TO UNION L=1665 SERVICED BY L=1900	1-47437-971-0	01	1	9202-9212	●	●
102	PIPE; AIR,UNION TO UNION L=1665 SERVICED BY L=1900	1-47426-421-0	01	1	9301-	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE	1-47482-333-0	01	1	9202-9212	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=691	1-47497-062-0	01	1	9301-	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=691	1-47497-062-0	01	1	9301-		●
206	PIPE; AIR,BRK VLV TO FLEX HOSE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-47497-152-0	01	1	9308-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
