Isuzu WW
▶
TRUCKS
▶
NLR
▶
51394 - NLR 85(AUST)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶
8-90 — RADIO AND TV
(#37497) — 20 parça
◀

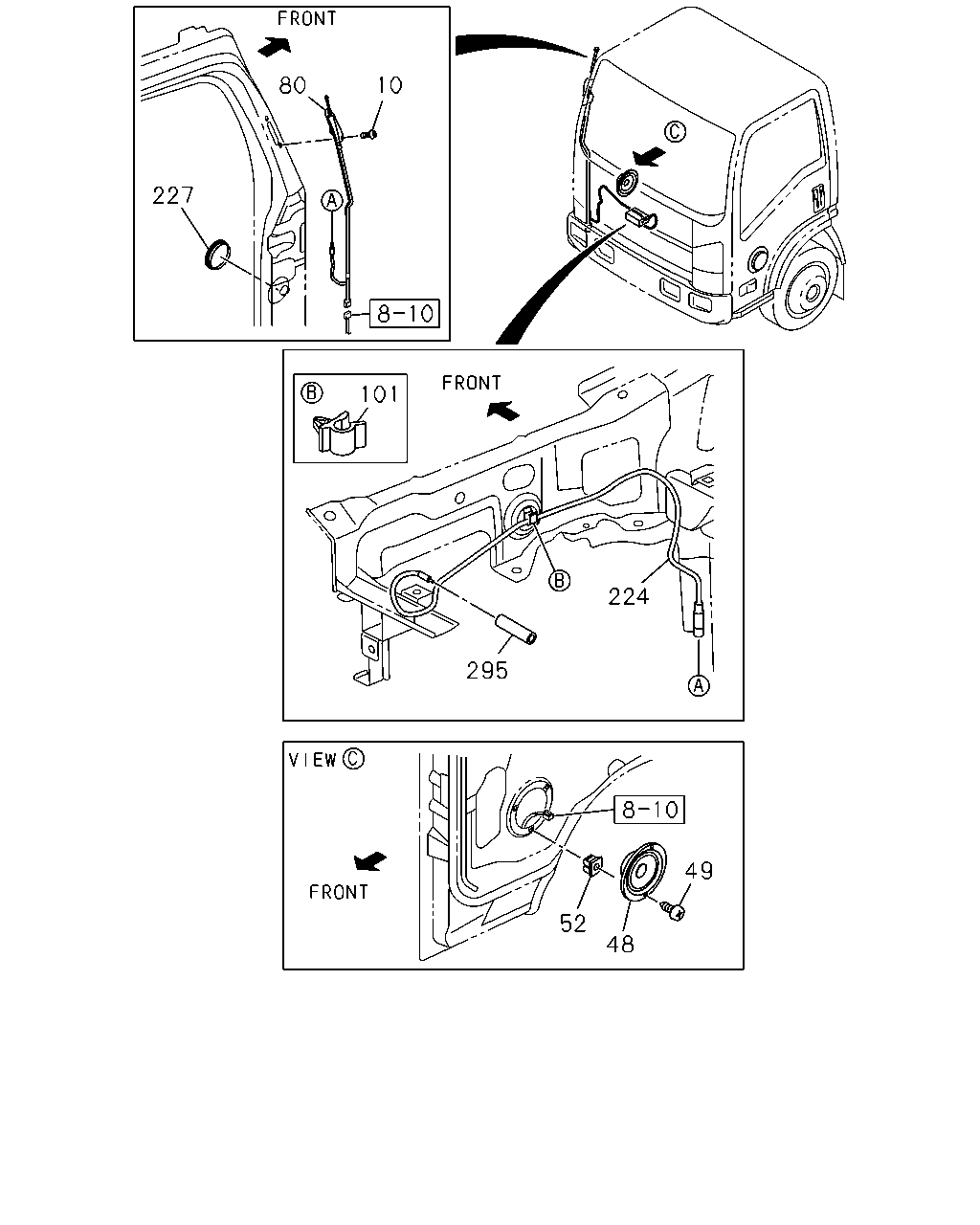

[890A] RADIO ANTENNA AND SPEAKER (15 parça)
[890A] AUDIOLESS COVER (5 parça)
▶
80
10
227
101
224
295
49
52
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
09.647 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES
8-98061-742-0
02
1
0710-
48
09.650 SPEAKER; AUDIO
8-97317-001-1
02
1
0710-
49
09.655 SCREW; SPEAKER
16.067 M5X14
8-94279-325-0
06
1
0710-0712
49
09.655 SCREW; SPEAKER
M5X14 TAPPING W/TORQUES
8-98061-856-0
06
1
0801-
52
09.655 GROMMET; SCREW,SPEAKER
01.269 D=8.6X7.7 L=7.5
8-94279-078-0
06
1
0710-
80
09.645 ANTENNA
8-97387-265-3
01
1
0710-
101
09.649 CLIP; FEEDER TO BRKT
09.647 ID=4.8
8-94128-483-0
01
1
0710-
224
09.647 CABLE; EXT,FEEDER
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98029-970-1
01
1
0710-0801
224
09.647 CABLE; EXT,FEEDER
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98029-970-1
01
1
0710-0801
224
09.647 CABLE; EXT,FEEDER
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98029-970-1
01
1
0710-0801
224
09.647 CABLE; EXT,FEEDER
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)
8-98029-970-1
01
1
0802-
224
09.647 CABLE; EXT,FEEDER
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98029-970-1
01
1
0802-
224
09.647 CABLE; EXT,FEEDER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)
8-98029-970-1
01
1
0802-
227
09.647 PROTECTOR; EDGE
8-98053-117-0
01
1
0710-
295
09.665 INSULATOR; ANTENNA
8-98095-617-1
01
1
0710-
36
226
6
6
36
33
226
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6

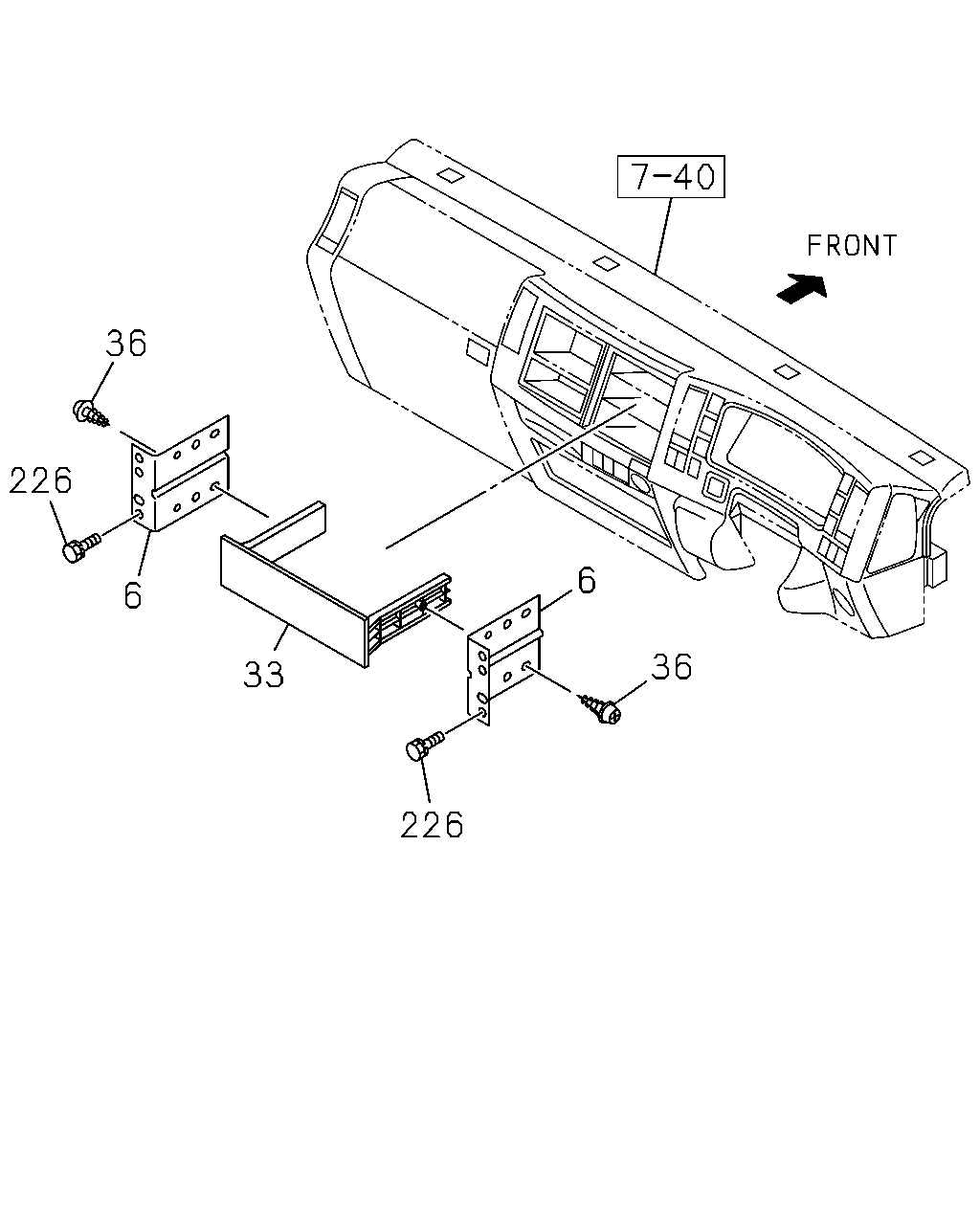

09.645 BRACKET; RADIO TO PANEL
8-97585-617-0
02
1
0710-
33
09.650 COVER; RADIO
BLACK
8-97407-896-1
01
1
0710-
36
09.779 SCREW; COVER
16.100 T25 L=10 HEXALOBULAR
8-98058-632-0
02
1
0710-
226
09.647 BOLT; BRKT
T25 M5X20 TAPPING HEXALOBULAR
0-72180-520-0
02
1
0710-1101
226
09.647 BOLT; BRKT
16.100 M5X20 HEXALOBULAR SOCKET
8-98177-743-0
02
1
1102-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
