◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51394 - NLR 85(AUST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#37489) — 17 parça

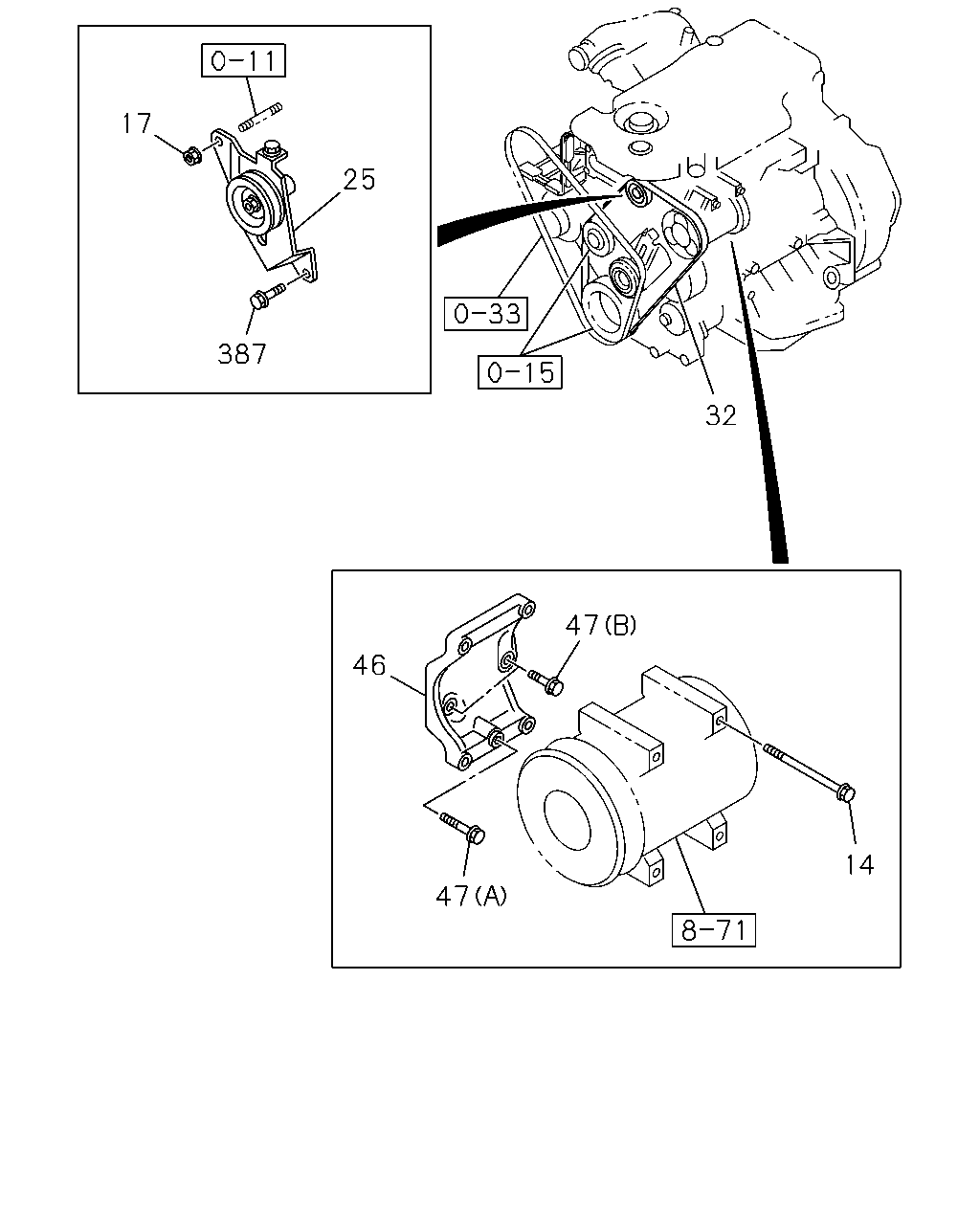

çizim 33328
17 25 387 32 47 46 14 47
BalonParca AdiParca NoAdetTipApplied Date
14 09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 00.386 M8X100 FLANGE 		0-28050-800-0 04 1 0710-
17 09.171 NUT; CMPR
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0710-
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 1-GROOVE 		8-98051-011-0 01 1 0710-1006
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 1-GROOVE 		8-98114-437-0 01 1 1007-
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) L=1369 MITSUBOSHI 		8-94252-342-0 01 1 0710-0804
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0805-
46 09.171 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 09.242 		8-98037-322-0 01 1 0710-
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) M8X45 FLANGE 		0-28050-845-0 01 1 0710-
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
387 09.190 BOLT; TENSIONER FIX
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0710-

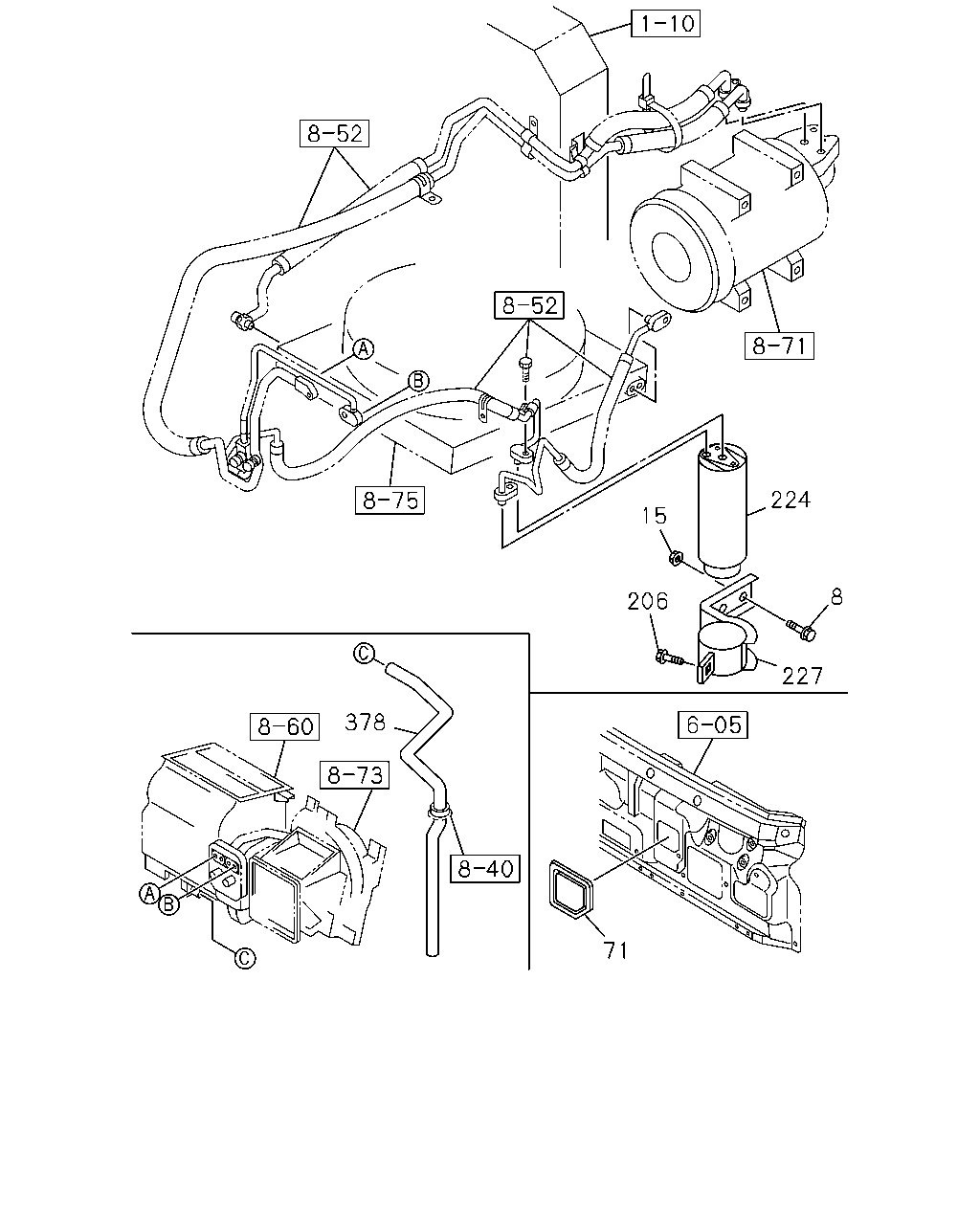

çizim 33329
224 15 8 206 227 378 71
BalonParca AdiParca NoAdetTipApplied Date
8 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710-
15 09.173 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-
71 09.190 COVER; EVAP,A/C
EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98017-234-1 01 1 0710-
206 09.242 BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M6X16 		8-97096-525-0 01 1 0710-
224 09.195 TANK ASM; RECEIVER
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97096-593-0 01 1 0710-
227 09.196 BRACKET; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98042-566-0 01 1 0710-
378 09.211 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98001-241-2 01 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
