8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#37484) — 20 parça

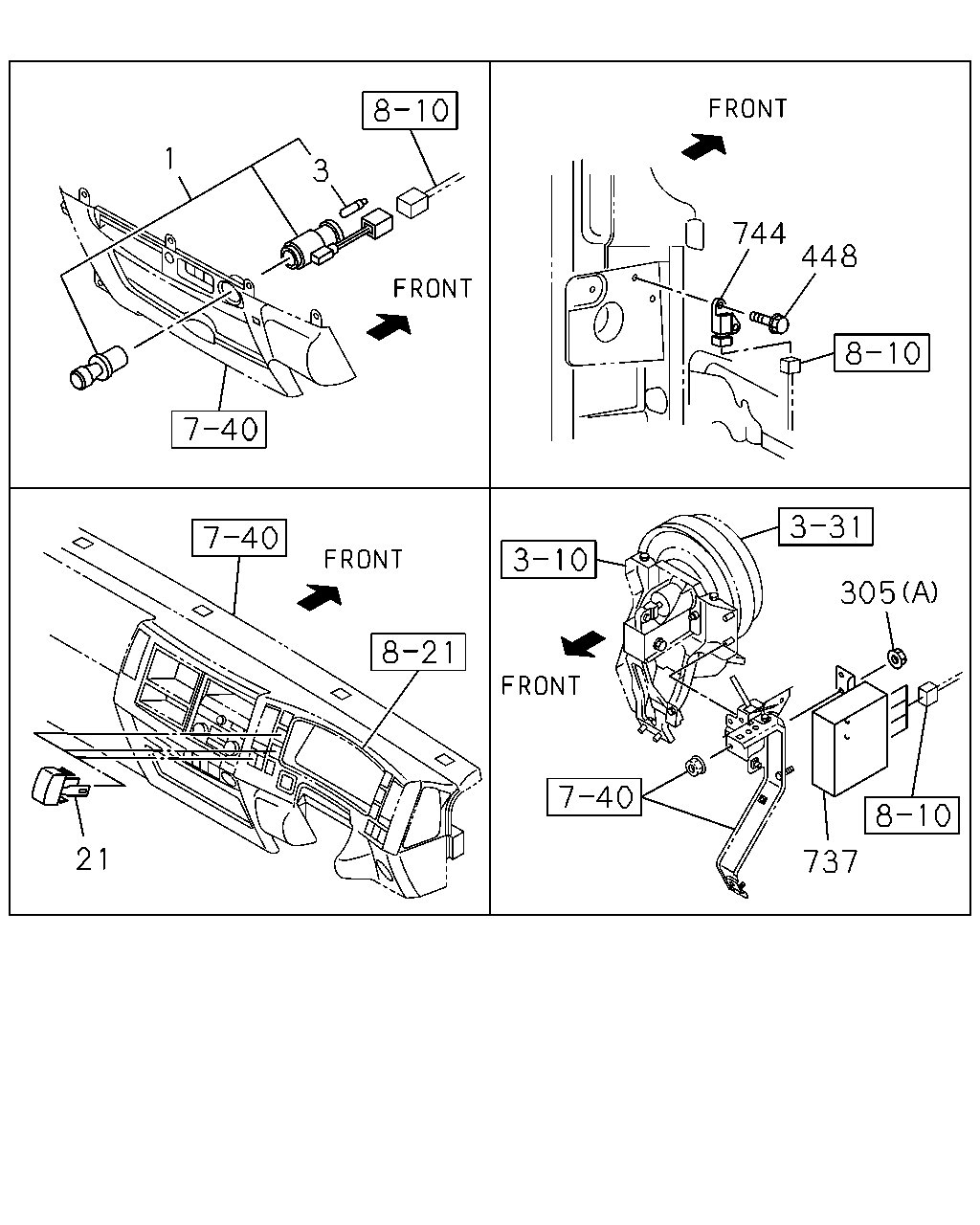

çizim 33353
1 3 744 448 305 21 737
BalonParca AdiParca NoAdetTipApplied Date
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0710-0906
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 0907-
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0710-0906
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 01 1 0710-
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 02 1 0710-
305 08.915 NUT; CONT UNIT
H.S.A SYSTEM<6EP> 01.062 (B) M6 FLANGE 		0-91180-106-0 02 1 0710-
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 0710-
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0710-
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 M6X18 W/PL WASHER 		8-97105-796-1 02 1 0710-
737 04.115 CONTROL UNIT; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98067-710-5 01 1 0710-
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> 		8-97386-841-2 01 1 0710-

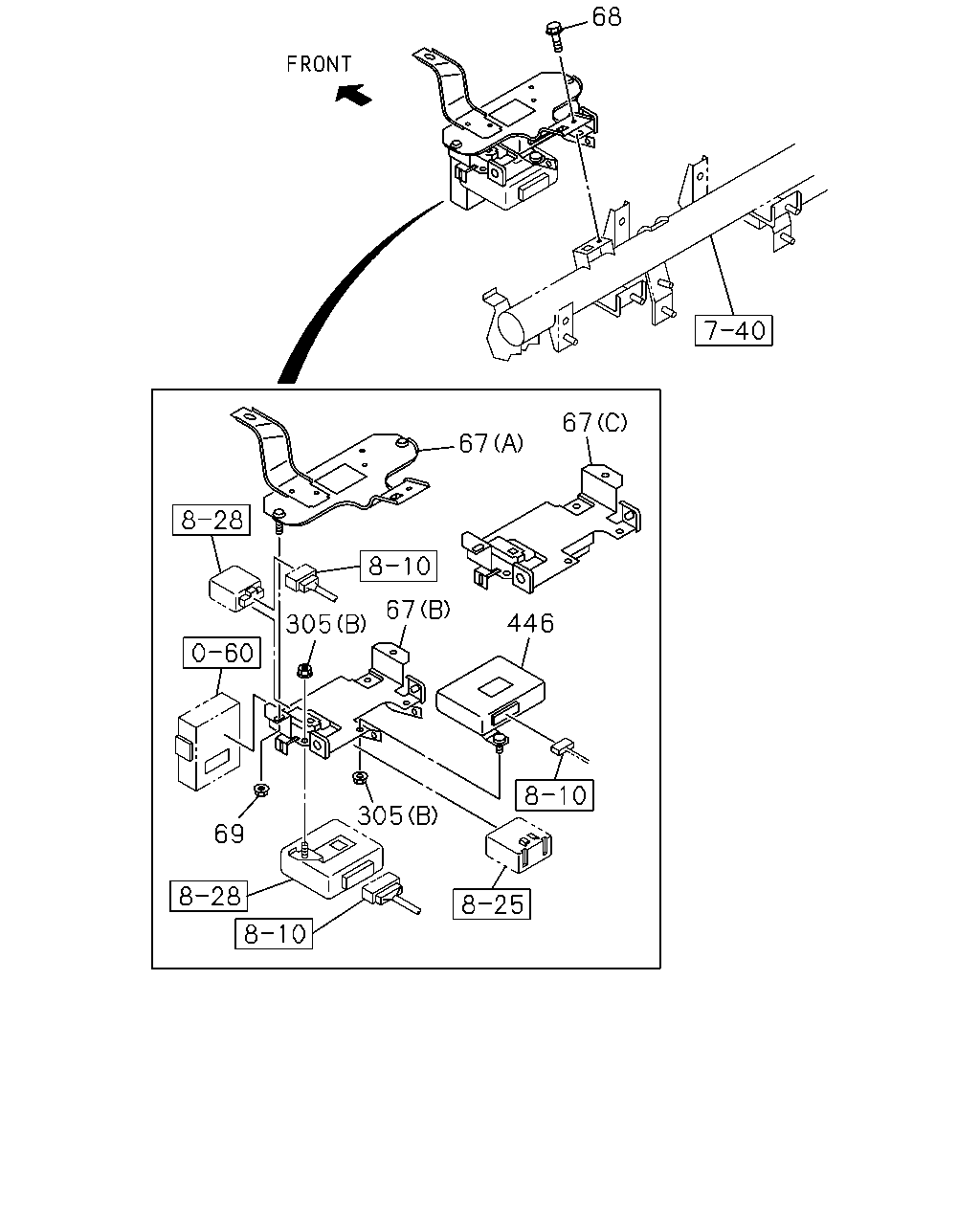

çizim 99317
68 67 67 67 446 305 305 69
BalonParca AdiParca NoAdetTipApplied Date
67 03.887 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 0710-
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 0710-1111
67 03.887 BRACKET; CONT UNIT
(C) 		8-98203-057-0 01 1 1112-
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 01 1 0710-
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0710-
305 08.915 NUT; CONT UNIT
H.S.A SYSTEM<6EP> 01.062 (B) M6 FLANGE 		0-91180-106-0 02 1 0710-
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 0710-
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0710-
446 02.510 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		8-98046-563-1 01 1 0710-
