8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#37483) — 75 parça

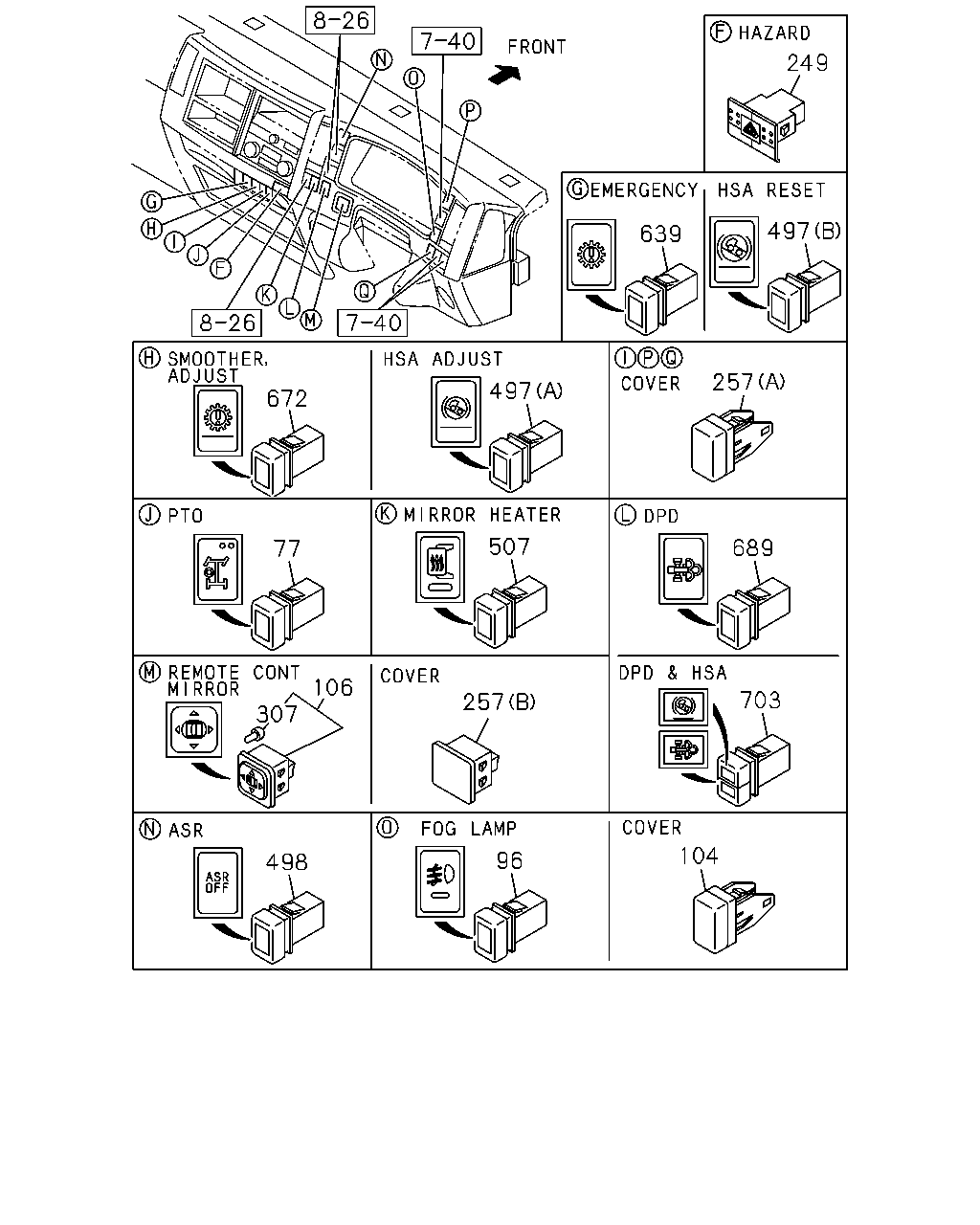

çizim 33362
249 497 639 257 497 672 507 689 77 106 703 257 307 104 96 498
BalonParca AdiParca NoAdetTipApplied Date
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-1 01 1 0710-0903
77 04.439 SWITCH; PTO
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-1 01 1 0904-
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-3 01 1 0710-
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 0710-
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 0710-
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 0710-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 0710-0906
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 0710-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0710-0903
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 0710-0903
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0710-0903
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (A) 		8-98025-954-1 01 1 0710-0903
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 0710-0903
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 0710-0903
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0904-0906
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (A) 		8-98025-954-1 01 1 0904-0906
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 0904-0906
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 0904-0906
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) (A) 		8-98025-954-1 01 1 0904-0906
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0904-0906
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907-
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (A) 		8-98025-954-1 01 1 0907-
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 0907-
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 0907-
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) (A) 		8-98025-954-1 01 1 0907-
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0907-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907-
307 08.991 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 28V 40MA 		8-97116-331-0 01 1 0710-
497 04.439 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) ADJUST 		8-97386-967-2 01 1 0710-0806
497 04.439 SWITCH; HSA
H.S.A SYSTEM<6EP> (B) RESET 		8-98119-946-0 01 1 0807-
497 04.439 SWITCH; HSA
H.S.A SYSTEM<6EP> (B) RESET 		8-97386-985-1 01 1 0710-0806
497 04.439 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) ADJUST 		8-98119-947-0 01 1 0807-
498 03.883 SWITCH; ASR 8-97386-920-1 01 1 0710-
507 10.186 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-97386-924-2 01 1 0710-
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97387-000-2 01 1 0710-0806
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 0807-
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. H.S.A SYSTEM<6EP> 		8-97386-971-2 01 1 0710-0806
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. H.S.A SYSTEM<6EP> 		8-98119-949-0 01 1 0807-
689 02.780 SWITCH; DPD
EXC. H.S.A SYSTEM<6EP> 		8-97386-921-1 01 1 0710-
703 02.780 SWITCH; DPD & HSA
H.S.A SYSTEM<6EP> 		8-98011-346-1 01 1 0710-

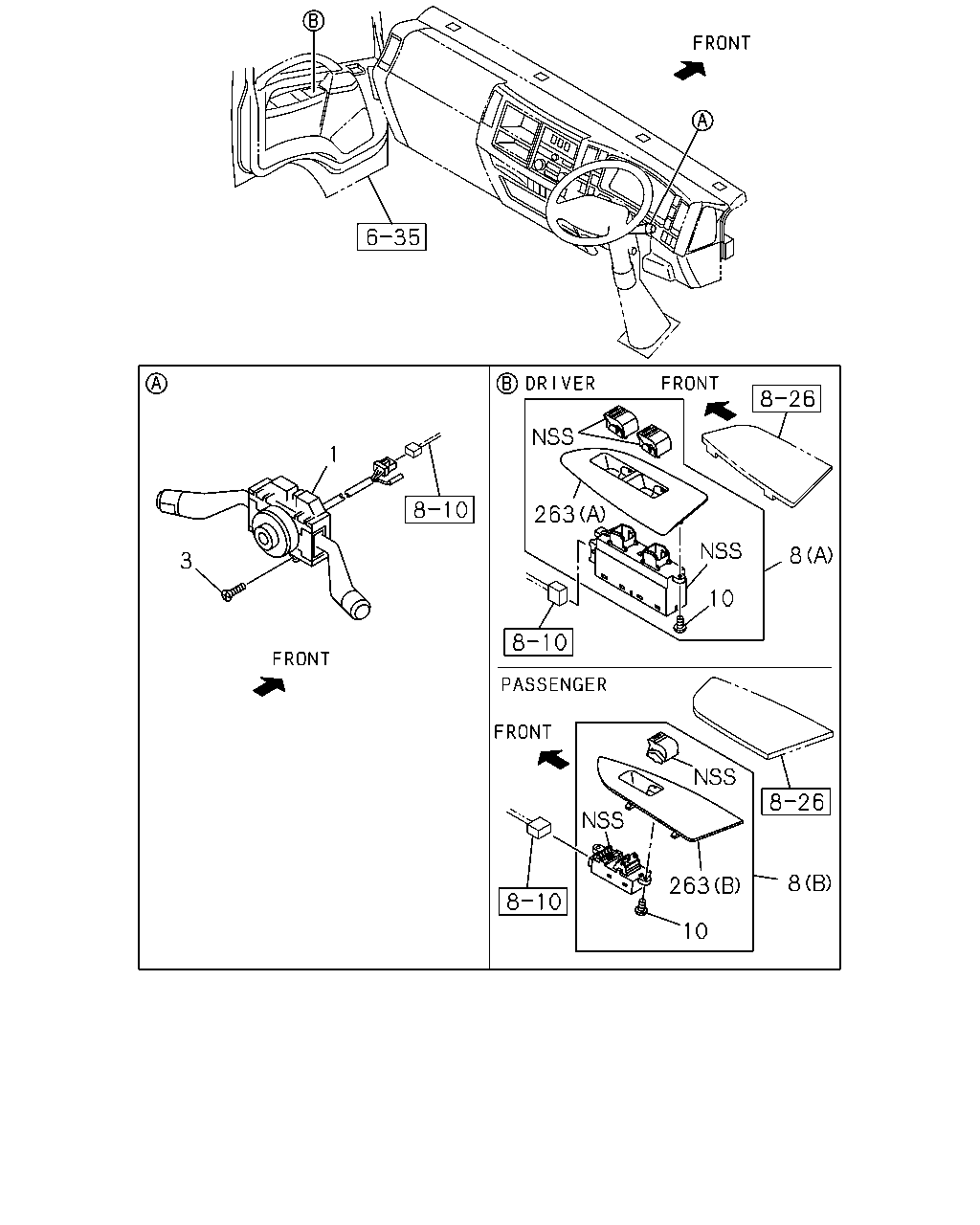

çizim 33762
1 263 8 3 10 8 263 10
BalonParca AdiParca NoAdetTipApplied Date
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98069-995-1 01 1 0710-
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-001-1 01 1 0710-0905
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98146-635-0 01 1 0906-
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0710-
8 16.263 SWITCH; POWER WINDOW
(B) PASSENGER SIDE 		8-97387-034-2 01 1 0710-
8 16.263 SWITCH; POWER WINDOW
(A) DRIVER SIDE 		8-98003-785-1 01 1 0710-0809
8 16.263 SWITCH; POWER WINDOW
(A) DRIVER SIDE 		8-98129-844-0 01 1 0810-1001
8 16.263 SWITCH; POWER WINDOW
(A) DRIVER SIDE 		8-98159-543-0 01 1 1002-
10 03.885 SCREW; POWER WINDOW SW
DRIVER SIDE 		8-98153-865-0 01 1 0710-
10 03.885 SCREW; POWER WINDOW SW
PASSENGER SIDE 		8-98153-865-0 02 1 0710-
263 16.081 COVER; SW
(A) 		8-98153-836-0 01 1 0710-
263 16.081 COVER; SW
(B) 		8-98153-841-0 01 1 0710-
çizim 99263
21
BalonParca AdiParca NoAdetTipApplied Date
21 02.575 SWITCH; CLU
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0710-
çizim 99264
608 151 154
BalonParca AdiParca NoAdetTipApplied Date
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITUBA 		8-97238-540-0 01 1 0710-

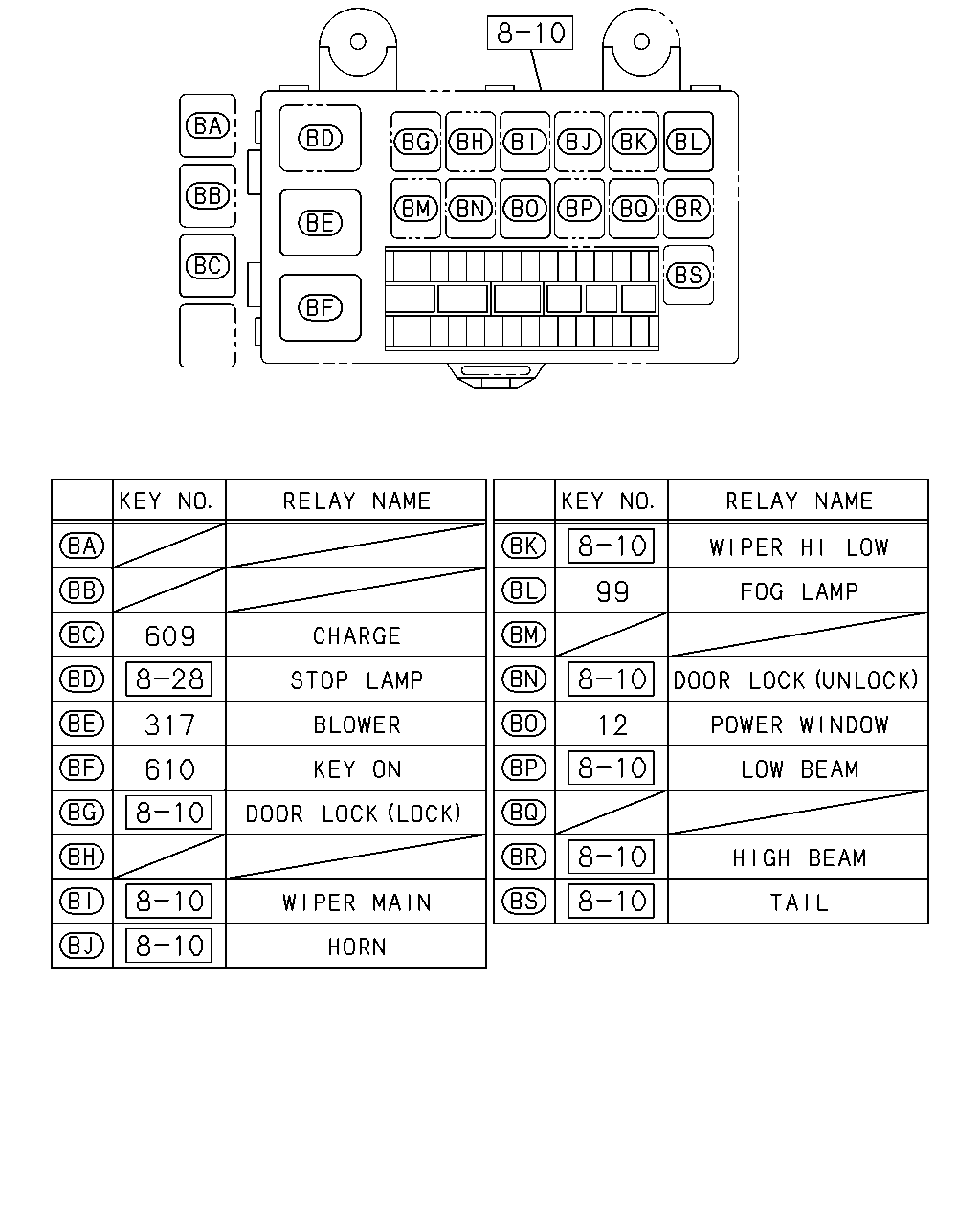

çizim 99315
99 609 317 12 610
BalonParca AdiParca NoAdetTipApplied Date
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0710-
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-
317 02.510 RELAY; BLOWER MOTOR,HTR
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-
609 02.485 RELAY; CHARGE
H.S.A SYSTEM<6EP> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-1204
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-

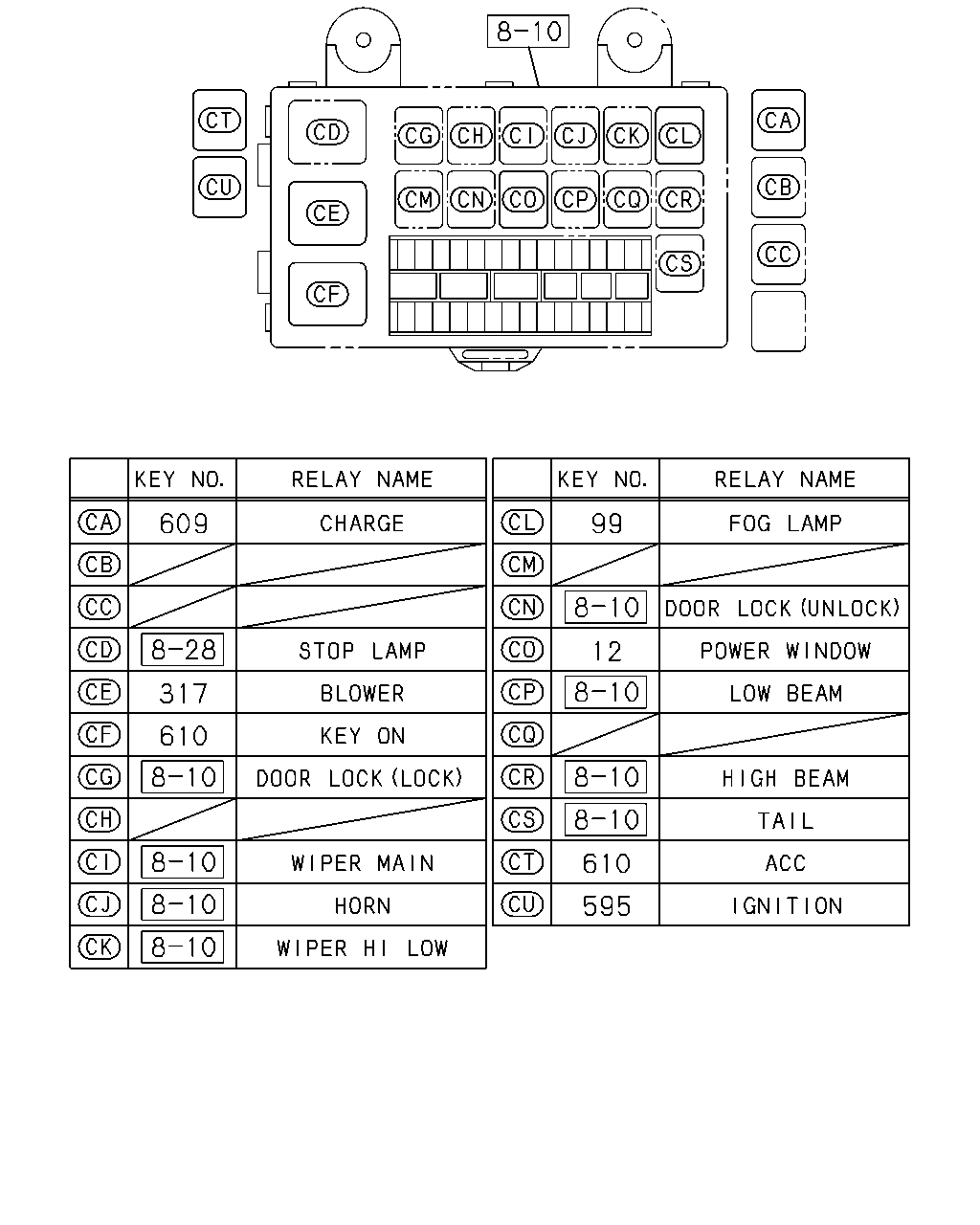

çizim 99316
609 99 12 317 610 610 595
BalonParca AdiParca NoAdetTipApplied Date
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0710-
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-
317 02.510 RELAY; BLOWER MOTOR,HTR
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-
595 02.510 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-
609 02.485 RELAY; CHARGE
H.S.A SYSTEM<6EP> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-1204
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-
çizim 283471
30 29
BalonParca AdiParca NoAdetTipApplied Date
29 16.263 SWITCH; DOOR
BLACK 		8-98022-211-0 02 1 0710-0710
29 16.263 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0710-
30 16.263 SCREW; DOOR SW
M5X18 		8-98047-201-0 02 1 0710-
