8-21 — METER ASM (#37482) — 27 parça

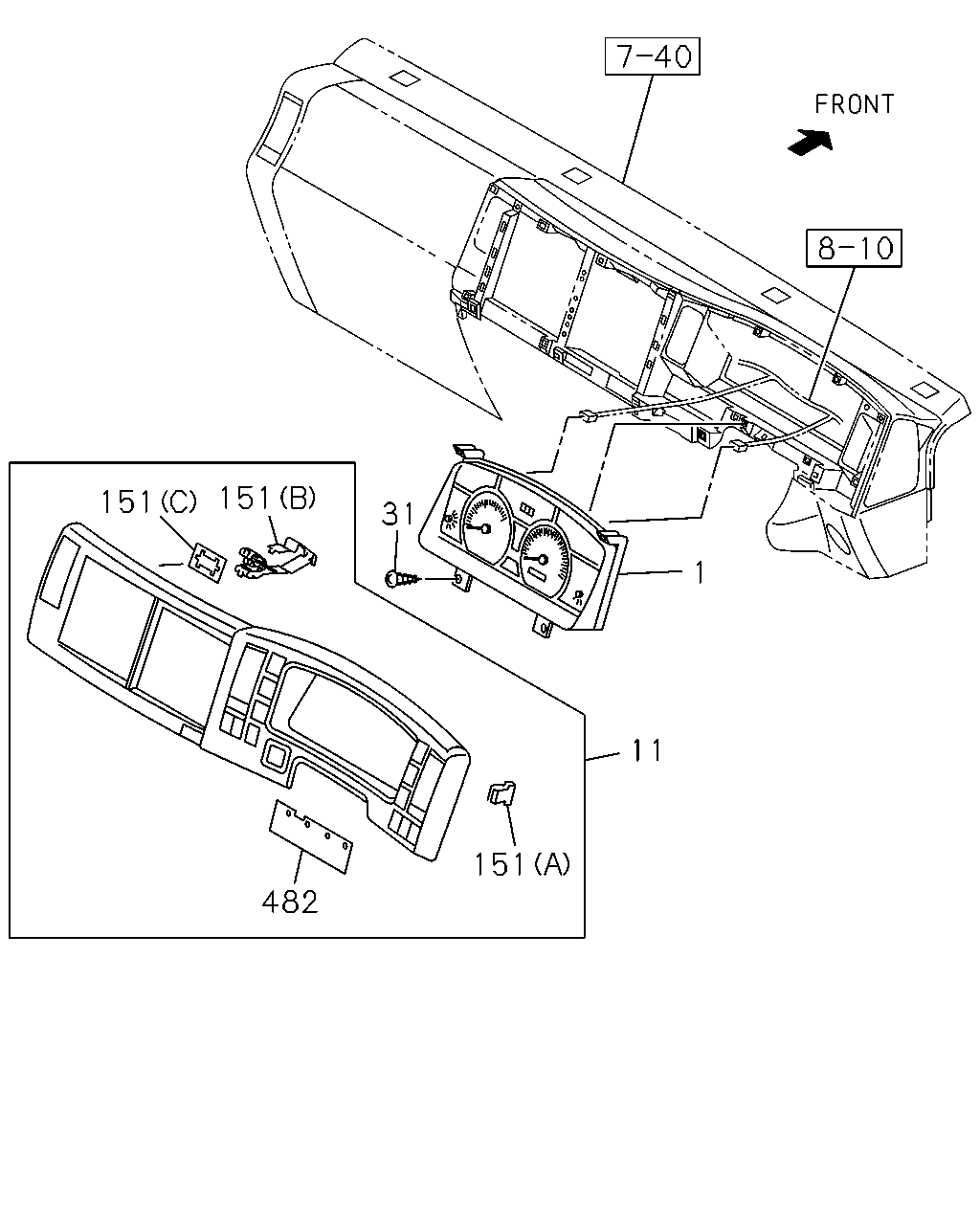

çizim 32959
151 151 31 1 11 151 482
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98021-251-1 01 1 0710-0904
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4> 		8-98021-251-4 01 1 0905-
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-249-1 01 1 0710-0904
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4> 		8-98021-249-4 01 1 0905-
1 09.735 METER COMPL; CLUSTER
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98096-900-4 01 1 0905-
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-5 01 1 0710-1001
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97418-532-1 01 1 1002-
31 09.761 SCREW; METER,INST PANEL
16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0710-1101
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-
151 09.747 CLIP; METER CLUSTER
16.085 (A) 		8-98021-271-0 13 1 0710-1001
151 09.747 CLIP; METER CLUSTER
16.085 (A) 		8-98021-271-0 12 1 1002-
151 09.747 CLIP; METER CLUSTER
16.090 (B) 		8-98152-030-0 01 1 1002-
151 09.747 CLIP; METER CLUSTER
16.090 (C) 		8-98152-031-0 01 1 1002-
482 09.772 SEAL; CLUSTER METER 8-98116-842-0 01 1 0806-

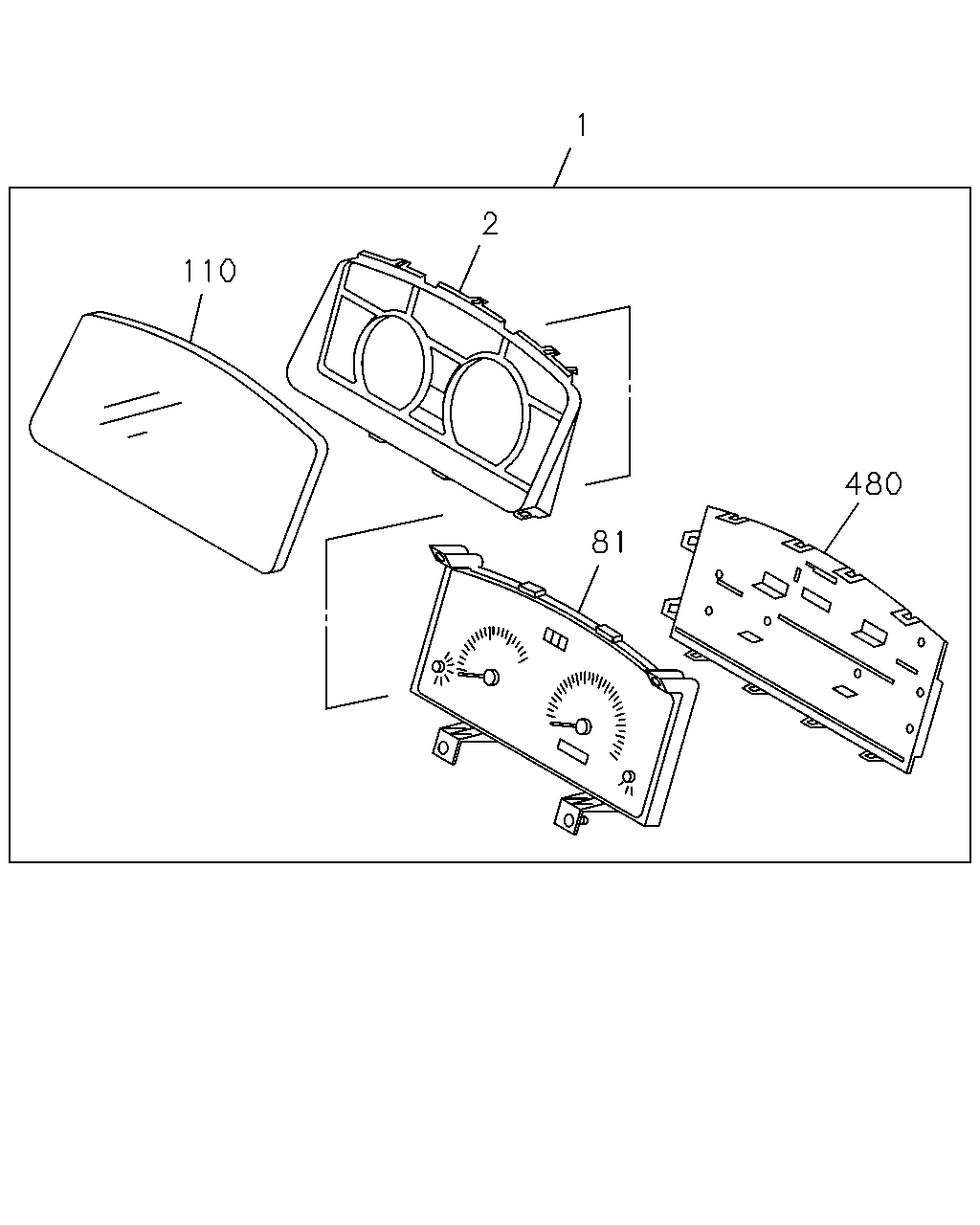

çizim 33300
1 2 110 480 81
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98021-251-1 01 1 0710-0904
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4> 		8-98021-251-4 01 1 0905-
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-249-1 01 1 0710-0904
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4> 		8-98021-249-4 01 1 0905-
1 09.735 METER COMPL; CLUSTER
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98096-900-4 01 1 0905-
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 0710-
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98073-680-0 01 1 0710-0904
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4> 		8-98073-680-0 01 1 0905-
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98073-677-0 01 1 0710-0904
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4> 		8-98073-677-0 01 1 0905-
81 09.735 METER SUB ASM
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98096-965-0 01 1 0905-
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 0710-
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 0710-
