8-15 — FIXING PARTS; WIRING HARNESS (#37481) — 152 parça

53 515 480 515 53 53 480 480 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

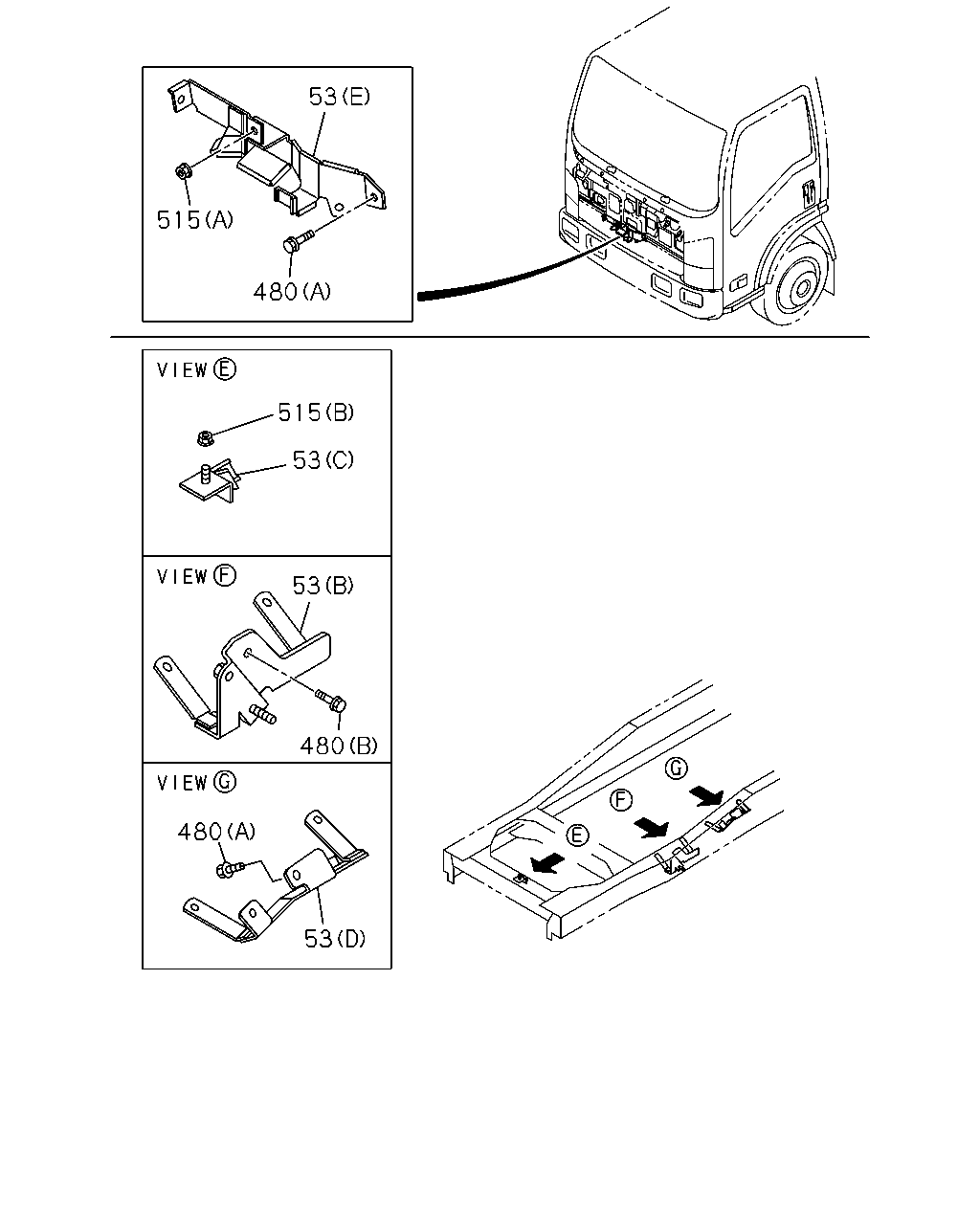

53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0710-
53	02.483 BRACKET; HARNESS (D)	8-98033-918-2	01	1	0710-
53	02.483 BRACKET; HARNESS (E)	8-98039-984-2	01	1	0710-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0710-
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	0710-
53	02.483 BRACKET; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (G)	8-98084-590-0	01	1	0710-
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (F)	8-98039-277-1	02	1	0710-0803
53	02.483 BRACKET; HARNESS DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (F)	8-98039-277-1	02	1	0804-0805
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (F)	8-98039-277-2	02	1	0806-
480	02.483 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-0711
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0710-
480	02.483 BOLT; BRKT 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0710-
480	02.483 BOLT; BRKT 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	0803-0803
480	02.483 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0710-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0710-

459 552 459 459 552 459 242 459 459 459 552 552 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

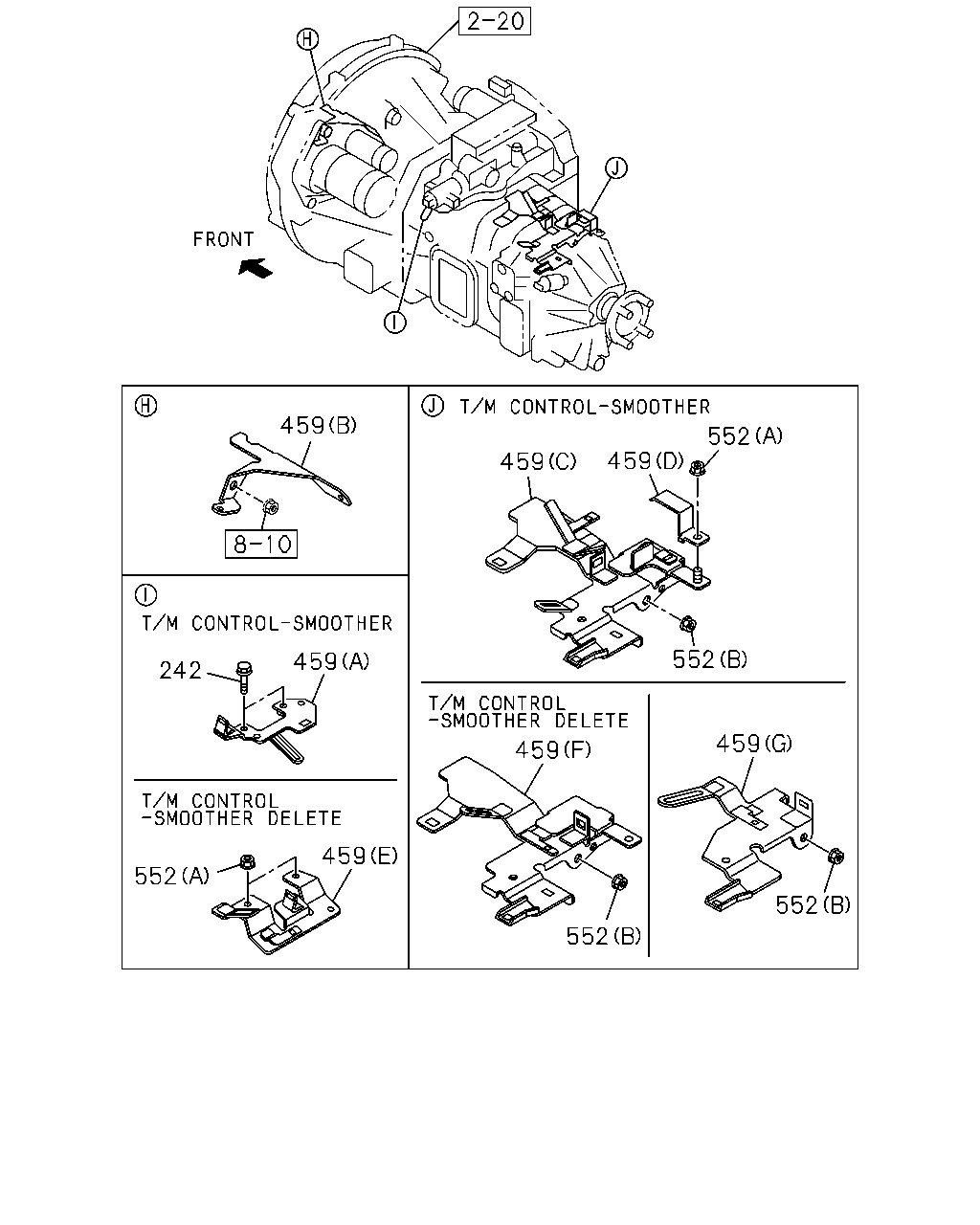

242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0710-
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	0710-
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-988-2	01	1	0710-
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98030-991-2	01	1	0710-
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98044-758-2	01	1	0710-
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	0710-
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98030-990-2	01	1	0710-1109
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98196-974-0	01	1	1110-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0710-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0710-

22 22 617 488 22 22 22 48 48 48 48 22 48 48 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

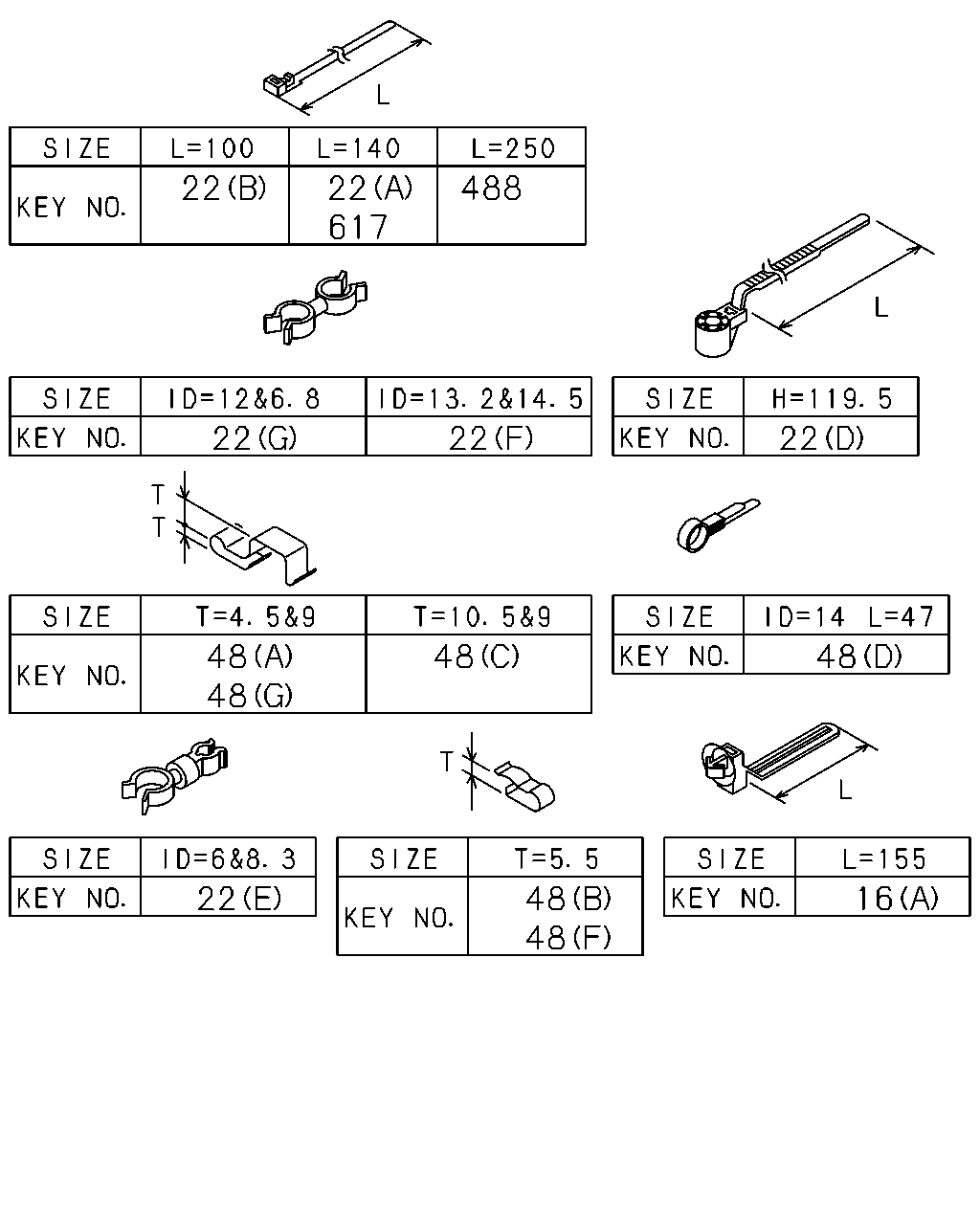

16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 02.343 (D) ID=10 & 16	8-94413-325-0	02	1	0710-0710
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0710-
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0710-
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0710-
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0710-
16	02.559 CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	0710-
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	0710-
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	0710-
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	0710-
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	0710-
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0710-
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0710-
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0710-
22	02.559 CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	0710-
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0710-
22	02.559 CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 04.866 (H) ID=18 & 18	8-94323-068-0	01	1	0801-0801
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	0710-0710
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) 01.240 (B) T=5.5	5-09709-047-0	01	1	0710-0710
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (B) T=5.5	5-09709-047-0	03	1	0710-0710
48	02.559 CLIP; FRAME HARNESS (E) ID=20	8-94241-972-0	01	1	0710-0801
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) 01.240 (D) ID=14 L=47	5-09700-319-0	07	1	0710-
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0710-
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0710-0710
48	02.559 CLIP; FRAME HARNESS (G) T=4.5 & 9	8-97371-947-0	01	1	0711-
48	02.559 CLIP; FRAME HARNESS (C) T=9 & 10.5	8-97371-949-0	01	1	0710-0710
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	0711-
48	02.559 CLIP; FRAME HARNESS (E) ID=20	8-94241-972-0	01	1	0803-
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	0710-
617	02.559 STRAP; BAND TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 L=140	5-09707-031-1	01	1	1012-1106

139 313 480 481 38 139 516 480 481 480 242 529 377 377 386 377 386 386 386 24 515 577 219 294 515 524 552 552 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.559 NUT; HARNESS 01.062 M6 FLANGE	0-91180-106-0	01	1	0710-
38	02.559 BOLT; CLIP,HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0710-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0710-
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-0803
139	02.559 BOLT; BRKT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0804-0805
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0806-
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0710-1101
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0710-
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0710-
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0710-1004
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0710-1004
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1005-
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0710-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0710-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-
480	02.483 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-0711
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0710-
480	02.483 BOLT; BRKT 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0710-
480	02.483 BOLT; BRKT 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	0803-0803
480	02.483 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-
481	13.090 BOLT; CABLE HARNESS 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0903
481	13.090 BOLT; CABLE HARNESS 04.665 (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	0710-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0710-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0710-
516	02.559 BOLT; HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0710-
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	0904-
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0710-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0710-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0710-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0710-0710
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0710-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0710-

16 16 16 16 16 22 504 507 22 513 530 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 02.343 (D) ID=10 & 16	8-94413-325-0	02	1	0710-0710
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0710-
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0710-
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0710-
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0710-
16	02.559 CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	0710-
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	0710-
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	0710-
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	0710-
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	0710-
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0710-
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0710-
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0710-
22	02.559 CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	0710-
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0710-
22	02.559 CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 04.866 (H) ID=18 & 18	8-94323-068-0	01	1	0801-0801
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	0710-0710
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) 01.240 (B) T=5.5	5-09709-047-0	01	1	0710-0710
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (B) T=5.5	5-09709-047-0	03	1	0710-0710
48	02.559 CLIP; FRAME HARNESS (E) ID=20	8-94241-972-0	01	1	0710-0801
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) 01.240 (D) ID=14 L=47	5-09700-319-0	07	1	0710-
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0710-
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0710-0710
48	02.559 CLIP; FRAME HARNESS (G) T=4.5 & 9	8-97371-947-0	01	1	0711-
48	02.559 CLIP; FRAME HARNESS (C) T=9 & 10.5	8-97371-949-0	01	1	0710-0710
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	0711-
48	02.559 CLIP; FRAME HARNESS (E) ID=20	8-94241-972-0	01	1	0803-
504	02.559 PROTECTOR; HARNESS	8-98208-886-0	01	1	1201-
507	02.559 FINISHER 02.183 L=40	8-94212-660-0	01	1	0711-0902
513	02.559 TAPE; SOFT,HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 130X80	8-97304-373-0	01	1	0808-
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	0907-
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	0710-0710

139 53 139 53 53 575 139 7 577 313 7 7 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

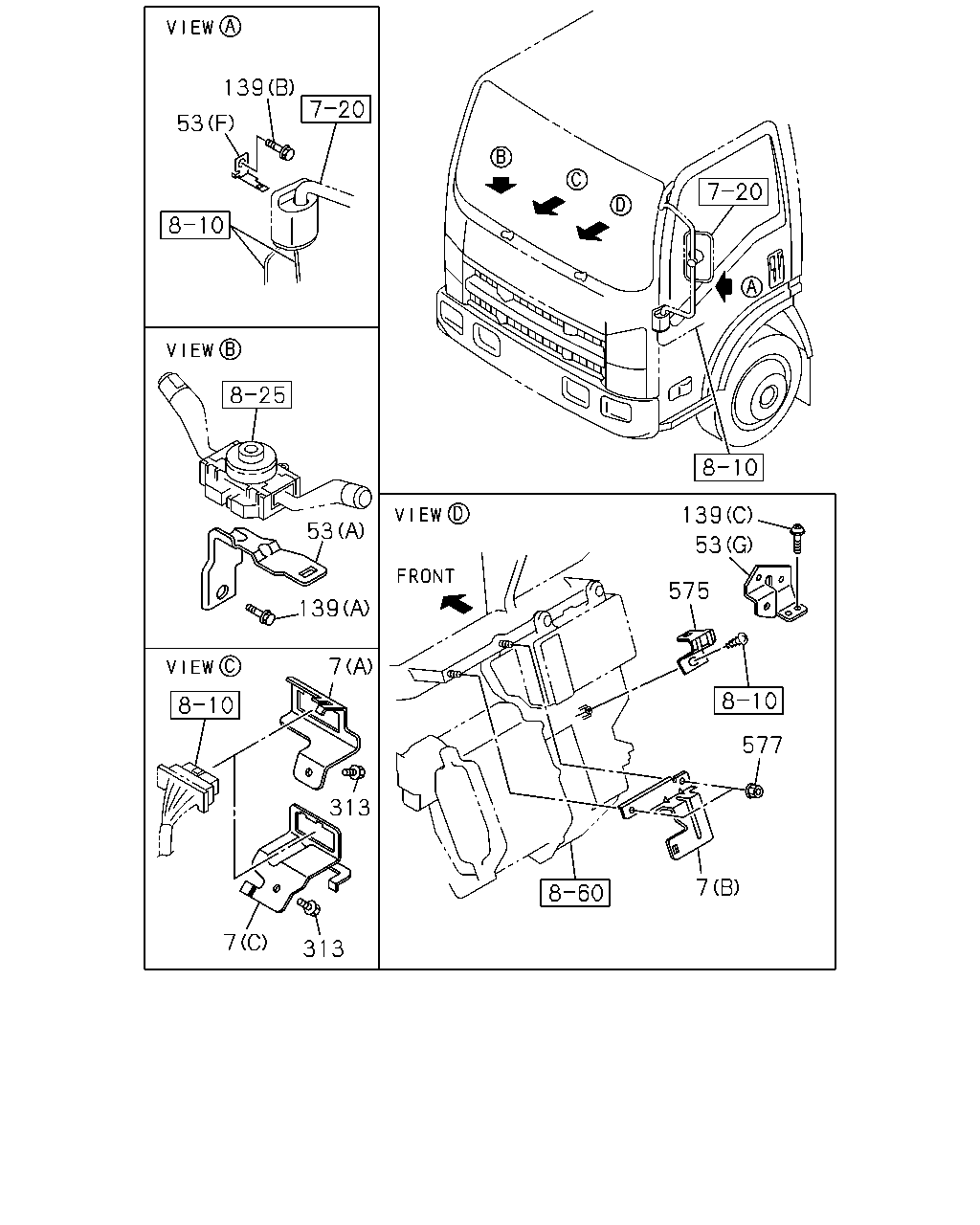

7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98043-070-1	01	1	0710-
7	02.559 BRACKET; CONNECTOR (B)	8-98029-762-4	01	1	0710-
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98043-069-1	01	1	0710-0803
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98114-514-0	01	1	0804-
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0710-
53	02.483 BRACKET; HARNESS (D)	8-98033-918-2	01	1	0710-
53	02.483 BRACKET; HARNESS (E)	8-98039-984-2	01	1	0710-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0710-
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	0710-
53	02.483 BRACKET; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (G)	8-98084-590-0	01	1	0710-
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (F)	8-98039-277-1	02	1	0710-0803
53	02.483 BRACKET; HARNESS DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (F)	8-98039-277-1	02	1	0804-0805
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (F)	8-98039-277-2	02	1	0806-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0710-
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-0803
139	02.559 BOLT; BRKT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0804-0805
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0806-
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0710-1101
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0710-
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	0710-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0710-0710
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0710-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0710-
