Sayfa 8-10 - Isuzu EPC

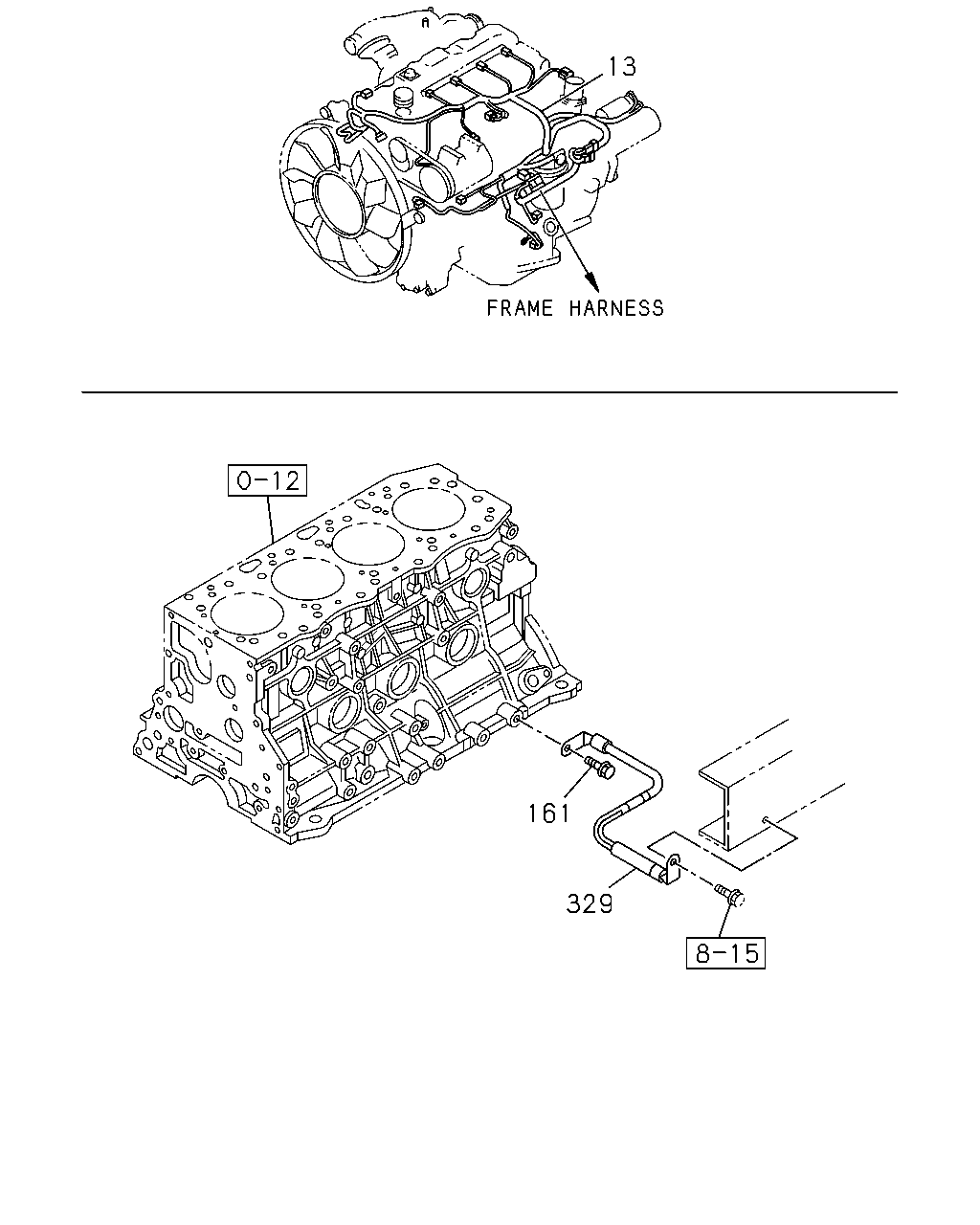

13 161 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	02.525 HARNESS; ENG	8-98082-045-5	01	1	0710-1006
13	02.525 HARNESS; ENG	8-98147-729-0	01	1	1007-
161	02.559 BOLT; GROUND,HARNESS 02.483 M10X16 FLANGE	0-28051-016-0	01	1	0710-
329	02.480 CABLE; ENG TO FRAME	8-98039-854-1	01	1	0710-

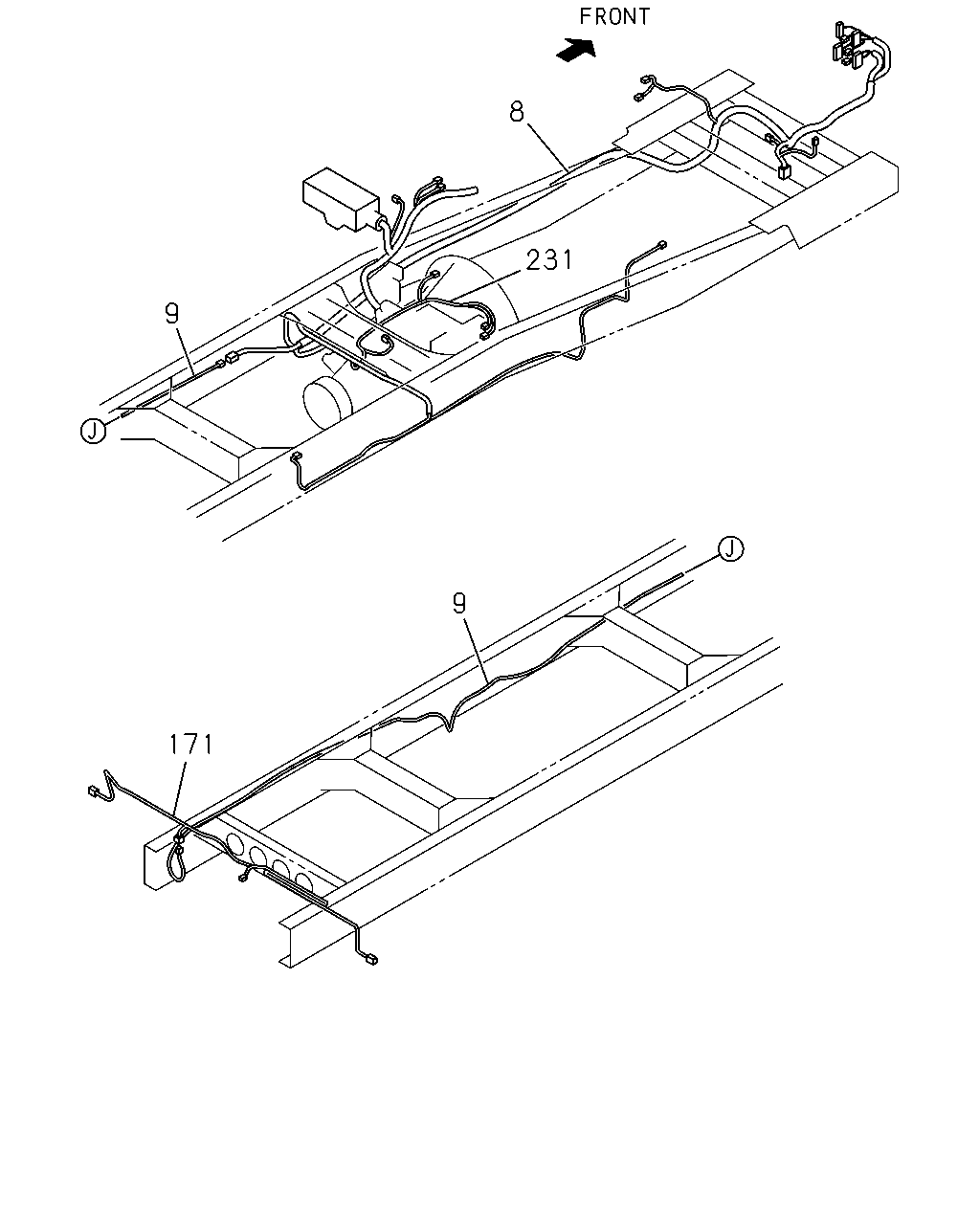

8 231 9 9 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-796-6	01	1	0710-0804
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98117-785-1	01	1	0805-
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98071-790-6	01	1	0710-0804
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98117-779-1	01	1	0805-
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W)	8-98048-414-2	01	1	0710-
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W)	8-98048-424-1	01	1	0710-
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98070-319-1	01	1	0710-1006
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-027-0	01	1	1007-
231	02.480 HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98029-598-1	01	1	0710-

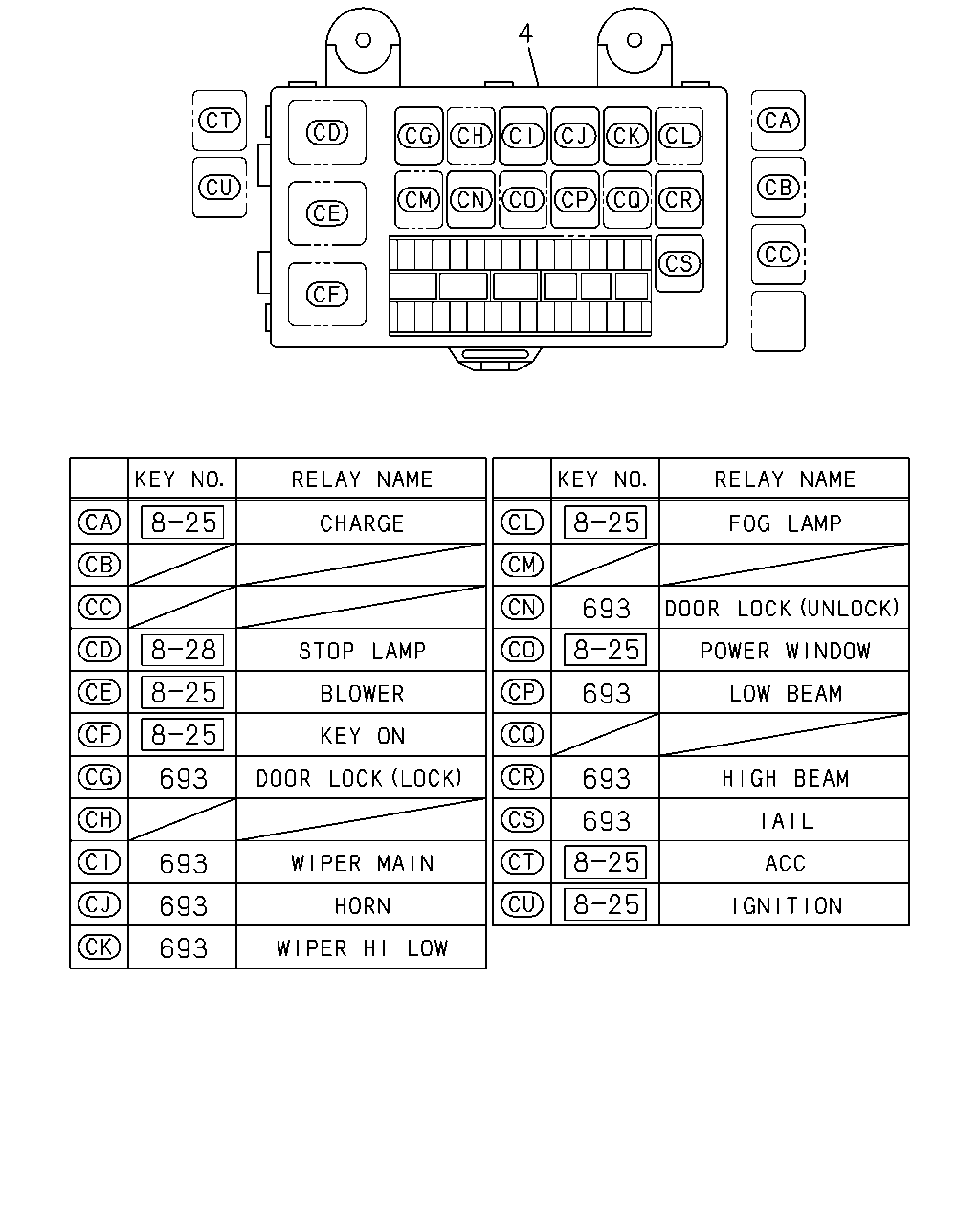

4 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-0	01	1	0710-
	693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0710-

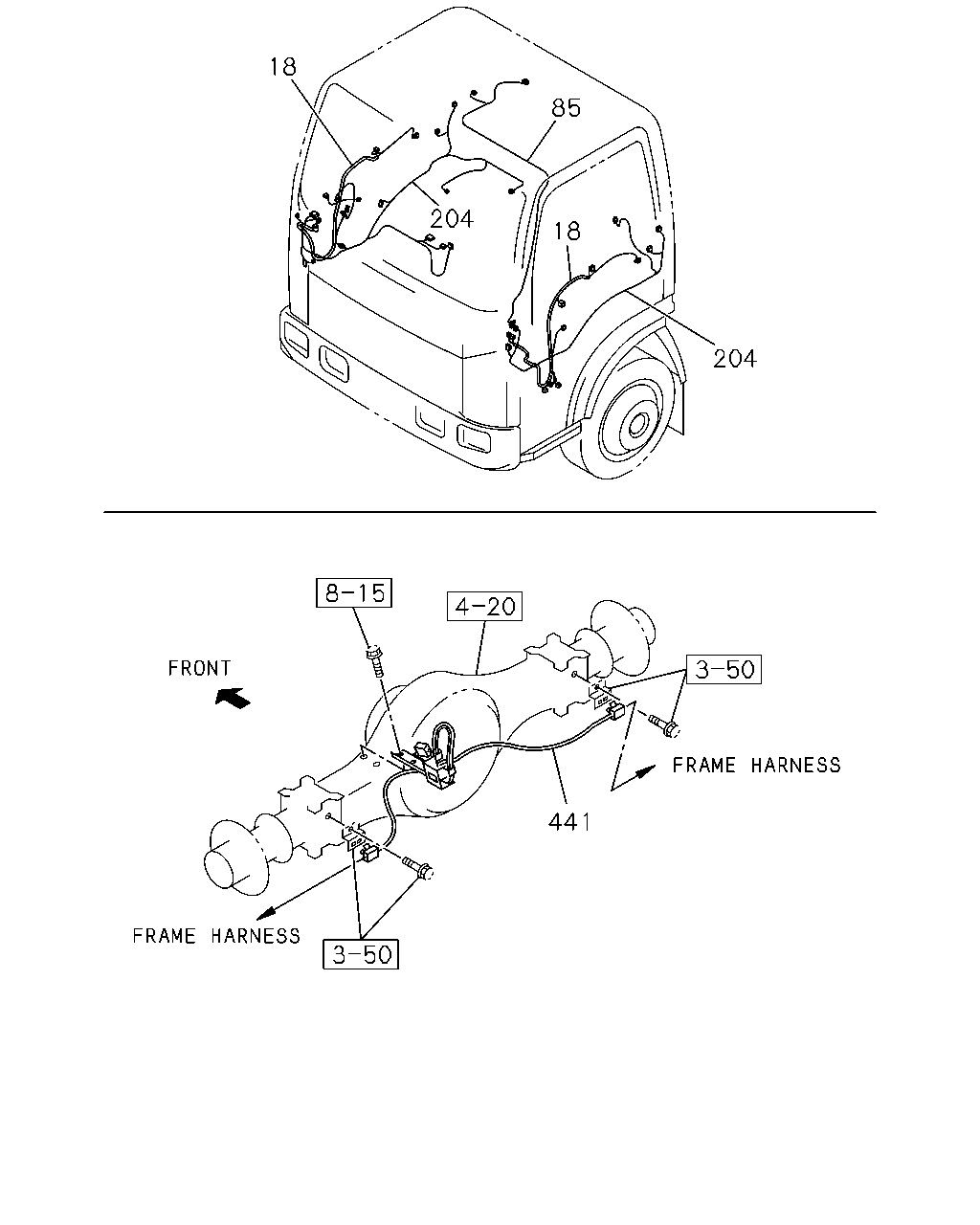

18 85 204 18 204 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-078-2	01	1	0710-
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-086-3	01	1	0710-
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-076-2	01	1	0710-
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-084-2	01	1	0710-0904
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-084-3	01	1	0905-
85	06.495 HARNESS; ROOM LAMP	8-98049-963-2	01	1	0710-
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98047-156-5	01	1	0710-
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98047-157-5	01	1	0710-
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98074-592-3	01	1	0710-
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-787-3	01	1	0710-
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-807-3	01	1	0710-
441	02.480 HARNESS; CABLE,SPEED SENSOR REAR WIDE TREAD(V4T)	8-97308-220-4	01	1	0710-
441	02.480 HARNESS; CABLE,SPEED SENSOR SUSPENSION - RR UNDER SLUNG<V4U>	8-97308-213-3	01	1	0710-

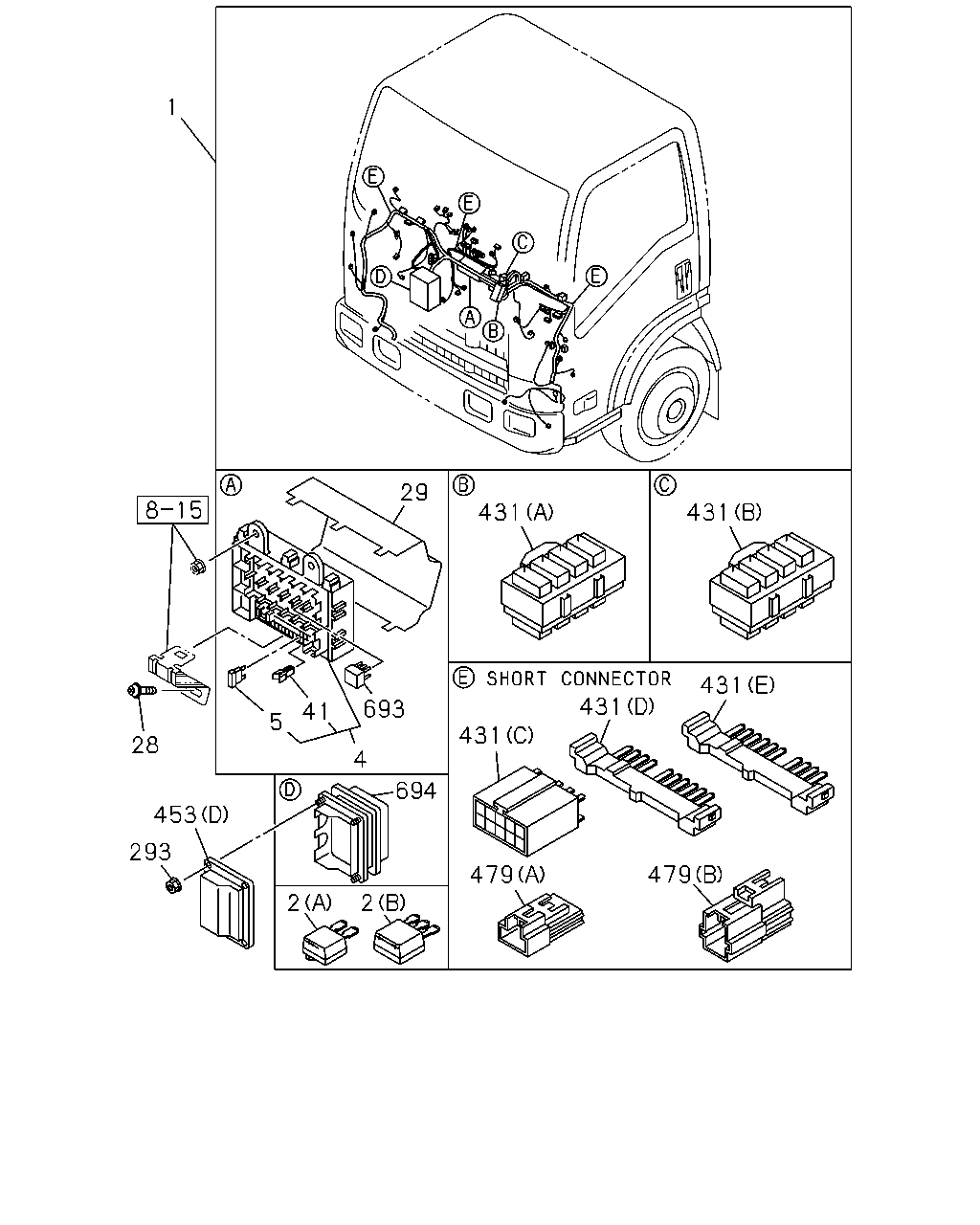

1 29 431 431 431 431 693 41 5 431 28 4 694 453 293 479 479 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98087-343-5	01	1	0710-
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98087-341-5	01	1	0710-
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98087-342-1	01	1	0710-0801
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98087-342-5	01	1	0802-
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98087-340-1	01	1	0710-0801
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98087-340-2	01	1	0802-0903
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),DUMP CONTROL LEVER<RC4>	8-98087-340-5	01	1	0904-1204
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),DUMP CONTROL LEVER<RC4>	8-98207-649-0	01	1	1205-
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-338-1	01	1	0710-0801
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68)	8-98087-338-5	01	1	0802-1204
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68)	8-98207-646-0	01	1	1205-
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98146-358-2	01	1	0904-
2	02.483 DIODE; CABLE HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	0710-
2	02.483 DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	0710-
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-0	01	1	0710-
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	0710-
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	0710-
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	0710-
28	02.483 SCREW; FUSE BOX 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0710-1101
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	0710-
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	0710-
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	0710-
431	02.530 CONNECTOR; JOINT (D) 10P BLUE	1-82699-598-0	02	1	0710-1005
431	02.530 CONNECTOR; JOINT (D) 10P BLUE	1-82699-598-0	01	1	1006-
431	02.530 CONNECTOR; JOINT (E) 10P GREEN	1-82699-599-0	01	1	0710-
431	02.530 CONNECTOR; JOINT (C) 10P	8-97077-943-0	02	1	0710-
431	02.530 CONNECTOR; JOINT (A)	8-98046-205-0	01	1	0710-
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	0710-
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	02	1	0710-
453	02.483 PROTECTOR; HARNESS (B)	8-98031-850-1	01	1	0710-
453	02.483 PROTECTOR; HARNESS (C)	8-98031-851-2	01	1	0710-
453	02.483 PROTECTOR; HARNESS (D)	8-98034-039-1	01	1	0710-
453	02.483 PROTECTOR; HARNESS (E)	8-94452-553-0	01	1	0805-
479	02.530 CAP; CONNECTOR EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98108-678-0	01	1	0802-
479	02.530 CAP; CONNECTOR EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98108-679-0	01	1	0802-
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0710-
694	02.483 BOX ASM; CONNECTOR	8-98057-772-0	01	1	0710-

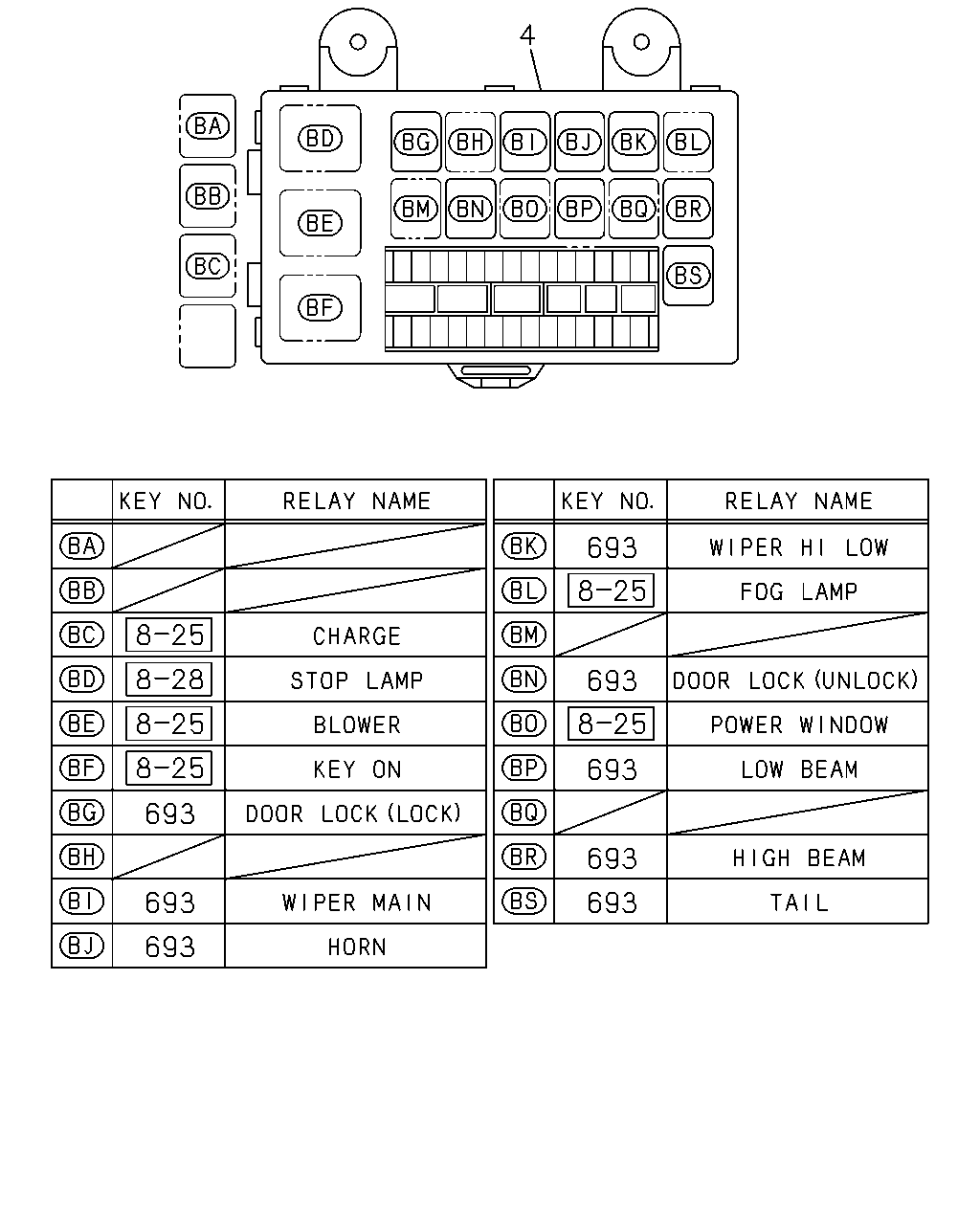

4 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-0	01	1	0710-
	693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0710-

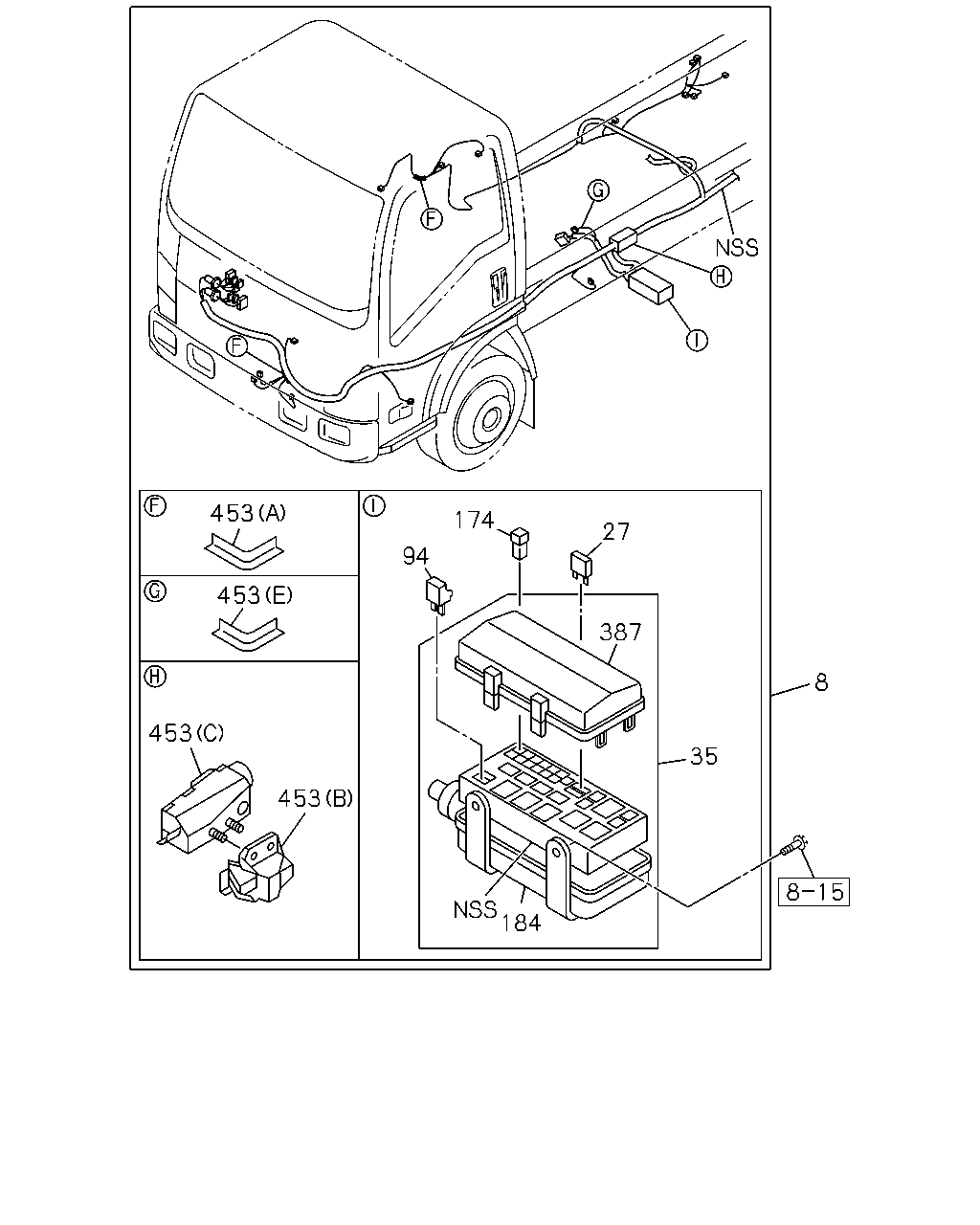

453 174 27 94 453 387 8 453 35 453 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-796-6	01	1	0710-0804
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98117-785-1	01	1	0805-
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98071-790-6	01	1	0710-0804
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98117-779-1	01	1	0805-
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	0710-
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	0710-
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	01	1	0710-
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	0710-
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	0710-
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	0710-
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	0710-
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	0710-
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	0710-
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	02	1	0710-
453	02.483 PROTECTOR; HARNESS (B)	8-98031-850-1	01	1	0710-
453	02.483 PROTECTOR; HARNESS (C)	8-98031-851-2	01	1	0710-
453	02.483 PROTECTOR; HARNESS (D)	8-98034-039-1	01	1	0710-
453	02.483 PROTECTOR; HARNESS (E)	8-94452-553-0	01	1	0805-

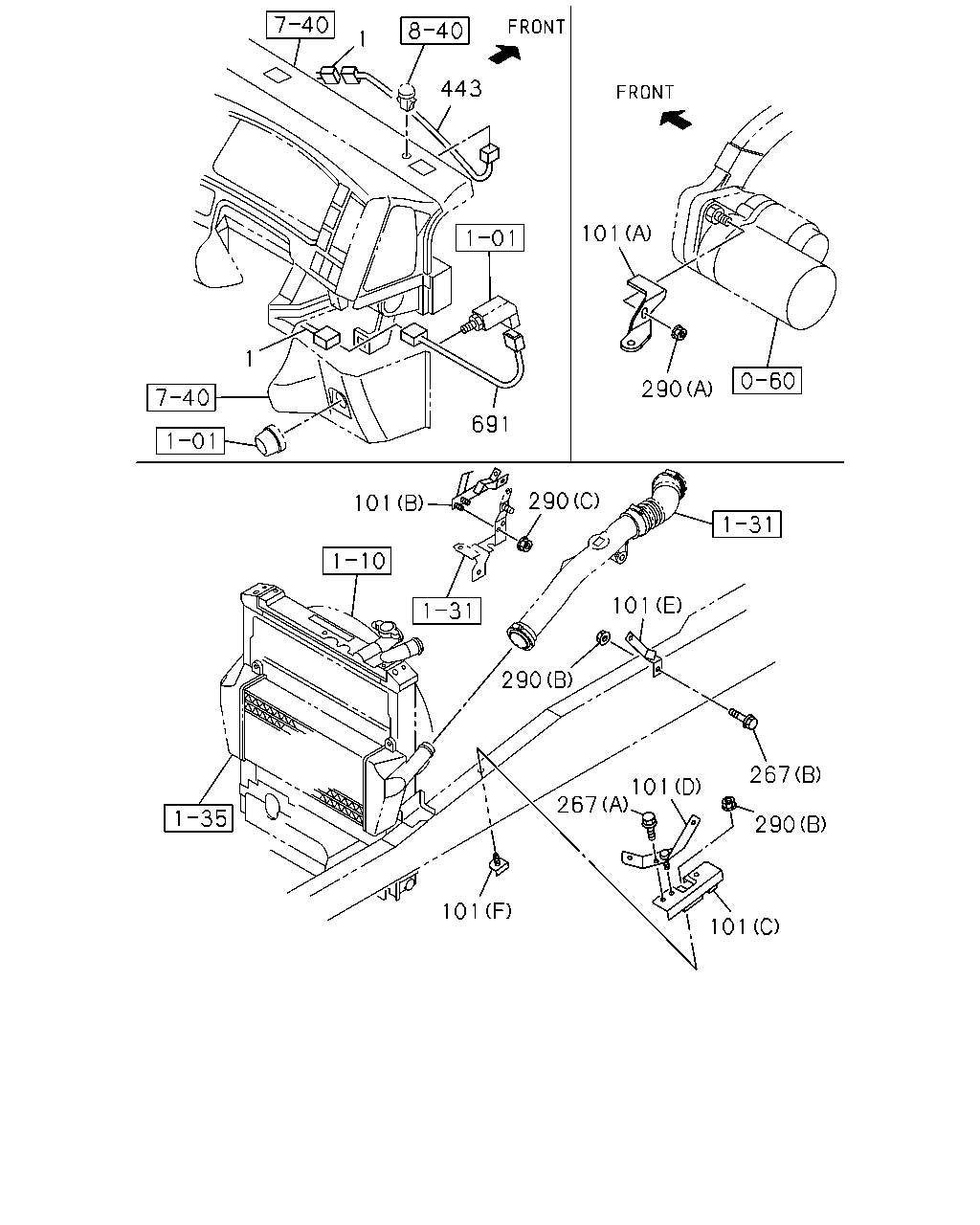

1 443 101 1 290 691 290 101 101 290 267 101 267 290 101 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98087-343-5	01	1	0710-
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98087-341-5	01	1	0710-
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98087-342-1	01	1	0710-0801
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98087-342-5	01	1	0802-
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98087-340-1	01	1	0710-0801
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98087-340-2	01	1	0802-0903
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),DUMP CONTROL LEVER<RC4>	8-98087-340-5	01	1	0904-1204
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),DUMP CONTROL LEVER<RC4>	8-98207-649-0	01	1	1205-
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-338-1	01	1	0710-0801
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68)	8-98087-338-5	01	1	0802-1204
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68)	8-98207-646-0	01	1	1205-
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98146-358-2	01	1	0904-
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98078-069-0	01	1	0710-0710
101	02.483 BRACKET; HARNESS CONNECTOR (C)	8-98078-070-1	01	1	0710-
101	02.483 BRACKET; HARNESS CONNECTOR (D)	8-98078-071-1	01	1	0710-
101	02.483 BRACKET; HARNESS CONNECTOR (E)	8-98079-011-1	01	1	0710-
101	02.483 BRACKET; HARNESS CONNECTOR (F)	8-98093-465-1	01	1	0710-
101	02.483 BRACKET; HARNESS CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (A)	8-98030-725-1	01	1	0710-
267	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0710-
267	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0710-
290	02.483 NUT; BRKT 01.062 (C) M6 FLANGE	0-91180-106-0	02	1	0710-0710
290	02.483 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0710-
290	02.483 NUT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0710-
443	02.480 HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98029-830-0	01	1	0710-
691	02.480 HARNESS; IDLE CONT SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>	8-98049-014-2	01	1	0710-
