◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10705 - FVR(LHD) EXC.EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01B - CLUTCH ▶
2-01B — CLUTCH (#3748) — 148 parça

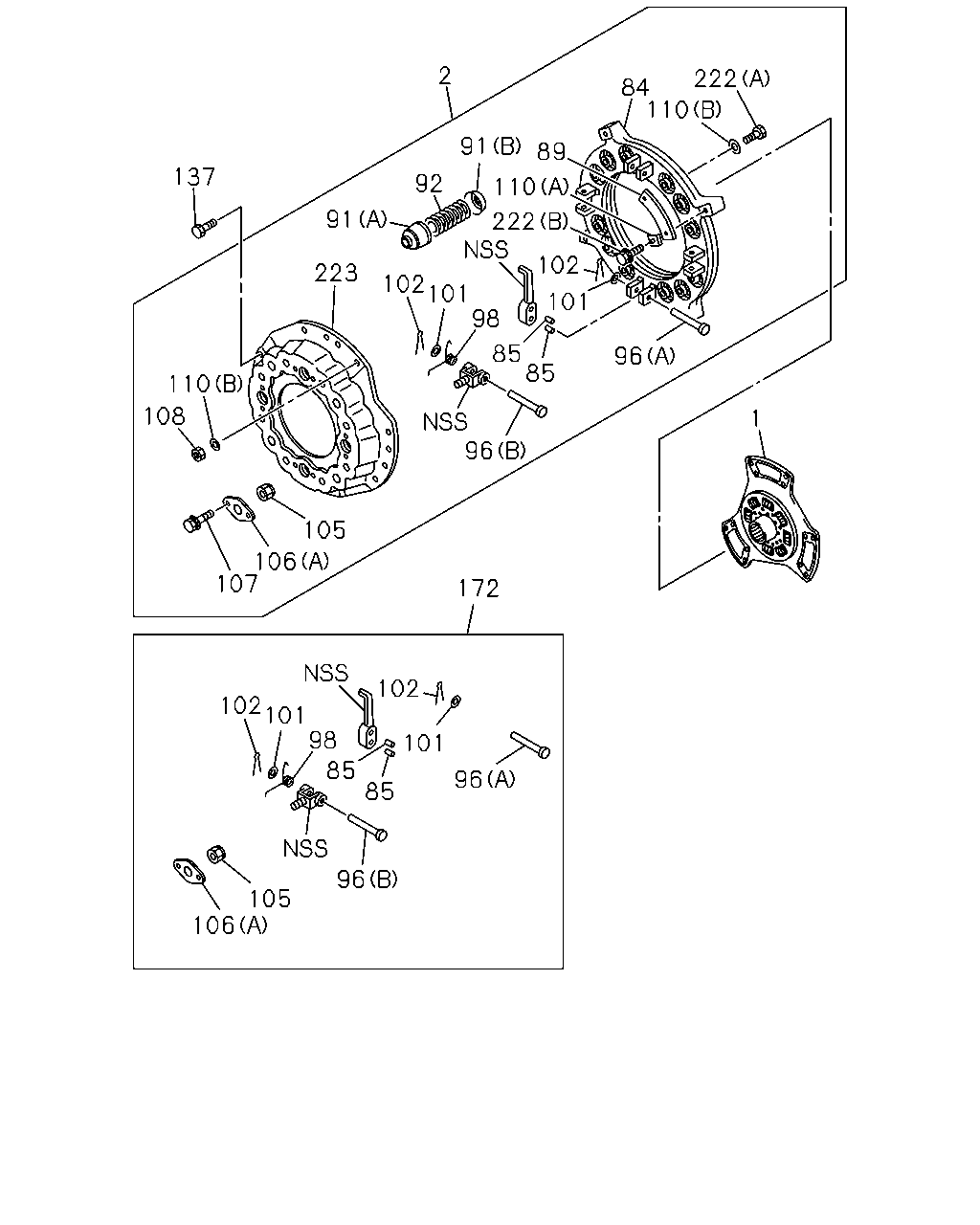

çizim 6164
2 222 84 110 91 89 137 92 110 91 222 102 223 102 101 98 101 85 85 96 110 108 1 96 105 106 107 172 102 102 101 98 101 85 85 96 96 105 106
BalonParca AdiParca NoAdetTipApplied Date A B
1 DISC; CLUTCH
15" 		1-31240-735-2 01 1 9601-0607 ●
1 DISC; CLUTCH
15" 		1-31240-735-2 01 1 0608- ● ●
2 PLATE ASM; PRESSURE,CLU 1-31220-306-0 01 1 9601-0109 ●
2 PLATE ASM; PRESSURE,CLU 1-31220-380-2 01 1 0110-0607 ●
2 PLATE ASM; PRESSURE,CLU 1-31220-380-2 01 1 0608- ● ●
2 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		1-87610-145-0 01 1 0404- ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 9601-9810 ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 9811-0607 ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0608- ● ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 9601-9803 ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 9804-0607 ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0608- ● ●
89 PLATE; STRAP 1-31229-050-0 16 1 9601-9810 ●
89 PLATE; STRAP 1-31229-050-0 16 1 9811-0607 ●
89 PLATE; STRAP 1-31229-050-0 16 1 0608- ● ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 9601-9803 ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 9804-1005 ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 1006- ● ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 9601-9803 ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 9804-1005 ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 1006- ● ●
92 SPRING; CLU 1-31214-053-0 12 1 9601-0607 ●
92 SPRING; CLU 1-31214-053-0 12 1 0608- ● ●
96 PIN; RELEASE LEVER
(B) L=49.0 		1-31232-005-0 04 1 0309-0607 ●
96 PIN; RELEASE LEVER
(B) L=49.0 		1-31232-005-0 04 1 0608- ● ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-014-0 04 1 0309-0607 ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-014-0 04 1 0608- ● ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-008-0 04 1 9601-9803 ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-008-0 04 1 9804-9810 ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-008-0 04 1 9811-0308 ●
96 PIN; RELEASE LEVER
(B) 		1-31232-016-0 04 1 9601-0308 ●
98 SPRING; RETURN 1-31233-003-0 04 1 9601-9803 ●
98 SPRING; RETURN 1-31233-003-0 04 1 9804-0607 ●
98 SPRING; RETURN 1-31233-003-0 04 1 0608- ● ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 9601-9803 ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 9804-0109 ●
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0110-0607 ●
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0608- ● ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 9601-9810 ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 9811-0607 ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0608- ● ●
105 NUT; SUPPORT 1-31235-014-0 04 1 0309-0607 ●
105 NUT; SUPPORT 1-31235-014-0 04 1 0608- ● ●
105 NUT; SUPPORT 9-31235-061-0 04 1 9601-9803 ●
105 NUT; SUPPORT 9-31235-061-0 04 1 9804-0109 ●
105 NUT; SUPPORT 1-31235-012-0 04 1 0110-0308 ●
105 NUT; SUPPORT 1-31235-012-0 04 1 0309-0309 ●
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 9601-9803 ●
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 9804-0607 ●
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 0608- ● ●
107 BOLT; LK PLATE 1-31239-061-0 08 1 0309-0607 ●
107 BOLT; LK PLATE 1-31239-061-0 08 1 0608- ● ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 9601-9803 ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 9804-0308 ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 0309-0309 ●
108 NUT; STRAP 1-09449-036-0 04 1 9601-9810 ●
108 NUT; STRAP 1-09449-036-0 04 1 9811-0607 ●
108 NUT; STRAP 1-09449-036-0 04 1 0608- ● ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		1-09503-095-0 08 1 9601-9810 ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		1-09503-095-0 08 1 9811-0403 ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 0404-0607 ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 0608- ● ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 9601-9810 ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 9811-0607 ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 0608- ● ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28181-020-0 12 1 9601-9803 ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28181-020-0 12 1 9804-0512 ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 0601-0607 ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 0608- ● ●
172 LEVER KIT; RELEASE,CLU 1-87830-813-1 01 1 9601-0307 ●
172 LEVER KIT; RELEASE,CLU 1-87831-172-1 01 1 0308-0607 ●
172 LEVER KIT; RELEASE,CLU 1-87831-172-1 01 1 0608- ● ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 9601-9810 ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 9811-0607 ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0608- ● ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 9601-9810 ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 9811-0607 ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0608- ● ●
223 COVER; CLU 1-31211-019-1 01 1 9601-9810 ●
223 COVER; CLU 1-31211-019-1 01 1 9811-0607 ●
223 COVER; CLU 1-31211-019-1 01 1 0608- ● ●

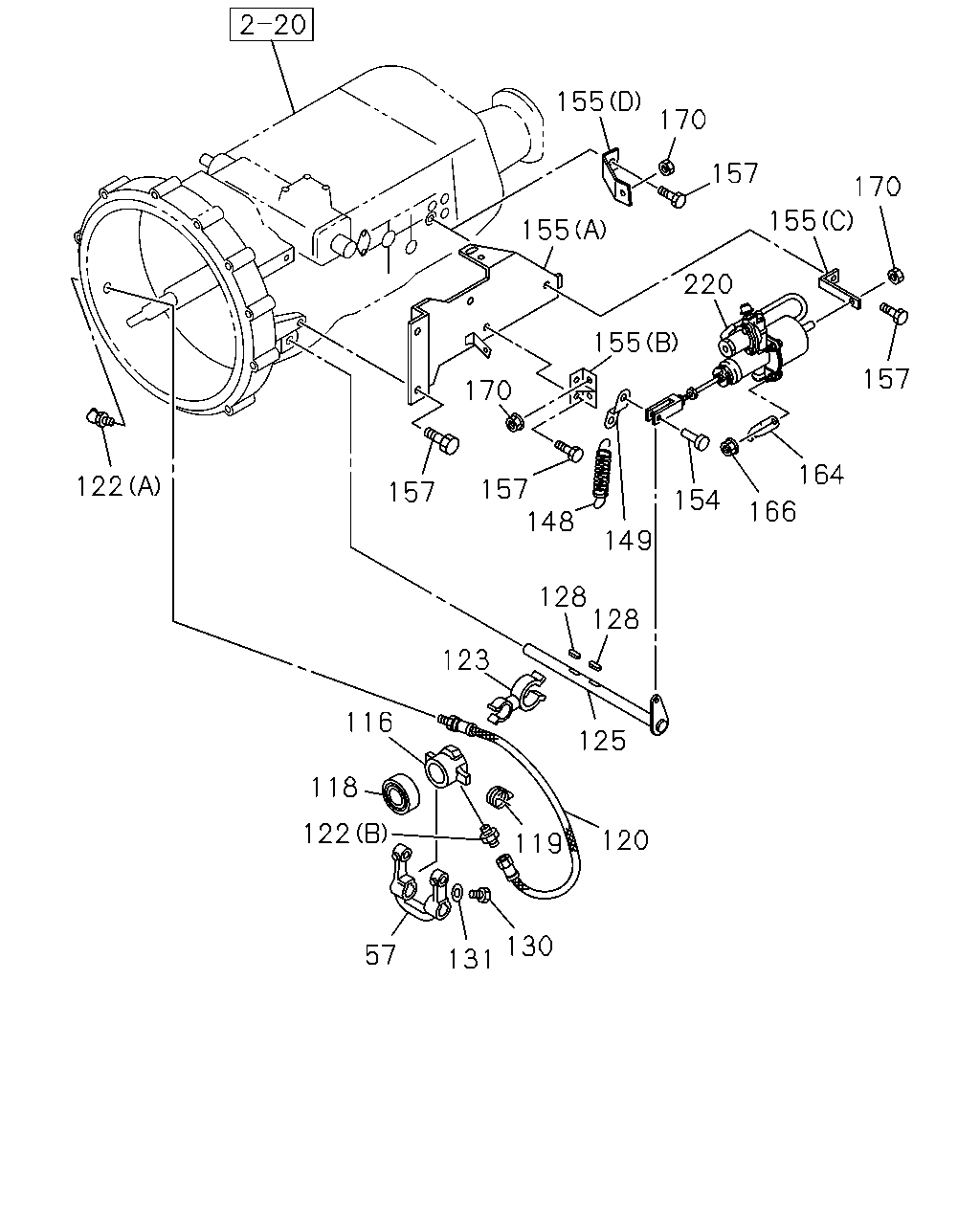

çizim 38109
155 170 157 170 155 155 220 155 157 170 164 122 157 148 157 154 166 149 128 128 123 116 125 118 122 120 119 130 57 131
BalonParca AdiParca NoAdetTipApplied Date A B
57 FORK; SHIFT,CLU 1-31341-036-0 01 1 9601-1102 ●
57 FORK; SHIFT,CLU 1-31341-036-0 01 1 1103- ● ●
116 BLOCK; SHIFT,CLU 1-31321-086-1 01 1 9601-1102 ●
116 BLOCK; SHIFT,CLU 1-31321-086-1 01 1 1103- ● ●
118 BEARING; CLU RELEASE 1-09820-081-0 01 1 9601-0110 ●
118 BEARING; CLU RELEASE 1-09820-081-0 01 1 0111-0111 ●
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 0112-1102 ●
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 1103- ● ●
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-108-0 01 1 0112-1102 ●
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-108-0 01 1 1103- ● ●
119 SPRING; SHIFT FORK 1-31329-015-0 01 1 9601-1102 ●
119 SPRING; SHIFT FORK 1-31329-015-0 01 1 1103- ● ●
119 SPRING; SHIFT FORK 1-31329-014-0 01 1 9601-1102 ●
119 SPRING; SHIFT FORK 1-31329-014-0 01 1 1103- ● ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=360 		1-09364-881-0 01 1 9601-1102 ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=360 		1-09364-881-0 01 1 1103- ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 9601-9803 ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 9804-1102 ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 1103- ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 ELBOW 		9-09031-210-0 01 1 9601-0512 ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 ELBOW 		0-90301-610-0 01 1 0601-1102 ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 ELBOW 		0-90301-610-0 01 1 1103- ● ●
123 CLIP; FLEX HOSE,SHIFT BLOCK 8-97010-484-0 01 1 9601-1102 ●
123 CLIP; FLEX HOSE,SHIFT BLOCK 8-97010-484-0 01 1 1103- ● ●
125 SHAFT; CLU 1-31342-336-0 01 1 1103- ●
125 SHAFT; CLU 1-31342-276-1 01 1 9601- ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 9601-9803 ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 9804-1102 ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 1103- ● ●
130 SCREW; SHIFT FORK 9-06120-816-0 01 1 9601-1102 ●
130 SCREW; SHIFT FORK 9-06120-816-0 01 1 1103- ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 9601-9803 ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 9804-0603 ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 0604-1102 ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 1103- ● ●
148 SPRING; CLU RETURN
L=137.7 		1-09583-284-0 01 1 9601-9710 ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 9711-9803 ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 9804-1102 ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 1103- ● ●
149 EYE; SPRING,RETURN SPRING 1-31426-041-0 01 1 9601-1102 ●
149 EYE; SPRING,RETURN SPRING 1-31426-041-0 01 1 1103- ● ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 9601-1102 ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 1103- ● ●
155 BRACKET; MINIPACK
(B) 		1-31429-472-1 01 1 1103- ●
155 BRACKET; MINIPACK
(D) 		1-31429-473-0 01 1 1103- ●
155 BRACKET; MINIPACK
(C) 		1-31429-289-1 01 1 9601- ●
155 BRACKET; MINIPACK
(A) 		1-31429-354-0 01 1 9601- ●
155 BRACKET; MINIPACK
(B) 		1-31429-355-0 01 1 9601- ●
157 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0512 ●
157 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
157 BOLT; BRKT
M10X25 FLANGE 		0-28181-025-0 03 1 9601-0512 ●
157 BOLT; BRKT
M10X25 FLANGE 		0-28151-025-0 03 1 0601-1102 ●
157 BOLT; BRKT
M10X25 FLANGE 		0-28151-025-0 03 1 1103- ● ●
157 BOLT; BRKT
M12X20 FLANGE 		0-28181-220-0 03 1 9601-0512 ●
157 BOLT; BRKT
M12X20 FLANGE 		0-28151-220-0 03 1 0601- ●
164 EYE; SPRING 1-31426-050-0 01 1 9601-1102 ●
164 EYE; SPRING 1-31426-050-0 01 1 1103- ● ●
166 NUT; SPRING EYE
M10 FLANGE 		0-91150-210-0 01 1 9601-0602 ●
166 NUT; SPRING EYE
M10 FLANGE 		0-91180-210-0 01 1 0603-1102 ●
166 NUT; SPRING EYE
M10 FLANGE 		0-91180-210-0 01 1 1103- ● ●
170 NUT; BOOSTER FIX
M10 FLANGE 		0-91150-210-0 03 1 9601-0602 ●
170 NUT; BOOSTER FIX
M10 FLANGE 		0-91180-210-0 03 1 0603-1102 ●
170 NUT; BOOSTER FIX
M10 FLANGE 		0-91180-210-0 03 1 1103- ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-387-3 01 1 9601-1102 ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-387-4 01 1 1103- ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-088-0 01 1 9601-1102 ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-088-0 01 1 1103- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
