◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51394 - NLR 85(AUST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#37475) — 67 parça

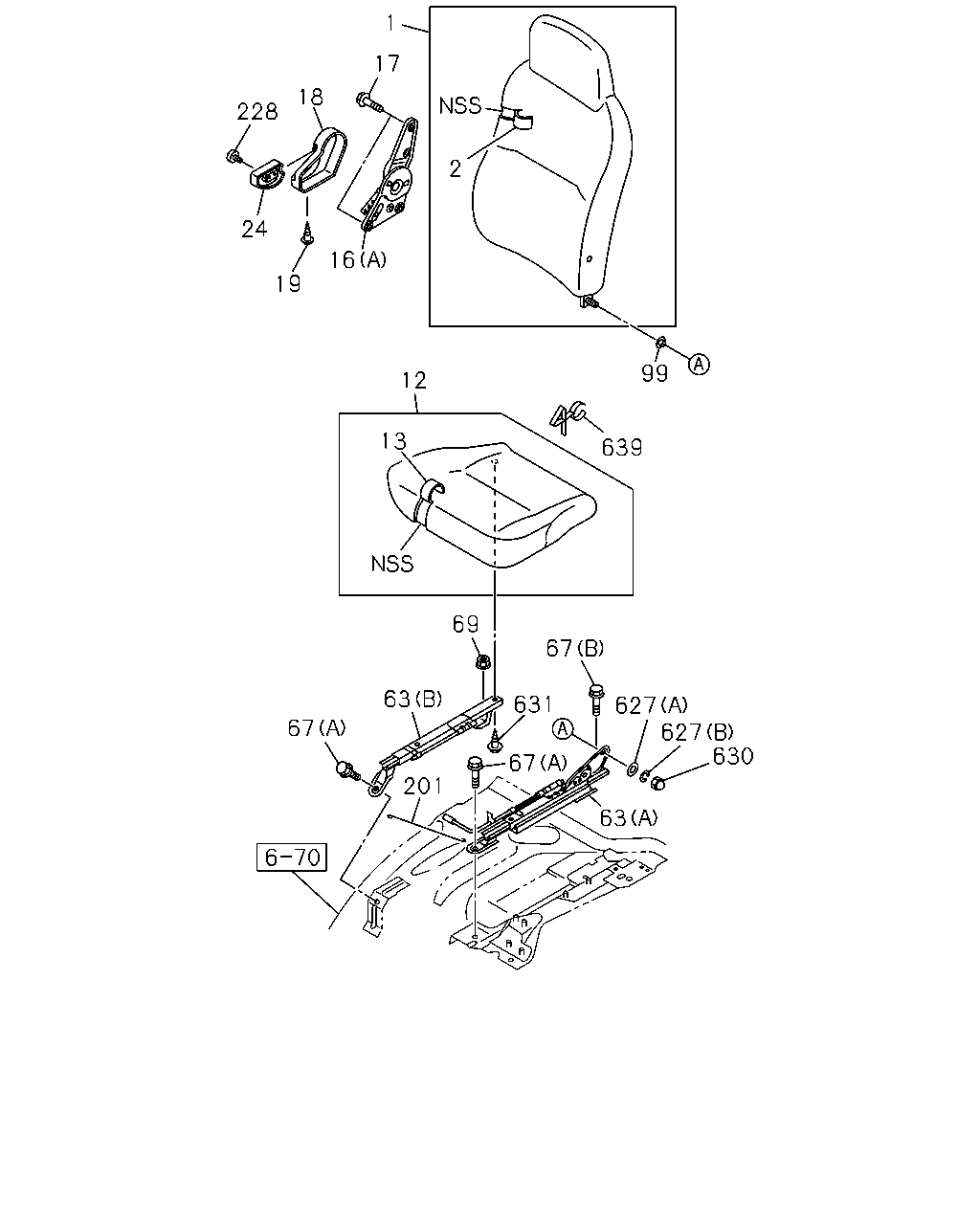

çizim 33295
1 17 18 228 2 24 16 19 99 12 13 639 69 67 63 631 627 627 630 67 67 201 63
BalonParca AdiParca NoAdetTipApplied Date
1 16.720 BACK ASM; SEAT
DARK GRAY 		8-97414-145-5 01 1 0710-1009
1 16.720 BACK ASM; SEAT
DARK GRAY 		8-97421-235-0 01 1 1010-
2 16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97414-146-1 01 1 0710-1009
2 16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97421-254-0 01 1 1010-
12 16.670 CUSHION; SEAT,FRT
DARK GRAY 		8-97414-147-3 01 1 0710-0801
12 16.670 CUSHION; SEAT,FRT
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-147-3 01 1 0802-0902
12 16.670 CUSHION; SEAT,FRT
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-252-1 01 1 0903-1009
12 16.670 CUSHION; SEAT,FRT
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-241-0 01 1 1010-
12 16.670 CUSHION; SEAT,FRT
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-150-1 01 1 0802-1009
12 16.670 CUSHION; SEAT,FRT
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-248-0 01 1 1010-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97414-148-2 01 1 0710-0801
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-148-2 01 1 0802-0902
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-260-0 01 1 0903-1009
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-260-0 01 1 1010-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-151-1 01 1 0802-1009
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-268-0 01 1 1010-
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK 		8-97859-273-3 01 1 0710-
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 0710-
17 16.682 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 0710-
18 16.682 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 0710-
19 16.686 SCREW; COVER
M5 		8-98062-663-0 01 1 0710-
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 0710-
63 16.682 ADJUSTER; SEAT SLIDE
(A) INNER 		8-97382-800-2 01 1 0710-
63 16.682 ADJUSTER; SEAT SLIDE
(B) OUTER 		8-97382-801-1 01 1 0710-
67 16.682 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE 		8-98055-941-0 02 1 0710-
67 16.682 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE 		8-98055-942-0 01 1 0710-
69 16.682 NUT; FRT SEAT
M10 FLANGE 		8-98055-961-0 01 1 0710-
99 16.716 BUSHING; SEAT BACK 8-98063-219-0 01 1 0710-0804
99 16.716 BUSHING; SEAT BACK 8-98112-751-0 01 1 0805-
201 16.682 CABLE; ADJ 8-98003-086-1 01 1 0710-
228 16.714 SCREW; KNOB
M4 		8-98062-662-0 01 1 0710-
627 16.682 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 0710-
627 16.682 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 0710-
630 16.682 NUT; CAP
M8 		8-98063-225-0 01 1 0710-
631 16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER 		8-98062-658-0 02 1 0710-
631 16.682 BOLT; ADJ,SEAT
M8X32 W/LK WASHER 		8-98062-659-0 02 1 0710-
639 16.679 CLIP; SEAT
INSPECTION ENGINE COVER<8GA> 		8-98097-693-0 01 1 0802-

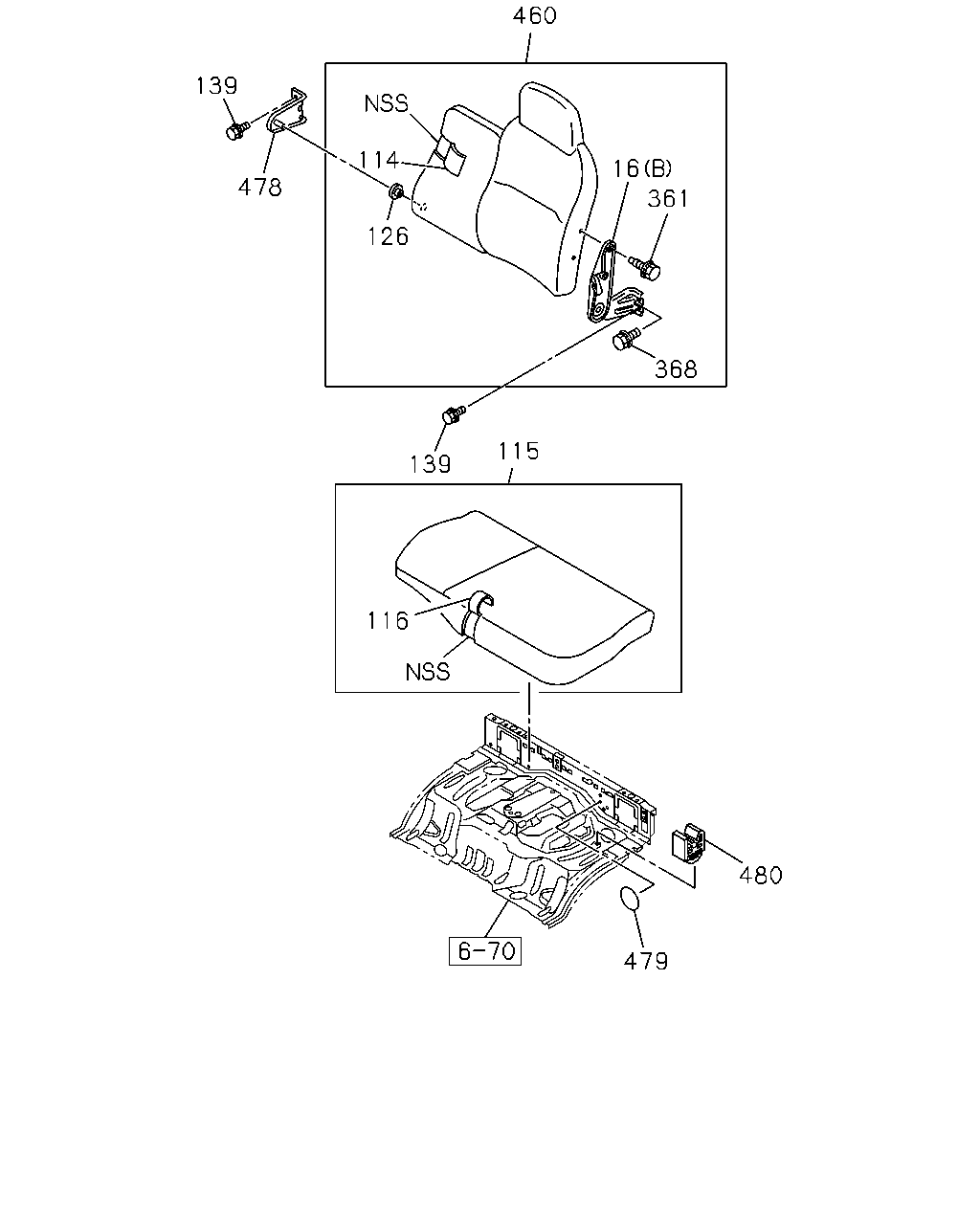

çizim 33355
460 139 114 16 478 361 126 368 115 139 116 480 479
BalonParca AdiParca NoAdetTipApplied Date
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK 		8-97859-273-3 01 1 0710-
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 0710-
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97409-280-1 01 1 0710-1009
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-288-0 01 1 1010-
115 16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97406-353-4 01 1 0710-0801
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97406-353-4 01 1 0802-0902
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-270-0 01 1 0903-1009
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-315-0 01 1 1010-
115 16.720 CUSHION ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97406-360-4 01 1 0802-0902
115 16.720 CUSHION ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-271-0 01 1 0903-1009
115 16.720 CUSHION ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-317-0 01 1 1010-
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY 		8-97409-302-2 01 1 0710-0801
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-302-2 01 1 0802-0902
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-285-0 01 1 0903-1009
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-335-0 01 1 1010-
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-309-2 01 1 0802-0902
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-286-0 01 1 0903-1009
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-337-0 01 1 1010-
126 16.686 BUSHING; HINGE,RECLINING 8-98069-558-0 01 1 0710-
139 16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 03 1 0710-0911
139 16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 01 1 0912-
139 16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 02 1 0912-
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 0710-
368 16.682 BOLT; SEAT
16.679 M8X20 W/PL WASHER 		8-98031-841-0 01 1 0710-0804
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0805-
460 16.670 BACK ASM; PASSENGER SEAT
DARK GRAY 		8-97406-335-5 01 1 0710-1009
460 16.670 BACK ASM; PASSENGER SEAT
DARK GRAY 		8-97421-275-0 01 1 1010-
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-186-0 01 1 0710-
479 16.716 PLUG; HINGE
16.165 OD=25 BLACK 		1-76798-019-0 02 1 0710-
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 0710-
