Isuzu WW
▶
TRUCKS
▶
NLR
▶
51394 - NLR 85(AUST)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#37474) — 39 parça
◀

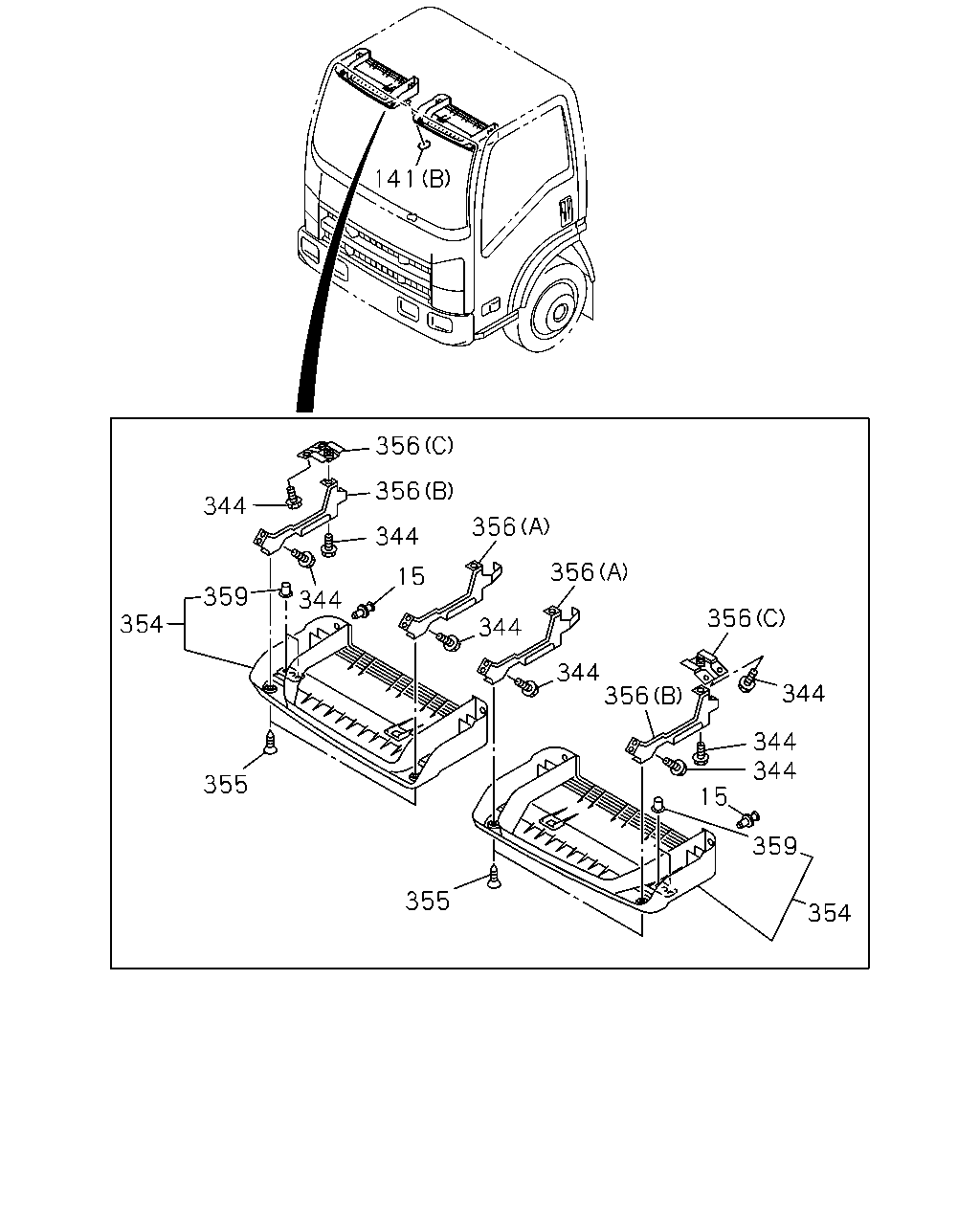

[743A] TRAY;HEADER ROOF (20 parça)

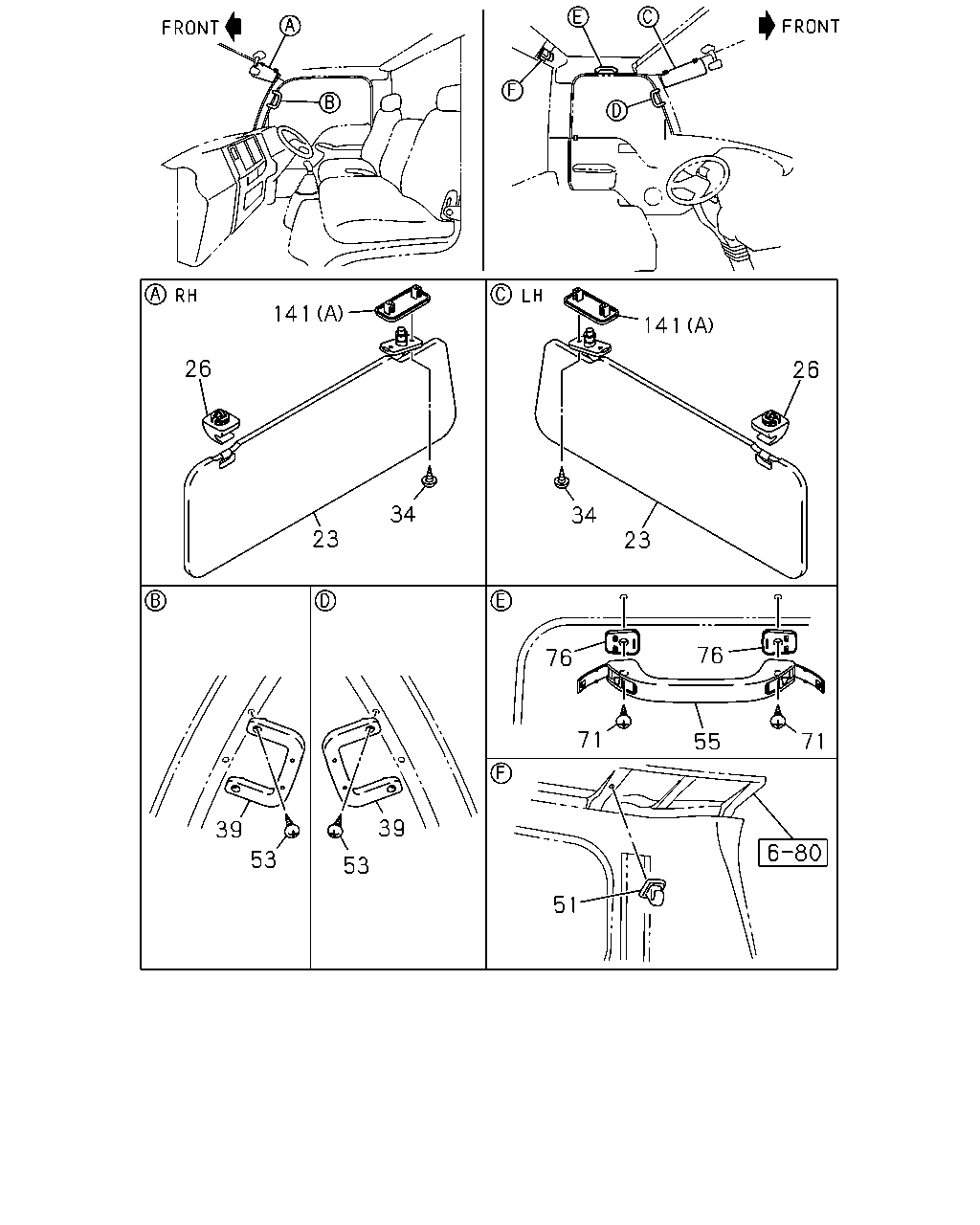

[743A] SUN VISOR AND ASSIST GRIP (19 parça)
▶
141
356
356
344
356
344
356
15
359
344
356
354
344
344
356
344
344
344
355
15
359
355
354
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
16.742 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97406-299-0
02
1
0710-
15
16.742 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97406-299-0
02
1
0710-
141
16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY
8-97408-029-0
01
1
0710-
141
16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
01
1
0710-
344
16.450 BOLT; BRKT,FRT
HEADER TRAY DRIVER & PASSENGER<8LY> 00.206 M6X12 FLANGE
0-28450-612-0
06
1
0710-0809
344
16.450 BOLT; BRKT,FRT
HEADER TRAY DRIVER & PASSENGER<8LY> 00.206 M6X12 FLANGE
0-28450-612-0
06
1
0710-0809
344
16.450 BOLT; BRKT,FRT
HEADER TRAY DRIVER & PASSENGER<8LY> 03.604 M6X12 FLANGE
8-97108-669-0
06
1
0810-
344
16.450 BOLT; BRKT,FRT
HEADER TRAY DRIVER & PASSENGER<8LY> 03.604 M6X12 FLANGE
8-97108-669-0
06
1
0810-
354
16.120 TRAY; HEADER ROOF
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97408-060-2
01
1
0710-
354
16.120 TRAY; HEADER ROOF
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97408-061-2
01
1
0710-
355
16.742 SCREW; TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 T25 M5X16 TAPPING HEXALOBULAR
0-72380-516-0
04
1
0710-
355
16.742 SCREW; TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 T25 M5X16 TAPPING HEXALOBULAR
0-72380-516-0
04
1
0710-
356
16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (A)
8-98036-022-4
01
1
0710-
356
16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (A)
8-98036-023-4
01
1
0710-
356
16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (C)
8-97386-874-1
01
1
0710-
356
16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (C)
8-97386-874-1
01
1
0710-
356
16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (B)
8-97585-576-4
01
1
0710-
356
16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (B)
8-97585-576-4
01
1
0710-
359
16.070 HOLDER; HEADER TRAY
HEADER TRAY DRIVER & PASSENGER<8LY>
8-98041-754-0
02
1
0710-
359
16.070 HOLDER; HEADER TRAY
HEADER TRAY DRIVER & PASSENGER<8LY>
8-98041-754-0
02
1
0710-
141
141
26
26
34
34
23
23
76
76
71
71
55
39
39
53
53
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97406-197-3
01
1
0710-
23
16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97406-196-1
01
1
0710-
23
16.070 SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97413-093-1
01
1
0710-
23
16.070 SUN VISOR
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97413-091-1
01
1
0710-
26
16.070 HOLDER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97405-171-0
01
1
0710-
26
16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97405-171-0
01
1
0710-
26
16.070 HOLDER; SUN VISOR
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97406-200-0
01
1
0710-
26
16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97406-200-0
01
1
0710-
34
16.070 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> M6X26
8-98033-674-0
04
1
0710-
34
16.070 SCREW; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> M6X26
8-98033-674-0
02
1
0710-
34
16.070 SCREW; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> M6X26
8-98033-674-0
02
1
0710-
39
16.450 HANDLE; ASSIST,A-POST
DARK GRAY
8-97405-249-2
02
1
0710-
51
16.570 HOOK; COAT HANGER
DARK GRAY
8-97405-302-1
01
1
0710-
53
16.450 SCREW; ASSIST HANDLE
M6X28
8-98004-344-0
04
1
0710-
55
16.450 GRIP; ASSIST,CAB SIDE UPR
DARK GRAY
8-97405-285-2
01
1
0710-
71
16.450 SCREW
M6X28
8-98004-344-0
02
1
0710-
76
16.742 SPACER; ASSIST GRIP
DARK GRAY
8-97405-286-0
02
1
0710-
141
16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY
8-97408-029-0
01
1
0710-
141
16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
01
1
0710-
