Isuzu WW
▶
TRUCKS
▶
NLR
▶
51394 - NLR 85(AUST)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-30 - LOCK CYLINDER SET
▶
7-30 — LOCK CYLINDER SET
(#37471) — 18 parça
◀

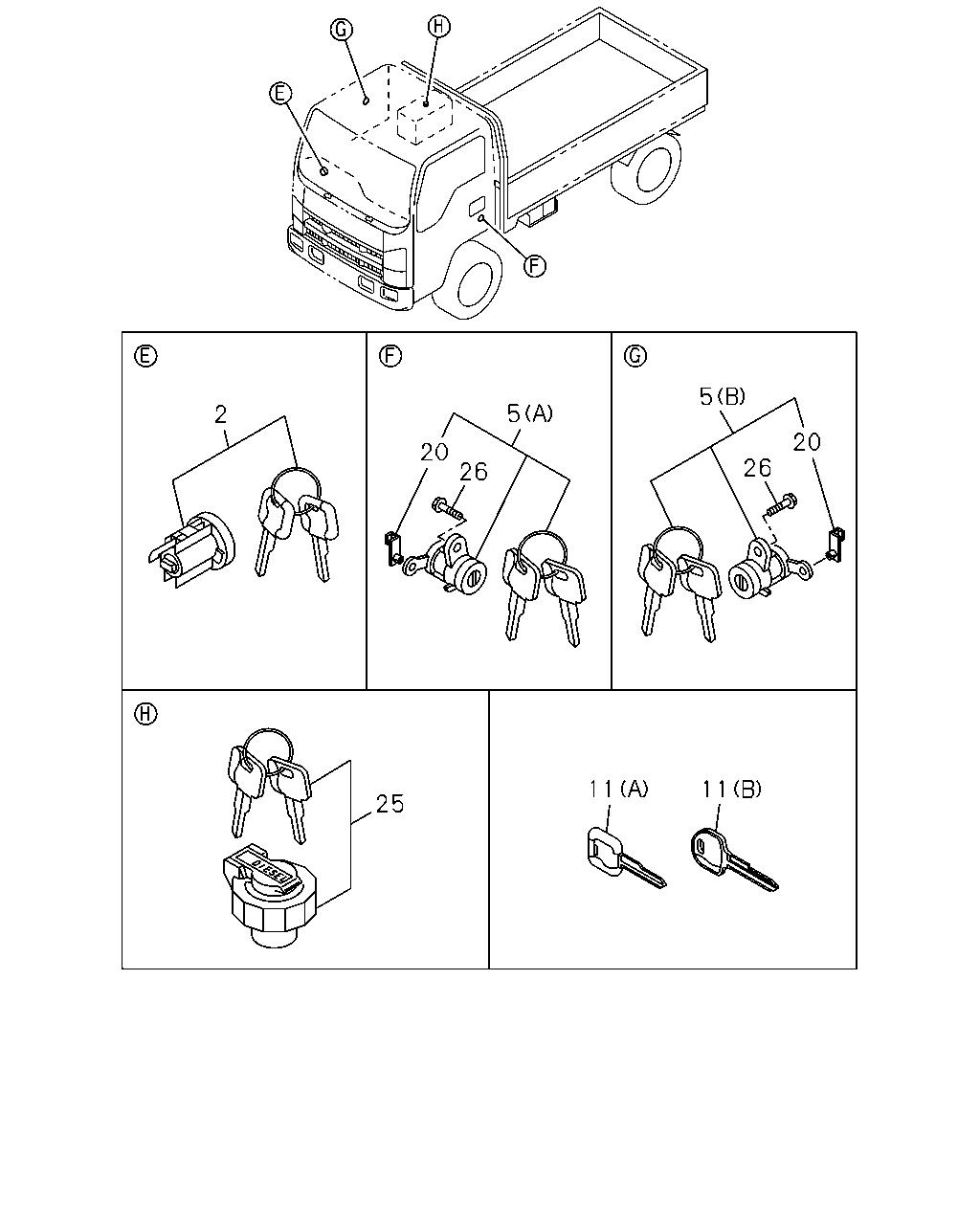

[730A] NO.2 (12 parça)

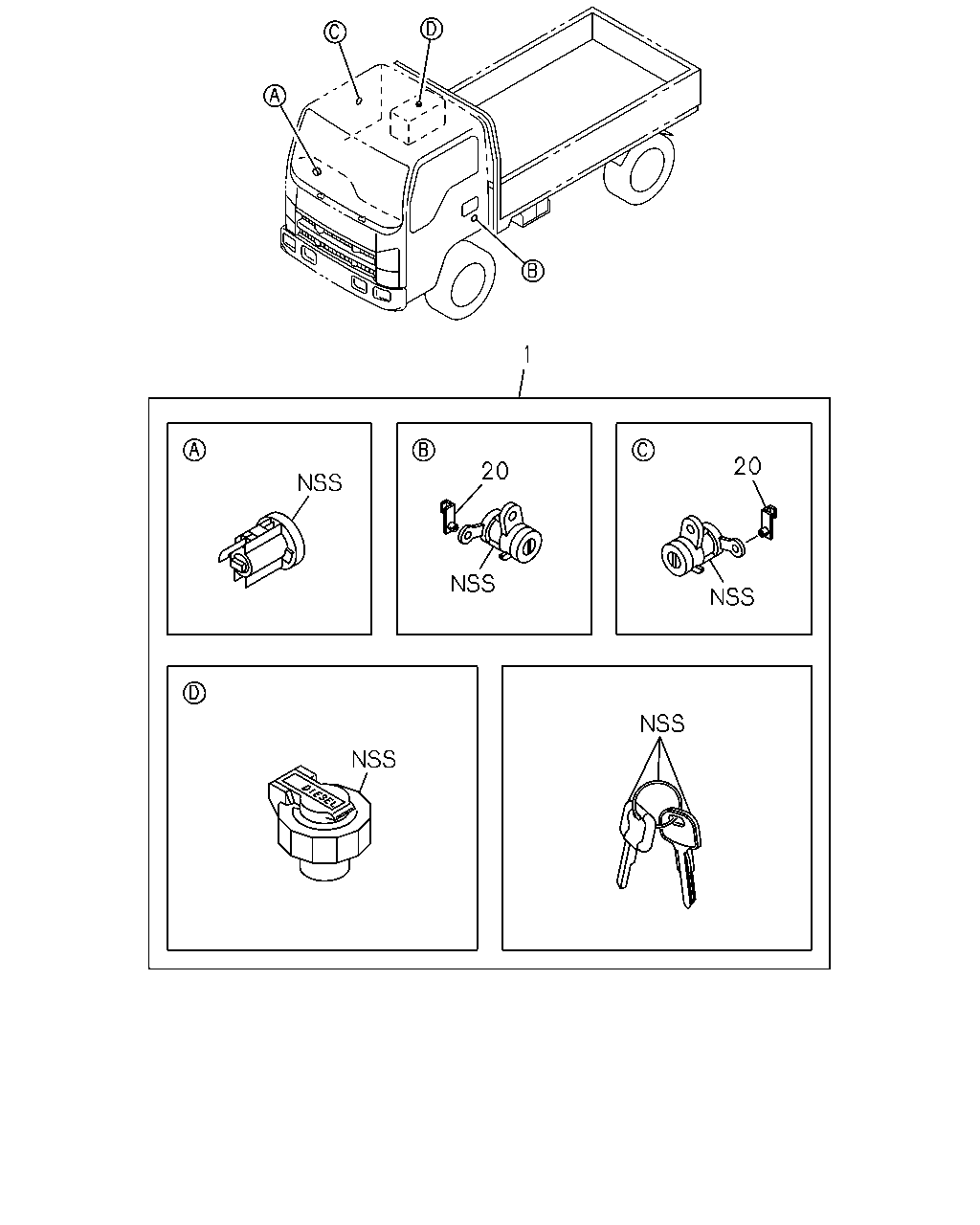

[730A] NO.1 (6 parça)
▶
5
5
2
20
20
26
26
11
11
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
02.188 BARREL ASM; W/KEY,STRG LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>
8-98055-147-0
01
1
0710-1202
2
02.188 BARREL ASM; W/KEY,STRG LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>
8-98201-341-0
01
1
1203-
5
16.328 CYLINDER ASM; DOOR LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> (B)
8-98055-149-0
01
1
0710-
5
16.328 CYLINDER ASM; DOOR LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> (A)
8-98055-150-0
01
1
0710-
11
02.187 KEY; BLANK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> (A) IMMOBILIZER
8-98055-168-0
AR
1
0710-
11
02.187 KEY; BLANK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> (B)
8-98055-170-0
AR
1
0710-
20
16.328 SNAP; DOOR LOCK CYL
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>
8-98055-181-0
01
1
0710-
20
16.328 SNAP; DOOR LOCK CYL
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>
8-98055-182-0
01
1
0710-
25
03.028 CAP; FUEL TANK,W/KEY
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>
8-98033-157-0
01
1
0710-0804
25
03.028 CAP; FUEL TANK,W/KEY
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>
8-98088-982-0
01
1
0805-0912
25
03.028 CAP; FUEL TANK,W/KEY
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>
8-98146-010-0
01
1
1001-
26
16.328 BOLT; KEY CYL,DOOR
M6X8 FLANGE
8-98031-839-0
02
1
0710-
1
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.188 CYLINDER SET; CAR LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>
8-98029-406-1
01
1
0710-0804
1
02.188 CYLINDER SET; CAR LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>
8-98088-949-0
01
1
0805-0912
1
02.188 CYLINDER SET; CAR LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>
8-98145-977-0
01
1
1001-1202
1
02.188 CYLINDER SET; CAR LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>
8-98201-214-0
01
1
1203-
20
16.328 SNAP; DOOR LOCK CYL
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>
8-98055-181-0
01
1
0710-
20
16.328 SNAP; DOOR LOCK CYL
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>
8-98055-182-0
01
1
0710-
