2-01A — CLUTCH (#3747) — 413 parça

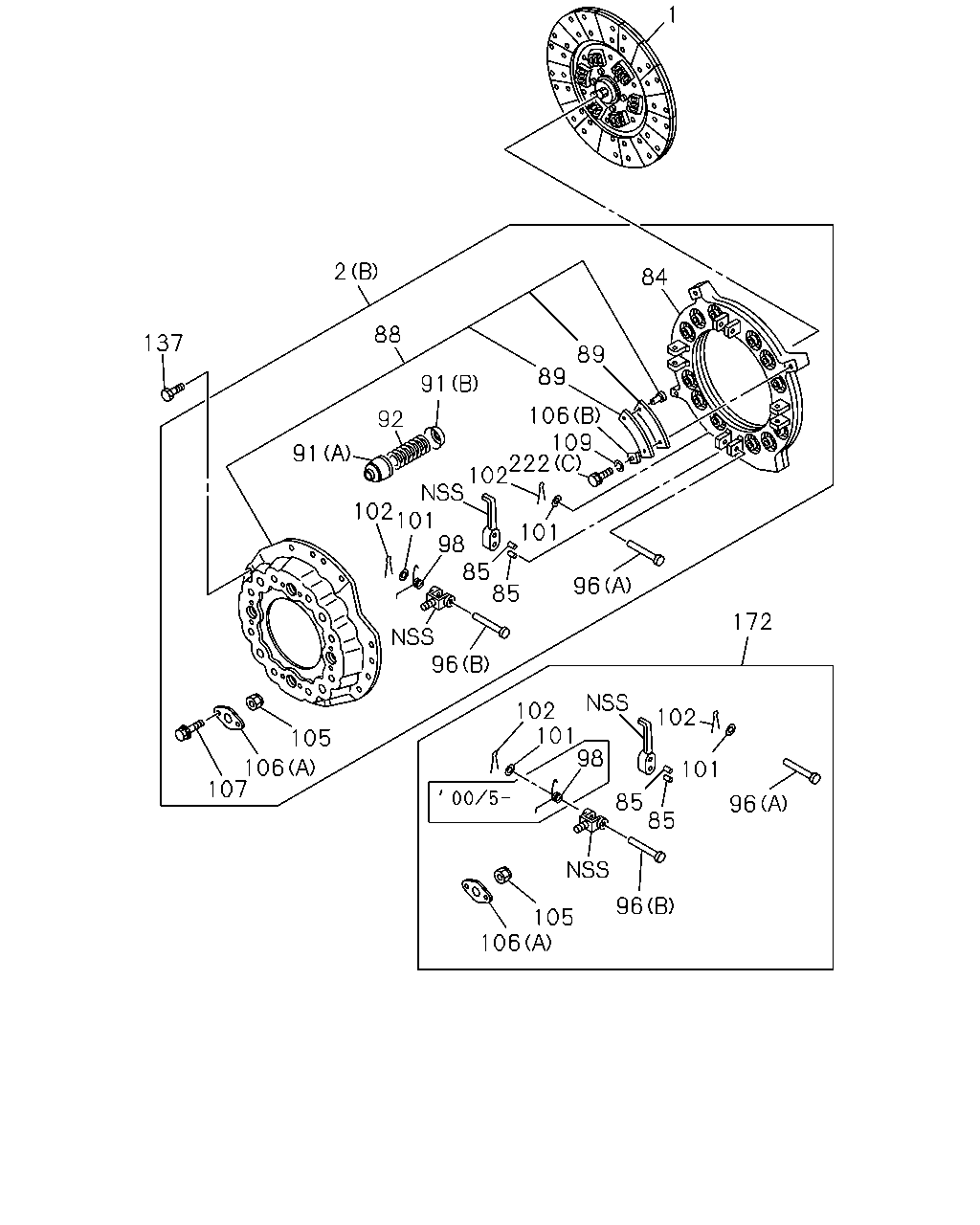

çizim 5848
1 2 84 88 137 89 89 91 106 109 222 102 102 101 98 85 85 92 91 101 96 172 96 102 101 98 102 105 106 107 101 85 85 96 96 105 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 DISC; CLUTCH
15" 		1-31240-657-0 01 1 9601-0106 ●
1 DISC; CLUTCH
15" 		1-31240-889-0 01 1 0107- ●
1 DISC; CLUTCH
14" 		1-31240-671-0 01 1 9601-0105 ● ●
1 DISC; CLUTCH
14" 		1-31240-901-0 01 1 0106- ● ●
1 DISC; CLUTCH
15" 		1-31240-676-0 01 1 9601-9803 ● ● ●
1 DISC; CLUTCH
15" 		1-31240-676-0 01 1 9804-0105 ● ●
1 DISC; CLUTCH
15" 		1-31240-902-0 01 1 0106- ● ●
1 DISC; CLUTCH
BEST VALUE PARTS 		1-87610-139-0 01 1 0106- ● ●
1 DISC; CLUTCH
BEST VALUE PARTS 		1-87610-142-0 01 1 0107- ●
2 PLATE ASM; PRESSURE,CLU
(A) 		1-31220-207-2 01 1 9601-0109 ●
2 PLATE ASM; PRESSURE,CLU
(A) 		1-31220-374-2 01 1 0110- ●
2 PLATE ASM; PRESSURE,CLU
(B) 		1-31220-291-0 01 1 9601-0109 ● ●
2 PLATE ASM; PRESSURE,CLU
(B) 		1-31220-364-2 01 1 0110-1005 ● ●
2 PLATE ASM; PRESSURE,CLU
(B) 		1-31220-447-0 01 1 1006- ● ●
2 PLATE ASM; PRESSURE,CLU
(A) 		1-31220-305-0 01 1 9601-9803 ● ● ●
2 PLATE ASM; PRESSURE,CLU
(A) 		1-31220-305-1 01 1 9804-0109 ● ●
2 PLATE ASM; PRESSURE,CLU
(A) 		1-31220-373-2 01 1 0110- ● ●
2 PLATE ASM; PRESSURE,CLU
(A) BEST VALUE PARTS 		1-87610-120-0 01 1 0110- ●
2 PLATE ASM; PRESSURE,CLU
(B) BEST VALUE PARTS 		1-87610-144-0 01 1 1006- ● ●
84 PLATE; PRESSURE
15" 		1-31221-067-0 01 1 9601-9810 ●
84 PLATE; PRESSURE
14" 		1-31221-082-0 01 1 9601- ● ●
84 PLATE; PRESSURE
15" 		1-31221-051-0 01 1 9601-9803 ● ● ●
84 PLATE; PRESSURE
15" 		1-31221-051-0 01 1 9804-9810 ● ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 9811-0607 ● ● ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0608- ● ● ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 9601-9803 ● ● ● ● ● ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 9804-0607 ● ● ● ● ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0608- ● ● ● ● ●
88 COVER SUB ASM; CLU 1-31211-036-0 01 1 9601- ● ●
89 PLATE; STRAP 1-31229-001-0 12 1 9601-9810 ● ● ● ●
89 PLATE; STRAP 1-31229-001-0 08 1 9601- ● ●
89 PLATE; STRAP 1-31229-050-0 16 1 9811-0607 ● ● ●
89 PLATE; STRAP 1-31229-050-0 16 1 0608- ● ● ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 08 1 1006- ● ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 08 1 1006- ● ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 9601-9803 ● ● ● ● ● ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 9804-1005 ● ● ● ● ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 1006- ● ● ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 9601-9803 ● ● ● ● ● ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 9804-1005 ● ● ● ● ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 1006- ● ● ●
92 SPRING; CLU 1-31214-019-0 12 1 9601-0308 ●
92 SPRING; CLU 1-31214-086-0 12 1 0309- ●
92 SPRING; CLU 1-09580-234-0 12 1 9601-0308 ● ●
92 SPRING; CLU 1-31214-088-0 12 1 0309-1005 ● ●
92 SPRING; CLU 1-31214-060-0 08 1 1006- ● ●
92 SPRING; CLU 1-31214-039-0 12 1 9601-9803 ● ● ●
92 SPRING; CLU 1-31214-039-0 12 1 9804-0109 ● ●
92 SPRING; CLU 1-31214-065-0 12 1 0110- ● ●
96 PIN; RELEASE LEVER
(A) L=57 		1-31232-004-0 04 1 9601-9810 ●
96 PIN; RELEASE LEVER
(B) L=49.0 		1-31232-005-0 04 1 9601-9803 ● ● ● ● ● ●
96 PIN; RELEASE LEVER
(B) L=49.0 		1-31232-005-0 04 1 9804-0308 ● ● ● ● ●
96 PIN; RELEASE LEVER
(B) L=49.0 		1-31232-005-0 04 1 0309-0607 ● ● ● ● ●
96 PIN; RELEASE LEVER
(B) L=49.0 		1-31232-005-0 04 1 0608- ● ● ● ● ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-014-0 04 1 9601-9810 ● ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-014-0 04 1 9811-0308 ● ● ● ● ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-014-0 04 1 0309-0607 ● ● ● ● ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-014-0 04 1 0608- ● ● ● ● ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-008-0 04 1 9601-9803 ● ● ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-008-0 04 1 9804-9810 ● ●
98 SPRING; RETURN 1-31233-003-0 04 1 9601-9803 ● ● ● ● ● ●
98 SPRING; RETURN 1-31233-003-0 04 1 9804-0607 ● ● ● ● ●
98 SPRING; RETURN 1-31233-003-0 04 1 0608- ● ● ● ● ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 9601-9803 ● ● ● ● ● ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 9804-0109 ● ● ● ● ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 0110- ● ●
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0110-0607 ● ● ●
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0608- ● ● ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 9601-9810 ● ● ● ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 9811-0607 ● ● ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0608- ● ● ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08113-022-0 08 1 9601- ● ●
105 NUT; SUPPORT 1-31235-014-0 04 1 0309-0309 ● ●
105 NUT; SUPPORT 1-31235-014-0 04 1 0309-0607 ● ● ● ● ●
105 NUT; SUPPORT 1-31235-014-0 04 1 0608- ● ● ● ● ●
105 NUT; SUPPORT 9-31235-061-0 04 1 9601-9803 ● ● ● ● ● ●
105 NUT; SUPPORT 9-31235-061-0 04 1 9804-0109 ● ● ● ● ●
105 NUT; SUPPORT 1-31235-012-0 04 1 0110-0308 ● ● ● ● ●
105 NUT; SUPPORT 1-31235-012-0 04 1 0309-0309 ● ● ●
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 9601-9803 ● ● ● ● ● ●
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 9804-0607 ● ● ● ● ●
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 0608- ● ● ● ● ●
106 PLATE; LK,LEVER SUPPORT
(B) 		1-31235-008-0 08 1 9601-0109 ● ●
106 PLATE; LK,LEVER SUPPORT
(B) 		1-31235-008-0 04 1 0110- ● ●
107 BOLT; LK PLATE 1-31239-061-0 08 1 0309-0309 ● ●
107 BOLT; LK PLATE 1-31239-061-0 08 1 0309-0607 ● ● ● ● ●
107 BOLT; LK PLATE 1-31239-061-0 08 1 0608- ● ● ● ● ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 9601-9803 ● ● ● ● ● ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 9804-0308 ● ● ● ● ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 0309-0309 ● ● ●
109 WASHER; LK,STRAP
ID=10.2 		9-09150-510-0 04 1 9601-0603 ● ●
109 WASHER; LK,STRAP
ID=10.2 		0-91510-510-0 04 1 0604- ● ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28181-020-0 12 1 9601-9803 ● ● ● ● ● ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28181-020-0 12 1 9804-0512 ● ● ● ● ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 0601-0607 ● ● ● ● ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 0608- ● ● ● ● ●
172 LEVER KIT; RELEASE,CLU 1-87831-173-0 01 1 0307-0307 ● ●
172 LEVER KIT; RELEASE,CLU 1-87831-173-1 01 1 0308- ● ● ● ●
172 LEVER KIT; RELEASE,CLU 1-87830-760-2 01 1 9601-0004 ●
172 LEVER KIT; RELEASE,CLU 1-87830-513-0 01 1 0005-0109 ●
172 LEVER KIT; RELEASE,CLU 1-87830-760-3 01 1 0110-0307 ●
172 LEVER KIT; RELEASE,CLU 1-87831-170-1 01 1 0308- ●
172 LEVER KIT; RELEASE,CLU 1-87830-620-0 01 1 9601-0004 ● ●
172 LEVER KIT; RELEASE,CLU 1-87830-902-0 01 1 0005-0109 ● ●
172 LEVER KIT; RELEASE,CLU 1-87830-902-1 01 1 0110-0306 ● ● ● ●
172 LEVER KIT; RELEASE,CLU 1-87830-902-1 01 1 0307-0307 ● ●
172 LEVER KIT; RELEASE,CLU 1-87830-808-0 01 1 9601-9803 ● ● ●
172 LEVER KIT; RELEASE,CLU 1-87830-808-0 01 1 9804-0109 ● ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 9601-9810 ● ● ● ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 9811-0607 ● ● ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0608- ● ● ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 9601-9810 ● ● ● ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 9811-0607 ● ● ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0608- ● ● ●
222 BOLT; STRAP
(C) M10X26 HEX SOCKET 		1-09040-101-0 04 1 9601-0109 ● ●
222 BOLT; STRAP
(C) 		1-31239-059-0 04 1 0110- ● ●

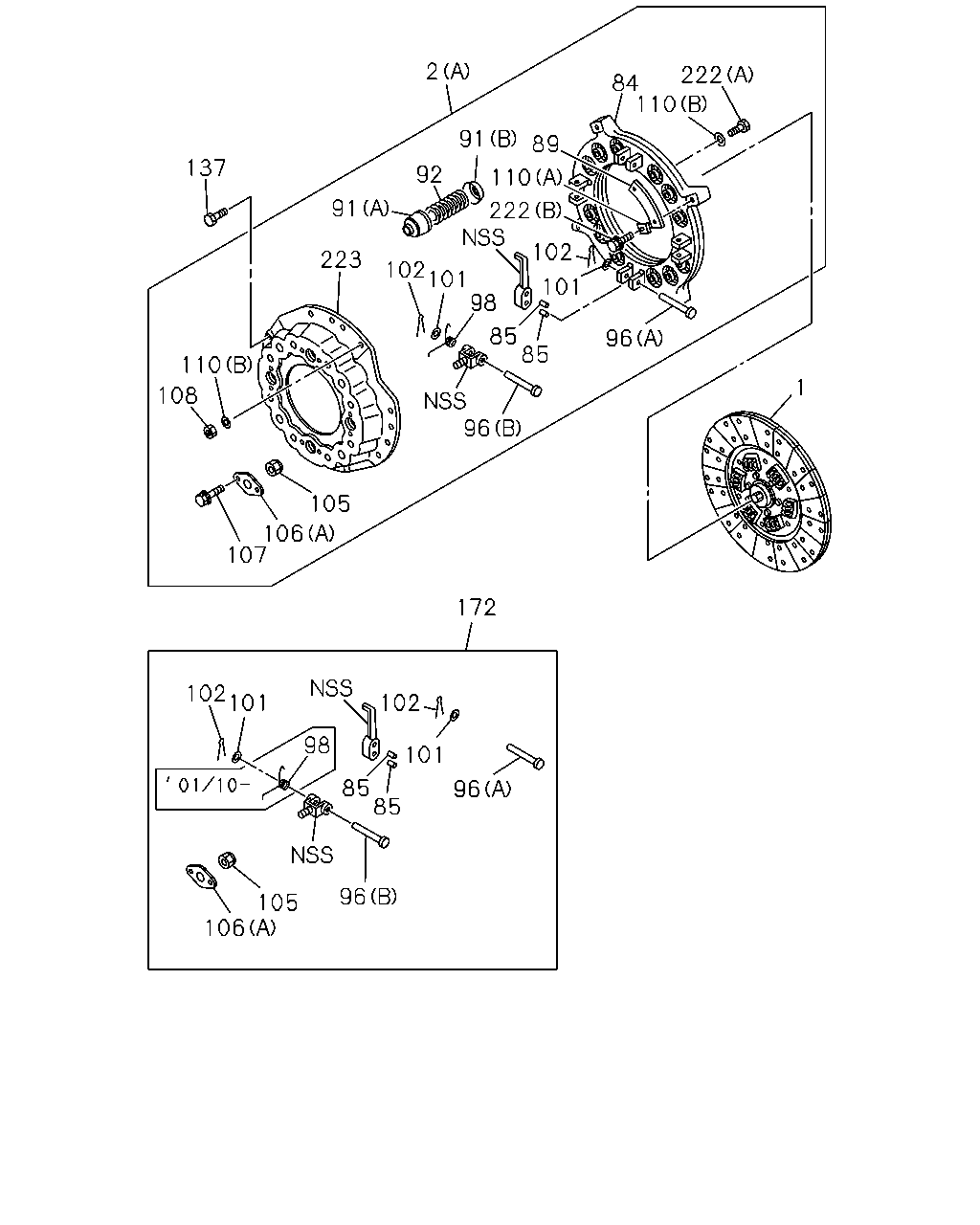

çizim 8685
2 222 84 110 91 89 137 92 110 91 222 102 223 102 101 98 101 85 85 96 110 1 108 96 105 106 107 172 102 101 102 98 101 85 85 96 96 105 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 DISC; CLUTCH
15" 		1-31240-657-0 01 1 9601-0106 ●
1 DISC; CLUTCH
15" 		1-31240-889-0 01 1 0107- ●
1 DISC; CLUTCH
14" 		1-31240-671-0 01 1 9601-0105 ● ●
1 DISC; CLUTCH
14" 		1-31240-901-0 01 1 0106- ● ●
1 DISC; CLUTCH
15" 		1-31240-676-0 01 1 9601-9803 ● ● ●
1 DISC; CLUTCH
15" 		1-31240-676-0 01 1 9804-0105 ● ●
1 DISC; CLUTCH
15" 		1-31240-902-0 01 1 0106- ● ●
1 DISC; CLUTCH
BEST VALUE PARTS 		1-87610-139-0 01 1 0106- ● ●
1 DISC; CLUTCH
BEST VALUE PARTS 		1-87610-142-0 01 1 0107- ●
2 PLATE ASM; PRESSURE,CLU
(A) 		1-31220-207-2 01 1 9601-0109 ●
2 PLATE ASM; PRESSURE,CLU
(A) 		1-31220-374-2 01 1 0110- ●
2 PLATE ASM; PRESSURE,CLU
(B) 		1-31220-291-0 01 1 9601-0109 ● ●
2 PLATE ASM; PRESSURE,CLU
(B) 		1-31220-364-2 01 1 0110-1005 ● ●
2 PLATE ASM; PRESSURE,CLU
(B) 		1-31220-447-0 01 1 1006- ● ●
2 PLATE ASM; PRESSURE,CLU
(A) 		1-31220-305-0 01 1 9601-9803 ● ● ●
2 PLATE ASM; PRESSURE,CLU
(A) 		1-31220-305-1 01 1 9804-0109 ● ●
2 PLATE ASM; PRESSURE,CLU
(A) 		1-31220-373-2 01 1 0110- ● ●
2 PLATE ASM; PRESSURE,CLU
(A) BEST VALUE PARTS 		1-87610-120-0 01 1 0110- ●
2 PLATE ASM; PRESSURE,CLU
(B) BEST VALUE PARTS 		1-87610-144-0 01 1 1006- ● ●
84 PLATE; PRESSURE
15" 		1-31221-067-0 01 1 9601-9810 ●
84 PLATE; PRESSURE
14" 		1-31221-082-0 01 1 9601- ● ●
84 PLATE; PRESSURE
15" 		1-31221-051-0 01 1 9601-9803 ● ● ●
84 PLATE; PRESSURE
15" 		1-31221-051-0 01 1 9804-9810 ● ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 9811-0607 ● ● ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0608- ● ● ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 9601-9803 ● ● ● ● ● ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 9804-0607 ● ● ● ● ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0608- ● ● ● ● ●
89 PLATE; STRAP 1-31229-001-0 12 1 9601-9810 ● ● ● ●
89 PLATE; STRAP 1-31229-001-0 08 1 9601- ● ●
89 PLATE; STRAP 1-31229-050-0 16 1 9811-0607 ● ● ●
89 PLATE; STRAP 1-31229-050-0 16 1 0608- ● ● ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 08 1 1006- ● ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 08 1 1006- ● ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 9601-9803 ● ● ● ● ● ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 9804-1005 ● ● ● ● ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 1006- ● ● ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 9601-9803 ● ● ● ● ● ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 9804-1005 ● ● ● ● ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 1006- ● ● ●
92 SPRING; CLU 1-31214-019-0 12 1 9601-0308 ●
92 SPRING; CLU 1-31214-086-0 12 1 0309- ●
92 SPRING; CLU 1-09580-234-0 12 1 9601-0308 ● ●
92 SPRING; CLU 1-31214-088-0 12 1 0309-1005 ● ●
92 SPRING; CLU 1-31214-060-0 08 1 1006- ● ●
92 SPRING; CLU 1-31214-039-0 12 1 9601-9803 ● ● ●
92 SPRING; CLU 1-31214-039-0 12 1 9804-0109 ● ●
92 SPRING; CLU 1-31214-065-0 12 1 0110- ● ●
96 PIN; RELEASE LEVER
(A) L=57 		1-31232-004-0 04 1 9601-9810 ●
96 PIN; RELEASE LEVER
(B) L=49.0 		1-31232-005-0 04 1 9601-9803 ● ● ● ● ● ●
96 PIN; RELEASE LEVER
(B) L=49.0 		1-31232-005-0 04 1 9804-0308 ● ● ● ● ●
96 PIN; RELEASE LEVER
(B) L=49.0 		1-31232-005-0 04 1 0309-0607 ● ● ● ● ●
96 PIN; RELEASE LEVER
(B) L=49.0 		1-31232-005-0 04 1 0608- ● ● ● ● ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-014-0 04 1 9601-9810 ● ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-014-0 04 1 9811-0308 ● ● ● ● ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-014-0 04 1 0309-0607 ● ● ● ● ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-014-0 04 1 0608- ● ● ● ● ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-008-0 04 1 9601-9803 ● ● ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-008-0 04 1 9804-9810 ● ●
98 SPRING; RETURN 1-31233-003-0 04 1 9601-9803 ● ● ● ● ● ●
98 SPRING; RETURN 1-31233-003-0 04 1 9804-0607 ● ● ● ● ●
98 SPRING; RETURN 1-31233-003-0 04 1 0608- ● ● ● ● ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 9601-9803 ● ● ● ● ● ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 9804-0109 ● ● ● ● ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 0110- ● ●
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0110-0607 ● ● ●
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0608- ● ● ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 9601-9810 ● ● ● ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 9811-0607 ● ● ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0608- ● ● ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08113-022-0 08 1 9601- ● ●
105 NUT; SUPPORT 1-31235-014-0 04 1 0309-0309 ● ●
105 NUT; SUPPORT 1-31235-014-0 04 1 0309-0607 ● ● ● ● ●
105 NUT; SUPPORT 1-31235-014-0 04 1 0608- ● ● ● ● ●
105 NUT; SUPPORT 9-31235-061-0 04 1 9601-9803 ● ● ● ● ● ●
105 NUT; SUPPORT 9-31235-061-0 04 1 9804-0109 ● ● ● ● ●
105 NUT; SUPPORT 1-31235-012-0 04 1 0110-0308 ● ● ● ● ●
105 NUT; SUPPORT 1-31235-012-0 04 1 0309-0309 ● ● ●
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 9601-9803 ● ● ● ● ● ●
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 9804-0607 ● ● ● ● ●
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 0608- ● ● ● ● ●
106 PLATE; LK,LEVER SUPPORT
(B) 		1-31235-008-0 08 1 9601-0109 ● ●
106 PLATE; LK,LEVER SUPPORT
(B) 		1-31235-008-0 04 1 0110- ● ●
107 BOLT; LK PLATE 1-31239-061-0 08 1 0309-0309 ● ●
107 BOLT; LK PLATE 1-31239-061-0 08 1 0309-0607 ● ● ● ● ●
107 BOLT; LK PLATE 1-31239-061-0 08 1 0608- ● ● ● ● ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 9601-9803 ● ● ● ● ● ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 9804-0308 ● ● ● ● ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 0309-0309 ● ● ●
108 NUT; STRAP 1-09449-036-0 04 1 9601-9810 ● ● ● ●
108 NUT; STRAP 1-09449-036-0 04 1 9811-0607 ● ● ●
108 NUT; STRAP 1-09449-036-0 04 1 0608- ● ● ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		1-09503-095-0 08 1 9601-9810 ● ● ● ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		1-09503-095-0 08 1 9811-0403 ● ● ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 0404-0607 ● ● ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 0608- ● ● ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 9601-9810 ● ● ● ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 9811-0607 ● ● ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 0608- ● ● ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28181-020-0 12 1 9601-9803 ● ● ● ● ● ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28181-020-0 12 1 9804-0512 ● ● ● ● ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 0601-0607 ● ● ● ● ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 0608- ● ● ● ● ●
172 LEVER KIT; RELEASE,CLU 1-87831-173-0 01 1 0307-0307 ● ●
172 LEVER KIT; RELEASE,CLU 1-87831-173-1 01 1 0308- ● ● ● ●
172 LEVER KIT; RELEASE,CLU 1-87830-760-2 01 1 9601-0004 ●
172 LEVER KIT; RELEASE,CLU 1-87830-513-0 01 1 0005-0109 ●
172 LEVER KIT; RELEASE,CLU 1-87830-760-3 01 1 0110-0307 ●
172 LEVER KIT; RELEASE,CLU 1-87831-170-1 01 1 0308- ●
172 LEVER KIT; RELEASE,CLU 1-87830-620-0 01 1 9601-0004 ● ●
172 LEVER KIT; RELEASE,CLU 1-87830-902-0 01 1 0005-0109 ● ●
172 LEVER KIT; RELEASE,CLU 1-87830-902-1 01 1 0110-0306 ● ● ● ●
172 LEVER KIT; RELEASE,CLU 1-87830-902-1 01 1 0307-0307 ● ●
172 LEVER KIT; RELEASE,CLU 1-87830-808-0 01 1 9601-9803 ● ● ●
172 LEVER KIT; RELEASE,CLU 1-87830-808-0 01 1 9804-0109 ● ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 9601-9810 ● ● ● ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 9811-0607 ● ● ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0608- ● ● ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 9601-9810 ● ● ● ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 9811-0607 ● ● ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0608- ● ● ●
222 BOLT; STRAP
(C) M10X26 HEX SOCKET 		1-09040-101-0 04 1 9601-0109 ● ●
222 BOLT; STRAP
(C) 		1-31239-059-0 04 1 0110- ● ●
223 COVER; CLU 1-31211-019-1 01 1 9601-9810 ● ● ● ●
223 COVER; CLU 1-31211-019-1 01 1 9811-0607 ● ● ●
223 COVER; CLU 1-31211-019-1 01 1 0608- ● ● ●

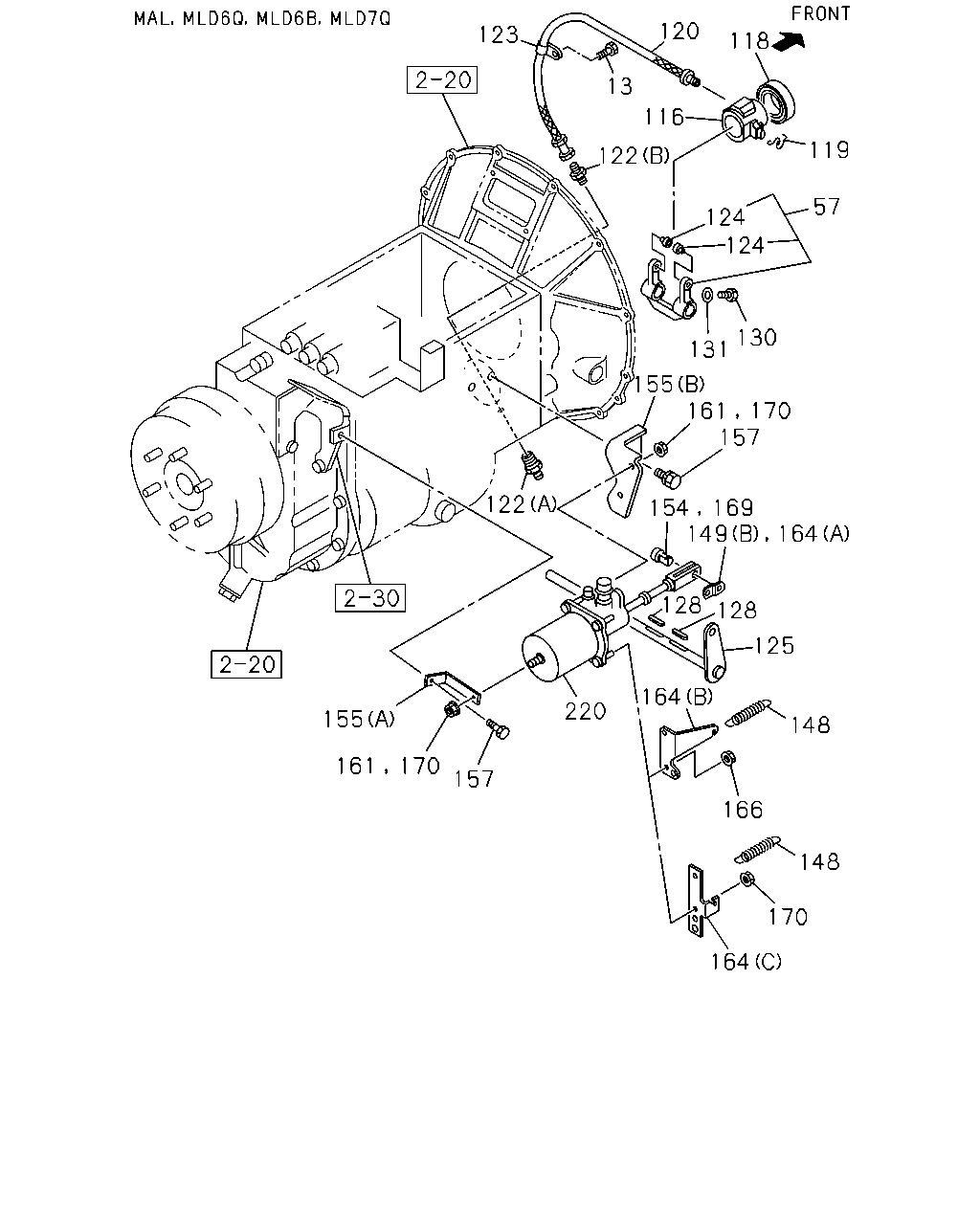

çizim 8688
120 123 118 13 116 119 122 57 124 124 130 131 155 161 170 157 122 149 164 128 128 125 164 220 155 148 161 170 157 166 148 170 164 154 169
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9601-9803 ● ● ● ● ●
13 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9804-0512 ● ● ● ●
13 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ●
57 FORK; SHIFT,CLU 1-31340-060-0 01 1 9601-1306 ●
57 FORK; SHIFT,CLU 1-31340-077-0 01 1 1307- ●
57 FORK; SHIFT,CLU 1-31340-056-0 01 1 9601-9803 ● ● ● ● ●
57 FORK; SHIFT,CLU 1-31340-056-1 01 1 9804- ● ● ● ●
116 BLOCK; SHIFT,CLU 1-31321-075-1 01 1 9601-1205 ●
116 BLOCK; SHIFT,CLU 1-31321-113-0 01 1 1206-1306 ●
116 BLOCK; SHIFT,CLU 1-31321-114-0 01 1 1307- ●
116 BLOCK; SHIFT,CLU 1-31321-052-2 01 1 9601-9803 ● ● ● ● ●
116 BLOCK; SHIFT,CLU 1-31321-052-3 01 1 9804- ● ● ● ●
118 BEARING; CLU RELEASE 1-09820-081-0 01 1 9601-0110 ●
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-148-0 01 1 0112- ● ● ● ●
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 0111-0111 ●
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 0112-1102 ●
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 1103- ●
118 BEARING; CLU RELEASE 1-09820-008-0 01 1 9601-9803 ● ● ● ● ●
118 BEARING; CLU RELEASE 1-09820-008-0 01 1 9804-0111 ● ● ● ●
118 BEARING; CLU RELEASE 1-09820-114-0 01 1 0112- ● ● ● ●
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-108-0 01 1 0111-0111 ●
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-108-0 01 1 0112-1102 ●
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-108-0 01 1 1103- ●
119 SPRING; SHIFT FORK 1-09585-054-0 01 1 9601-9803 ● ● ● ● ● ●
119 SPRING; SHIFT FORK 1-09585-054-1 01 1 9804- ● ● ● ● ●
119 SPRING; SHIFT FORK 1-09585-053-0 01 1 9601-9803 ● ● ● ● ● ●
119 SPRING; SHIFT FORK 1-09585-053-1 01 1 9804- ● ● ● ● ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=405 		1-09364-449-0 01 1 9601- ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=390 		1-09364-870-0 01 1 9601-9803 ● ● ● ● ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=390 		1-09364-870-0 01 1 9804-0003 ● ● ● ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=390 		1-09365-143-0 01 1 0004- ● ● ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9601-9803 ● ● ● ● ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9804-0512 ● ● ● ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ● ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 9601-9803 ● ● ● ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 9804-1102 ● ● ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 1103- ● ● ● ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=22 		1-09700-644-1 01 1 9601- ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=15.5 		9-09917-613-0 01 1 9601- ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20 		9-09524-835-0 01 1 9601-9803 ● ● ● ● ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20 		9-09524-835-0 01 1 9804-0606 ● ● ● ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20 		0-95234-835-0 01 1 0607- ● ● ● ●
124 BEARING; CAM,SHIFT FORK 1-31349-004-1 02 1 9601-9803 ● ● ● ● ● ●
124 BEARING; CAM,SHIFT FORK 1-31349-004-1 02 1 9804- ● ● ● ● ●
125 SHAFT; CLU 1-31342-169-1 01 1 9601-9803 ● ● ● ●
125 SHAFT; CLU 1-31342-169-1 01 1 9804- ● ● ●
125 SHAFT; CLU 1-31342-271-0 01 1 9601-9803 ● ●
125 SHAFT; CLU 1-31342-298-1 01 1 9804- ● ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 9601-9803 ● ● ● ● ● ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 9804-1102 ● ● ● ● ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 1103- ● ● ● ● ●
130 SCREW; SHIFT FORK
M8X14 		9-06120-814-0 01 1 9601-9803 ● ● ● ● ● ●
130 SCREW; SHIFT FORK
M8X14 		9-06120-814-0 01 1 9804-0512 ● ● ● ● ●
130 SCREW; SHIFT FORK
M8X14 		0-61200-814-0 01 1 0601- ● ● ● ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 9601-9803 ● ● ● ● ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 9804-0603 ● ● ● ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 0604-1102 ● ● ● ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 1103- ● ● ● ● ●
148 SPRING; CLU RETURN 1-09583-212-0 01 1 9601- ●
148 SPRING; CLU RETURN 1-09583-249-0 01 1 9601- ● ●
148 SPRING; CLU RETURN 9-09942-530-1 01 1 9601-9803 ● ● ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 9804-1102 ● ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 1103- ● ●
149 EYE; SPRING,RETURN SPRING
(B) 		1-31426-019-1 01 1 9601- ● ● ●
149 EYE; SPRING,RETURN SPRING
(A) T=2.3 		1-47324-005-1 01 1 9601- ● ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 9601-1102 ● ● ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 1103- ● ● ●
155 BRACKET; MINIPACK
(B) 		1-31429-368-0 01 1 9601- ●
155 BRACKET; MINIPACK
(A) 		1-31429-369-0 01 1 9601- ●
155 BRACKET; MINIPACK
(B) 		1-31429-175-2 01 1 9601-9803 ● ● ●
155 BRACKET; MINIPACK
(B) 		1-31429-175-2 01 1 9804- ● ●
155 BRACKET; MINIPACK
(A) 		1-31429-176-0 01 1 9601-9803 ● ● ●
155 BRACKET; MINIPACK
(A) 		1-31429-176-0 01 1 9804- ● ●
157 BOLT; BRKT
M10X18 FLANGE 		0-28181-018-0 03 1 9601-9803 ● ● ● ●
157 BOLT; BRKT
M10X18 FLANGE 		0-28181-018-0 03 1 9804- ● ● ●
161 NUT; BRKT
M8 FLANGE 		0-91150-208-0 03 1 9601-9803 ● ● ●
161 NUT; BRKT
M8 FLANGE 		0-91150-208-0 03 1 9804-0602 ● ●
161 NUT; BRKT
M8 FLANGE 		0-91180-208-0 03 1 0603- ● ●
164 EYE; SPRING
(C) 		1-47475-372-0 01 1 9601- ●
164 EYE; SPRING
(B) L=85 		1-47476-574-0 01 1 9601-9605 ●
164 EYE; SPRING
(B) L=85 		1-47477-788-0 01 1 9606-9803 ● ● ●
164 EYE; SPRING
(B) 		1-47477-789-0 01 1 9804- ● ●
164 EYE; SPRING
(A) 		1-31426-019-1 01 1 9601-9803 ● ● ●
164 EYE; SPRING
(A) 		1-31426-041-0 01 1 9804- ● ●
166 NUT; SPRING EYE
M8 FLANGE 		0-91150-208-0 02 1 9601-9803 ● ● ●
166 NUT; SPRING EYE
M8 FLANGE 		0-91150-208-0 02 1 9804-0602 ● ●
166 NUT; SPRING EYE
M8 FLANGE 		0-91180-208-0 02 1 0603- ● ●
169 PIN; JOINT,MINIPACK 1-31424-009-0 01 1 9601-9803 ● ● ●
169 PIN; JOINT,MINIPACK 1-31424-009-0 01 1 9804- ● ●
170 NUT; BOOSTER FIX
M10 FLANGE 		0-91150-210-0 03 1 9601-0602 ●
170 NUT; BOOSTER FIX
M10 FLANGE 		0-91180-210-0 03 1 0603-1102 ●
170 NUT; BOOSTER FIX
M10 FLANGE 		0-91180-210-0 03 1 1103- ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-387-3 01 1 9601-1102 ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-387-4 01 1 1103- ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-383-0 01 1 9601-9803 ● ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-383-3 01 1 9804- ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-088-0 01 1 9601-1102 ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-088-0 01 1 1103- ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-083-0 01 1 9804- ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-083-0 01 1 9601-9803 ● ● ●

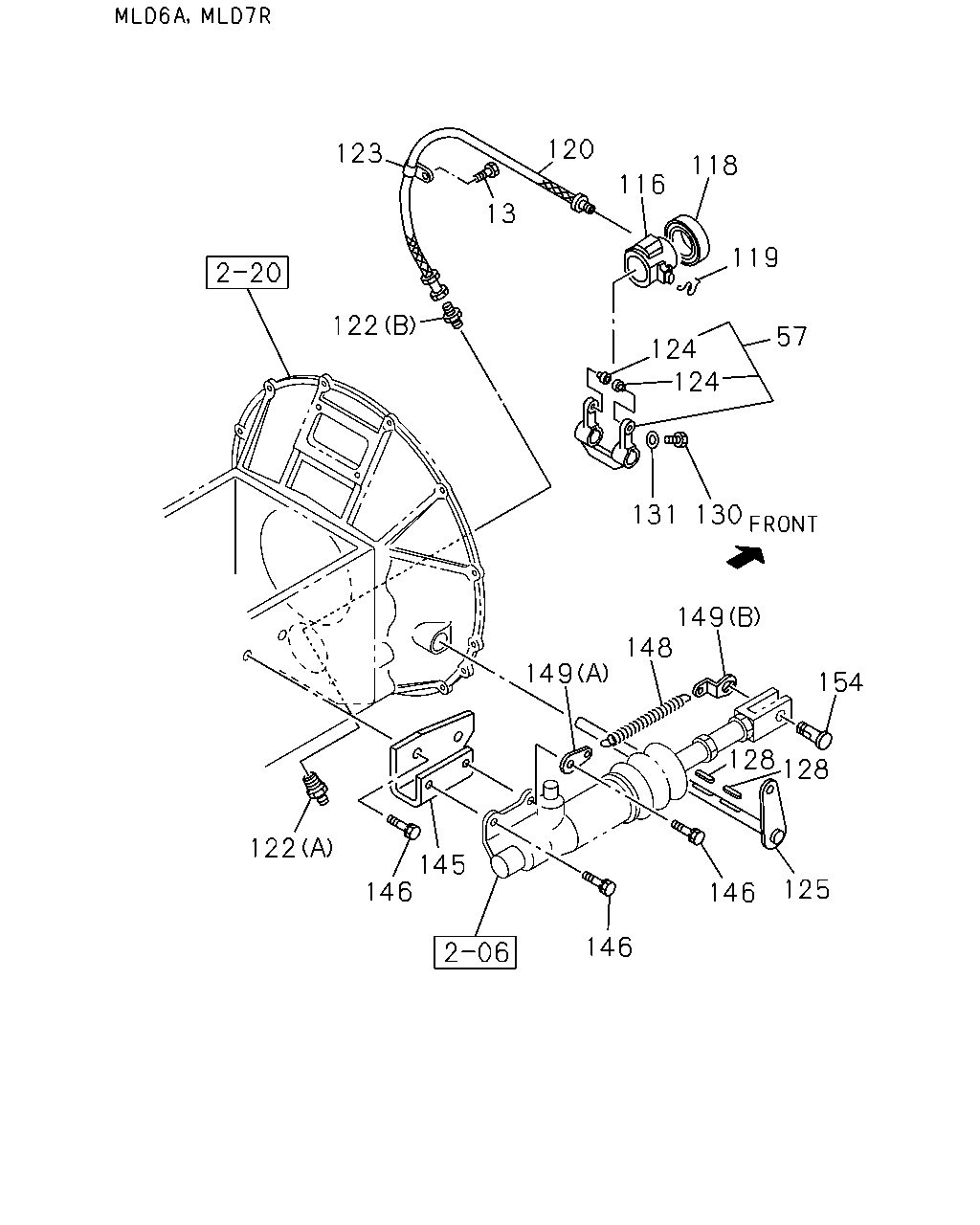

çizim 40255
120 123 118 116 13 119 122 57 124 124 131 130 149 148 149 154 128 128 122 145 146 125 146 146
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9601-9803 ● ● ● ● ●
13 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9804-0512 ● ● ● ●
13 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ●
57 FORK; SHIFT,CLU 1-31340-060-0 01 1 9601-1306 ●
57 FORK; SHIFT,CLU 1-31340-077-0 01 1 1307- ●
57 FORK; SHIFT,CLU 1-31340-056-0 01 1 9601-9803 ● ● ● ● ●
57 FORK; SHIFT,CLU 1-31340-056-1 01 1 9804- ● ● ● ●
116 BLOCK; SHIFT,CLU 1-31321-075-1 01 1 9601-1205 ●
116 BLOCK; SHIFT,CLU 1-31321-113-0 01 1 1206-1306 ●
116 BLOCK; SHIFT,CLU 1-31321-114-0 01 1 1307- ●
116 BLOCK; SHIFT,CLU 1-31321-052-2 01 1 9601-9803 ● ● ● ● ●
116 BLOCK; SHIFT,CLU 1-31321-052-3 01 1 9804- ● ● ● ●
118 BEARING; CLU RELEASE 1-09820-081-0 01 1 9601-0110 ●
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-148-0 01 1 0112- ● ● ● ●
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 0111-0111 ●
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 0112-1102 ●
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 1103- ●
118 BEARING; CLU RELEASE 1-09820-008-0 01 1 9601-9803 ● ● ● ● ●
118 BEARING; CLU RELEASE 1-09820-008-0 01 1 9804-0111 ● ● ● ●
118 BEARING; CLU RELEASE 1-09820-114-0 01 1 0112- ● ● ● ●
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-108-0 01 1 0111-0111 ●
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-108-0 01 1 0112-1102 ●
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-108-0 01 1 1103- ●
119 SPRING; SHIFT FORK 1-09585-054-0 01 1 9601-9803 ● ● ● ● ● ●
119 SPRING; SHIFT FORK 1-09585-054-1 01 1 9804- ● ● ● ● ●
119 SPRING; SHIFT FORK 1-09585-053-0 01 1 9601-9803 ● ● ● ● ● ●
119 SPRING; SHIFT FORK 1-09585-053-1 01 1 9804- ● ● ● ● ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=405 		1-09364-449-0 01 1 9601- ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=390 		1-09364-870-0 01 1 9601-9803 ● ● ● ● ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=390 		1-09364-870-0 01 1 9804-0003 ● ● ● ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=390 		1-09365-143-0 01 1 0004- ● ● ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9601-9803 ● ● ● ● ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9804-0512 ● ● ● ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ● ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 9601-9803 ● ● ● ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 9804-1102 ● ● ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 1103- ● ● ● ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=22 		1-09700-644-1 01 1 9601- ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=15.5 		9-09917-613-0 01 1 9601- ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20 		9-09524-835-0 01 1 9601-9803 ● ● ● ● ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20 		9-09524-835-0 01 1 9804-0606 ● ● ● ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20 		0-95234-835-0 01 1 0607- ● ● ● ●
124 BEARING; CAM,SHIFT FORK 1-31349-004-1 02 1 9601-9803 ● ● ● ● ● ●
124 BEARING; CAM,SHIFT FORK 1-31349-004-1 02 1 9804- ● ● ● ● ●
125 SHAFT; CLU 1-31342-169-1 01 1 9601-9803 ● ● ● ●
125 SHAFT; CLU 1-31342-169-1 01 1 9804- ● ● ●
125 SHAFT; CLU 1-31342-271-0 01 1 9601-9803 ● ●
125 SHAFT; CLU 1-31342-298-1 01 1 9804- ● ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 9601-9803 ● ● ● ● ● ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 9804-1102 ● ● ● ● ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 1103- ● ● ● ● ●
130 SCREW; SHIFT FORK
M8X14 		9-06120-814-0 01 1 9601-9803 ● ● ● ● ● ●
130 SCREW; SHIFT FORK
M8X14 		9-06120-814-0 01 1 9804-0512 ● ● ● ● ●
130 SCREW; SHIFT FORK
M8X14 		0-61200-814-0 01 1 0601- ● ● ● ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 9601-9803 ● ● ● ● ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 9804-0603 ● ● ● ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 0604-1102 ● ● ● ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 1103- ● ● ● ● ●
145 BRACKET; SLAVE CYL,OIL CLU 1-47579-052-0 01 1 9601-9803 ● ●
145 BRACKET; SLAVE CYL,OIL CLU 1-47579-058-0 01 1 9804- ● ●
146 BOLT; SLAVE CYL TO TRANS CASE
M10X25 FLANGE 		0-28181-025-0 04 1 9601-0512 ● ●
146 BOLT; SLAVE CYL TO TRANS CASE
M10X25 FLANGE 		0-28151-025-0 04 1 0601- ● ●
148 SPRING; CLU RETURN 1-09583-212-0 01 1 9601- ●
148 SPRING; CLU RETURN 1-09583-249-0 01 1 9601- ● ●
148 SPRING; CLU RETURN 9-09942-530-1 01 1 9601-9803 ● ● ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 9804-1102 ● ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 1103- ● ●
149 EYE; SPRING,RETURN SPRING
(B) 		1-31426-019-1 01 1 9601- ● ● ●
149 EYE; SPRING,RETURN SPRING
(A) T=2.3 		1-47324-005-1 01 1 9601- ● ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 9601-1102 ● ● ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 1103- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
