6-80 — BACK PANEL (#37464) — 13 parça

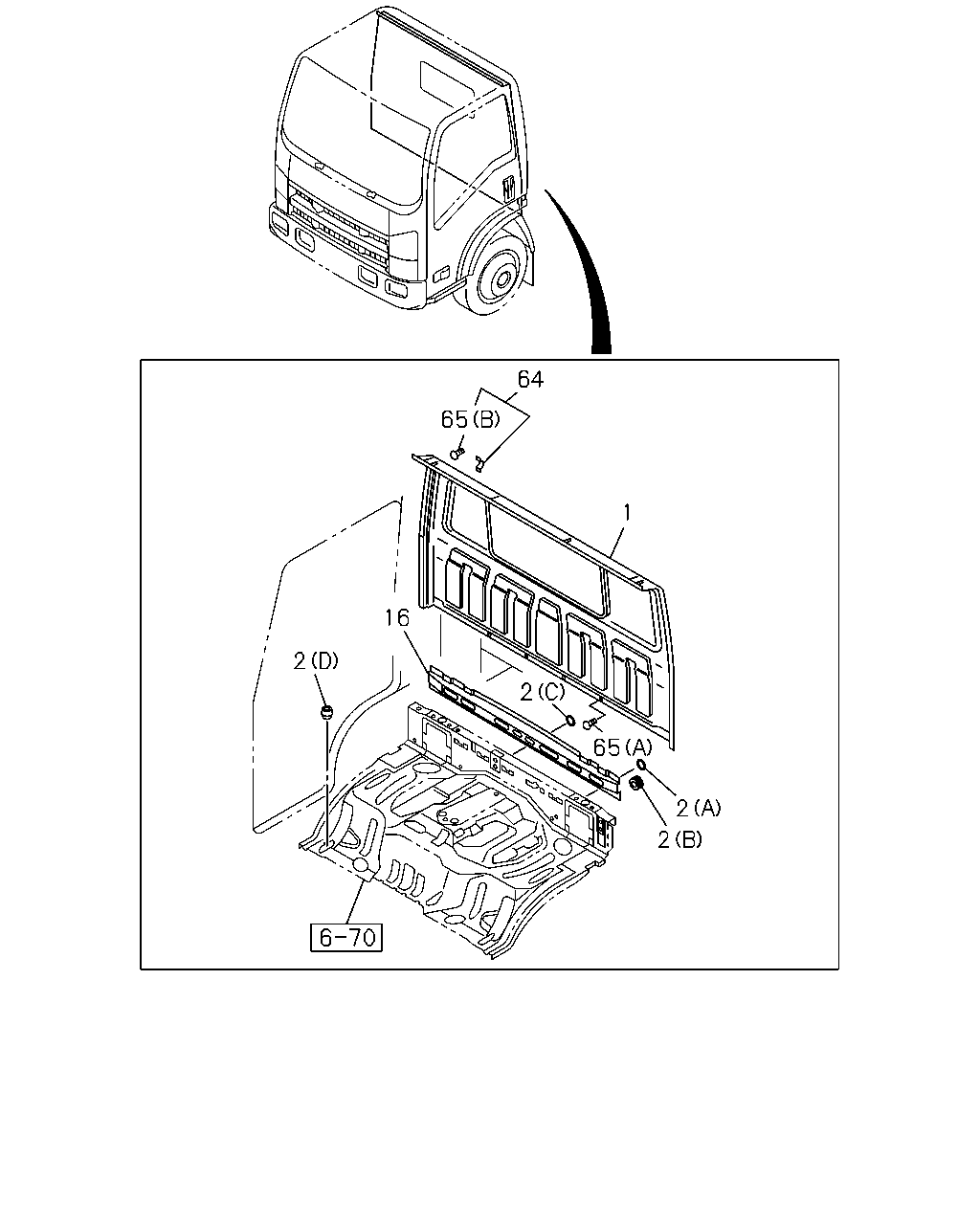

çizim 33734
64 65 1 16 2 2 65 2 2
BalonParca AdiParca NoAdetTipApplied Date
1 16.587 PANEL; BACK OUTER 8-97584-300-3 01 1 0710-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0710-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 0710-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0710-0710
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0711-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 0710-0801
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 0802-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 09 1 0802-
16 16.575 REINFORCEMENT; BACK OUTER PNL 8-97584-607-3 01 1 0710-
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 		8-97584-611-1 02 1 0710-0711
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 		8-97584-611-1 01 1 0712-
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 04 1 0710-1001
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 0710-
