Isuzu WW
▶
TRUCKS
▶
NLR
▶
51394 - NLR 85(AUST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶

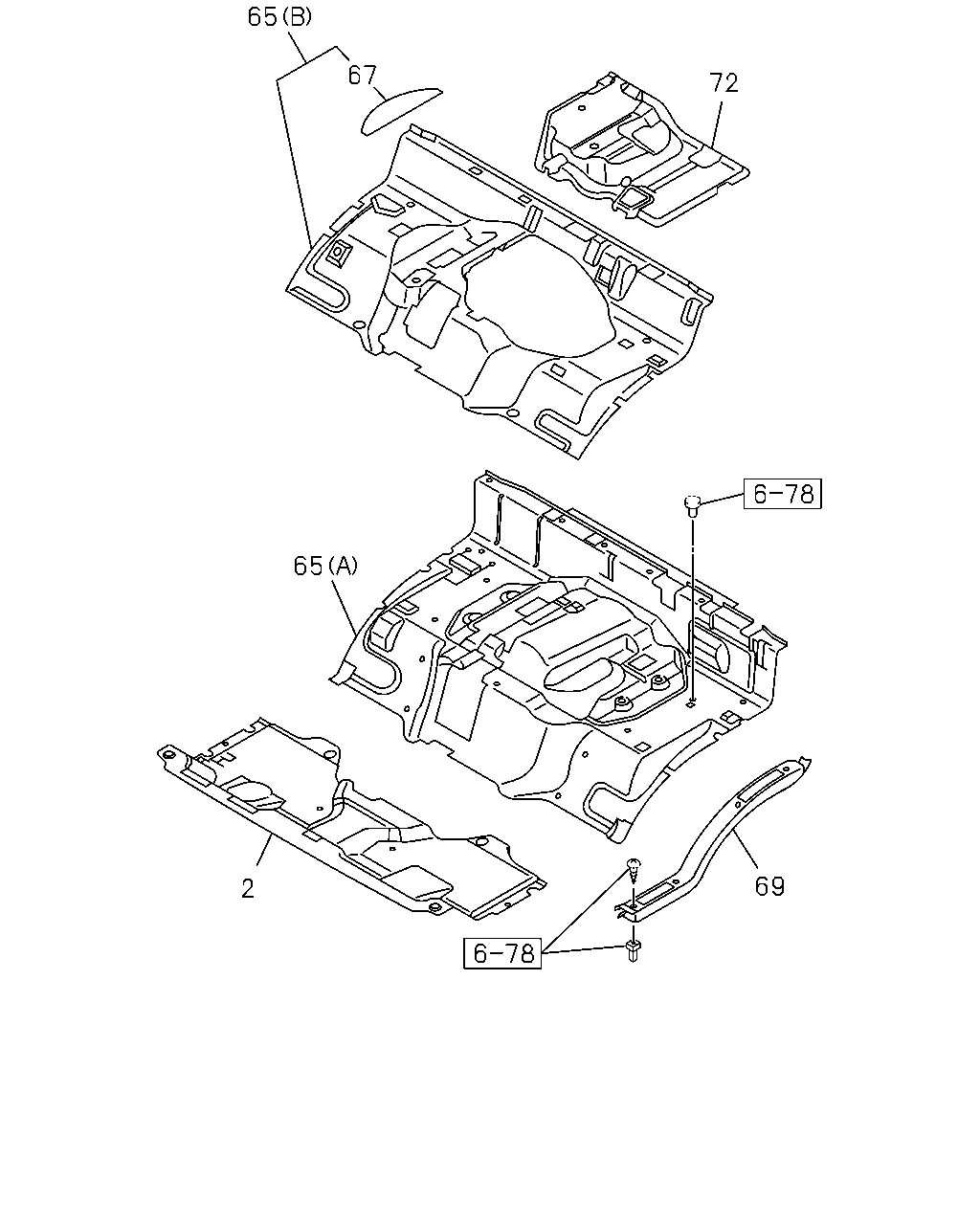

6-75 — MAT AND CARPET
(#37461) — 9 parça
65
67
72
65
69
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY
8-97406-154-6
01
1
0710-
2
16.800 MAT; FLOOR
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY
8-97406-155-6
01
1
0710-
65
16.802 MAT ASM; SILENCER,CAB FLOOR
(A) GRAY
8-97406-227-6
01
1
0710-0801
65
16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY
8-97406-227-7
01
1
0802-
65
16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY
8-97406-229-9
01
1
0802-
67
16.549 LID; COVER
INSPECTION ENGINE COVER<8GA> GRAY
8-97408-863-0
01
1
0802-0904
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-388-1
01
1
0710-
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-389-1
01
1
0710-
72
16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY
8-97406-252-3
01
1
0802-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
