1-56 — EXHAUST BRAKE SYSTEM (#3746) — 86 parça

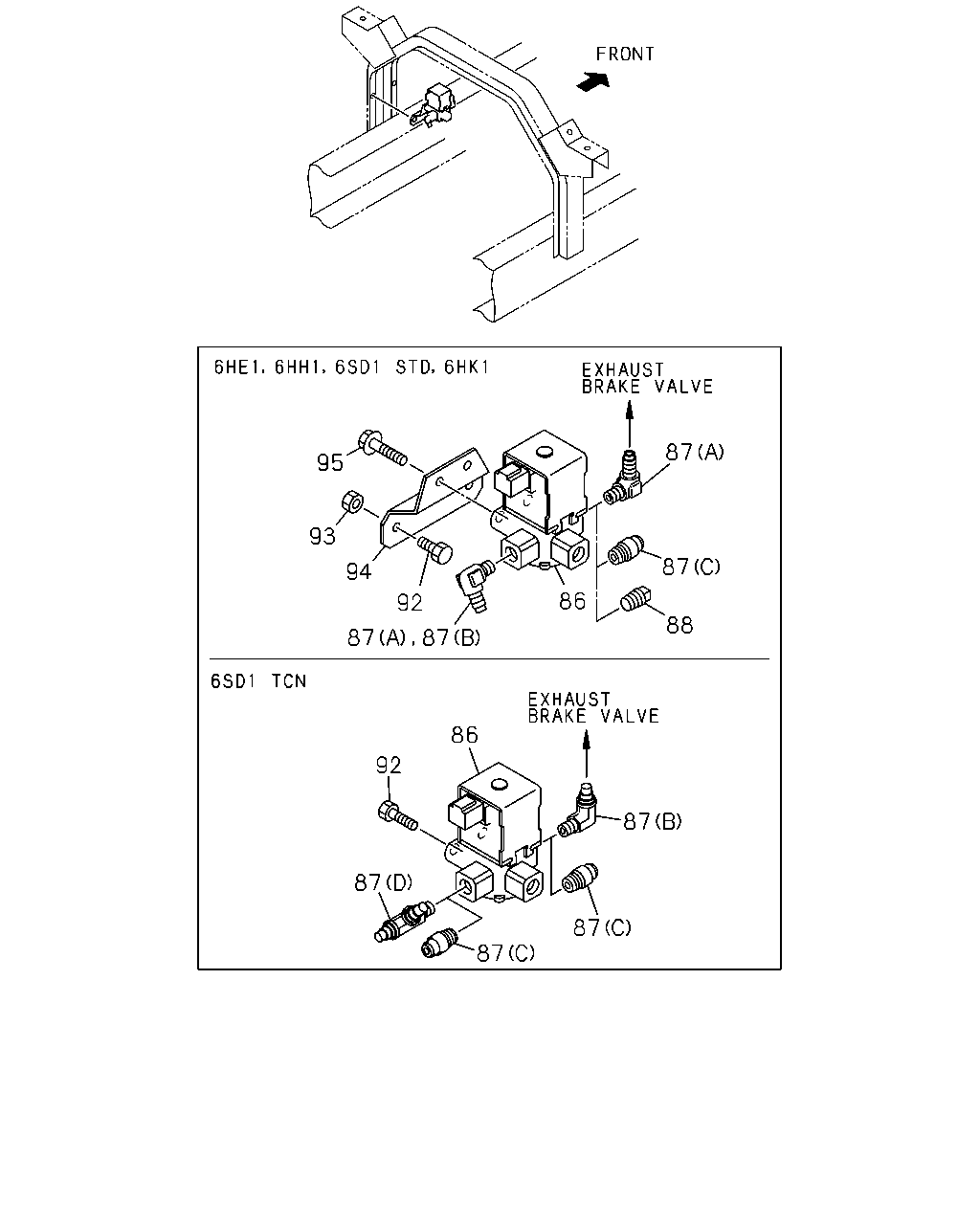

çizim 37495
87 95 93 87 94 86 92 88 87 87 86 92 87 87 87 87
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
86 VALVE; MAG,EXH BRK 1-82563-600-5 01 1 0301- ●
86 VALVE; MAG,EXH BRK 1-82563-602-2 01 1 9601-9806 ● ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-602-4 01 1 9807-0004 ● ● ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-602-5 01 1 0005-0212 ● ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-602-6 01 1 0301-0607 ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-602-6 01 1 0608- ● ● ● ●
87 CONNECTOR
MIDDLE CHASSIS(FV***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9601-9803 ●
87 CONNECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 9804-0004 ●
87 CONNECTOR
EXC. A/T<X9D> (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0005-0005 ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9601-9609 ● ●
87 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9610-9803 ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9610-9803 ● ●
87 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9804-9806 ●
87 CONNECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXHAUST BRAKE<NF8> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9804-9806 ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9804-9806 ● ●
87 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9807-0004 ●
87 CONNECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXHAUST BRAKE<NF8> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9807-0004 ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9807-0004 ● ● ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0005-0607 ● ● ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0608- ● ● ● ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9609 ● ● ●
87 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9610-9803 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9610-9803 ● ● ●
87 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9804-9806 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9804-9806 ● ● ●
87 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9807-0004 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9807-0004 ● ● ● ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0005 ● ● ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0011 ● ● ●
87 CONNECTOR
SHORT CHASSIS(FV***C) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0011 ●
87 CONNECTOR
MIDDLE CHASSIS(FV***F) EXC. A/T<X9D> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0011 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0012-0607 ● ● ●
87 CONNECTOR
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0012-0607 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0608-1102 ● ● ●
87 CONNECTOR
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0608-1102 ●
87 CONNECTOR
MIDDLE CHASSIS(FV***F) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0608-1102 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1103- ● ● ●
87 CONNECTOR
SHORT CHASSIS(FV***C) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1103- ●
87 CONNECTOR
MIDDLE CHASSIS(FV***F) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1103- ●
87 CONNECTOR
MIDDLE CHASSIS(FV***F) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1103- ●
87 CONNECTOR
(D) 		1-09660-718-1 01 1 9601-9803 ●
87 CONNECTOR
(D) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 9804-0004 ●
87 CONNECTOR
EXC. A/T<X9D> (D) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0005-0011 ●
87 CONNECTOR
ZF 9S109 OD M/T(Y2L) (D) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0012-1102 ●
87 CONNECTOR
SHORT CHASSIS(FV***C) ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) (D) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 1103- ●
87 CONNECTOR
MIDDLE CHASSIS(FV***F) ZF 9S109 OD M/T(Y2L) (D) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 1103- ●
87 CONNECTOR
A/T<X9D> (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 0005- ●
87 CONNECTOR
MAL6S M/T(Y1V) (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0012- ●
88 PLUG
PT1/4 		9-99204-513-0 01 1 0301- ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ● ● ●
92 BOLT; MAG VLV
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9712 ● ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 9801-9806 ● ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 9807-0004 ● ● ● ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ● ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0601-0607 ● ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0608- ● ● ● ●
92 BOLT; MAG VLV
M8X30 FLANGE 		0-28080-830-0 02 1 9601-0512 ●
92 BOLT; MAG VLV
M8X30 FLANGE 		0-28050-830-0 02 1 0601- ●
93 NUT; MAG VLV
M8 		9-09110-408-0 02 1 9601-9606 ● ● ●
93 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 02 1 9607-9806 ● ● ●
93 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 02 1 9807-0004 ● ● ● ● ●
93 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ● ●
93 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0603-0607 ● ● ●
93 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0608- ● ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-47477-266-0 01 1 9601-9806 ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47477-266-0 01 1 9807-0004 ●
94 BRACKET; MAG VLV,EXH BRAKE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXHAUST BRAKE<NF8> 		1-47477-266-0 01 1 9807-0004 ●
94 BRACKET; MAG VLV,EXH BRAKE 1-47477-266-0 01 1 9807-0004 ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-47477-266-0 01 1 0005-0607 ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-47477-266-0 01 1 0608- ● ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE 		0-28680-820-0 02 1 9811-9902 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE 		0-28680-820-0 02 1 9903-0004 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXHAUST BRAKE<NF8> M8X20 FLANGE 		0-28680-820-0 02 1 9903-0004 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28680-820-0 02 1 9903-0004 ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0601-0607 ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0608- ● ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
MIDDLE CHASSIS(FV***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE 		0-28680-820-0 02 1 9601-9803 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28080-820-0 02 1 9601-9609 ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE 		0-28080-820-0 02 1 9610-9803 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28080-820-0 02 1 9610-9803 ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28080-820-0 02 1 9804-9806 ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE 		0-28080-820-0 02 1 9807-9810 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXHAUST BRAKE<NF8> M8X20 FLANGE 		0-28080-820-0 02 1 9807-9810 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28080-820-0 02 1 9807-9810 ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE 		0-28080-820-0 02 1 9811-9902 ● ● ● ●
