Isuzu WW
▶
TRUCKS
▶
NLR
▶
51394 - NLR 85(AUST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶

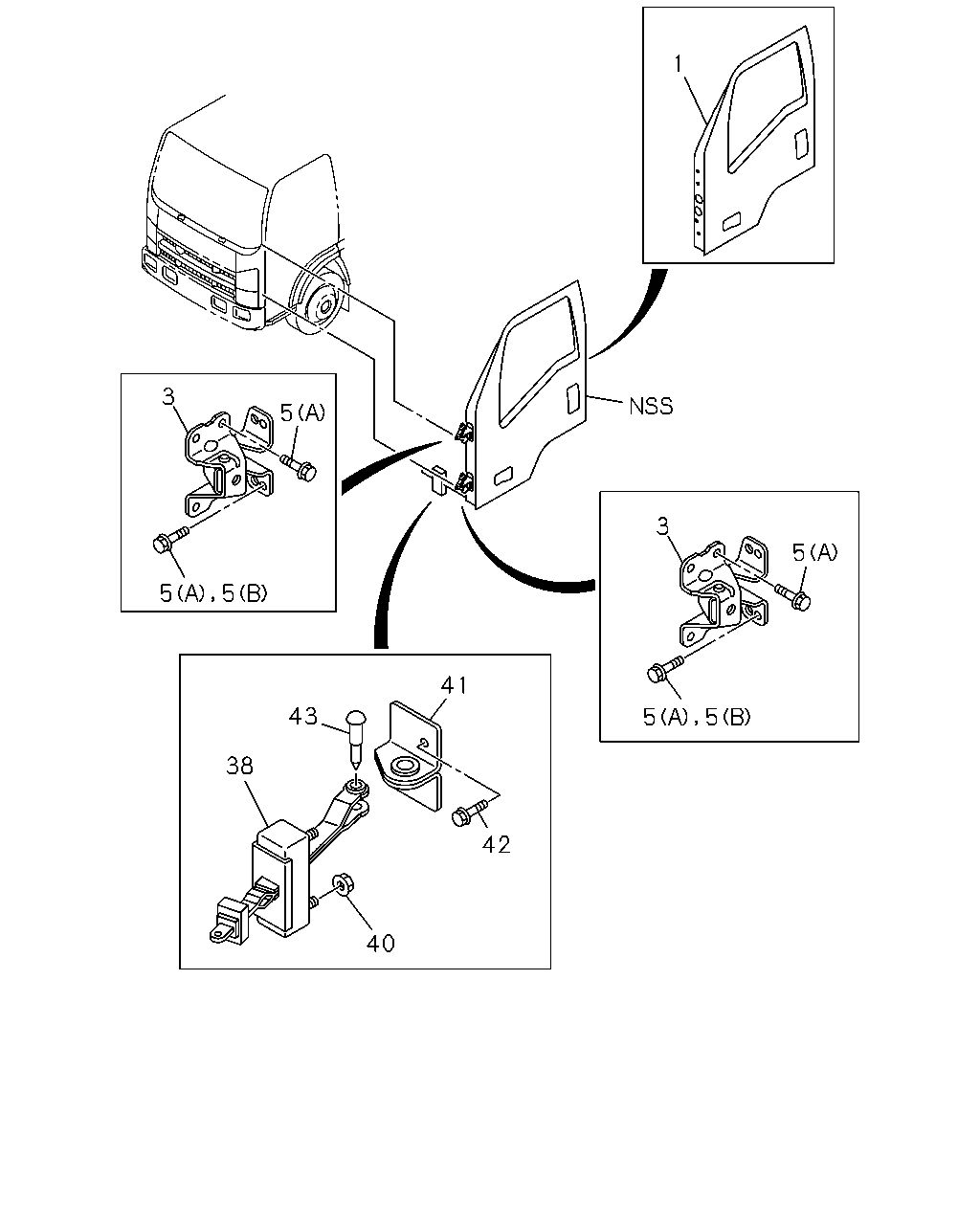

6-30 — FRONT DOOR AND HINGE
(#37452) — 19 parça
1
3
5
3
5
5
5
41
43
5
5
38
42
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
8-98075-726-1
01
1
0710-0803
1
16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
8-98075-726-1
01
1
0804-1012
1
16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
8-98171-225-0
01
1
1101-
1
16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
8-98075-727-1
01
1
0710-0803
1
16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
8-98075-727-1
01
1
0804-1012
1
16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
8-98171-233-0
01
1
1101-
3
16.320 HINGE; DOOR FRT
8-98038-293-0
04
1
0710-1104
3
16.320 HINGE; DOOR FRT
8-98191-302-0
04
1
1105-
5
16.320 BOLT; HINGE
(A) M8X20 FLANGE
8-98049-756-0
12
1
0710-
5
16.320 BOLT; HINGE
(B) M8X23 FLANGE
8-98029-440-0
16
1
0710-0712
5
16.320 BOLT; HINGE
(B) M8X23 FLANGE
8-98029-440-0
08
1
0801-
5
16.320 BOLT; HINGE
(B) M8X23 FLANGE
8-98029-440-0
08
1
0801-
38
16.320 CHECKER ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
8-98031-730-4
02
1
0710-0803
38
16.320 CHECKER ASM; DOOR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
8-98031-730-6
02
1
0804-
40
16.320 NUT; CHECKER
M8 FLANGE
8-98029-441-0
04
1
0710-1012
40
16.320 NUT; CHECKER
01.840 M8 W/DISHED WASHER
8-97329-625-0
04
1
1101-
41
16.320 BRACKET; CHECKER
8-98029-290-3
02
1
0710-
42
16.320 BOLT; BRKT
M6X20 W/PL WASHER
8-98032-159-2
04
1
0710-
43
16.320 PIN
8-98037-152-2
02
1
0710-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
