8-60 — HEATER UNIT; FRONT (#37449) — 44 parça

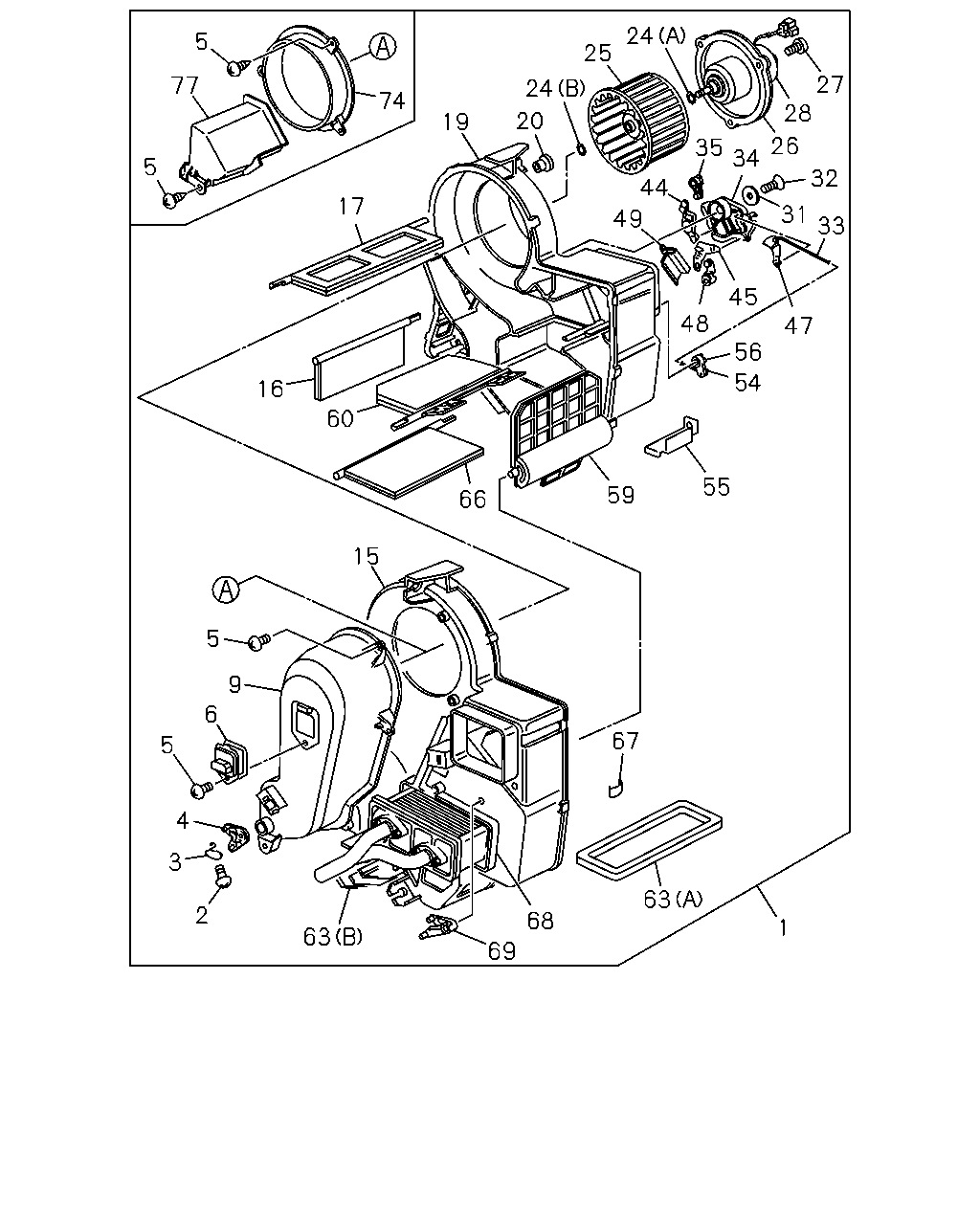

çizim 19446
5 77 5 74 19 20 24 25 24 27 28 26 34 35 44 49 17 16 60 66 59 55 54 56 47 45 48 33 31 32 1 63 67 69 68 63 2 3 4 5 6 9 5 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97014-434-1 01 1 9307- ● ●
1 HEATER UNIT
HEATER&DEFROSTER(C41) 		8-97085-412-1 01 1 9307- ● ●
2 SCREW; LEVER
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83571-160-0 01 1 9307- ● ●
3 LEVER; DUCT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83569-190-0 01 1 9307- ● ●
4 LEVER; DUCT
HEATER&DEFROSTER(C41) 		5-83569-189-0 01 1 9307- ● ●
5 SCREW; BRKT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X10 TAPPING 		9-07076-510-0 07 1 9307- ● ●
5 SCREW; BRKT
HEATER&DEFROSTER(C41) M5X10 TAPPING W/PL WASHER 		0-74300-510-0 08 1 9307- ● ●
5 SCREW; BRKT
HEATER&DEFROSTER(C41) M4X16 TAPPING 		1-83579-114-0 02 1 9307- ● ●
6 RESISTOR; HTR UNIT
HEATER&DEFROSTER(C41) "R-134A" 		8-97095-663-0 01 1 9307- ● ●
9 DUCT; HTR UNIT
HEATER&DEFROSTER(C41) 		8-97095-662-1 01 1 9307- ● ●
15 SCROLL; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94243-959-0 01 1 9307- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94439-047-0 01 1 9307- ● ●
17 SHUTTER; HTR UNIT,CENTER
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94439-048-1 01 1 9307- ● ●
19 SCROLL; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94243-960-2 01 1 9307- ● ●
20 NUT; DUCT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94233-154-0 03 1 9307- ● ●
24 RING; SNAP,FAN MOTOR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) 		5-83569-088-0 01 1 9307- ● ●
24 RING; SNAP,FAN MOTOR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) 		8-94243-962-0 01 1 9307- ● ●
25 IMPELLER; FAN MOTOR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83579-034-0 01 1 9307- ● ●
26 GASKET; FAN MOTOR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94233-165-0 01 1 9307- ● ●
27 SCREW; FAN MOTOR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83579-028-0 03 1 9307- ● ●
28 MOTOR ASM; FAN,HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97020-725-0 01 1 9307- ● ●
31 WASHER; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) OD=30 		8-94233-145-0 01 1 9307- ● ●
32 SCREW; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X16 		8-94248-820-0 01 1 9307- ● ●
33 ROD; SHUTTER LEVER
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94439-049-0 01 1 9307- ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83564-164-0 01 1 9307- ● ●
35 LEVER; SHUTTER,HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83569-188-0 01 1 9307- ● ●
44 LEVER; SHUTTER,HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83569-184-0 01 1 9307- ● ●
45 LEVER; SHUTTER,HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83569-183-0 01 1 9307- ● ●
47 LEVER; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83569-182-0 01 1 9307- ● ●
48 LEVER; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83569-187-0 01 1 9307- ● ●
49 CLIP; CABLE
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94151-484-0 01 1 9307- ● ●
54 CLIP; SHUTTER LEVER
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94248-794-0 01 1 9307- ● ●
55 GUIDE; CASE
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83569-194-0 01 1 9307- ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83569-186-0 01 1 9307- ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94439-045-0 01 1 9307- ● ●
60 DOOR; MIX,HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94439-044-1 01 1 9307- ● ●
63 LINING; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) 		5-83569-191-2 01 1 9307- ● ●
63 LINING; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) 		5-83569-192-3 01 1 9307- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94464-846-0 01 1 9307- ● ●
67 CLIP; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		1-83574-148-0 08 1 9307- ● ●
68 CORE; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94463-852-0 01 1 9307- ● ●
69 LEVER; SHUTTER,HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83569-185-0 01 1 9307- ● ●
74 DUCT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83536-015-0 01 1 9307- ● ●
77 COVER; HTR CASE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94248-099-0 01 1 9307- ● ●
