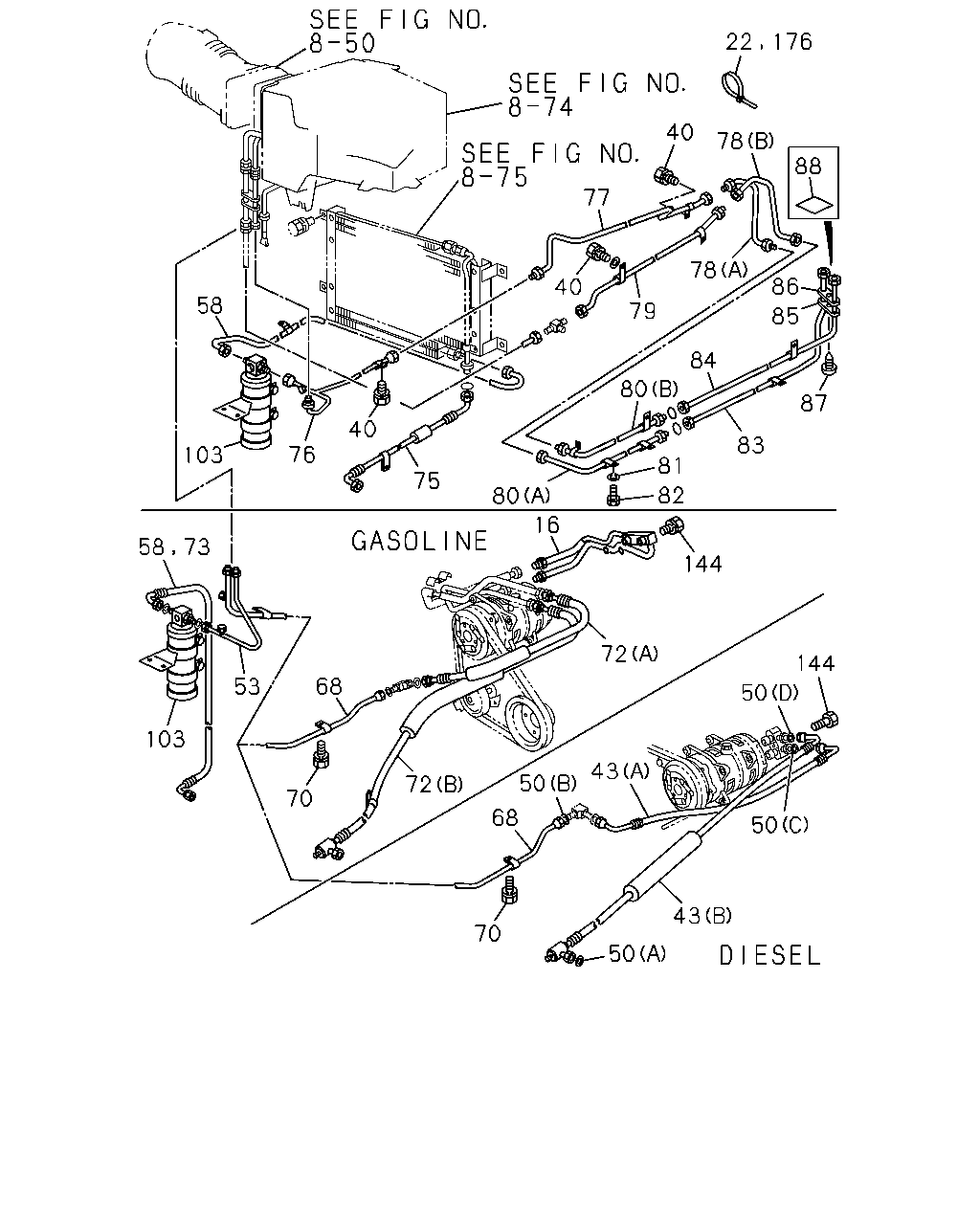

8-52 — PIPING; AIR CONDITIONING (#37447) — 51 parça

77 40 78 22 176 88 78 79 40 86 85 87 84 80 83 81 82 144 16 80 75 40 76 58 103 58 73 103 53 68 70 72 50 68 70 50 43 50 43 72 50 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; PIPE TO CMPR 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-456-0	01	1	9307-	●	●
22	CLIP; BAND,A/C PIPE AIR CONDITIONER MANUAL CONT FRT&RR(EM2) L=140	8-94219-878-0	01	1	9307-	●	●
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X12 W/LK WASHER	0-50040-612-0	01	1	9307-	●	●
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X12 W/LK WASHER	0-50040-612-0	06	1	9307-9406	●	●
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X12 W/LK WASHER	0-50040-612-0	05	1	9407-	●	●
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9307-	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) P=LOW FT & RR "R-134A"	8-97072-573-1	01	1	9307-9406	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. TURBOCHARGER(K51) (A) P=LOW FT & RR "R-134A"	8-97072-573-1	01	1	9407-	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60) (A) P=LOW FT "R-134A"	8-97072-571-1	01	1	9307-9406	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER(K51) (A) P=LOW FT "R-134A"	8-97072-571-1	01	1	9407-	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) P=HIGH "R-134A"	8-97072-574-0	01	1	9307-9406	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. TURBOCHARGER(K51) (B) P=HIGH "R-134A"	8-97072-574-0	01	1	9407-	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) TURBOCHARGER(K51) (A)&(B) FT & RR "R-134A"	8-97072-567-1	01	1	9407-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER(K51) (A)&(B) FT "R-134A"	8-97072-565-1	01	1	9407-		●
50	GASKET; FLEX HOSE,A/C 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) ID=13.9	8-94113-330-0	01	1	9307-	●	●
50	GASKET; FLEX HOSE,A/C 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) ID=10.8	8-94113-331-0	01	1	9307-	●	●
50	GASKET; FLEX HOSE,A/C 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (C) ID=11.0	8-94461-900-0	01	1	9307-	●	●
50	GASKET; FLEX HOSE,A/C 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (D) ID=14.8	8-94461-901-0	01	1	9307-	●	●
53	PIPE; RECEIVER TANK TO EVAP AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97072-459-1	01	1	9307-	●	●
58	PIPE; CONDENSER TO RECEIVER TANK AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-475-0	01	1	9307-	●	●
68	PIPE; EVAP TO UNION AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-457-1	01	1	9307-	●	●
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X16 W/LK&PL WASHER	0-50140-616-0	02	1	9307-	●	●
72	HOSE; FLEX,TANK 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) "R-134A"	8-97072-831-0	01	1	9307-	●	●
72	HOSE; FLEX,TANK 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60) (A) "R-134A"	8-97072-832-0	01	1	9307-	●	●
72	HOSE; FLEX,TANK 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) "R-134A"	8-97072-579-0	01	1	9307-	●	●
73	HOSE; FLEX,CONDENSER TO TANK AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97072-581-0	01	1	9307-	●	●
75	HOSE; FLEX,CONDENSER TO CONDENSER AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-558-1	01	1	9307-	●	●
76	PIPE; TANK TO PIPE AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-467-2	01	1	9307-	●	●
77	PIPE; PIPE TO COOLING UNIT AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-476-0	01	1	9307-	●	●
78	PIPE; PIPE TO UNIT,FRT AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) "R-134A"	8-97072-471-0	01	1	9307-	●	●
78	PIPE; PIPE TO UNIT,FRT AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) "R-134A"	8-97072-482-0	01	1	9307-	●	●
79	PIPE; COOLING UNIT TO TANK AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-483-0	01	1	9307-	●	●
80	PIPE; PIPE TO UNIT,CENTER AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) "R-134A"	8-97072-472-0	01	1	9307-	●	●
80	PIPE; PIPE TO UNIT,CENTER AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) "R-134A"	8-97072-480-0	01	1	9307-	●	●
81	WASHER; PL,CLIP TO BODY AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=5.3 OD=12	9-09160-605-0	05	1	9307-	●	●
81	WASHER; PL,CLIP TO BODY AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=6.4 OD=18	9-09164-706-0	01	1	9307-	●	●
82	SCREW; CLIP TO BODY AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X19	1-09981-152-0	03	1	9307-	●	●
83	PIPE; PIPE TO COOLING UNIT AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-474-0	01	1	9307-	●
83	PIPE; PIPE TO COOLING UNIT AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-473-0	01	1	9307-		●
84	PIPE; COOLING UNIT TO PIPE AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-479-0	01	1	9307-	●
84	PIPE; COOLING UNIT TO PIPE AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-478-0	01	1	9307-		●
85	COVER; PLATE,EVAP PIPE AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	5-83576-012-1	01	1	9307-	●	●
86	SEAL; RUBBER,EVAP PIPE AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94112-925-1	01	1	9307-	●	●
87	SCREW; COVER PLATE AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X16 TAPPING	9-07076-516-0	01	1	9307-	●	●
88	INSULATOR; PIPE AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83569-024-0	02	1	9307-	●	●
103	TANK; RECEIVER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-455-1	01	1	9307-	●	●
144	BOLT; CONN TO CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9307-9406	●	●
144	BOLT; CONN TO CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. TURBOCHARGER(K51) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9407-	●	●
144	BOLT; CONN TO CMPR 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M10X40 FLANGE	0-28081-040-0	01	1	9307-9406	●	●
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) TURBOCHARGER(K51) M10X40 FLANGE	0-28081-040-0	01	1	9407-	●	●
176	CLIP; HARNESS AIR CONDITIONER MANUAL CONT FRT&RR(EM2) L=250	5-09707-030-0	01	1	9307-	●	●
