Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#37445) — 120 parça

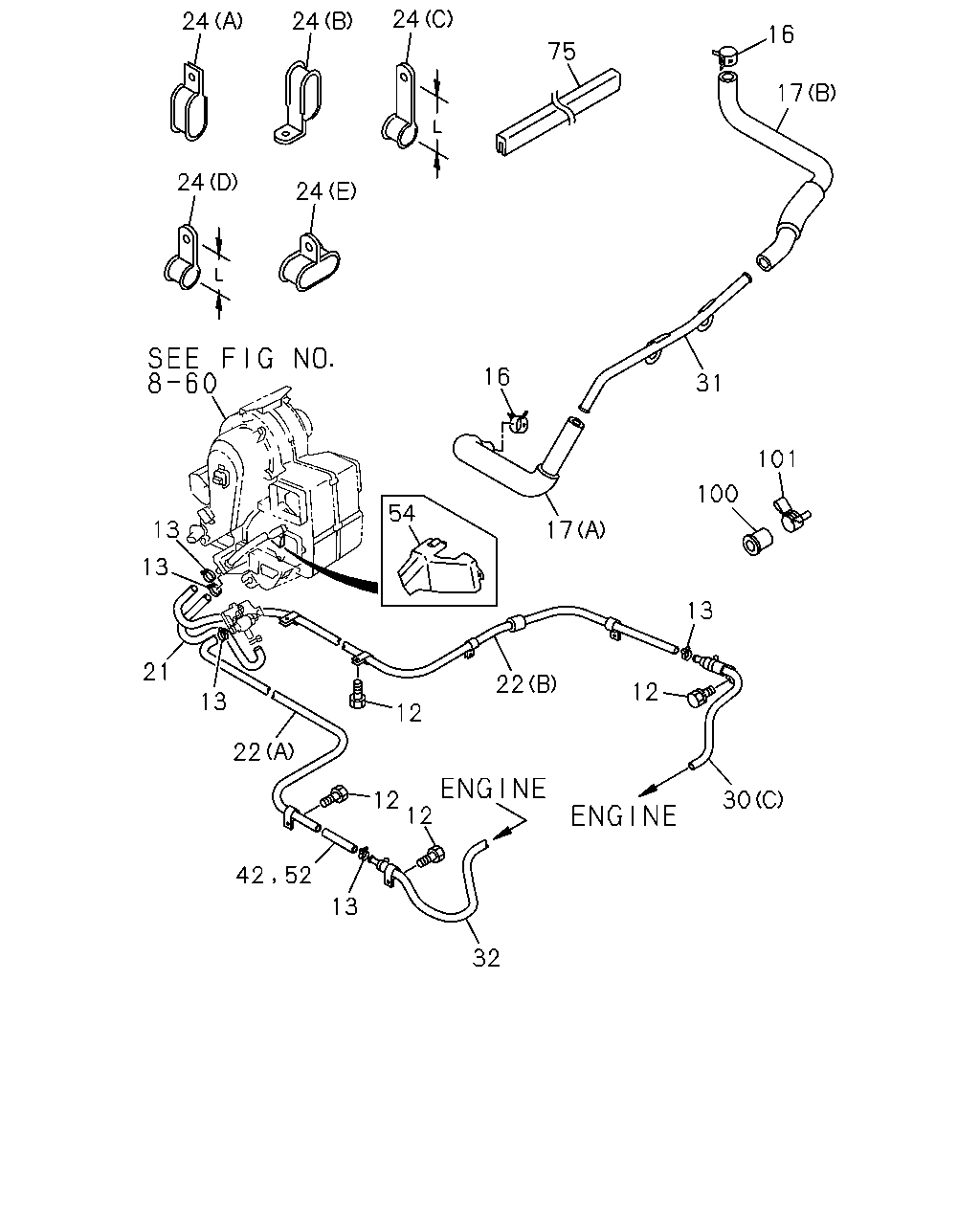

24 24 24 75 16 17 24 24 16 31 101 100 17 54 13 13 21 13 22 42 52 13 32 12 12 12 22 12 13 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	BOLT; CLAMP,WATER HOSE 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X14 W/LK WASHER	0-50040-614-0	09	1	9307-	●	●
12	BOLT; CLAMP,WATER HOSE 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X14 W/LK WASHER	0-50040-614-0	06	1	9307-	●	●
12	BOLT; CLAMP,WATER HOSE 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9307-	●	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR WAGON(V4W) ID=22	8-94382-401-0	11	1	9307-9401	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR BUS(V4Z) ID=22	8-94382-401-0	11	1	9307-9401		●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR WAGON(V4W) ID=25	9-09915-642-2	11	1	9402-9405	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR BUS(V4Z) ID=25	9-09915-642-2	11	1	9402-9405		●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X), 4 DOOR BUS(V4Z) ID=25	8-94369-726-0	11	1	9406-	●	●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) ID=22	8-94382-401-0	15	1	9307-9401	●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR BUS(V4Z) ID=22	8-94382-401-0	15	1	9307-9401		●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) ID=25	9-09915-642-2	15	1	9402-9405	●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR BUS(V4Z) ID=25	9-09915-642-2	15	1	9402-9405		●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X), 4 DOOR BUS(V4Z) ID=25	8-94369-726-0	15	1	9406-	●	●
13	CLIP; HTR HOSE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> ID=22	8-94382-401-0	07	1	9307-9401	●	●
13	CLIP; HTR HOSE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> ID=25	9-09915-642-2	07	1	9402-9405	●	●
13	CLIP; HTR HOSE EXC. REAR HEATER<C35> ID=25	8-94369-726-0	07	1	9406-	●	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) TURBOCHARGER(K51) ID=25	8-94369-726-0	01	1	9407-		●
16	CLIP; WATER HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> ID=14.8	8-94448-727-0	04	1	9307-	●	●
16	CLIP; WATER HOSE 4ZC1 ENG(LR9) EXC. REAR HEATER<C35>,HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUALCONT FRT&RR(EM2) ID=14.8	8-94448-727-0	04	1	9307-	●	●
17	HOSE; WATER,BYPASS 4ZC1 ENG(LR9) REAR HEATER<C35> (A) L=103	8-94364-553-1	01	1	9307-	●	●
17	HOSE; WATER,BYPASS 4ZC1 ENG(LR9) EXC. REAR HEATER<C35>,HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUALCONT FRT&RR(EM2) (A) L=103	8-94364-553-1	01	1	9307-	●	●
17	HOSE; WATER,BYPASS 4ZC1 ENG(LR9) REAR HEATER<C35> (B) L=195	8-94412-147-7	01	1	9307-	●	●
17	HOSE; WATER,BYPASS 4ZC1 ENG(LR9) EXC. REAR HEATER<C35>,HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUALCONT FRT&RR(EM2) (B) L=195	8-94412-147-7	01	1	9307-	●	●
21	HOSE; WATER,VLV TO HTR REAR HEATER<C35>	8-94232-458-1	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR WAGON(V4W) (C)	8-94428-022-0	01	1	9307-	●
22	HOSE; WATER,CONN TO HTR HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> (A)	8-94157-021-1	01	1	9307-9406	●	●
22	HOSE; WATER,CONN TO HTR EXC. REAR HEATER<C35> (A)	8-94157-021-1	01	1	9407-	●	●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B)	8-97084-577-1	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B)	8-94120-365-0	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) (C)	8-94237-175-1	01	1	9307-		●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) (C)	8-94237-173-0	01	1	9307-		●
24	CLAMP; WATER HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) (B)	5-83519-009-0	02	1	9307-	●
24	CLAMP; WATER HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) (A)	9-83651-948-1	01	1	9307-	●
24	CLAMP; WATER HOSE REAR HEATER<C35> 4 DOOR WAGON(V4W) (A)	9-83651-948-1	01	1	9307-	●
24	CLAMP; WATER HOSE REAR HEATER<C35> 4 DOOR BUS(V4Z) (A)	9-83651-948-1	01	1	9307-		●
24	CLAMP; WATER HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X), 4 DOOR BUS(V4Z) (B)	5-83519-009-0	01	1	9307-	●
24	CLAMP; WATER HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR BUS(V4Z) (B)	5-83519-009-0	01	1	9307-		●
24	CLAMP; WATER HOSE 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (C) L=35	8-94135-846-0	02	1	9307-	●	●
24	CLAMP; WATER HOSE 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (D) L=30	9-09715-062-0	07	1	9307-	●	●
24	CLAMP; WATER HOSE 4FG1 ENG(RLL) REAR HEATER<C35> (E)	5-09700-190-0	01	1	9307-	●	●
24	CLAMP; WATER HOSE 4FG1 ENG(RLL) REAR HEATER<C35> (D) L=30	9-09715-062-0	01	1	9307-	●	●
24	CLAMP; WATER HOSE 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (C) L=35	8-94135-846-0	01	1	9307-	●	●
24	CLAMP; WATER HOSE 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (D) L=30	9-09715-062-0	06	1	9307-	●	●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> (B)	8-94232-392-1	01	1	9307-9406	●	●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> EXC. TURBOCHARGER(K51) (B)	8-94232-392-1	01	1	9407-	●	●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) EXC. REAR HEATER<C35> (C)	8-94137-686-1	01	1	9307-9406	●	●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) EXC. REAR HEATER<C35>,TURBOCHARGER(K51) (C)	8-94137-686-1	01	1	9407-		●
30	HOSE; WATER,CONN TO ENG 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> (C)	8-94430-191-3	01	1	9307-	●	●
30	HOSE; WATER,CONN TO ENG 4ZC1 ENG(LR9) REAR HEATER<C35> (A)	8-94430-192-1	01	1	9307-	●	●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> TURBOCHARGER(K51) (B)	8-97029-415-2	01	1	9407-		●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) TURBOCHARGER(K51) (C)	8-97029-414-2	01	1	9407-		●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) TURBOCHARGER(K51) (C)	8-97042-029-1	01	1	9407-		●
31	PIPE; BYPASS,HTR 4ZC1 ENG(LR9) REAR HEATER<C35>	8-94364-552-0	01	1	9307-	●	●
31	PIPE; BYPASS,HTR 4ZC1 ENG(LR9) EXC. REAR HEATER<C35>,HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUALCONT FRT&RR(EM2)	8-94364-552-0	01	1	9307-	●	●
32	HOSE; WATER,ENG TO CONN 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94232-454-2	01	1	9307-	●	●
32	HOSE; WATER,ENG TO CONN 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94333-463-1	01	1	9307-	●	●
42	HOSE; WATER,CONN TO CONN 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35>	8-94157-023-4	01	1	9307-	●	●
42	HOSE; WATER,CONN TO CONN 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35>	8-94157-022-2	01	1	9307-	●	●
52	HOSE; WATER,CONN TO VLV 4FG1 ENG(RLL) REAR HEATER<C35> L=1250 W/INSURATER-3	8-97100-654-0	01	1	9307-	●	●
52	HOSE; WATER,CONN TO VLV 4ZC1 ENG(LR9) REAR HEATER<C35>	8-94430-194-2	01	1	9307-	●	●
54	COVER; HTR PIPE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94232-441-1	01	1	9307-	●	●
75	FINISHER; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35>	9-82991-007-0	01	1	9307-	●	●
100	CAP; RUBBER,WATER PIPE 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35>	8-94366-898-1	02	1	9307-	●	●
101	CLIP; CAP,WATER PIPE 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> ID=16	8-94238-568-0	02	1	9307-	●	●

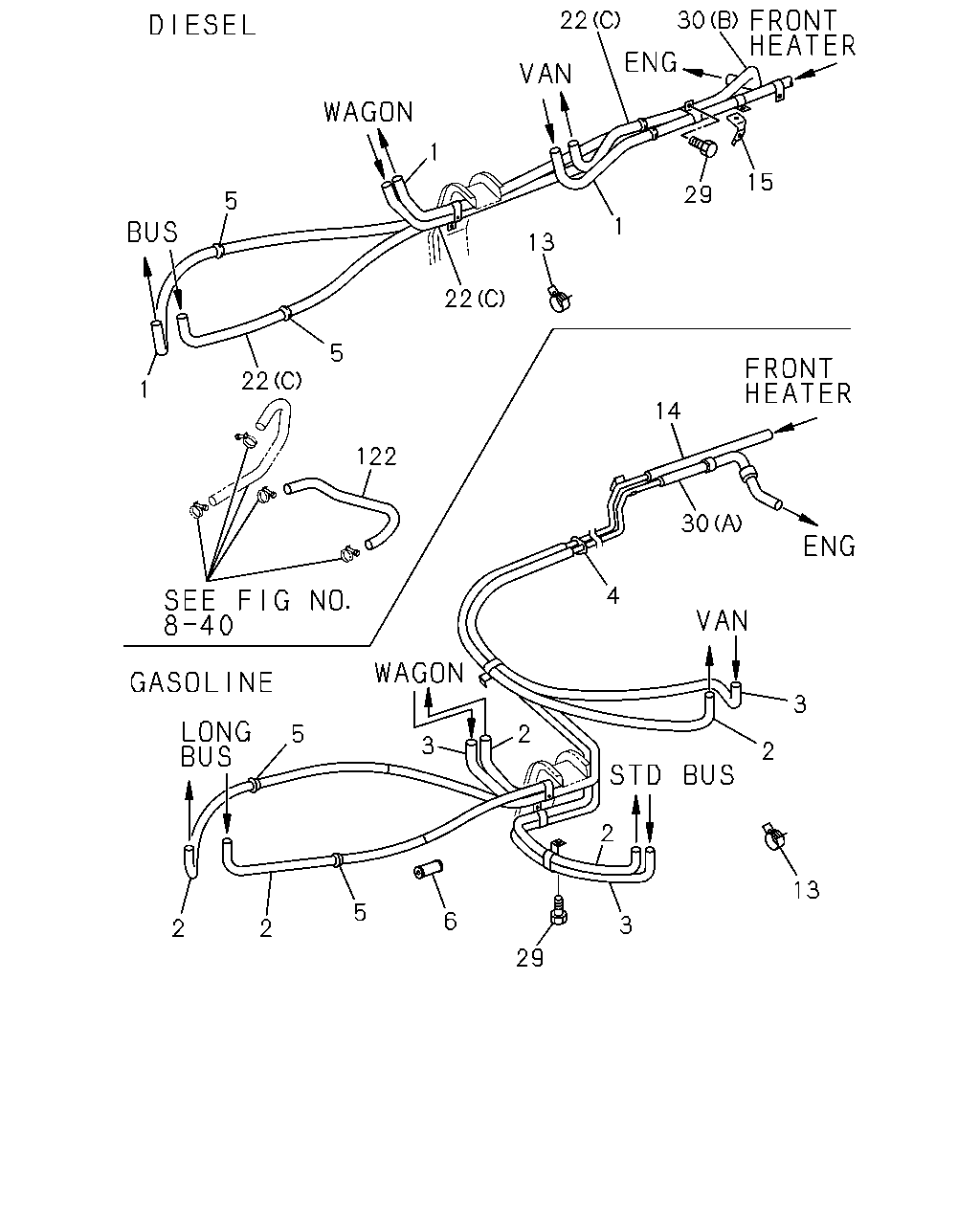

22 30 15 29 1 13 1 22 5 5 22 1 122 5 2 2 5 6 29 3 2 13 2 3 2 3 4 30 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; WATER,PIPE TO RR HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR WAGON(V4W)	8-94428-021-0	01	1	9307-	●
1	HOSE; WATER,PIPE TO RR HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z)	8-94137-690-0	01	1	9307-		●
1	HOSE; WATER,PIPE TO RR HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X)	8-94137-689-0	01	1	9307-		●
2	HOSE; WATER,RR HTR 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z)	8-94449-563-1	01	1	9307-	●
2	HOSE; WATER,RR HTR 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR WAGON(V4W)	8-94425-759-0	01	1	9307-	●
2	HOSE; WATER,RR HTR 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z)	8-94249-822-0	02	1	9307-		●
2	HOSE; WATER,RR HTR 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X)	8-94233-329-2	01	1	9307-		●
3	HOSE; WATER,RR HTR TO PIPE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z)	8-94449-564-0	01	1	9307-	●
3	HOSE; WATER,RR HTR TO PIPE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR WAGON(V4W)	8-94425-760-0	01	1	9307-	●
3	HOSE; WATER,RR HTR TO PIPE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X)	8-94233-330-2	01	1	9307-		●
4	PIPE; RR HTR 4ZC1 ENG(LR9) REAR HEATER<C35>	8-94119-861-1	01	1	9307-	●	●
5	GROMMET; WATER HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR WAGON(V4W)	9-09956-075-0	02	1	9307-	●
5	GROMMET; WATER HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z)	9-09956-075-0	02	1	9307-		●
5	GROMMET; WATER HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X)	9-09956-075-0	02	1	9307-		●
5	GROMMET; WATER HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z)	9-09956-075-0	04	1	9307-		●
6	CONNECTOR; WATER HOSE 4ZC1 ENG(LR9) REAR HEATER<C35>	9-09903-482-0	01	1	9307-	●	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR WAGON(V4W) ID=22	8-94382-401-0	11	1	9307-9401	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR BUS(V4Z) ID=22	8-94382-401-0	11	1	9307-9401		●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR WAGON(V4W) ID=25	9-09915-642-2	11	1	9402-9405	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR BUS(V4Z) ID=25	9-09915-642-2	11	1	9402-9405		●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X), 4 DOOR BUS(V4Z) ID=25	8-94369-726-0	11	1	9406-	●	●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) ID=22	8-94382-401-0	15	1	9307-9401	●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR BUS(V4Z) ID=22	8-94382-401-0	15	1	9307-9401		●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) ID=25	9-09915-642-2	15	1	9402-9405	●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR BUS(V4Z) ID=25	9-09915-642-2	15	1	9402-9405		●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X), 4 DOOR BUS(V4Z) ID=25	8-94369-726-0	15	1	9406-	●	●
13	CLIP; HTR HOSE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> ID=22	8-94382-401-0	07	1	9307-9401	●	●
13	CLIP; HTR HOSE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> ID=25	9-09915-642-2	07	1	9402-9405	●	●
13	CLIP; HTR HOSE EXC. REAR HEATER<C35> ID=25	8-94369-726-0	07	1	9406-	●	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) TURBOCHARGER(K51) ID=25	8-94369-726-0	01	1	9407-		●
14	HOSE; WATER,CONN TO PIPE 4ZC1 ENG(LR9) REAR HEATER<C35>	8-94430-193-1	01	1	9307-	●	●
15	BRACKET; WATER HOSE 4FG1 ENG(RLL) REAR HEATER<C35>	8-94233-591-1	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR WAGON(V4W) (C)	8-94428-022-0	01	1	9307-	●
22	HOSE; WATER,CONN TO HTR HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> (A)	8-94157-021-1	01	1	9307-9406	●	●
22	HOSE; WATER,CONN TO HTR EXC. REAR HEATER<C35> (A)	8-94157-021-1	01	1	9407-	●	●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B)	8-97084-577-1	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B)	8-94120-365-0	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) (C)	8-94237-175-1	01	1	9307-		●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) (C)	8-94237-173-0	01	1	9307-		●
29	BOLT; CLAMP TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR WAGON(V4W) M6X14 W/LK WASHER	0-50040-614-0	03	1	9307-	●
29	BOLT; CLAMP TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) M6X14 W/LK WASHER	0-50040-614-0	03	1	9307-		●
29	BOLT; CLAMP TO ENG 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) M6X14 W/LK WASHER	0-50040-614-0	01	1	9307-	●
29	BOLT; CLAMP TO ENG 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) M6X14 W/LK WASHER	0-50040-614-0	01	1	9307-		●
29	BOLT; CLAMP TO ENG 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR WAGON(V4W) M6X14 W/LK WASHER	0-50040-614-0	02	1	9307-	●
29	BOLT; CLAMP TO ENG 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) M6X14 W/LK WASHER	0-50040-614-0	02	1	9307-		●
29	BOLT; CLAMP TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) M6X14 W/LK WASHER	0-50040-614-0	02	1	9307-		●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> (B)	8-94232-392-1	01	1	9307-9406	●	●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> EXC. TURBOCHARGER(K51) (B)	8-94232-392-1	01	1	9407-	●	●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) EXC. REAR HEATER<C35> (C)	8-94137-686-1	01	1	9307-9406	●	●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) EXC. REAR HEATER<C35>,TURBOCHARGER(K51) (C)	8-94137-686-1	01	1	9407-		●
30	HOSE; WATER,CONN TO ENG 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> (C)	8-94430-191-3	01	1	9307-	●	●
30	HOSE; WATER,CONN TO ENG 4ZC1 ENG(LR9) REAR HEATER<C35> (A)	8-94430-192-1	01	1	9307-	●	●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> TURBOCHARGER(K51) (B)	8-97029-415-2	01	1	9407-		●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) TURBOCHARGER(K51) (C)	8-97029-414-2	01	1	9407-		●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) TURBOCHARGER(K51) (C)	8-97042-029-1	01	1	9407-		●
122	HOSE; WATER,CSD TO PIPE 4FG1 ENG(RLL) HEATER&DEFROSTER(C41) IRISH EQUIPMENT(6CU) TURBOCHARGER(K51) EXC. HIGH ALTITUDE COMPENSATOR<EE2>,TORRID ZONE<S6C>	8-97026-239-0	01	1	9407-		●
