◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50685 - WFR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#37442) — 12 parça

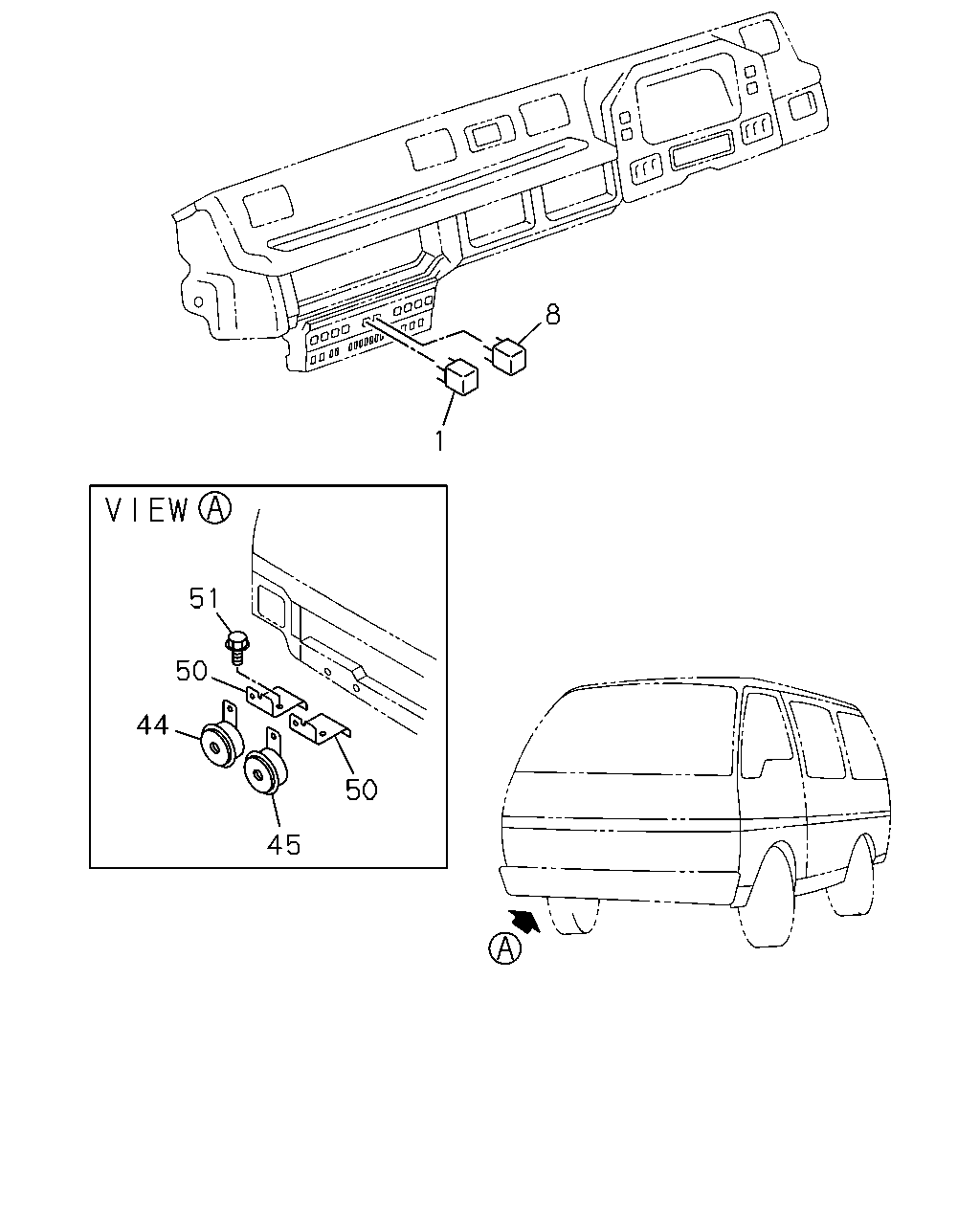

çizim 15947
8 1 51 50 44 50 45
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER
DENSO 		8-97038-317-0 01 1 9307- ● ●
1 UNIT; FLASHER
NILES 		8-97039-288-0 01 1 9307-9404 ● ●
1 UNIT; FLASHER
NILES 		8-97105-453-0 01 1 9405- ● ●
8 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-94133-243-1 01 1 9307- ● ●
44 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-94412-721-1 01 1 9307- ● ●
45 HORN; LOW NOTE 8-97095-319-0 01 1 9307- ●
45 HORN; LOW NOTE
EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-97095-319-0 01 1 9307- ●
45 HORN; LOW NOTE
SOUTH AFRICA EQUIPMENT(SW2) 		8-94455-584-1 01 1 9307- ●
50 BRACKET; HORN
DUAL TONE HORN<U05> 		8-94414-995-1 02 1 9307- ● ●
50 BRACKET; HORN
EXC. DUAL TONE HORN<U05> 		8-94414-995-1 01 1 9307- ● ●
51 BOLT; HORN TO BRKT
DUAL TONE HORN<U05> M8X12 		8-94148-422-1 04 1 9307- ● ●
51 BOLT; HORN TO BRKT
EXC. DUAL TONE HORN<U05> M8X12 		8-94148-422-1 02 1 9307- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
