8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#37440) — 46 parça

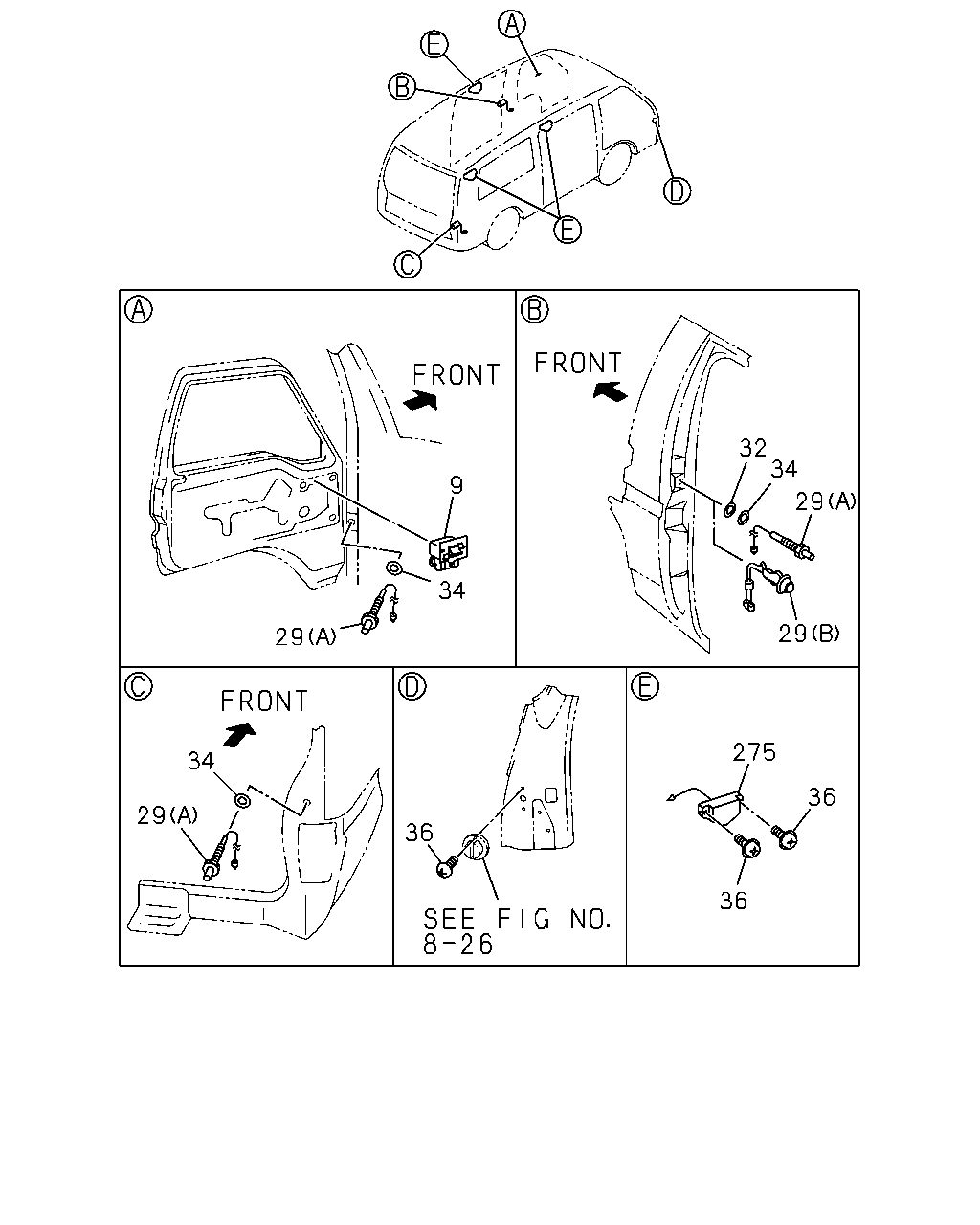

çizim 68272
32 34 29 9 34 29 29 275 34 36 29 36 36
BalonParca AdiParca NoAdetTipApplied Date A B
9 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-94411-668-0 01 1 9307- ● ●
29 SWITCH; DOOR
4 DOOR BUS(V4Z) (A) 		8-94314-316-1 02 1 9307- ● ●
29 SWITCH; DOOR
4 DOOR VAN(V4V),4 DOOR WAGON(V4W),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) (B) 		8-97016-913-0 01 1 9307- ● ●
29 SWITCH; DOOR
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) (A) 		8-94314-316-1 03 1 9307- ● ●
29 SWITCH; DOOR
5 DOOR PANEL VAN(V4P),5 DOOR VAN(V4X) (B) 		8-97016-913-0 02 1 9307- ● ●
32 WASHER; DOOR SW
4 DOOR BUS(V4Z) NYLON 		8-94138-990-0 02 1 9307- ● ●
32 WASHER; DOOR SW
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) NYLON 		8-94138-990-0 03 1 9307- ● ●
34 WASHER; PL,DOOR SW
4 DOOR BUS(V4Z) ID=8.4 OD=16 		8-94141-977-0 02 1 9307- ● ●
34 WASHER; PL,DOOR SW
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) ID=8.4 OD=16 		8-94141-977-0 03 1 9307- ● ●
36 SCREW; SW,BUZZER,DOOR
TAXI CAB<B02> 4 DOOR BUS(V4Z) M4X16 TAPPING 		9-07066-416-0 06 1 9307- ●
275 SWITCH; BUZZER,DOOR
TAXI CAB<B02> 4 DOOR BUS(V4Z) 		8-94288-084-0 03 1 9307- ●

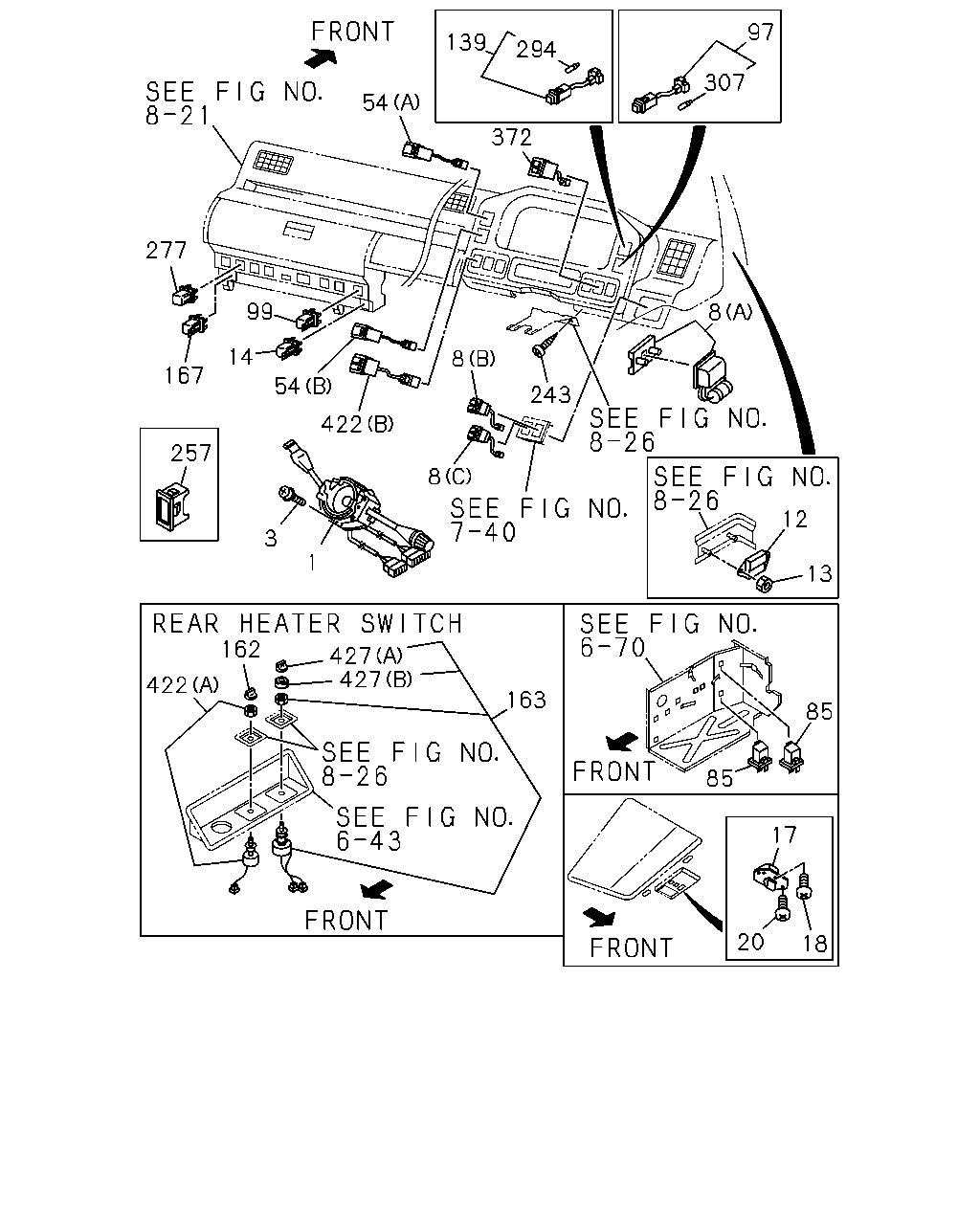

çizim 68412
97 139 294 307 54 372 277 99 8 14 8 167 54 243 422 257 8 12 3 1 13 162 427 427 422 163 85 85 17 20 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97030-497-1 01 1 9307- ● ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-97030-496-1 01 1 9307- ● ●
3 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 03 1 9307- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (C) LOCK 		8-94178-642-1 01 1 9307- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (B) UP/DOWN 		8-94411-708-1 01 1 9307- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DRIVER 		8-94418-700-0 01 1 9307- ● ●
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> JIDECO BLACK 		8-94248-989-0 01 1 9307- ● ●
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> KOITO 		8-94410-443-0 01 1 9307- ● ●
13 NUT; RELAY,POWER WINDOW
POWER WINDOW FRT DOOR<A32> M6 FLANGE 		5-09440-004-0 02 1 9307- ● ●
14 RELAY; SUNROOF,POWER WINDOW
SUNROOF<CF5> BLACK 		8-94248-989-0 01 1 9307- ●
17 SWITCH; SUNROOF
SUNROOF<CF5> 		8-94286-458-1 01 1 9307- ●
18 SCREW; SUNROOF
SUNROOF<CF5> M4X10 		5-09981-061-0 01 1 9307- ●
20 SCREW; SW,SUNROOF
SUNROOF<CF5> M4X8 W/LK WASHER 		9-03910-408-0 02 1 9307- ●
54 SWITCH; RR WIPER
RR WIPER<C25> WIPER (A) 		8-94427-168-2 01 1 9307- ● ●
54 SWITCH; RR WIPER
RR WIPER<C25> WASHER (B) 		8-94427-169-2 01 1 9307- ● ●
85 RELAY; HEADLAMP 8-94360-803-0 02 1 9307- ● ●
97 SWITCH; FOG & PARKING LAMP
FOG LAMP<T96> 		8-94427-170-3 01 1 9307- ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> BLACK 		8-94248-989-0 01 1 9307- ● ●
139 SWITCH; RR DEFOGGER
REAR DEFOGGER<C49> 		8-94427-167-2 01 1 9307- ● ●
162 KNOB; RR HTR
REAR HEATER<C35> 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) 		5-83564-109-0 01 1 9307- ●
162 KNOB; RR HTR
REAR HEATER<C35> 4 DOOR BUS(V4Z) 		5-83564-109-0 01 1 9307- ●
163 SWITCH; RR COOLER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94255-964-3 01 1 9307- ● ●
167 RELAY; RR DEFOGGER
REAR DEFOGGER<C49> BLACK 		8-94248-989-0 01 1 9307- ● ●
243 SCREW; CLAMP,SW
M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 9307- ● ●
257 COVER; HOLE,SW 8-94310-890-0 01 1 9307- ● ●
257 COVER; HOLE,SW 8-94310-890-0 02 1 9307- ● ●
277 RELAY; FUEL PUMP
4ZC1 ENG(LR9) 12V 20A 		8-94218-497-0 01 1 9307- ● ●
294 BULB; DEFOGGER SW
REAR DEFOGGER<C49> 		8-94437-634-0 02 1 9307- ● ●
307 BULB ASM; SW
FOG LAMP<T96> 		8-94437-634-0 01 1 9307- ● ●
372 SWITCH; ROOM LAMP
4 DOOR BUS(V4Z) 		8-94411-706-3 01 1 9307- ● ●
422 SWITCH; RR HTR
REAR HEATER<C35> AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR VAN(V4V),5 DOOR VAN(V4X) (A) 		8-94232-453-1 01 1 9307- ● ●
422 SWITCH; RR HTR
REAR HEATER<C35> 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) (A) 		8-94232-453-1 01 1 9307- ● ●
422 SWITCH; RR HTR
REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) 		8-97101-822-0 01 1 9307- ●
427 KNOB; RR COOLER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) FOR A/C SW 		8-94243-514-0 02 1 9307- ● ●
427 KNOB; RR COOLER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) FOR THERMO CONT 		8-94243-515-0 02 1 9307- ● ●
