8-10 — WIRING HARNESS AND FUSE (#37436) — 95 parça

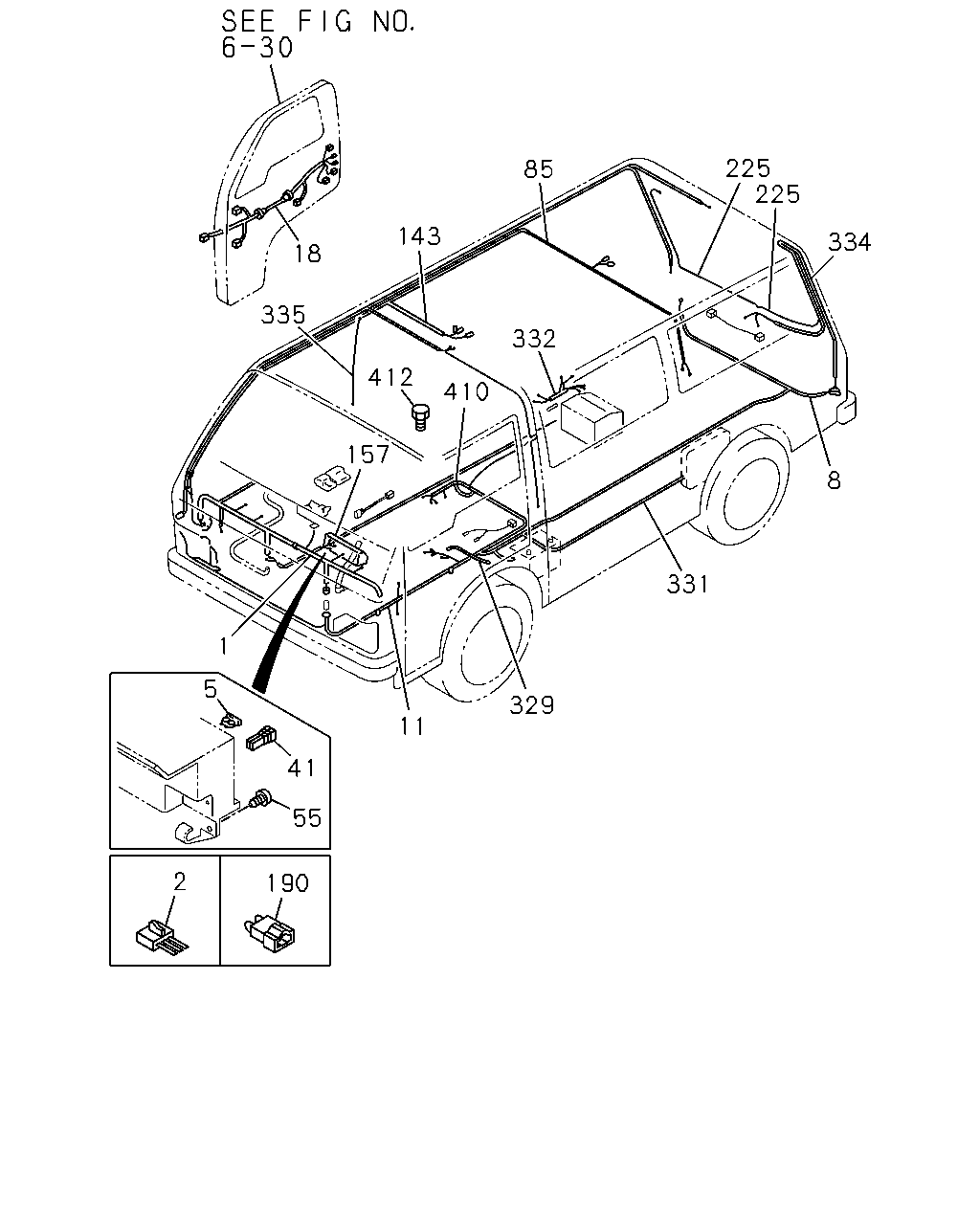

çizim 65960
225 225 85 18 335 143 334 332 412 410 157 8 331 329 5 11 41 55 2 190 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
4FG1 ENG(RLL) AUTO DOOR LOCK<AU4> 		8-97073-178-1 01 1 9307-9406 ● ●
1 HARNESS; CAB
4FG1 ENG(RLL) EXC. AUTO DOOR LOCK<AU4> 		8-97073-177-1 01 1 9307-9406 ● ●
1 HARNESS; CAB
4FG1 ENG(RLL) EXC. IRISH EQUIPMENT(6CU) 		8-97073-177-1 01 1 9407- ● ●
1 HARNESS; CAB
4ZC1 ENG(LR9) AUTO DOOR LOCK<AU4> 		8-97073-180-1 01 1 9307-9406 ● ●
1 HARNESS; CAB
4FG1 ENG(RLL) IRISH EQUIPMENT(6CU) 		8-97095-071-1 01 1 9407- ●
1 HARNESS; CAB
4ZC1 ENG(LR9) EXC. AUTO DOOR LOCK<AU4> 		8-97073-179-1 01 1 9307-9406 ● ●
1 HARNESS; CAB
4ZC1 ENG(LR9) 		8-97073-179-1 01 1 9407- ● ●
2 DIODE; CABLE HARNESS
4ZC1 ENG(LR9) BLACK 3P-1.5A 		8-94422-640-1 01 1 9307- ● ●
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 03 1 9307- ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 15 1 9307- ● ●
5 FUSE; FACIA HARNESS
AUTO DOOR LOCK<AU4> 20A YELLOW 		5-82516-004-0 04 1 9307-9406 ● ●
5 FUSE; FACIA HARNESS
20A YELLOW 		5-82516-004-0 03 1 9407- ● ●
5 FUSE; FACIA HARNESS
EXC. AUTO DOOR LOCK<AU4> 20A YELLOW 		5-82516-004-0 03 1 9307-9406 ● ●
8 HARNESS; FRAME,FRT
AUTO DOOR LOCK<AU4> 		8-97029-695-1 01 1 9307-9406 ●
8 HARNESS; FRAME,FRT
EXC. AUTO DOOR LOCK<AU4> 		8-97029-687-1 01 1 9307-9406 ●
8 HARNESS; FRAME,FRT 8-97029-687-1 01 1 9407- ●
8 HARNESS; FRAME,FRT
AUTO DOOR LOCK<AU4> 		8-97029-696-1 01 1 9307-9406 ●
8 HARNESS; FRAME,FRT
EXC. AUTO DOOR LOCK<AU4> 		8-97029-688-1 01 1 9307-9406 ●
8 HARNESS; FRAME,FRT 8-97029-688-1 01 1 9407- ●
11 HARNESS; BODY
4FG1 ENG(RLL) AUTO DOOR LOCK<AU4> 		8-97085-757-1 01 1 9307-9406 ● ●
11 HARNESS; BODY
4FG1 ENG(RLL) EXC. IRISH EQUIPMENT(6CU) 		8-97085-756-1 01 1 9307- ● ●
11 HARNESS; BODY
4ZC1 ENG(LR9) AUTO DOOR LOCK<AU4> 		8-97085-760-1 01 1 9307-9406 ● ●
11 HARNESS; BODY
4FG1 ENG(RLL) IRISH EQUIPMENT(6CU) 		8-97095-075-1 01 1 9407- ●
11 HARNESS; BODY
4ZC1 ENG(LR9) 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) EXC. AUTO DOOR LOCK<AU4> 		8-97085-758-1 01 1 9307-9406 ● ●
11 HARNESS; BODY
4ZC1 ENG(LR9) 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) 		8-97085-758-1 01 1 9407- ● ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-94406-524-3 02 1 9307-9406 ● ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. POWER WINDOW FRT DOOR<A32> 		8-94406-524-3 02 1 9407- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> DRIVER 		8-94367-890-2 01 1 9307-9406 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> PASSENGER 		8-94367-892-2 01 1 9307-9406 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> DRIVER 		8-94414-847-3 01 1 9307-9406 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> PASSENGER 		8-94414-848-2 01 1 9307-9406 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> DRIVER 		8-94367-891-2 01 1 9307-9406 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> DRIVER 		8-94367-891-2 01 1 9407- ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> PASSENGER 		8-94367-893-2 01 1 9307-9406 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-94367-893-2 01 1 9407- ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 9307- ● ●
55 SCREW; FUSE BOX BRKT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X12 W/LK&PL WASHER 		9-03920-512-0 02 1 9307- ● ●
85 HARNESS; ROOM LAMP
AUTO DOOR LOCK<AU4> REAR HEATER<C35> 4 DOOR WAGON(V4W) EXC. SUNROOF<CF5> 		8-94385-632-0 01 1 9307-9406 ●
85 HARNESS; ROOM LAMP
AUTO DOOR LOCK<AU4> AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W) EXC. SUNROOF<CF5>,REAR HEATER<C35> 		8-94385-632-0 01 1 9307-9406 ●
85 HARNESS; ROOM LAMP
AUTO DOOR LOCK<AU4> SUNROOF<CF5> REAR HEATER<C35> 4 DOOR WAGON(V4W) 		8-94385-633-0 01 1 9307-9406 ●
85 HARNESS; ROOM LAMP
AUTO DOOR LOCK<AU4> SUNROOF<CF5> AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W) EXC. REAR HEATER<C35> 		8-94385-633-0 01 1 9307-9406 ●
85 HARNESS; ROOM LAMP
AUTO DOOR LOCK<AU4> SUNROOF<CF5> 4 DOOR WAGON(V4W) EXC. REAR HEATER<C35>,AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94385-631-0 01 1 9307-9406 ●
85 HARNESS; ROOM LAMP
AUTO DOOR LOCK<AU4> 4 DOOR WAGON(V4W) EXC. SUNROOF<CF5>,REAR HEATER<C35>,AIR CONDITIONERMANUAL CONT FRT&RR(EM2) 		8-94385-630-0 01 1 9307-9406 ●
85 HARNESS; ROOM LAMP
REAR HEATER<C35> 4 DOOR WAGON(V4W) EXC. AUTO DOOR LOCK<AU4>,SUNROOF<CF5> 		8-94385-647-0 01 1 9307-9406 ●
85 HARNESS; ROOM LAMP
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W) EXC. AUTO DOOR LOCK<AU4>,SUNROOF<CF5>,REAR HEATER<C35> 		8-94385-647-0 01 1 9307-9406 ●
85 HARNESS; ROOM LAMP
REAR HEATER<C35> 4 DOOR WAGON(V4W) EXC. SUNROOF<CF5> 		8-94385-647-0 01 1 9407- ●
85 HARNESS; ROOM LAMP
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W) EXC. SUNROOF<CF5>,REAR HEATER<C35> 		8-94385-647-0 01 1 9407- ●
85 HARNESS; ROOM LAMP
SUNROOF<CF5> REAR HEATER<C35> 4 DOOR WAGON(V4W) EXC. AUTO DOOR LOCK<AU4> 		8-94385-644-0 01 1 9307-9406 ●
85 HARNESS; ROOM LAMP
SUNROOF<CF5> AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W) EXC. AUTO DOOR LOCK<AU4>,REAR HEATER<C35> 		8-94385-644-0 01 1 9307-9406 ●
85 HARNESS; ROOM LAMP
SUNROOF<CF5> REAR HEATER<C35> 4 DOOR WAGON(V4W) 		8-94385-644-0 01 1 9407- ●
85 HARNESS; ROOM LAMP
SUNROOF<CF5> AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W) EXC. REAR HEATER<C35> 		8-94385-644-0 01 1 9407- ●
85 HARNESS; ROOM LAMP
SUNROOF<CF5> 4 DOOR WAGON(V4W) EXC. AUTO DOOR LOCK<AU4>,REAR HEATER<C35>,AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94385-641-0 01 1 9307-9406 ●
85 HARNESS; ROOM LAMP
SUNROOF<CF5> 4 DOOR WAGON(V4W) EXC. REAR HEATER<C35>,AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94385-641-0 01 1 9407- ●
85 HARNESS; ROOM LAMP
4 DOOR BUS(V4Z) 		8-94385-649-0 01 1 9307- ●
85 HARNESS; ROOM LAMP
4 DOOR WAGON(V4W) EXC. AUTO DOOR LOCK<AU4>,SUNROOF<CF5>,REAR HEATER<C35>,AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94385-646-0 01 1 9307-9406 ●
85 HARNESS; ROOM LAMP
4 DOOR WAGON(V4W) EXC. SUNROOF<CF5>,REAR HEATER<C35>,AIR CONDITIONERMANUAL CONT FRT&RR(EM2) 		8-94385-646-0 01 1 9407- ●
85 HARNESS; ROOM LAMP
AUTO DOOR LOCK<AU4> 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) 		8-94385-636-3 01 1 9307-9406 ● ●
85 HARNESS; ROOM LAMP
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) EXC. AUTO DOOR LOCK<AU4> 		8-94385-634-2 01 1 9307-9406 ● ●
85 HARNESS; ROOM LAMP
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) 		8-94385-634-2 01 1 9407- ● ●
85 HARNESS; ROOM LAMP
TAXI CAB<B02> 4 DOOR BUS(V4Z) FOR SW;BUZZER 		8-94385-407-0 01 1 9307- ●
85 HARNESS; ROOM LAMP
4 DOOR BUS(V4Z) FOR ROOM LAMP 		8-94385-638-1 01 1 9307- ●
143 HARNESS; CABLE,SUNROOF
SUNROOF<CF5> 		8-94145-287-0 01 1 9307- ●
157 BOX ASM; RELAY & FUSE,BODY HARNESS
4FG1 ENG(RLL) AUTO DOOR LOCK<AU4> 		8-94364-324-0 01 1 9307-9406 ● ●
157 BOX ASM; RELAY & FUSE,BODY HARNESS
4FG1 ENG(RLL) EXC. AUTO DOOR LOCK<AU4> 		8-94446-894-0 01 1 9307-9406 ● ●
157 BOX ASM; RELAY & FUSE,BODY HARNESS
4FG1 ENG(RLL) 		8-94446-894-0 01 1 9407- ● ●
157 BOX ASM; RELAY & FUSE,BODY HARNESS
4ZC1 ENG(LR9) AUTO DOOR LOCK<AU4> 		8-94364-323-0 01 1 9307-9406 ● ●
157 BOX ASM; RELAY & FUSE,BODY HARNESS
4ZC1 ENG(LR9) EXC. AUTO DOOR LOCK<AU4> 		8-94446-893-0 01 1 9307-9406 ● ●
157 BOX ASM; RELAY & FUSE,BODY HARNESS
4ZC1 ENG(LR9) 		8-94446-893-0 01 1 9407- ● ●
190 CONNECTOR; SHORT CIRCUIT
4ZC1 ENG(LR9) 		8-94447-850-0 01 1 9307- ●
190 CONNECTOR; SHORT CIRCUIT
4ZC1 ENG(LR9) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-94447-850-0 01 1 9307- ●
225 CABLE; RR DEFOGGER
REAR DEFOGGER<C49> <+> 		8-94227-018-0 01 1 9307- ● ●
225 CABLE; RR DEFOGGER
REAR DEFOGGER<C49> <-> 		8-94227-019-0 01 1 9307- ● ●
329 CABLE; ENG TO FRAME 8-94227-130-1 01 1 9307-9406 ● ●
329 CABLE; ENG TO FRAME 8-94227-130-1 01 1 9407- ●
329 CABLE; ENG TO FRAME
EXC. TURBOCHARGER(K51) 		8-94227-130-1 01 1 9407- ●
329 CABLE; ENG TO FRAME
TURBOCHARGER(K51) 		8-94456-839-1 01 1 9407- ●
331 HARNESS; CABLE,RR COOLER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR VAN(V4V),4 DOOR WAGON(V4W) 		8-94418-122-1 01 1 9307- ●
331 HARNESS; CABLE,RR COOLER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR VAN(V4V) 		8-94418-122-1 01 1 9307- ●
331 HARNESS; CABLE,RR COOLER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z) 		8-94418-123-1 01 1 9307- ● ●
332 HARNESS; CABLE,RR HTR
REAR HEATER<C35> 4 DOOR BUS(V4Z) 		8-97085-755-0 01 1 9307- ●
332 HARNESS; CABLE,RR HTR
REAR HEATER<C35> 4 DOOR WAGON(V4W) 		8-97085-751-0 01 1 9307- ●
332 HARNESS; CABLE,RR HTR
REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR BUS(V4Z) 		8-97085-754-0 01 1 9307- ●
334 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> RR WIPER<C25> 		8-97029-692-0 01 1 9307-9406 ● ●
334 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> EXC. RR WIPER<C25> 		8-97017-880-0 01 1 9307-9406 ● ●
334 HARNESS; CABLE,BACK DOOR
EXC. AUTO DOOR LOCK<AU4>,RR WIPER<C25>,REAR DEFOGGER<C49> 		8-97035-344-0 01 1 9307-9406 ● ●
334 HARNESS; CABLE,BACK DOOR
EXC. RR WIPER<C25>,REAR DEFOGGER<C49> 		8-97035-344-0 01 1 9407- ● ●
334 HARNESS; CABLE,BACK DOOR
REAR DEFOGGER<C49> EXC. AUTO DOOR LOCK<AU4>,RR WIPER<C25> 		8-97035-345-0 01 1 9307-9406 ● ●
334 HARNESS; CABLE,BACK DOOR
REAR DEFOGGER<C49> EXC. RR WIPER<C25> 		8-97035-345-0 01 1 9407- ● ●
334 HARNESS; CABLE,BACK DOOR
RR WIPER<C25> EXC. AUTO DOOR LOCK<AU4> 		8-97029-691-1 01 1 9307-9406 ● ●
334 HARNESS; CABLE,BACK DOOR
RR WIPER<C25> 		8-97029-691-1 01 1 9407- ● ●
335 HARNESS; CABLE,DOOR SW
AUTO DOOR LOCK<AU4> 5 DOOR PANEL VAN(V4P),5 DOOR VAN(V4X) 		8-94386-020-0 01 1 9307-9406 ● ●
335 HARNESS; CABLE,DOOR SW
5 DOOR PANEL VAN(V4P),5 DOOR VAN(V4X) EXC. AUTO DOOR LOCK<AU4> 		8-94386-021-0 01 1 9307-9406 ● ●
335 HARNESS; CABLE,DOOR SW
5 DOOR PANEL VAN(V4P),5 DOOR VAN(V4X) 		8-94386-021-0 01 1 9407- ● ●
410 HARNESS; CABLE,FUEL PUMP
4ZC1 ENG(LR9) 		8-97029-685-0 01 1 9307- ●
412 BOLT; TERMINAL TO ENG,HANGER RR
4ZC1 ENG(LR9) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9307- ● ●
