8-03 — LAMP; REAR AND REAR SIDE (#37434) — 17 parça

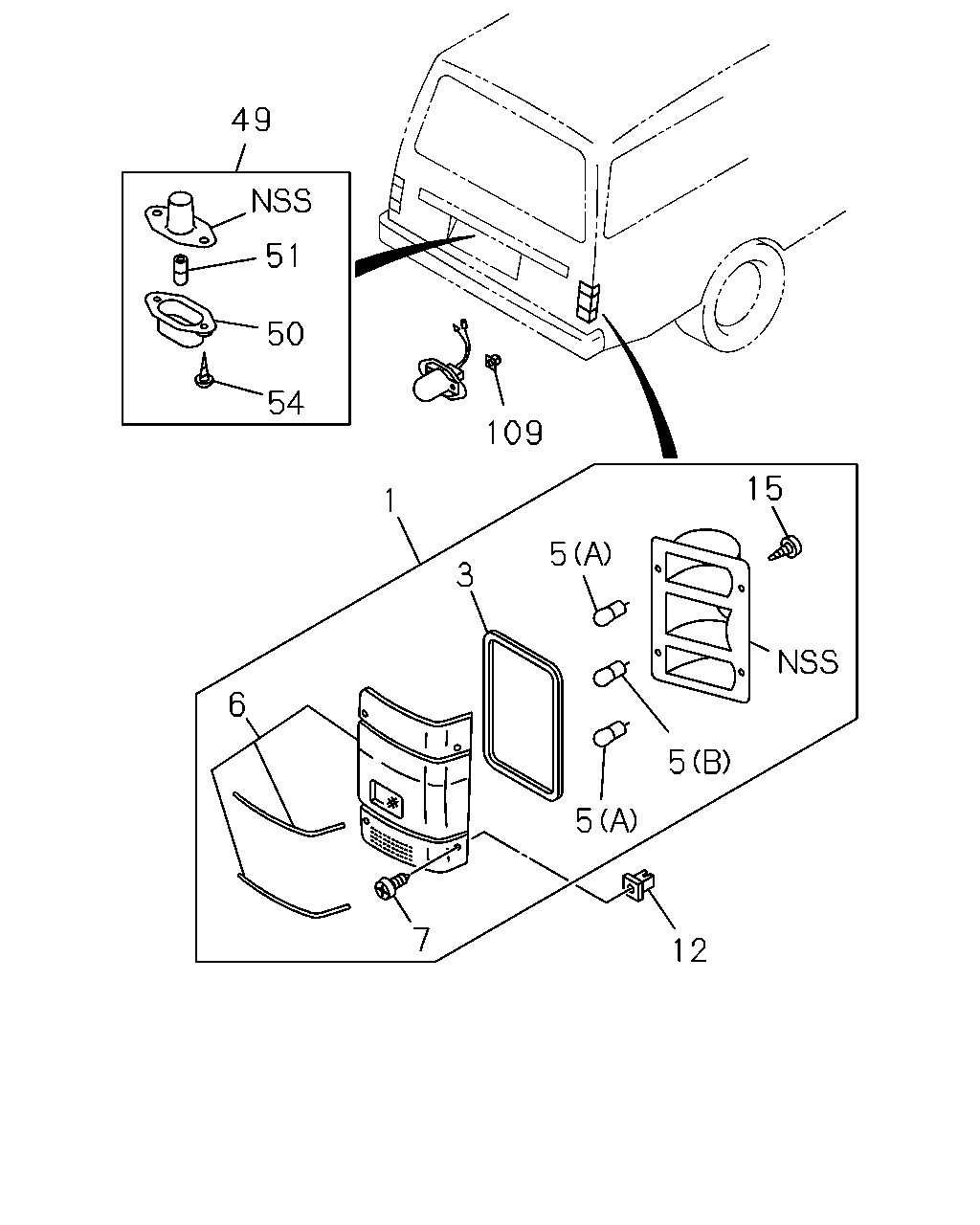

çizim 68273
49 51 50 54 109 15 1 5 3 6 5 5 7 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; RR COMB 8-94352-005-0 01 1 9307- ● ●
1 LAMP ASM; RR COMB 8-94352-004-0 01 1 9307- ● ●
3 GASKET; RR COMB LAMP 8-94350-988-0 01 1 9307- ● ●
3 GASKET; RR COMB LAMP 8-94350-987-0 01 1 9307- ● ●
5 BULB; RR COMB LAMP
(A) 12V 23W 		9-82692-131-0 04 1 9307- ● ●
5 BULB; RR COMB LAMP
(B) 12V 23/8W 		9-82692-132-0 02 1 9307- ● ●
6 LENS; RR COMB LAMP 8-94274-120-0 01 1 9307- ● ●
6 LENS; RR COMB LAMP 8-94274-119-0 01 1 9307- ● ●
7 SCREW; RR COMB LAMP
M5X30 TAPPING 		0-71190-530-0 08 1 9307- ● ●
12 GROMMET; RR COMB LAMP
D=8.6X7.7 L=7.5 		8-94279-078-0 08 1 9307- ● ●
15 SCREW; RR COMB LAMP
M5X30 TAPPING 		0-71190-530-0 08 1 9307- ● ●
15 SCREW; RR COMB LAMP
M4X10 TAPPING 		9-07076-410-0 02 1 9307- ● ●
49 LAMP; LICENSE PLATE 8-94284-880-2 02 1 9307- ● ●
50 LENS; LICENSE PLATE LAMP 8-94135-878-2 02 1 9307- ● ●
51 BULB; LICENSE PLATE LAMP
12V 5W 		8-94124-595-0 02 1 9307- ● ●
54 SCREW; LICENSE PLATE LAMP 8-94221-077-0 04 1 9307- ● ●
109 GROMMET; SCREW,LICENSE LAMP TO BACK DO
M4 		5-09470-002-0 04 1 9307- ● ●
