◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50685 - WFR-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶
7-70 — SEPARATER AND BED (#37432) — 35 parça

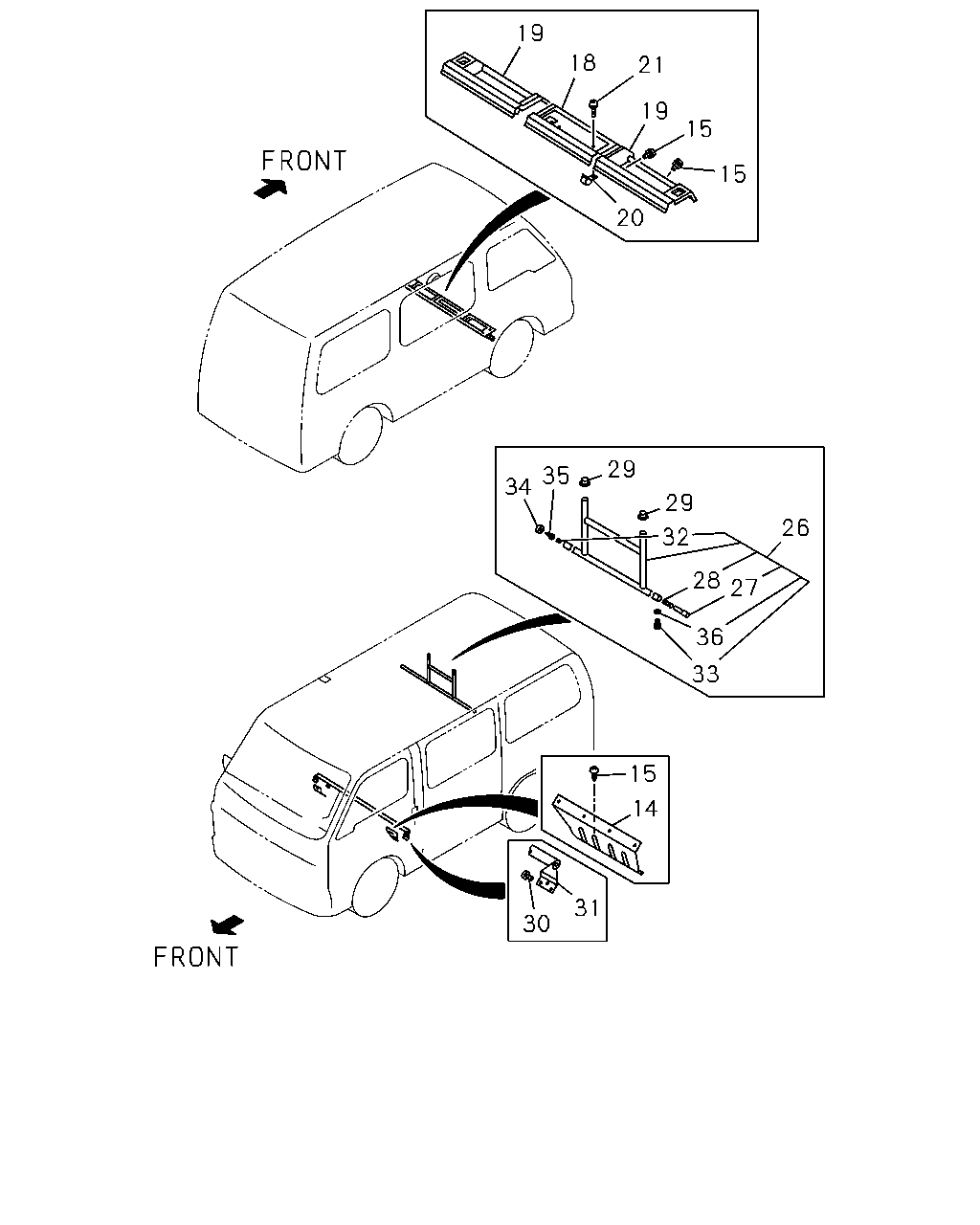

çizim 65648
19 18 21 19 15 15 20 29 35 34 29 32 26 28 27 36 33 15 14 31 30
BalonParca AdiParca NoAdetTipApplied Date A B
14 SUPPORT; BULK HD TRAY
4 DOOR WAGON(V4W) 		8-94269-103-1 01 1 9307- ●
14 SUPPORT; BULK HD TRAY
4 DOOR WAGON(V4W) 		8-94269-102-1 01 1 9307- ●
15 SCREW; SUPPORT
4 DOOR WAGON(V4W) M6X16 TAPPING W/PL WASHER 		1-09981-452-0 04 1 9307- ●
15 SCREW; SUPPORT
4 DOOR WAGON(V4W) M5X10 W/LK+PL WASHER 		9-03920-510-0 07 1 9307- ●
15 SCREW; SUPPORT
4 DOOR WAGON(V4W) M5X14 W/LK&PL WASHER 		9-03920-514-0 04 1 9307- ●
18 TRAY; BULK HD,CENTER
INTERIOR COLOR MEDIUM GRAY(113) 4 DOOR WAGON(V4W) 		8-94345-886-2 01 1 9307- ●
19 TRAY; BULK HD,SIDE
INTERIOR COLOR MEDIUM GRAY(113) 4 DOOR WAGON(V4W) 		8-94345-892-1 01 1 9307- ●
19 TRAY; BULK HD,SIDE
INTERIOR COLOR MEDIUM GRAY(113) 4 DOOR WAGON(V4W) 		8-94345-889-1 01 1 9307- ●
20 CLIP; TRAY,BULK HD
4 DOOR WAGON(V4W) 		8-94275-988-0 02 1 9307- ●
21 SCREW; CLIP TO TRAY
4 DOOR WAGON(V4W) M5X12 TAPPING W/PL WASHER 		0-74100-512-0 04 1 9307- ●
26 PIPE ASM; GUARD
PARTITION VAN<E60> 		8-94289-848-2 01 1 9307- ●
26 PIPE ASM; GUARD
PARTITION VAN<E60> EXC. CAB-HIGH ROOF(S2F) 		8-94289-848-2 01 1 9307- ●
26 PIPE ASM; GUARD
PARTITION VAN<E60> CAB-HIGH ROOF(S2F) 		8-94289-849-2 01 1 9307- ●
27 BAR; SETTING,GUARD PIPE
PARTITION VAN<E60> 		8-94289-851-1 01 1 9307- ●
27 BAR; SETTING,GUARD PIPE
PARTITION VAN<E60> EXC. CAB-HIGH ROOF(S2F) 		8-94289-851-1 01 1 9307- ●
27 BAR; SETTING,GUARD PIPE
PARTITION VAN<E60> CAB-HIGH ROOF(S2F) 		8-94289-851-1 02 1 9307- ●
28 SPRING; GUARD PIPE
PARTITION VAN<E60> 		8-94289-853-0 01 1 9307- ●
28 SPRING; GUARD PIPE
PARTITION VAN<E60> EXC. CAB-HIGH ROOF(S2F) 		8-94289-853-0 01 1 9307- ●
28 SPRING; GUARD PIPE
PARTITION VAN<E60> CAB-HIGH ROOF(S2F) 		8-94290-915-0 02 1 9307- ●
29 HOLDER; GUARD PIPE
PARTITION VAN<E60> RR SEAT FOLD<6KV> 		8-94291-651-0 04 1 9307- ● ●
29 HOLDER; GUARD PIPE
PARTITION VAN<E60> EXC. RR SEAT FOLD<6KV> 		8-94291-651-0 02 1 9307- ● ●
30 SCREW; PIPE TO BODY
4 DOOR WAGON(V4W) M6X16 W/LK&PL WASHER 		9-03920-616-0 04 1 9307- ●
31 PIPE; BULK TO HD TRAY
4 DOOR WAGON(V4W) 		8-94280-968-1 01 1 9307- ●
32 PLUG; GUARD PIPE
PARTITION VAN<E60> 		8-94289-850-0 01 1 9307- ●
32 PLUG; GUARD PIPE
PARTITION VAN<E60> EXC. CAB-HIGH ROOF(S2F) 		8-94289-850-0 01 1 9307- ●
33 SCREW; GUARD PIPE
PARTITION VAN<E60> M4X8 TAPPING 		9-07077-408-0 01 1 9307- ●
33 SCREW; GUARD PIPE
PARTITION VAN<E60> EXC. CAB-HIGH ROOF(S2F) M4X8 TAPPING 		9-07077-408-0 01 1 9307- ●
33 SCREW; GUARD PIPE
PARTITION VAN<E60> CAB-HIGH ROOF(S2F) M4X8 TAPPING 		9-07077-408-0 02 1 9307- ●
34 BRACKET; GUARD PIPE
PARTITION VAN<E60> RR SEAT FOLD<6KV> 		5-73947-055-1 04 1 9307- ● ●
34 BRACKET; GUARD PIPE
PARTITION VAN<E60> EXC. RR SEAT FOLD<6KV> 		5-73947-055-1 02 1 9307- ● ●
35 SCREW; BRKT TO GUARD PIPE
PARTITION VAN<E60> RR SEAT FOLD<6KV> M6X16 		9-03497-616-0 04 1 9307- ● ●
35 SCREW; BRKT TO GUARD PIPE
PARTITION VAN<E60> EXC. RR SEAT FOLD<6KV> M6X16 		9-03497-616-0 02 1 9307- ● ●
36 WASHER; LK,GUARD PIPE
PARTITION VAN<E60> 		9-09150-044-0 01 1 9307- ●
36 WASHER; LK,GUARD PIPE
PARTITION VAN<E60> EXC. CAB-HIGH ROOF(S2F) 		9-09150-044-0 01 1 9307- ●
36 WASHER; LK,GUARD PIPE
PARTITION VAN<E60> CAB-HIGH ROOF(S2F) 		9-09150-004-0 02 1 9307- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
