◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50685 - WFR-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#37431) — 40 parça

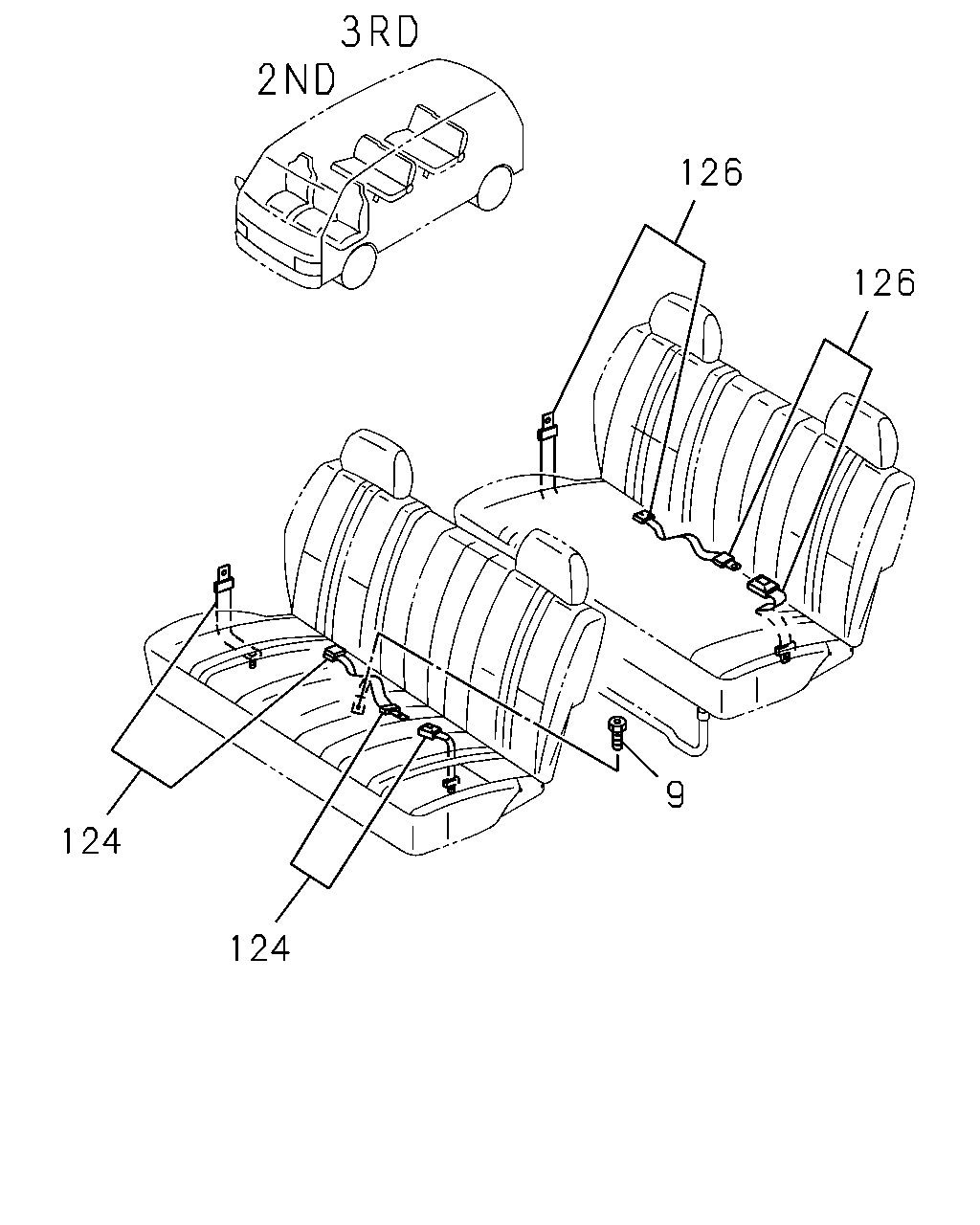

çizim 16897
126 126 9 124 124
BalonParca AdiParca NoAdetTipApplied Date A B
9 BOLT; SEAT BELT ANCHOR
SEAT BELT RR<A47> 4 DOOR WAGON(V4W) M10X22 		5-09980-022-1 02 1 9307- ●
124 BELT ASM; SEAT,2ND SEAT SIDE
INTERIOR COLOR MEDIUM GRAY(113) SEAT BELT RR<A47> 4 DOOR WAGON(V4W) 		8-94347-184-4 01 1 9307- ●
124 BELT ASM; SEAT,2ND SEAT SIDE
INTERIOR COLOR MEDIUM GRAY(113) SEAT BELT RR<A47> 4 DOOR WAGON(V4W) 		8-94347-183-2 01 1 9307- ●
126 BELT ASM; SEAT,3RD SEAT SIDE
INTERIOR COLOR MEDIUM GRAY(113) SEAT BELT RR<A47> 4 DOOR WAGON(V4W) 		8-94347-186-2 01 1 9307- ●
126 BELT ASM; SEAT,3RD SEAT SIDE
INTERIOR COLOR MEDIUM GRAY(113) SEAT BELT RR<A47> 4 DOOR WAGON(V4W) 		8-94347-185-2 01 1 9307- ●
çizim 65653
2 3 3 2 15 12 35 2 13
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MED SAND(129) FRT SEAT BELT W/RETRACTOR<A49> (A) BEIGE 		8-94349-317-1 02 1 9307- ●
2 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MED SAND(129) FRT SEAT BELT W/RETRACTOR<A49> EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) BEIGE 		8-94349-317-1 02 1 9307- ●
2 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MED SAND(129) FRT SEAT BELT WO/RETRACTOR<A38> (B) BEIGE 		8-94349-337-0 01 1 9307- ●
2 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MED SAND(129) FRT SEAT BELT WO/RETRACTOR<A38> EXC. SOUTH AFRICA EQUIPMENT(SW2) (B) BEIGE 		8-94349-337-0 01 1 9307- ●
2 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT BELT W/RETRACTOR<A49> (A) GRAY 		8-94349-319-1 02 1 9307- ●
2 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT BELT W/RETRACTOR<A49> EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) GRAY 		8-94349-319-1 02 1 9307- ●
2 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT BELT WO/RETRACTOR<A38> (B) GRAY 		8-94349-340-0 01 1 9307- ●
2 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT BELT WO/RETRACTOR<A38> EXC. SOUTH AFRICA EQUIPMENT(SW2) (B) GRAY 		8-94349-340-0 01 1 9307- ●
2 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MED SAND(129) FRT SEAT BELT W/RETRACTOR<A49> SOUTH AFRICA EQUIPMENT(SW2) (A) BEIGE 		8-94349-343-0 02 1 9307- ●
2 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MED SAND(129) FRT SEAT BELT WO/RETRACTOR<A38> SOUTH AFRICA EQUIPMENT(SW2) (B) BEIGE 		8-94349-349-0 01 1 9307- ●
2 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT BELT W/RETRACTOR<A49> SOUTH AFRICA EQUIPMENT(SW2) (A) GRAY 		8-94349-346-0 02 1 9307- ●
2 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT BELT WO/RETRACTOR<A38> SOUTH AFRICA EQUIPMENT(SW2) (B) GRAY 		8-94349-352-0 01 1 9307- ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MED SAND(129) FRT SEAT BELT W/RETRACTOR<A49> BEIGE 		8-94349-325-1 01 1 9307- ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MED SAND(129) FRT SEAT BELT W/RETRACTOR<A49> EXC. SOUTH AFRICA EQUIPMENT(SW2) BEIGE 		8-94349-325-1 01 1 9307- ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MED SAND(129) FRT SEAT BELT W/RETRACTOR<A49> BEIGE 		8-94349-308-1 01 1 9307- ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MED SAND(129) FRT SEAT BELT W/RETRACTOR<A49> EXC. SOUTH AFRICA EQUIPMENT(SW2) BEIGE 		8-94349-308-1 01 1 9307- ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-94349-327-1 01 1 9307- ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT BELT W/RETRACTOR<A49> EXC. SOUTH AFRICA EQUIPMENT(SW2) GRAY 		8-94349-327-1 01 1 9307- ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-94349-311-1 01 1 9307- ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT BELT W/RETRACTOR<A49> EXC. SOUTH AFRICA EQUIPMENT(SW2) GRAY 		8-94349-311-1 01 1 9307- ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MED SAND(129) FRT SEAT BELT W/RETRACTOR<A49> SOUTH AFRICA EQUIPMENT(SW2) BEIGE 		8-94349-342-1 02 1 9307- ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT BELT W/RETRACTOR<A49> SOUTH AFRICA EQUIPMENT(SW2) GRAY 		8-94349-345-1 02 1 9307- ●
12 SCREW; RETRACTOR COVER,SEAT BELT
FRT SEAT BELT W/RETRACTOR<A49> M4X10 TAPPING W/PL WASHER 		0-74310-410-0 04 1 9307- ● ●
13 BELT; SEAT,FRT SEAT CENTER,BUCKLE SIDE
INTERIOR COLOR MED SAND(129) FRT SEAT BELT WO/RETRACTOR<A38> BEIGE 		8-94349-336-0 01 1 9307- ●
13 BELT; SEAT,FRT SEAT CENTER,BUCKLE SIDE
INTERIOR COLOR MED SAND(129) FRT SEAT BELT WO/RETRACTOR<A38> EXC. SOUTH AFRICA EQUIPMENT(SW2) BEIGE 		8-94349-336-0 01 1 9307- ●
13 BELT; SEAT,FRT SEAT CENTER,BUCKLE SIDE
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT BELT WO/RETRACTOR<A38> GRAY 		8-94349-339-0 01 1 9307- ●
13 BELT; SEAT,FRT SEAT CENTER,BUCKLE SIDE
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT BELT WO/RETRACTOR<A38> EXC. SOUTH AFRICA EQUIPMENT(SW2) GRAY 		8-94349-339-0 01 1 9307- ●
13 BELT; SEAT,FRT SEAT CENTER,BUCKLE SIDE
INTERIOR COLOR MED SAND(129) FRT SEAT BELT WO/RETRACTOR<A38> SOUTH AFRICA EQUIPMENT(SW2) BEIGE 		8-94349-348-0 01 1 9307- ●
13 BELT; SEAT,FRT SEAT CENTER,BUCKLE SIDE
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT BELT WO/RETRACTOR<A38> SOUTH AFRICA EQUIPMENT(SW2) GRAY 		8-94349-351-0 01 1 9307- ●
15 COVER; DUST,FRT SEAT BELT RETRACTOR
INTERIOR COLOR MED SAND(129) FRT SEAT BELT W/RETRACTOR<A49> BEIGE 		8-94347-398-3 02 1 9307- ● ●
15 COVER; DUST,FRT SEAT BELT RETRACTOR
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-94347-399-3 02 1 9307- ● ●
35 GROMMET; SEAT BELT ANCHOR
FRT SEAT BELT W/RETRACTOR<A49> OD=22 		9-61168-535-0 02 1 9307- ● ●
35 GROMMET; SEAT BELT ANCHOR
FRT SEAT BELT WO/RETRACTOR<A38> OD=22 		9-61168-535-0 06 1 9307- ● ●
35 GROMMET; SEAT BELT ANCHOR
EXC. FRT SEAT BELT WO/RETRACTOR<A38>,FRT SEAT BELTW/RETRACTOR<A49> OD=22 		9-61168-535-0 08 1 9307- ● ●
35 GROMMET; SEAT BELT ANCHOR
4 DOOR WAGON(V4W) EXC. SEAT BELT RR<A47> OD=22 		9-61168-535-0 08 1 9307- ●
