◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50685 - WFR-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-41 - UNDER COVER; INSTRUMENT ▶
7-41 — UNDER COVER; INSTRUMENT (#37425) — 48 parça

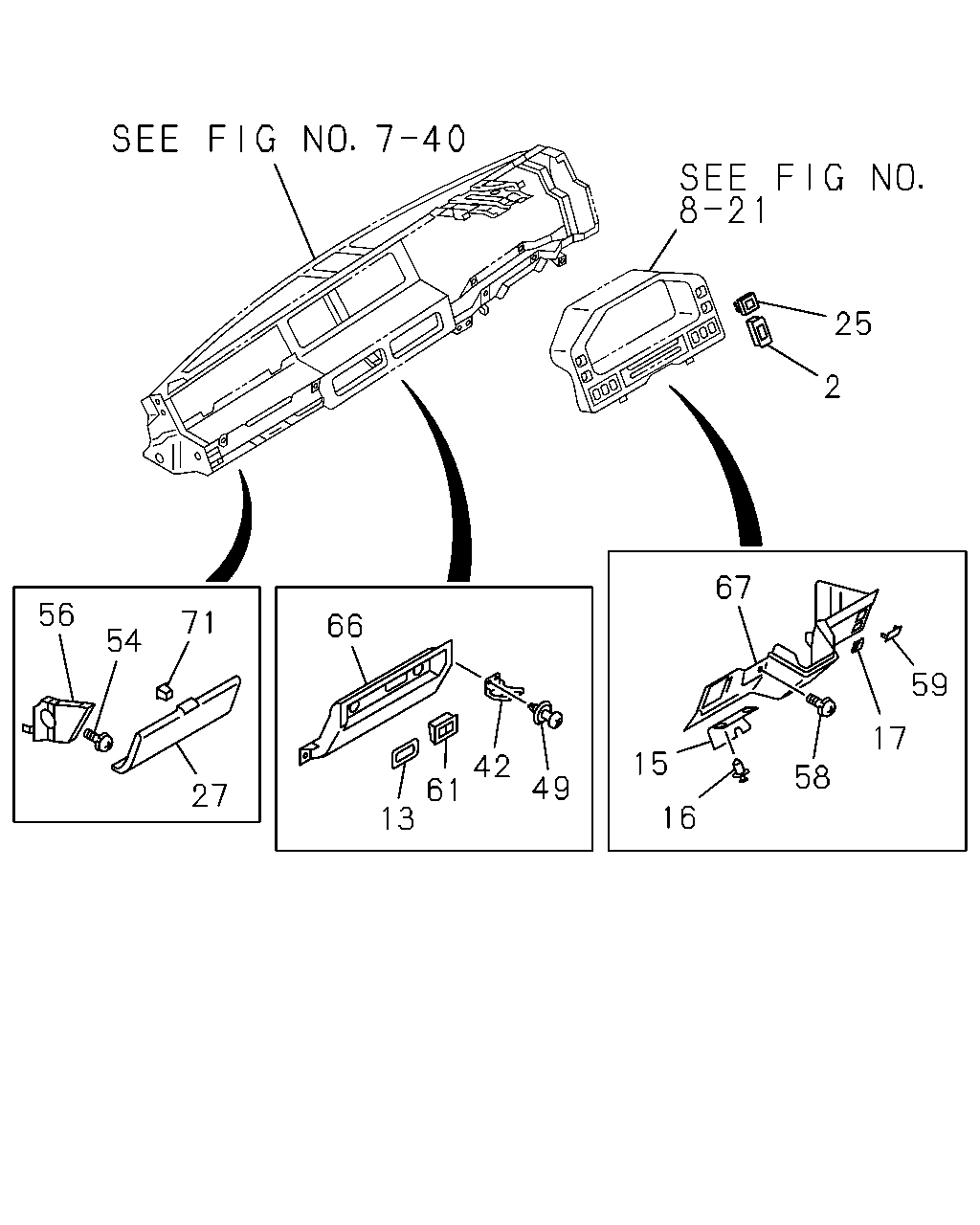

çizim 65613
25 2 67 56 71 66 54 59 42 61 49 13 17 15 58 27 16
BalonParca AdiParca NoAdetTipApplied Date A B
2 COVER; HOLE,INST
EXC. REAR HEATER<C35>,AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94310-890-0 01 1 9307- ● ●
2 COVER; HOLE,INST
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94310-890-0 01 1 9307- ● ●
13 COVER; CIGAR LIGHTER
INTERIOR COLOR MED SAND(129) BEIGE 		8-94350-847-1 01 1 9307-9307 ● ●
13 COVER; CIGAR LIGHTER
INTERIOR COLOR MED SAND(129) EXC. AM/FM W/CASSETTE 2 SPEAKERS(6VL) BEIGE 		8-94350-847-1 01 1 9308- ● ●
13 COVER; CIGAR LIGHTER
INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-94350-848-1 01 1 9307-9307 ● ●
13 COVER; CIGAR LIGHTER
INTERIOR COLOR MEDIUM GRAY(113) EXC. AM/FM W/CASSETTE 2 SPEAKERS(6VL) GRAY 		8-94350-848-1 01 1 9308- ● ●
15 COVER; PARKING BRK HOLE
INTERIOR COLOR MED SAND(129) BEIGE 		8-94350-822-1 01 1 9307- ● ●
15 COVER; PARKING BRK HOLE
INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-94350-823-1 01 1 9307- ● ●
16 CLIP; PARKING BRK
INTERIOR COLOR MED SAND(129) BEIGE 		8-94350-827-0 02 1 9307- ● ●
16 CLIP; PARKING BRK
INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-94350-828-0 02 1 9307- ● ●
17 COVER; HOLE,TILT STEERING
INTERIOR COLOR MED SAND(129) EXC. TILT STEERING<N33> BEIGE 		8-94353-199-1 01 1 9307- ● ●
17 COVER; HOLE,TILT STEERING
INTERIOR COLOR MEDIUM GRAY(113) EXC. TILT STEERING<N33> GRAY 		8-94353-200-1 01 1 9307- ● ●
25 ORNAMENT; SWITCH HOLE
EXC. REAR DEFOGGER<C49> 		8-94278-040-0 01 1 9307- ● ●
25 ORNAMENT; SWITCH HOLE
EXC. FOG LAMP<T96> 		8-94278-040-0 01 1 9307- ● ●
25 ORNAMENT; SWITCH HOLE
EXC. RR WIPER<C25> 		8-94278-040-0 02 1 9307- ● ●
27 LID; FUSE BOX
INTERIOR COLOR MED SAND(129) BEIGE 		8-94350-838-4 01 1 9307- ● ●
27 LID; FUSE BOX
INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-94350-839-4 01 1 9307- ● ●
42 BRACKET; UNDER COVER
GRADE BASIC(RBA) 		8-94278-563-2 01 1 9307-9307 ● ●
42 BRACKET; UNDER COVER
GRADE BASIC(RBA) EXC. AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-94278-563-2 01 1 9308- ● ●
49 CLIP; BRKT,UNDER COVER
GRADE BASIC(RBA) INTERIOR COLOR MED SAND(129) BEIGE 		8-94350-794-0 01 1 9307-9307 ● ●
49 CLIP; BRKT,UNDER COVER
GRADE BASIC(RBA) INTERIOR COLOR MED SAND(129) EXC. AM/FM W/CASSETTE 2 SPEAKERS(6VL) BEIGE 		8-94350-794-0 01 1 9308- ● ●
49 CLIP; BRKT,UNDER COVER
GRADE BASIC(RBA) INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-94350-795-0 01 1 9307-9307 ● ●
49 CLIP; BRKT,UNDER COVER
GRADE BASIC(RBA) INTERIOR COLOR MEDIUM GRAY(113) EXC. AM/FM W/CASSETTE 2 SPEAKERS(6VL) GRAY 		8-94350-795-0 01 1 9308- ● ●
54 SCREW; INST PANEL
M5X14 W/LK&PL WASHER 		9-03920-514-0 01 1 9307- ● ●
56 COVER; UNDER,ASSIST SIDE
INTERIOR COLOR MED SAND(129) BEIGE 		8-94350-833-6 01 1 9307- ● ●
56 COVER; UNDER,ASSIST SIDE
INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-94350-834-6 01 1 9307- ● ●
58 SCREW; UNDER COVER
M5X14 TAPPING W/PL WASHER 		0-74110-514-0 03 1 9307- ● ●
59 ORNAMENT; IDLE CONT
4FG1 ENG(RLL) INTERIOR COLOR MED SAND(129) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) BEIGE 		8-94350-819-1 01 1 9307- ● ●
59 ORNAMENT; IDLE CONT
4FG1 ENG(RLL) INTERIOR COLOR MEDIUM GRAY(113) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) GRAY 		8-94350-820-1 01 1 9307- ● ●
59 ORNAMENT; IDLE CONT
4ZC1 ENG(LR9) INTERIOR COLOR MED SAND(129) BEIGE 		8-94350-819-1 02 1 9307- ● ●
59 ORNAMENT; IDLE CONT
4FG1 ENG(RLL) INTERIOR COLOR MED SAND(129) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) BEIGE 		8-94350-819-1 02 1 9307- ● ●
59 ORNAMENT; IDLE CONT
4ZC1 ENG(LR9) INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-94350-820-1 02 1 9307- ● ●
59 ORNAMENT; IDLE CONT
4FG1 ENG(RLL) INTERIOR COLOR MEDIUM GRAY(113) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) GRAY 		8-94350-820-1 02 1 9307- ● ●
61 BEZEL; CIGAR LIGHTER
INTERIOR COLOR MED SAND(129) BEIGE 		8-94350-841-0 01 1 9307-9307 ● ●
61 BEZEL; CIGAR LIGHTER
INTERIOR COLOR MED SAND(129) EXC. AM/FM W/CASSETTE 2 SPEAKERS(6VL) BEIGE 		8-94350-841-0 01 1 9308- ● ●
61 BEZEL; CIGAR LIGHTER
INTERIOR COLOR MED SAND(129) AM/FM W/CASSETTE 2 SPEAKERS(6VL) BEIGE 		8-94350-844-1 01 1 9308- ● ●
61 BEZEL; CIGAR LIGHTER
INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-94350-842-0 01 1 9307-9307 ● ●
61 BEZEL; CIGAR LIGHTER
INTERIOR COLOR MEDIUM GRAY(113) EXC. AM/FM W/CASSETTE 2 SPEAKERS(6VL) GRAY 		8-94350-842-0 01 1 9308- ● ●
61 BEZEL; CIGAR LIGHTER
INTERIOR COLOR MEDIUM GRAY(113) AM/FM W/CASSETTE 2 SPEAKERS(6VL) GRAY 		8-94350-845-1 01 1 9308- ● ●
66 CLUSTER; CENTER,LWR
INTERIOR COLOR MED SAND(129) BEIGE 		8-94350-788-4 01 1 9307-9307 ● ●
66 CLUSTER; CENTER,LWR
INTERIOR COLOR MED SAND(129) EXC. AM/FM W/CASSETTE 2 SPEAKERS(6VL) BEIGE 		8-94350-788-4 01 1 9308- ● ●
66 CLUSTER; CENTER,LWR
INTERIOR COLOR MED SAND(129) AM/FM W/CASSETTE 2 SPEAKERS(6VL) BEIGE 		8-94350-782-3 01 1 9308- ● ●
66 CLUSTER; CENTER,LWR
INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-94350-789-4 01 1 9307-9307 ● ●
66 CLUSTER; CENTER,LWR
INTERIOR COLOR MEDIUM GRAY(113) EXC. AM/FM W/CASSETTE 2 SPEAKERS(6VL) GRAY 		8-94350-789-4 01 1 9308- ● ●
66 CLUSTER; CENTER,LWR
INTERIOR COLOR MEDIUM GRAY(113) AM/FM W/CASSETTE 2 SPEAKERS(6VL) GRAY 		8-94350-783-3 01 1 9308- ● ●
67 COVER; UNDER,INST PNL
INTERIOR COLOR MED SAND(129) BEIGE 		8-94350-813-2 01 1 9307- ● ●
67 COVER; UNDER,INST PNL
INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-94350-814-2 01 1 9307- ● ●
71 LOCK; UNDER COVER 8-94269-088-0 02 1 9307- ● ●
