7-40 — INSTRUMENT PANEL AND BOX (#37424) — 57 parça

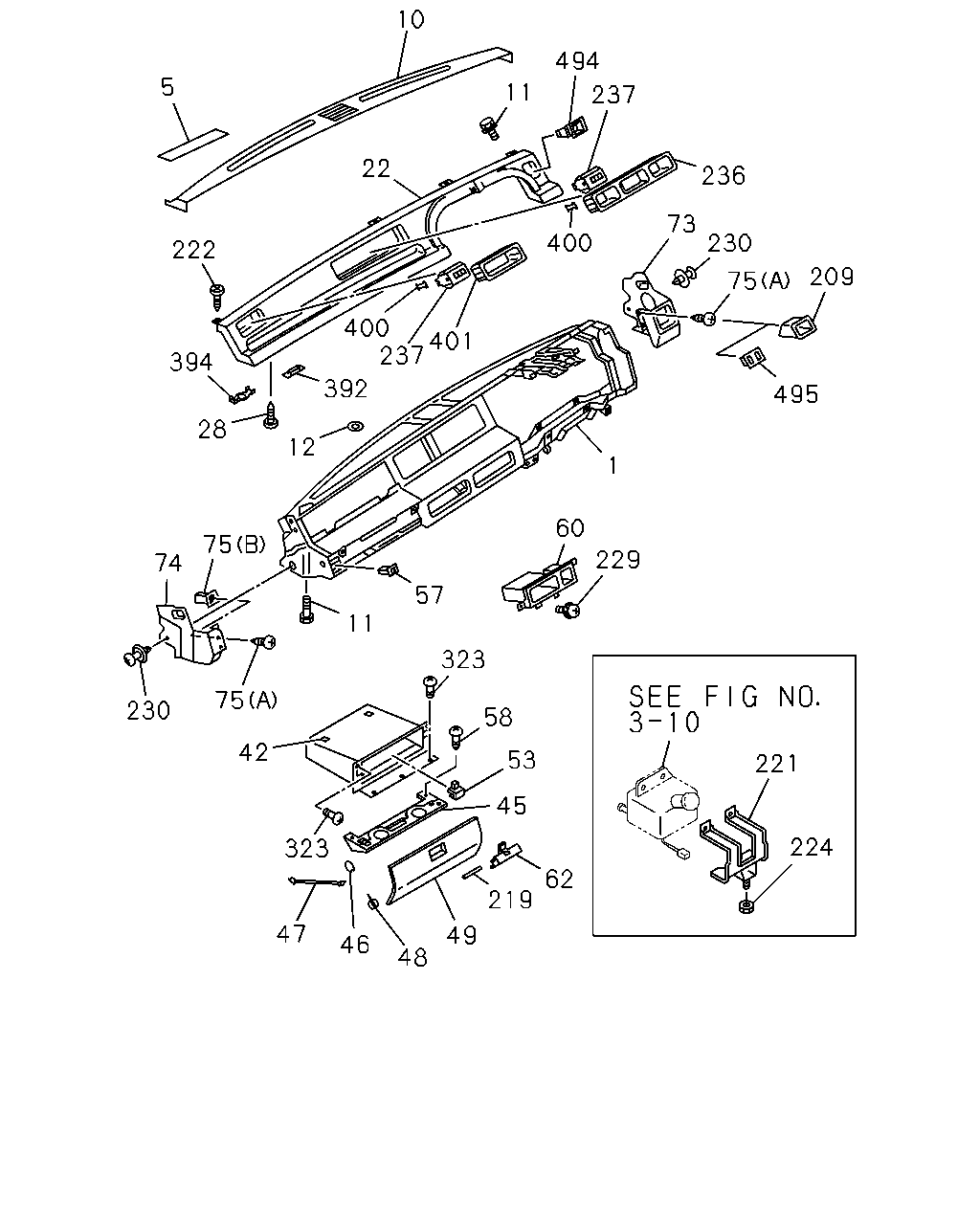

çizim 15977
10 494 237 5 11 22 236 400 73 230 222 209 75 400 401 237 392 394 495 28 12 1 60 229 75 74 57 11 323 75 230 58 42 53 221 45 224 323 62 219 49 47 46 48
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST 8-94278-015-5 01 1 9307- ● ●
5 CUSHION; UPR GARNISH 8-94345-160-0 02 1 9307- ● ●
10 PANEL ASM; GARNISH
INTERIOR COLOR MED SAND(129) BLACK 		8-94350-972-5 01 1 9307- ● ●
10 PANEL ASM; GARNISH
INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-94350-898-5 01 1 9307- ● ●
11 BOLT; INST PNL
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9307- ● ●
12 WASHER; PL,INST PANEL
ID=8.4 TOOTH LK INT-EXT 		9-09152-208-0 02 1 9307- ● ●
22 PAD; INST
INTERIOR COLOR MED SAND(129) BEIGE 		8-94350-770-5 01 1 9307- ● ●
22 PAD; INST
INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-94350-771-5 01 1 9307- ● ●
28 SCREW; INST PAD
M5X12 TAPPING W/PL WASHER 		0-74110-512-0 13 1 9307- ● ●
28 SCREW; INST PAD
M5X10 		5-09981-043-0 01 1 9307- ● ●
42 BOX; GLOVE,INST PNL 8-94278-046-1 01 1 9307- ● ●
45 PANEL; INNER,GLOVE BOX LID
GRADE LT(RBC) 		8-94278-549-2 01 1 9307- ●
46 CAP; GLOVE BOX STOPPER 8-94270-538-0 02 1 9307- ● ●
47 STOPPER; GLOVE BOX LID 8-94270-195-8 02 1 9307- ● ●
48 SPRING; GLOVE BOX LID 5-72547-069-1 01 1 9307- ● ●
49 LID; GLOVE BOX
INTERIOR COLOR MED SAND(129) BEIGE 		8-94350-949-0 01 1 9307- ● ●
49 LID; GLOVE BOX
INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-94350-950-0 01 1 9307- ● ●
53 STRIKER; GLOVE BOX 8-94278-508-1 01 1 9307- ● ●
57 SCREW; GLOVE BOX STOPPER
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 9307- ● ●
58 SCREW; INST PANEL
GRADE LT(RBC) M4X8 TAPPING 		9-09629-019-0 05 1 9307- ●
60 BOX; INST PANEL,CENTER 8-94278-548-3 01 1 9307-9307 ● ●
60 BOX; INST PANEL,CENTER
EXC. RADIO AM W/AMPLIFIER(RS2) 		8-94278-548-3 01 1 9308- ● ●
62 KNOB; GLOVE BOX LID
INTERIOR COLOR MED SAND(129) BEIGE 		8-94350-952-0 01 1 9307- ● ●
62 KNOB; GLOVE BOX LID
INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-94350-953-0 01 1 9307- ● ●
73 GARNISH; DRIVER SIDE
INTERIOR COLOR MED SAND(129) BEIGE 		8-94350-800-1 01 1 9307- ● ●
73 GARNISH; DRIVER SIDE
INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-94350-801-1 01 1 9307- ● ●
74 GARNISH; PASSENGER SIDE
INTERIOR COLOR MED SAND(129) BEIGE 		8-94350-805-2 01 1 9307- ● ●
74 GARNISH; PASSENGER SIDE
INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-94350-806-2 01 1 9307- ● ●
75 SCREW; GARNISH,INST CLUSTER
(A) WO/WASHER M5X14 TAPPING CK-HEAD 		0-70080-514-0 02 1 9307- ● ●
75 SCREW; GARNISH,INST CLUSTER
(A) W/WASHER M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 9307- ● ●
75 SCREW; GARNISH,INST CLUSTER
(B) D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 9307- ● ●
209 BOX; COIN
INTERIOR COLOR MED SAND(129) EXC. POWER WINDOW FRT DOOR<A32> BEIGE 		8-94350-850-2 01 1 9307- ● ●
209 BOX; COIN
INTERIOR COLOR MEDIUM GRAY(113) EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-94350-851-2 01 1 9307- ● ●
219 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 9307- ● ●
221 BRACKET; OIL TANK 8-94345-164-0 01 1 9307- ● ●
222 SCREW; BRKT TO TANK
M6X12 W/LK&PL WASHER 		9-03920-612-0 05 1 9307- ● ●
224 NUT; DIST RUBBER
M6 FLANGE 		1-09984-018-0 02 1 9307- ● ●
229 SCREW; BOX,INST
M5X14 TAPPING W/PL WASHER 		0-74110-514-0 02 1 9307-9307 ● ●
229 SCREW; BOX,INST
EXC. RADIO AM W/AMPLIFIER(RS2) M5X14 TAPPING W/PL WASHER 		0-74110-514-0 02 1 9308- ● ●
230 CLIP; INST
INTERIOR COLOR MED SAND(129) BEIGE 		8-94350-794-0 03 1 9307- ● ●
230 CLIP; INST
INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-94350-795-0 03 1 9307- ● ●
236 CASE; INST PANEL
INTERIOR COLOR MED SAND(129) DIGITAL CLOCK<UE8> BEIGE 		8-94350-856-2 01 1 9307- ● ●
236 CASE; INST PANEL
INTERIOR COLOR MED SAND(129) EXC. DIGITAL CLOCK<UE8> BEIGE 		8-94350-859-2 01 1 9307- ● ●
236 CASE; INST PANEL
INTERIOR COLOR MEDIUM GRAY(113) DIGITAL CLOCK<UE8> GRAY 		8-94350-857-2 01 1 9307- ● ●
236 CASE; INST PANEL
INTERIOR COLOR MEDIUM GRAY(113) EXC. DIGITAL CLOCK<UE8> GRAY 		8-94350-860-2 01 1 9307- ● ●
237 GRILLE; OUTLET
INTERIOR COLOR MED SAND(129) BEIGE 		8-94350-862-2 03 1 9307- ● ●
237 GRILLE; OUTLET
INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-94350-863-2 03 1 9307- ● ●
323 SCREW; GLOVE BOX LK
M5X12 TAPPING W/PL WASHER 		0-74110-512-0 03 1 9307- ● ●
323 SCREW; GLOVE BOX LK
M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 9307- ● ●
392 CUSHION; GARNISH PANEL 8-94269-089-0 05 1 9307- ● ●
394 HOLDER; PANEL 8-94270-153-3 04 1 9307- ● ●
400 BUSHING; AIR OUTLET GRILLE 8-94275-929-1 03 1 9307- ● ●
401 CASE; VENTILATOR,OUTLET
INTERIOR COLOR MED SAND(129) BEIGE 		8-94350-865-2 01 1 9307- ● ●
401 CASE; VENTILATOR,OUTLET
INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-94350-866-2 01 1 9307- ● ●
494 VENTILATOR; SIDE
INTERIOR COLOR MED SAND(129) BEIGE 		8-94350-853-2 01 1 9307- ● ●
494 VENTILATOR; SIDE
INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-94350-854-2 01 1 9307- ● ●
495 BEZEL; SW
POWER WINDOW FRT DOOR<A32> 		8-94278-504-1 01 1 9307- ● ●
