◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50685 - WFR-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#37423) — 37 parça

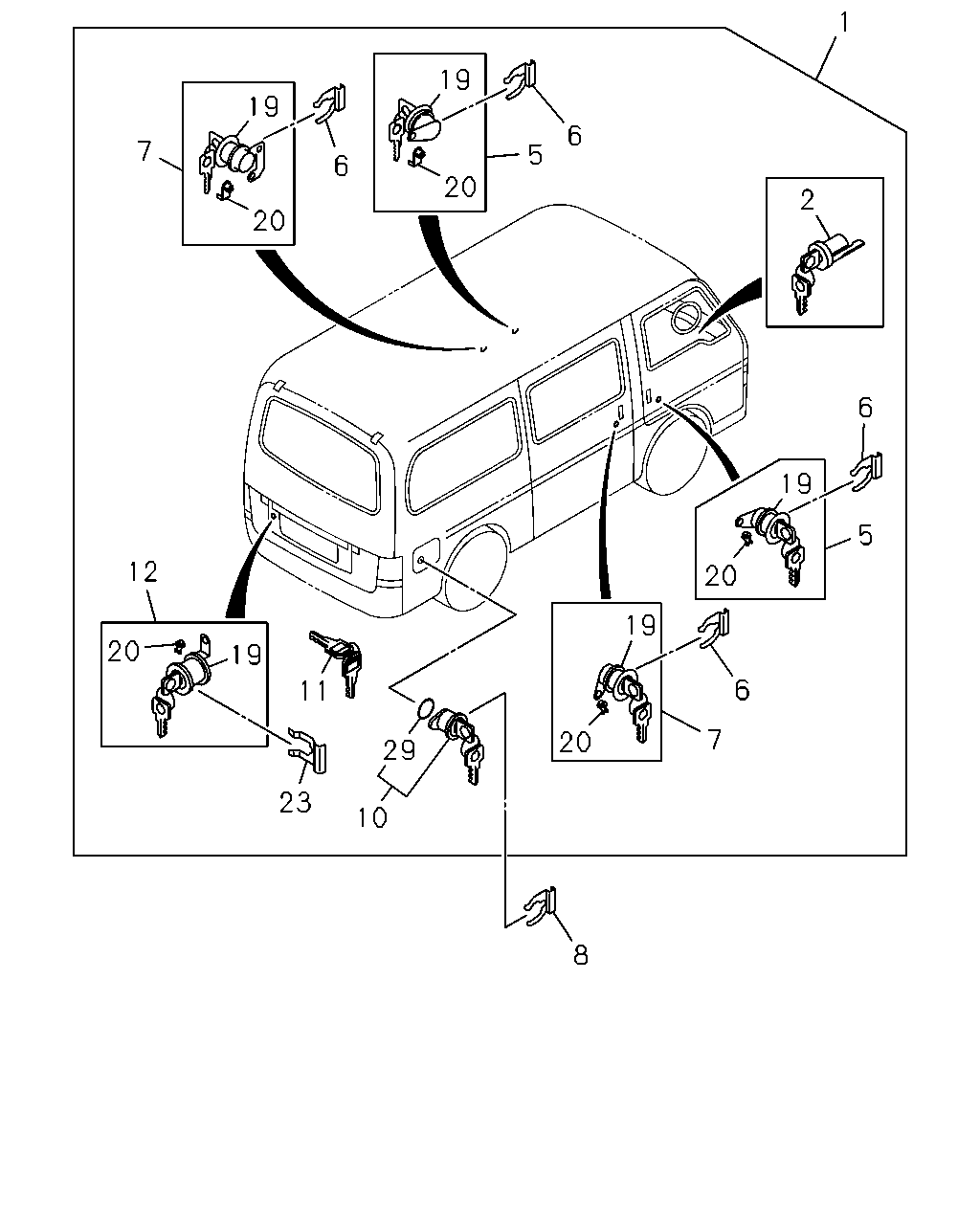

çizim 65995
1 19 19 6 7 5 6 20 2 20 6 19 20 5 12 19 20 19 6 11 20 7 29 23 10 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> 5 DOOR<6KU> 		8-94348-978-0 01 1 9307-9406 ● ●
1 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> EXC. 5 DOOR<6KU> 		8-94352-706-0 01 1 9307-9406 ● ●
1 CYLINDER SET; CAR LOCK
EXC. AUTO DOOR LOCK<AU4>,5 DOOR<6KU> 		8-94352-705-0 01 1 9307-9406 ● ●
1 CYLINDER SET; CAR LOCK
EXC. 5 DOOR<6KU> 		8-94352-705-0 01 1 9407- ● ●
1 CYLINDER SET; CAR LOCK
5 DOOR<6KU> EXC. AUTO DOOR LOCK<AU4> 		8-94348-977-0 01 1 9307-9406 ● ●
1 CYLINDER SET; CAR LOCK
5 DOOR<6KU> 		8-94348-977-0 01 1 9407- ● ●
2 BARREL ASM; W/KEY,STRG LOCK 8-94353-844-0 01 1 9307- ● ●
5 CYLINDER ASM; DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-94348-991-0 01 1 9307-9406 ● ●
5 CYLINDER ASM; DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-94348-990-0 01 1 9307-9406 ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> 		8-94348-986-0 01 1 9307-9406 ● ●
5 CYLINDER ASM; DOOR LOCK 8-94348-986-0 01 1 9407- ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> 		8-94348-985-0 01 1 9307-9406 ● ●
5 CYLINDER ASM; DOOR LOCK 8-94348-985-0 01 1 9407- ● ●
6 RETAINER; DOOR LOCK CYL
5 DOOR<6KU> 		8-94278-105-0 04 1 9307- ● ●
6 RETAINER; DOOR LOCK CYL
EXC. 5 DOOR<6KU> 		8-94278-105-0 03 1 9307- ● ●
7 CYLINDER ASM; W/KEY,SLIDE DOOR
AUTO DOOR LOCK<AU4> 		8-94348-993-0 01 1 9307-9406 ● ●
7 CYLINDER ASM; W/KEY,SLIDE DOOR
AUTO DOOR LOCK<AU4> 5 DOOR<6KU> 		8-94348-992-0 01 1 9307-9406 ● ●
7 CYLINDER ASM; W/KEY,SLIDE DOOR
EXC. AUTO DOOR LOCK<AU4>,5 DOOR<6KU> 		8-94348-987-0 01 1 9307-9406 ● ●
7 CYLINDER ASM; W/KEY,SLIDE DOOR
EXC. 5 DOOR<6KU> 		8-94348-987-0 01 1 9407- ● ●
7 CYLINDER ASM; W/KEY,SLIDE DOOR
5 DOOR<6KU> EXC. AUTO DOOR LOCK<AU4> 		8-94348-987-0 02 1 9307-9406 ● ●
7 CYLINDER ASM; W/KEY,SLIDE DOOR
5 DOOR<6KU> 		8-94348-987-0 02 1 9407- ● ●
8 CLIP; FUEL FILLER LID 8-94279-953-0 01 1 9307- ● ●
10 CYLINDER ASM; W/KEY,FUEL FILLER 8-94348-989-0 01 1 9307- ● ●
11 KEY; BLANK
WO/NOTCH 		8-97076-337-0 01 1 9307- ● ●
12 CYLINDER ASM; W/KEY,BACK DOOR
AUTO DOOR LOCK<AU4> 		8-94348-994-0 01 1 9307-9406 ● ●
12 CYLINDER ASM; W/KEY,BACK DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-94348-988-0 01 1 9307-9406 ● ●
12 CYLINDER ASM; W/KEY,BACK DOOR 8-94348-988-0 01 1 9407- ● ●
19 GASKET; DOOR LOCK CYL
5 DOOR<6KU> 		8-94128-739-0 05 1 9307- ● ●
19 GASKET; DOOR LOCK CYL
EXC. 5 DOOR<6KU> 		8-94128-739-0 04 1 9307- ● ●
20 SNAP; DOOR LOCK CYL
AUTO DOOR LOCK<AU4> 5 DOOR<6KU> 		5-79130-001-1 08 1 9307-9406 ● ●
20 SNAP; DOOR LOCK CYL
5 DOOR<6KU> 		5-79130-001-1 05 1 9407- ● ●
20 SNAP; DOOR LOCK CYL
AUTO DOOR LOCK<AU4> EXC. 5 DOOR<6KU> 		5-79130-001-1 06 1 9307-9406 ● ●
20 SNAP; DOOR LOCK CYL
EXC. 5 DOOR<6KU> 		5-79130-001-1 04 1 9407- ● ●
20 SNAP; DOOR LOCK CYL
EXC. AUTO DOOR LOCK<AU4>,5 DOOR<6KU> 		5-79130-001-1 04 1 9307-9406 ● ●
20 SNAP; DOOR LOCK CYL
5 DOOR<6KU> EXC. AUTO DOOR LOCK<AU4> 		5-79130-001-1 05 1 9307-9406 ● ●
23 RETAINER; BACK DOOR LOCK CYL 8-94278-104-0 01 1 9307- ● ●
29 GASKET; FUEL FILLER CYL 8-94128-739-0 01 1 9307- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
