7-10 — CAUTION PLATE AND LABEL (#37421) — 31 parça

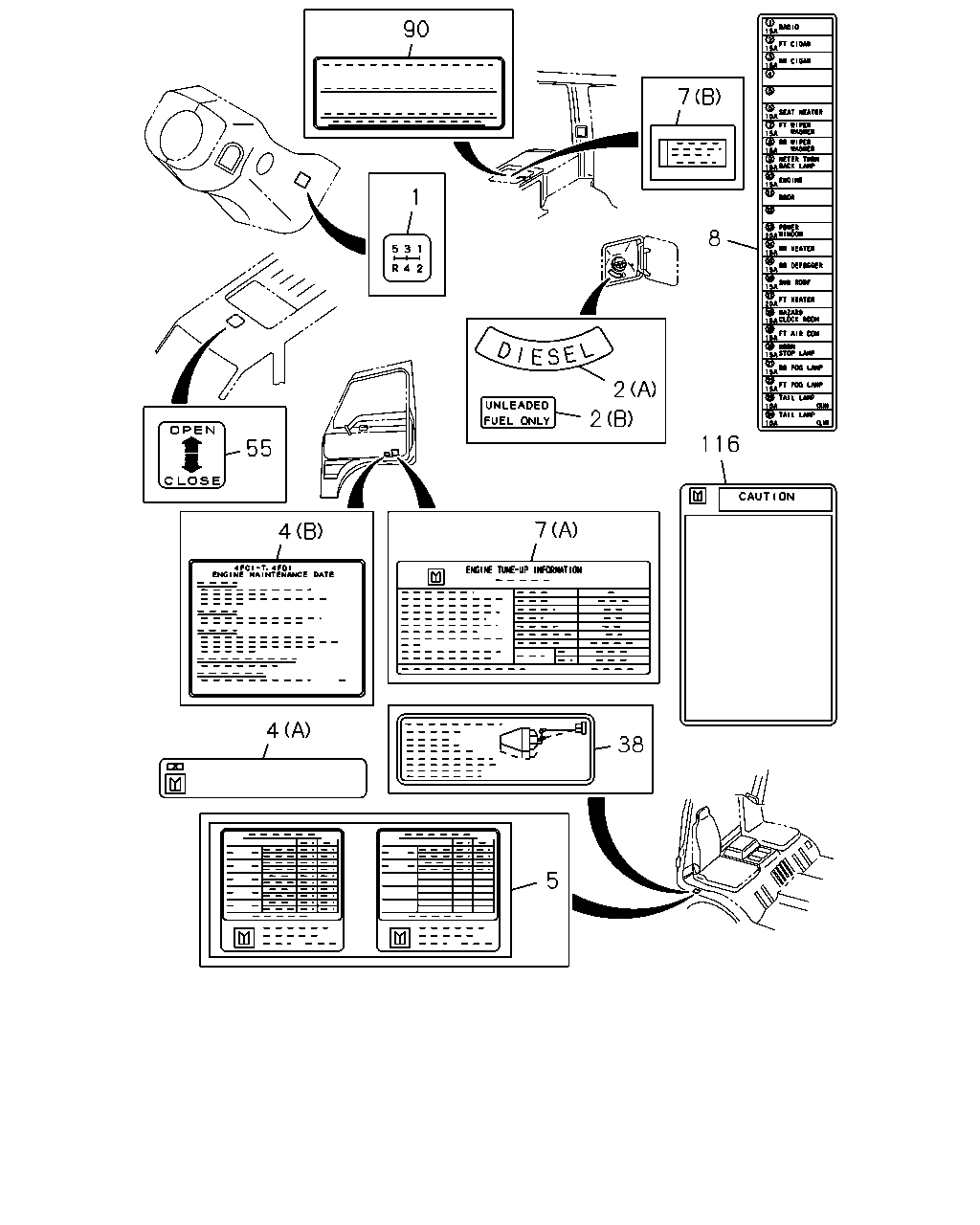

çizim 65934
90 7 1 8 2 2 116 55 7 4 4 38 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 PLATE; CAUTION,SHIFT PATTERN
EXC. FLOOR REMOTE SHIFT<M11> 		5-85883-025-1 01 1 9307- ● ●
2 LABEL; FUEL CAUTION
4FG1 ENG(RLL) (A) 		5-85883-035-0 01 1 9307- ● ●
2 LABEL; FUEL CAUTION
4FG1 ENG(RLL) IRISH EQUIPMENT(6CU) TURBOCHARGER(K51) (B) 		5-85885-417-0 01 1 9407- ●
2 LABEL; FUEL CAUTION
4ZC1 ENG(LR9) SINGAPORE EQUIPMENT(S9Y) (C) 		8-94206-917-1 01 1 9307- ●
4 LABEL; ENG MAINTENANCE
4ZC1 ENG(LR9) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (A) 		8-94419-298-0 01 1 9307- ● ●
4 LABEL; ENG MAINTENANCE
4FG1 ENG(RLL) (B) 		8-94154-811-1 01 1 9307-9406 ● ●
4 LABEL; ENG MAINTENANCE
4FG1 ENG(RLL) EXC. IRISH EQUIPMENT(6CU) (B) 		8-94154-811-1 01 1 9407- ● ●
4 LABEL; ENG MAINTENANCE
4FG1 ENG(RLL) IRISH EQUIPMENT(6CU) TURBOCHARGER(K51) (C) 		8-97106-833-0 01 1 9407- ●
5 LABEL; TIRE AIR PRESSURE
4 DOOR WAGON(V4W) 		8-94432-679-0 01 1 9307- ●
5 LABEL; TIRE AIR PRESSURE
4 DOOR BUS(V4Z) 		8-94432-681-0 01 1 9307- ● ●
5 LABEL; TIRE AIR PRESSURE
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) 		8-94432-677-0 01 1 9307- ● ●
7 LABEL; EMISSION
4FG1 ENG(RLL) SINGAPORE EQUIPMENT(S9Y) (B) 		8-97042-609-0 01 1 9307- ●
7 LABEL; EMISSION
4ZC1 ENG(LR9) SINGAPORE EQUIPMENT(S9Y) (A) 		8-94419-297-0 01 1 9307- ●
7 LABEL; EMISSION
4ZC1 ENG(LR9) SINGAPORE EQUIPMENT(S9Y) (B) 		8-97080-699-0 01 1 9307-9312 ●
7 LABEL; EMISSION
4ZC1 ENG(LR9) SINGAPORE EQUIPMENT(S9Y) (B) 		8-97109-031-0 01 1 9401- ●
8 LABEL; FUSE
AUTO DOOR LOCK<AU4> HONG KONG EQUIPMENT(PQ1) 		8-94345-155-0 01 1 9307-9406 ● ●
8 LABEL; FUSE
HONG KONG EQUIPMENT(PQ1) EXC. AUTO DOOR LOCK<AU4> 		8-94275-931-1 01 1 9307-9406 ● ●
8 LABEL; FUSE
EXC. HONG KONG EQUIPMENT(PQ1) 		8-94275-931-1 01 1 9307-9406 ● ●
8 LABEL; FUSE 8-94275-931-1 01 1 9407- ● ●
38 PLATE; CAUTION,LSV
4ZC1 ENG(LR9) SOUTH AFRICA EQUIPMENT(SW2) 4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) 		8-94438-271-1 01 1 9307- ●
55 PLATE; CAUTION,OPEN & CLOSE
SUNROOF<CF5> 		8-94286-081-0 01 1 9307- ●
90 LABEL; CAUTION,TIMING BELT
4FG1 ENG(RLL) 		8-94440-109-0 01 1 9307- ● ●
116 LABEL; CAUTION,SEDIMENTER
4FG1 ENG(RLL) 		8-94238-622-0 01 1 9307-9406 ● ●
116 LABEL; CAUTION,SEDIMENTER
4FG1 ENG(RLL) EXC. IRISH EQUIPMENT(6CU) 		8-94238-622-0 01 1 9407- ● ●
çizim 65968
2 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 LABEL; FUEL CAUTION
4FG1 ENG(RLL) (A) 		5-85883-035-0 01 1 9307- ● ●
2 LABEL; FUEL CAUTION
4FG1 ENG(RLL) IRISH EQUIPMENT(6CU) TURBOCHARGER(K51) (B) 		5-85885-417-0 01 1 9407- ●
2 LABEL; FUEL CAUTION
4ZC1 ENG(LR9) SINGAPORE EQUIPMENT(S9Y) (C) 		8-94206-917-1 01 1 9307- ●
4 LABEL; ENG MAINTENANCE
4ZC1 ENG(LR9) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (A) 		8-94419-298-0 01 1 9307- ● ●
4 LABEL; ENG MAINTENANCE
4FG1 ENG(RLL) (B) 		8-94154-811-1 01 1 9307-9406 ● ●
4 LABEL; ENG MAINTENANCE
4FG1 ENG(RLL) EXC. IRISH EQUIPMENT(6CU) (B) 		8-94154-811-1 01 1 9407- ● ●
4 LABEL; ENG MAINTENANCE
4FG1 ENG(RLL) IRISH EQUIPMENT(6CU) TURBOCHARGER(K51) (C) 		8-97106-833-0 01 1 9407- ●
