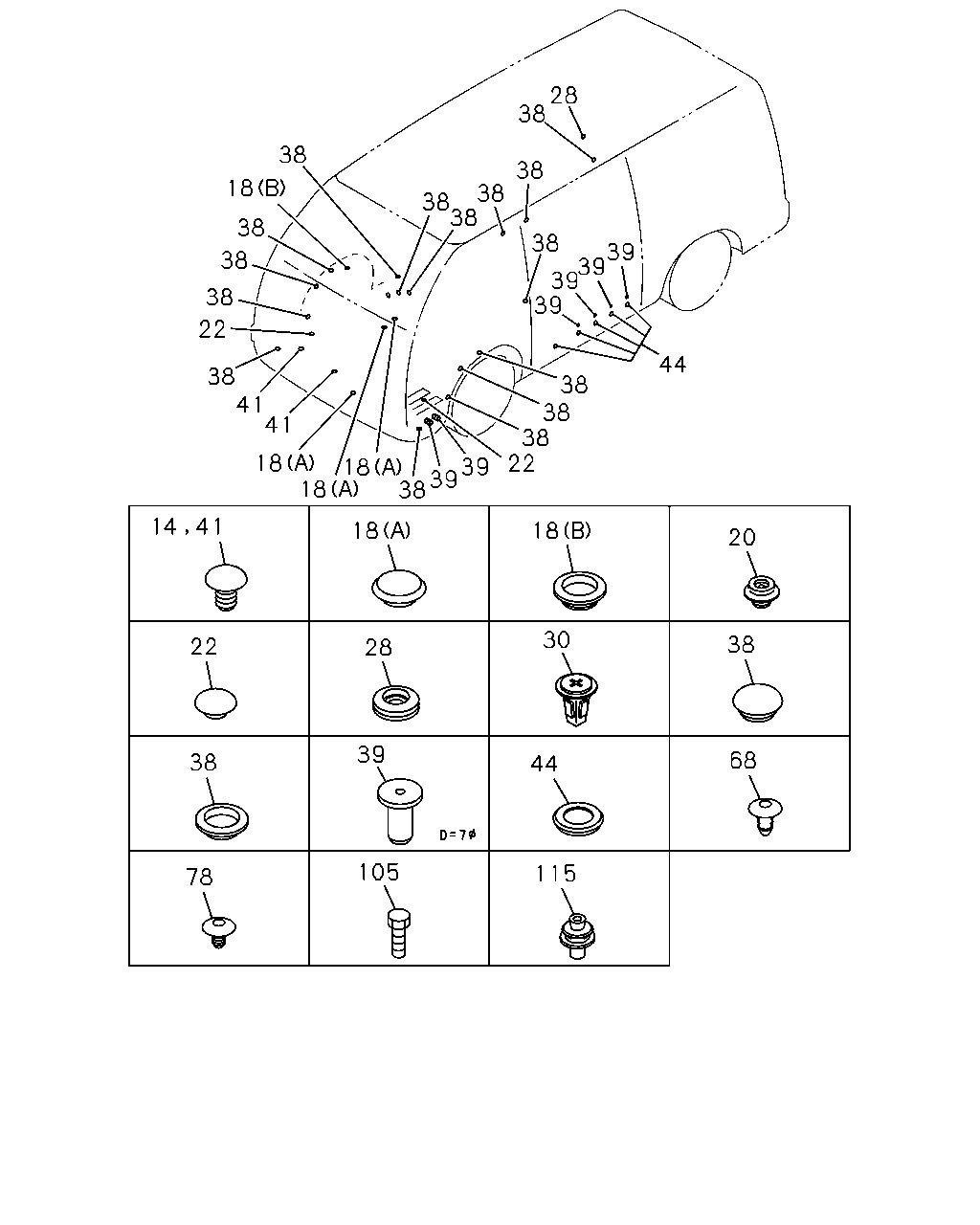

6-78 — FLOOR HOLE PLUG (#37412) — 50 parça

28 38 38 18 38 38 38 38 38 38 38 39 39 39 39 38 22 38 41 41 44 38 38 38 22 18 18 39 39 18 38 14 41 18 18 20 30 38 22 28 39 68 38 44 105 115 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	GROMMET; DUMMY HOLE FLOOR 4ZC1 ENG(LR9) EXC. POWER STEERING<N40> OD=5.0	5-09987-042-0	02	1	9307-	●	●
14	GROMMET; DUMMY HOLE FLOOR 4FG1 ENG(RLL) OD=5.0	5-09987-042-0	02	1	9307-	●	●
18	GROMMET; FLOOR (B) OD=20	5-09983-020-0	02	1	9307-	●	●
18	GROMMET; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A)OD=40 FLOOR	8-94292-298-0	01	1	9307-	●	●
18	GROMMET; FLOOR 4ZC1 ENG(LR9) (A)OD=40 S/COVER	8-94289-283-0	02	1	9307-	●	●
20	GROMMET; FLOOR HOLE	8-94264-566-0	04	1	9307-	●	●
22	GROMMET; FLOOR,HTR HOSE ID=13-18 L=14.5	9-09956-606-0	02	1	9307-	●	●
22	GROMMET; FLOOR,HTR HOSE EXC. HEATER&DEFROSTER(C41) OD=20	9-09956-805-0	01	1	9307-	●	●
28	GROMMET; FUEL,BREATHER HOLE OD=35 T=9.5	9-09956-248-0	01	1	9307-	●	●
28	GROMMET; FUEL,BREATHER HOLE EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) OD=30 T=5	9-09756-032-0	01	1	9307-	●	●
28	GROMMET; FUEL,BREATHER HOLE EXC. HEATER&DEFROSTER(C41) OD=28	9-09956-612-0	02	1	9307-	●	●
30	GROMMET; INSULATOR	8-94291-779-0	02	1	9307-	●	●
38	GROMMET; RR FLOOR OD=32 T=5	5-09983-018-0	06	1	9307-	●
38	GROMMET; RR FLOOR OD=32 T=5	5-09983-018-0	08	1	9307-	●	●
38	GROMMET; RR FLOOR OD=38 T=6	9-09956-701-0	01	1	9307-	●	●
38	GROMMET; RR FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) OD=42 T=8	1-09332-020-0	01	1	9307-	●	●
38	GROMMET; RR FLOOR FLOOR REMOTE SHIFT<M11> OD=48 T=9.1	8-94279-053-0	02	1	9307-	●	●
38	GROMMET; RR FLOOR HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) OD=15 T=6.5	9-09956-766-0	02	1	9307-	●	●
38	GROMMET; RR FLOOR 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) OD=32 T=5	5-09983-018-0	07	1	9307-	●	●
38	GROMMET; RR FLOOR 5 DOOR PANEL VAN(V4P),5 DOOR VAN(V4X) OD=32 T=5	5-09983-018-0	05	1	9307-	●	●
38	GROMMET; RR FLOOR 5 DOOR<6KU> OD=32 T=5	5-09983-018-0	02	1	9307-	●	●
38	GROMMET; RR FLOOR 5 DOOR<6KU> OD=32 T=5	5-09983-018-0	01	1	9307-	●	●
38	GROMMET; RR FLOOR EXC. 5 DOOR<6KU> OD=32 T=5	5-09983-018-0	04	1	9307-	●	●
39	GROMMET; RR FLOOR,DOOR STEP OD=13	9-09756-019-0	02	1	9307-	●	●
39	GROMMET; RR FLOOR,DOOR STEP EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,FLOOR REMOTE SHIFT<M11>,FRT FLOOR CARPET<X81> OD=13	9-09756-019-0	04	1	9307-9406	●	●
39	GROMMET; RR FLOOR,DOOR STEP TAXI CAB<B02> 4 DOOR BUS(V4Z) OD=13	9-09756-019-0	04	1	9307-9406		●
39	GROMMET; RR FLOOR,DOOR STEP EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>, TURBOCHARGER(K51),FLOOR REMOTE SHIFT<M11>,FRT FLOOR CARPET<X81> OD=13	9-09756-019-0	04	1	9407-	●	●
39	GROMMET; RR FLOOR,DOOR STEP TAXI CAB<B02> 4 DOOR BUS(V4Z) OD=13	9-09756-019-0	04	1	9407-		●
41	GROMMET; SEAT HOLE 4 DOOR WAGON(V4W),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) EXC. SEATING CAPACITY 6(R48) OD=5.0	5-09987-042-0	04	1	9307-	●
41	GROMMET; SEAT HOLE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. SEATING CAPACITY 6(R48) OD=5.0	5-09987-042-0	04	1	9307-		●
41	GROMMET; SEAT HOLE 4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) EXC. SEATING CAPACITY 6(R48) OD=5.0	5-09987-042-0	04	1	9307-		●
44	GROMMET; SILL SIDE 5 DOOR<6KU> OD=20	5-09983-020-0	08	1	9307-	●	●
44	GROMMET; SILL SIDE 5 DOOR<6KU> OD=30	8-94107-655-0	02	1	9307-	●	●
44	GROMMET; SILL SIDE EXC. 5 DOOR<6KU> OD=20	5-09983-020-0	04	1	9307-	●	●
44	GROMMET; SILL SIDE EXC. 5 DOOR<6KU> OD=30	8-94107-655-0	01	1	9307-	●	●
68	PLUG; HOLE OD=15 L=14.5	1-76378-157-0	02	1	9307-	●	●
78	PLUG; VALANCE 4ZC1 ENG(LR9) EXC. POWER STEERING<N40> OD=16 L=11	1-76378-155-0	03	1	9307-	●	●
78	PLUG; VALANCE 4FG1 ENG(RLL) OD=16 L=11	1-76378-155-0	03	1	9307-	●	●
78	PLUG; VALANCE 4FG1 ENG(RLL) POWER STEERING<N40> OD=16 L=11	1-76378-155-0	01	1	9307-	●	●
78	PLUG; VALANCE 4FG1 ENG(RLL) POWER STEERING<N40> D4.7X15 GRAY	8-94279-801-0	01	1	9307-	●	●
78	PLUG; VALANCE 4ZC1 ENG(LR9) OD=16 L=11	1-76378-155-0	04	1	9307-	●	●
78	PLUG; VALANCE 4FG1 ENG(RLL) EXC. POWER STEERING<N40> OD=16 L=11	1-76378-155-0	04	1	9307-	●	●
105	BOLT; FLOOR FLOOR REMOTE SHIFT<M11>	0-20801-010-0	01	1	9307-	●	●
115	FASTENER; FLOOR MAT 4 DOOR WAGON(V4W) NYLON 6	8-94291-778-0	03	1	9307-	●
115	FASTENER; FLOOR MAT NYLON 6	8-94291-778-0	16	1	9307-	●	●
115	FASTENER; FLOOR MAT NYLON 6	8-94291-778-0	08	1	9307-	●	●
115	FASTENER; FLOOR MAT FLOOR REMOTE SHIFT<M11> NYLON 6	8-94291-778-0	14	1	9307-	●	●
115	FASTENER; FLOOR MAT SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92), SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH), SEATING CAPACITY 11(6EZ),SEATING CAPACITY 14(6FB) EXC. FRONT CONSOLE<D55>,TURBOCHARGER(K51) NYLON 6	8-94291-778-0	02	1	9307-	●	●
115	FASTENER; FLOOR MAT 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) NYLON 6	8-94291-778-0	04	1	9307-	●	●
115	FASTENER; FLOOR MAT EXC. FRONT CONSOLE<D55>,TURBOCHARGER(K51),FLOOR REMOTE SHIFT<M11>,SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD) NYLON 6	8-94291-778-0	04	1	9307-	●	●
