◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50685 - WFR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#37411) — 71 parça

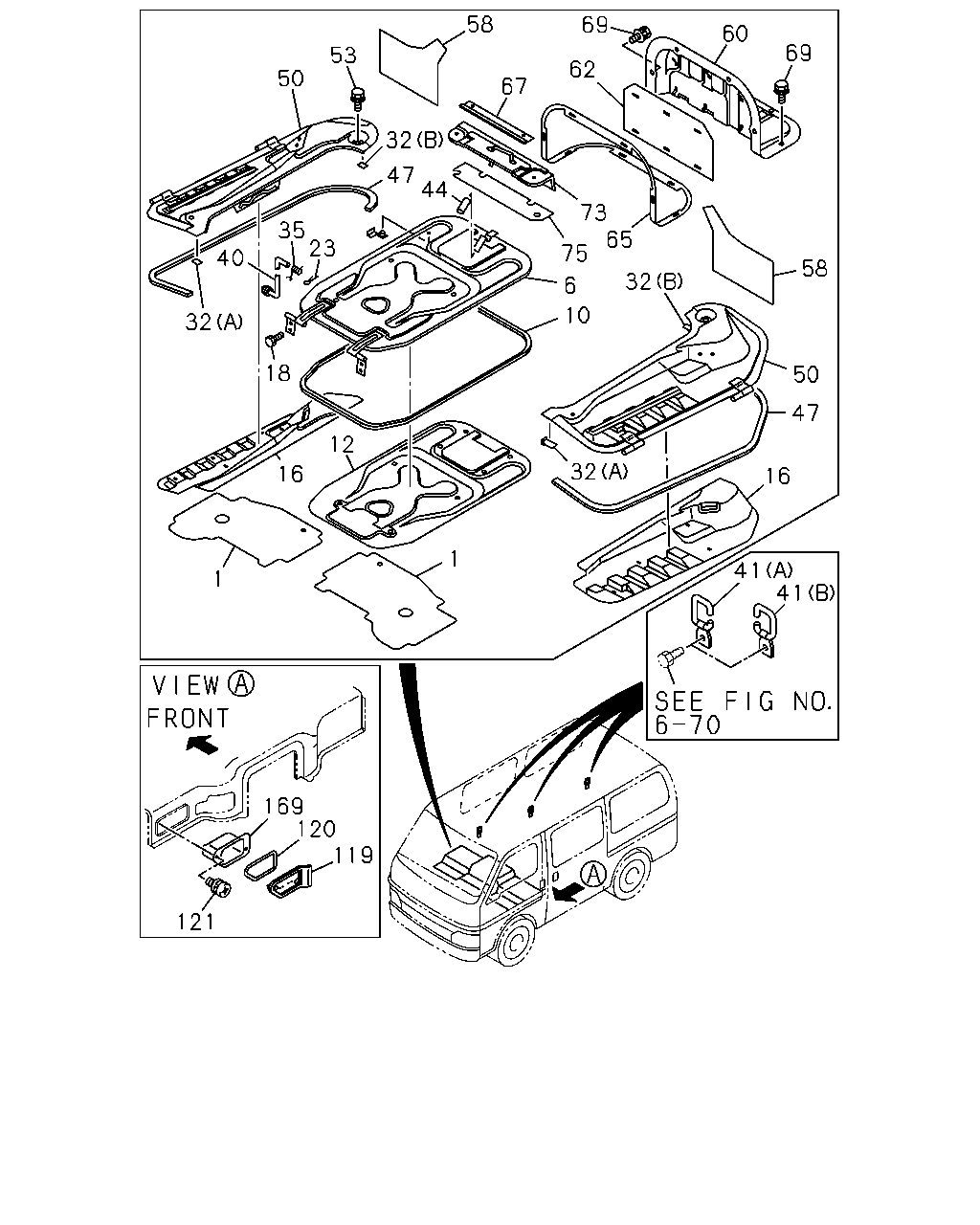

çizim 15949
58 69 60 69 53 62 50 67 32 47 44 73 65 35 23 40 75 6 10 58 32 32 18 50 47 12 32 16 16 1 41 41 1 169 120 119 121
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR 8-94291-965-3 02 1 9307- ● ●
6 COVER ASM; ENG,CENTER 8-94345-207-0 01 1 9307-9406 ● ●
6 COVER ASM; ENG,CENTER 8-94345-207-0 01 1 9407- ●
6 COVER ASM; ENG,CENTER
EXC. TURBOCHARGER(K51),IRISH EQUIPMENT(6CU) 		8-94345-207-0 01 1 9407- ●
6 COVER ASM; ENG,CENTER
FRONT CONSOLE<D55> TURBOCHARGER(K51) SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92), SEATING CAPACITY 2(6DD) 		8-94345-204-0 01 1 9407- ●
6 COVER ASM; ENG,CENTER
IRISH EQUIPMENT(6CU) TURBOCHARGER(K51) EXC. FRONT CONSOLE<D55>,SEATING CAPACITY 8(X84), SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEAT ING CAPACITY 14(6FB) 		8-94353-793-0 01 1 9407- ●
10 SEAL; ENG COVER 8-94275-639-1 01 1 9307- ● ●
12 INSULATOR; ENG COVER,CENTER 8-94287-545-0 01 1 9307-9406 ● ●
12 INSULATOR; ENG COVER,CENTER 8-94287-545-0 01 1 9407- ●
12 INSULATOR; ENG COVER,CENTER
EXC. TURBOCHARGER(K51) 		8-94287-545-0 01 1 9407- ●
12 INSULATOR; ENG COVER,CENTER
TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> 		8-94284-760-0 01 1 9407- ●
12 INSULATOR; ENG COVER,CENTER
TURBOCHARGER(K51) EXC. FLOOR REMOTE SHIFT<M11> 		8-94353-851-0 01 1 9407- ●
16 INSULATOR; SUPPORT COVER,SIDE 8-94284-838-0 01 1 9307- ● ●
16 INSULATOR; SUPPORT COVER,SIDE
4FG1 ENG(RLL) 		8-94284-840-0 01 1 9307- ● ●
16 INSULATOR; SUPPORT COVER,SIDE
4ZC1 ENG(LR9) 		8-94278-694-1 01 1 9307- ● ●
18 BOLT; ENG COVER
M8X16 W/LK&PL WASHER 		0-50140-816-0 06 1 9307- ● ●
23 PIN; SPLIT,STAY
OD=1.4 L=12 		9-08111-612-0 01 1 9307- ● ●
32 SEAL; END,SUPPORT COVER
(A) 		8-94291-504-0 02 1 9307- ● ●
32 SEAL; END,SUPPORT COVER
(B) 		8-94291-505-0 02 1 9307- ● ●
35 SPRING; STAY,ENG COVER 8-94291-516-0 01 1 9307- ● ●
40 STAY; ENG COVER,CENTER 8-94291-609-2 01 1 9307-9406 ● ●
40 STAY; ENG COVER,CENTER
FLOOR REMOTE SHIFT<M11> 		8-94291-609-2 01 1 9407- ● ●
40 STAY; ENG COVER,CENTER
4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X), 4 DOOR BUS(V4Z) EXC. TURBOCHARGER(K51) 		8-94291-609-2 01 1 9407- ● ●
40 STAY; ENG COVER,CENTER
IRISH EQUIPMENT(6CU) EXC. FLOOR REMOTE SHIFT<M11> 		8-94351-228-0 01 1 9407- ●
40 STAY; ENG COVER,CENTER
TURBOCHARGER(K51) SEATING CAPACITY 6(R48),SEATING CAPACITY 9(R49) EXC. FLOOR REMOTE SHIFT<M11> 		8-94351-228-0 01 1 9407- ●
41 BRACKET ASM; ROPE HOOK
RR SEAT FOLD<6KV> ROPE HOOK LUGGAGE<6TR> (A) 		8-94181-223-0 02 1 9307- ●
41 BRACKET ASM; ROPE HOOK
RR SEAT FOLD<6KV> ROPE HOOK LUGGAGE<6TR> EXC. SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) (A) 		8-94181-223-0 02 1 9307- ●
41 BRACKET ASM; ROPE HOOK
RR SEAT FOLD<6KV> ROPE HOOK LUGGAGE<6TR> (B) 		8-94181-224-0 02 1 9307- ●
41 BRACKET ASM; ROPE HOOK
RR SEAT FOLD<6KV> ROPE HOOK LUGGAGE<6TR> EXC. SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) (B) 		8-94181-224-0 02 1 9307- ●
41 BRACKET ASM; ROPE HOOK
ROPE HOOK LUGGAGE<6TR> EXC. RR SEAT FOLD<6KV> (A) 		8-94181-223-0 03 1 9307- ● ●
41 BRACKET ASM; ROPE HOOK
ROPE HOOK LUGGAGE<6TR> EXC. RR SEAT FOLD<6KV> (B) 		8-94181-224-0 03 1 9307- ● ●
44 GRIP; HANDLE,ENG COVER 8-94291-600-1 01 1 9307- ● ●
47 SEAL; SUPPORT COVER,SIDE 8-94291-773-0 02 1 9307- ● ●
50 COVER ASM; SUPPORT,SIDE 8-94289-967-7 01 1 9307- ●
50 COVER ASM; SUPPORT,SIDE
EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-94289-967-7 01 1 9307- ●
50 COVER ASM; SUPPORT,SIDE
4FG1 ENG(RLL) 		8-94268-416-1 01 1 9307- ●
50 COVER ASM; SUPPORT,SIDE
4FG1 ENG(RLL) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-94268-416-1 01 1 9307- ●
50 COVER ASM; SUPPORT,SIDE
4ZC1 ENG(LR9) 		8-94268-417-1 01 1 9307- ●
50 COVER ASM; SUPPORT,SIDE
4ZC1 ENG(LR9) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-94268-417-1 01 1 9307- ●
50 COVER ASM; SUPPORT,SIDE
SOUTH AFRICA EQUIPMENT(SW2) 		8-94278-602-4 01 1 9307- ●
50 COVER ASM; SUPPORT,SIDE
4ZC1 ENG(LR9) SOUTH AFRICA EQUIPMENT(SW2) 		8-94287-599-3 01 1 9307- ●
53 BOLT; SUPPORT COVER,SIDE 1-09980-056-0 06 1 9307- ●
53 BOLT; SUPPORT COVER,SIDE
EXC. SOUTH AFRICA EQUIPMENT(SW2) 		1-09980-056-0 06 1 9307- ●
53 BOLT; SUPPORT COVER,SIDE
SOUTH AFRICA EQUIPMENT(SW2) 		5-09980-024-0 12 1 9307- ●
58 INSULATOR; ENG ROOM,RR 8-94291-772-1 01 1 9307- ● ●
58 INSULATOR; ENG ROOM,RR 8-94291-771-1 01 1 9307- ● ●
60 COVER ASM; TRANS
4FG1 ENG(RLL) 		8-94264-471-0 01 1 9307-9406 ● ●
60 COVER ASM; TRANS
4FG1 ENG(RLL) 		8-94264-471-0 01 1 9407- ●
60 COVER ASM; TRANS
4FG1 ENG(RLL) EXC. TURBOCHARGER(K51) 		8-94264-471-0 01 1 9407- ●
60 COVER ASM; TRANS
4ZC1 ENG(LR9) 		8-94277-915-1 01 1 9307- ● ●
60 COVER ASM; TRANS
TURBOCHARGER(K51) 		8-94268-440-0 01 1 9407- ●
62 INSULATOR; TRANS COVER 8-94291-770-1 01 1 9307-9406 ● ●
62 INSULATOR; TRANS COVER 8-94291-770-1 01 1 9407- ●
62 INSULATOR; TRANS COVER
EXC. TURBOCHARGER(K51) 		8-94291-770-1 01 1 9407- ●
62 INSULATOR; TRANS COVER
4ZC1 ENG(LR9) 		8-94269-594-0 01 1 9308-9406 ● ●
62 INSULATOR; TRANS COVER
4ZC1 ENG(LR9) 		8-94269-594-0 01 1 9407- ● ●
62 INSULATOR; TRANS COVER
TURBOCHARGER(K51) 		8-94269-594-0 01 1 9407- ●
62 INSULATOR; TRANS COVER
TURBOCHARGER(K51) 		8-94284-759-0 01 1 9407- ●
65 SEAL; TRANS COVER 8-94292-944-1 01 1 9307- ● ●
67 SEAL; SUPPORT COVER,RR 8-94282-306-0 01 1 9307- ● ●
69 BOLT; TRANS COVER
M8X16 W/LK&PL WASHER 		0-50140-816-0 04 1 9307- ● ●
69 BOLT; TRANS COVER
M6X12 		8-94279-111-0 04 1 9307- ● ●
73 COVER; SUPPORT,RR 8-94277-852-1 01 1 9307-9406 ● ●
73 COVER; SUPPORT,RR 8-94277-852-1 01 1 9407- ●
73 COVER; SUPPORT,RR
EXC. TURBOCHARGER(K51) 		8-94277-852-1 01 1 9407- ●
73 COVER; SUPPORT,RR
TURBOCHARGER(K51) 		8-94277-804-1 01 1 9407- ●
75 INSULATOR; SUPPORT COVER,RR 8-94287-546-0 01 1 9307- ● ●
119 LID; P/S OIL TANK
4FG1 ENG(RLL) POWER STEERING<N40> 		8-94284-682-0 01 1 9307- ● ●
120 SEAL; LID,P/S
4FG1 ENG(RLL) POWER STEERING<N40> 		8-94284-685-1 01 1 9307- ● ●
121 SCREW; LID,P/S
4FG1 ENG(RLL) POWER STEERING<N40> M5X13 		1-09981-321-0 02 1 9307- ● ●
169 COVER; DUST,P/S
4FG1 ENG(RLL) POWER STEERING<N40> 		8-94284-686-0 01 1 9307- ● ●
