Sayfa 1-40 - Isuzu EPC

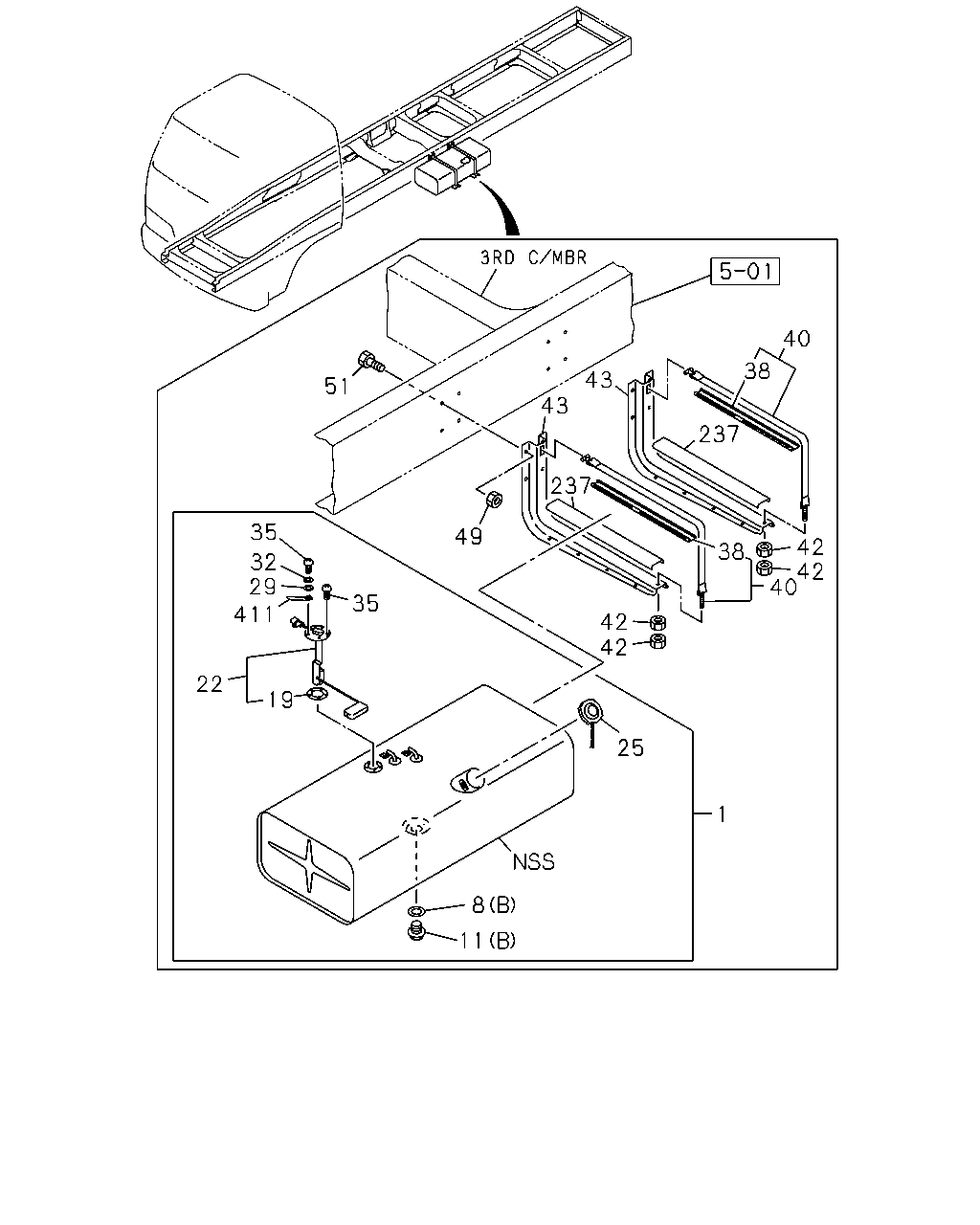

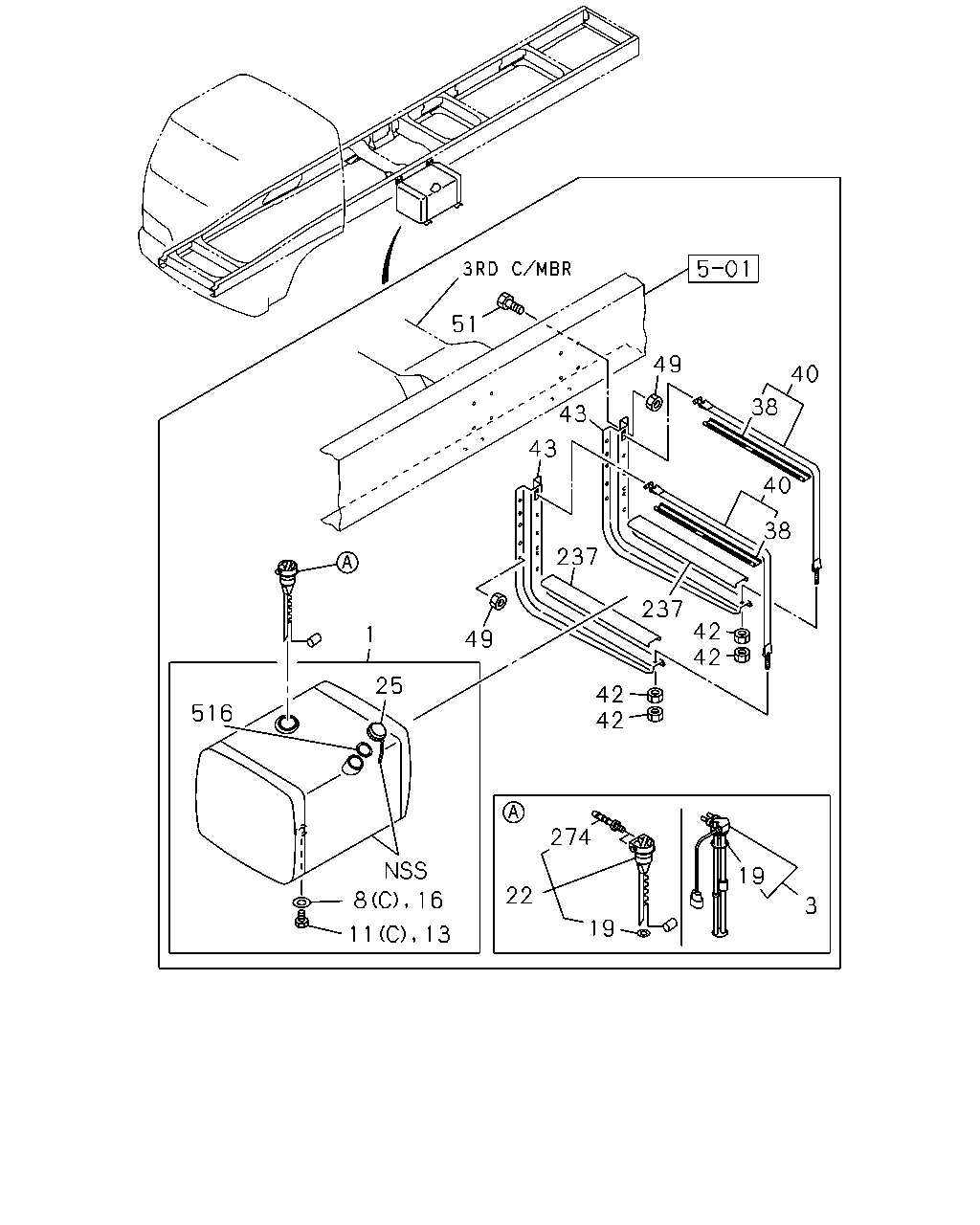

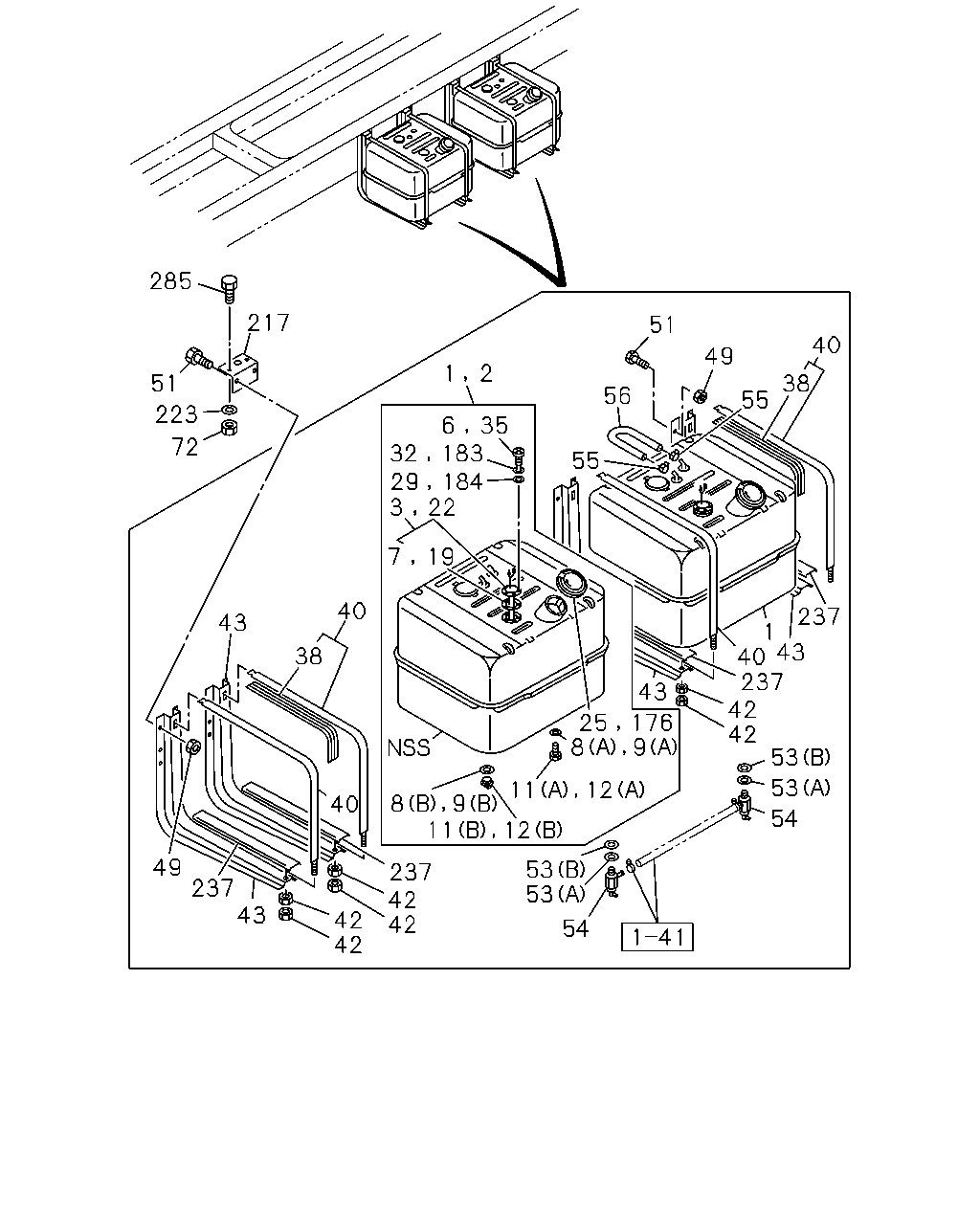

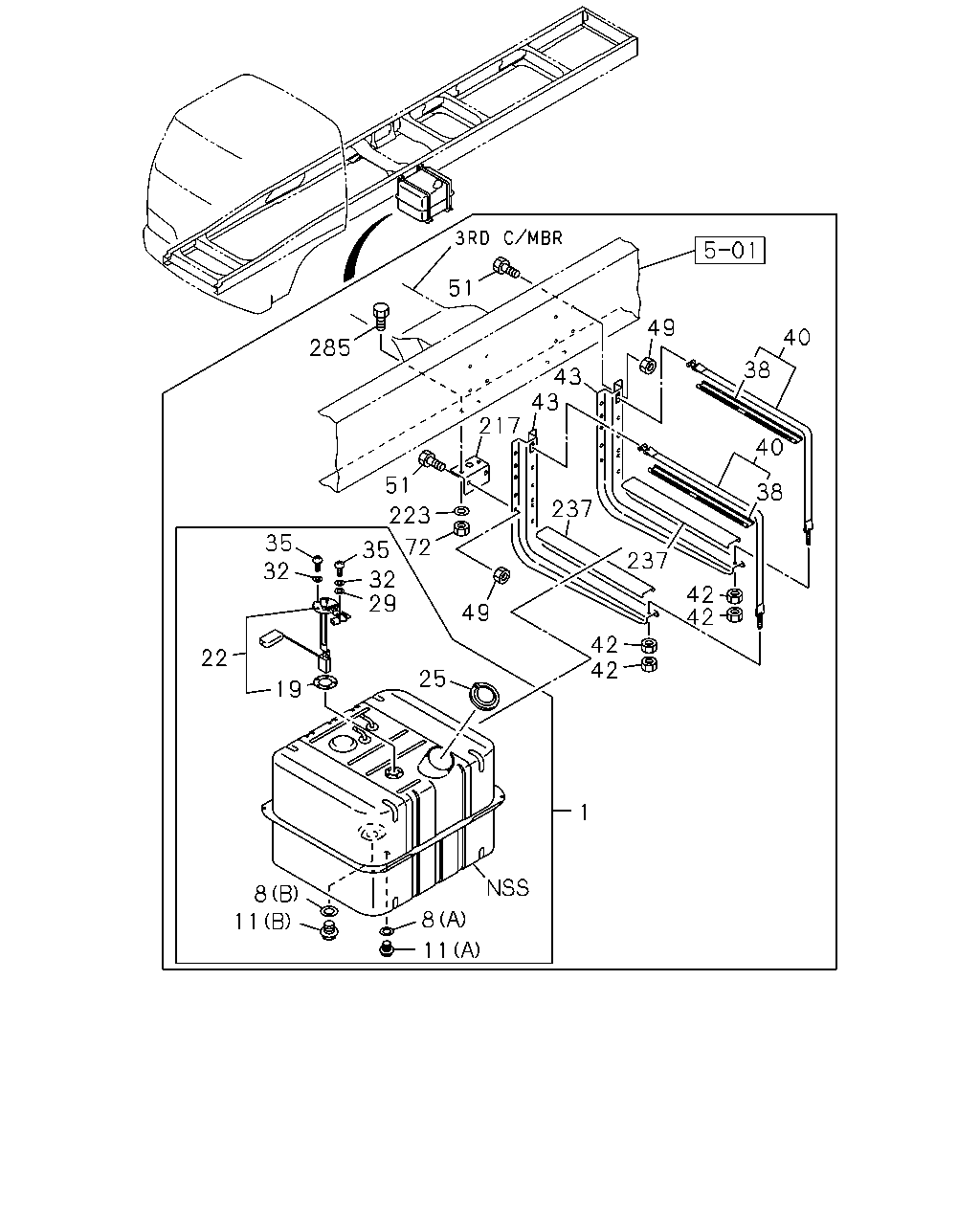

1-40 — FUEL TANK (#3741) — 828 parça

285 217 51 40 49 2 1 51 38 56 55 223 32 183 29 184 72 55 7 19 40 237 43 1 43 40 237 42 42 38 43 25 176 53 53 12 11 11 12 40 54 49 53 53 237 42 42 237 43 42 42 54 6 35 3 22 8 9 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; FUEL FUEL TANK 400L<SDH> 1020X680X625 400L	1-87411-168-0	01	1	0005-0607	●	●	●	●
1	TANK; FUEL FUEL TANK 400L<SDH> 1020X680X625 400L	1-87411-168-0	01	1	0608-1202	●	●	●	●	●
1	TANK; FUEL FUEL TANK 400L<SDH> 1020X685X625 400L	1-87412-052-0	01	1	1203-	●	●	●	●	●
1	TANK; FUEL 720X610X496 200L	1-22400-996-0	01	1	9601-9610	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22400-996-0	01	1	9611-9702	●	●	●	●
1	TANK; FUEL 720X610X496 200L	1-22400-996-0	01	1	9703-9810	●	●	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) 720X610X496 200L	1-22400-996-0	01	1	9811-0003	●	●	●	●		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) 720X610X496 200L	1-22401-120-0	01	1	0004-0004	●	●	●	●		●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-120-1	01	1	0005-0112	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-192-2	01	1	0201-0607	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-192-2	01	1	0608-1505	●	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	8-98299-274-0	01	1	1506-	●	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) 1220X533X323 200L	1-22400-995-0	01	1	9811-0004	●	●	●	●		●
2	TANK ASM; FUEL,SUB FUEL TANK 200L+200L<NF7> 720X610X496 200L	1-22400-996-0	01	1	9703-0003	●	●	●	●
2	TANK ASM; FUEL,SUB FUEL TANK 200L+200L<NF7> 720X610X496 200L	1-22401-120-0	01	1	0004-0004	●	●	●	●
3	UNIT; FUEL TANK,SUB FUEL TANK 400L<SDH>	8-98217-749-0	01	1	1211-	●	●	●	●	●
3	UNIT; FUEL TANK,SUB FUEL TANK 200L+200L<NF7>	1-83141-124-0	01	1	9703-0004	●	●	●	●
6	SCREW; TANK UNIT TO SUB FUEL TANK FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	05	1	9703-0004	●	●	●	●
7	GASKET; TANK UNIT,SUB TANK FUEL TANK 200L+200L<NF7>	9-83135-003-0	01	1	9703-0004	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L<SDH> (C) ID=18.2 T=1.6	8-98030-453-0	01	1	1211-	●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (A) T=1.60	1-22416-001-0	01	1	9601-9610	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) T=1.60	1-22416-001-0	01	1	9611-9702	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (A) T=1.60	1-22416-001-0	01	1	9703-9810	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) (A) T=1.60	1-22416-001-0	01	1	9811-0004	●	●	●	●		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) T=1.60	1-22416-001-0	01	1	0005-0112	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	9601-9610	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) T=2.0	9-09923-030-0	01	1	9611-9702	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	9703-9810	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	9811-0004	●	●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) T=2.0	9-09923-030-0	01	1	0005-0106	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-0112	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) ID=14.2 OD=23.0	9-09572-014-0	02	1	0201-0607	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) ID=14.2 OD=23.0	9-09572-014-0	02	1	0608-	●	●	●	●	●
9	GASKET; DRAIN PLUG,SUB TANK FUEL TANK 200L+200L<NF7> (A) T=1.60	1-22416-001-0	01	1	9703-0004	●	●	●	●
9	GASKET; DRAIN PLUG,SUB TANK FUEL TANK 200L+200L<NF7> (B) T=2.0	9-09923-030-0	01	1	9703-0004	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> (C) M18X12	0-92002-418-0	01	1	1211-	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	9601-9610	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M36	1-09604-052-0	01	1	9611-9702	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	9703-9810	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	9811-0003	●	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (B) M36	1-09604-052-0	01	1	0004-0004	●	●	●	●		●
11	PLUG; DRAIN,FUEL TANK (A) M18X12	1-09604-081-0	01	1	9601-9610	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M18X12	1-09604-081-0	01	1	9611-9702	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (A) M18X12	1-09604-081-0	01	1	9703-9810	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) (A) M18X12	1-09604-081-0	01	1	9811-0004	●	●	●	●		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M18X12	1-09604-081-0	01	1	0005-0112	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) (A) M36	1-09604-052-0	01	1	0004-0004	●	●	●	●		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M36	1-09604-052-0	01	1	0005-0106	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M14X14	9-09862-156-0	01	1	0107-0112	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M14X14	9-09862-156-0	02	1	0201-0607	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M14X14	9-09862-156-0	02	1	0608-	●	●	●	●	●
12	PLUG; DRAIN,SUB TANK FUEL TANK 200L+200L<NF7> (B) M36	1-09604-052-0	01	1	9703-0003	●	●	●	●
12	PLUG; DRAIN,SUB TANK FUEL TANK 200L+200L<NF7> (B) M36	1-09604-052-0	01	1	0004-0004	●	●	●	●
12	PLUG; DRAIN,SUB TANK FUEL TANK 200L+200L<NF7> (A) M18X12	1-09604-081-0	01	1	9703-0004	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71	5-83148-001-0	01	1	0005-0612	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71	5-83148-001-0	01	1	0701-	●	●	●	●	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	9601-9610	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20>	9-83135-003-0	01	1	9611-9702	●	●	●	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	9703-9810	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5)	9-83135-003-0	01	1	9811-0004	●	●	●	●		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) ID=42	9-83135-011-0	01	1	9811-0004	●	●	●	●		●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	0005-0607	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	0608-1210	●	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=54.5	8-98299-580-0	01	1	1211-	●	●	●	●	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	9601-9610	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	9611-9702	●	●	●	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	9703-9810	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5)	1-83141-124-0	01	1	9811-0004	●	●	●	●		●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	0005-0607	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	0608-1505	●	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	8-98296-671-0	01	1	1506-	●	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5)	1-83141-084-1	01	1	9811-0004	●	●	●	●		●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	0005-0607	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	0608-1210	●	●	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-033-2	01	1	9601-9610	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-033-2	01	1	9611-9702	●	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-033-2	01	1	9703-9810	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5)	1-22440-033-2	01	1	9811-0003	●	●	●	●		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5)	1-22440-067-0	01	1	0004-0004	●	●	●	●		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-067-0	01	1	0005-0109	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-069-0	01	1	0110-0112	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-067-0	01	1	0201-0309	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-070-0	01	1	0310-0404	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-046-1	01	1	0405-0607	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-046-1	01	1	0608-	●	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5)	1-22440-028-0	01	1	9811-0004	●	●	●	●		●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH>	1-22440-056-0	01	1	0005-0607	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH>	1-22440-056-0	01	1	0608-	●	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	9601-9610	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	01	1	9611-9702	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	9703-9810	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	9811-0004	●	●	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	01	1	0005-0605	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	0-91610-505-0	01	1	0606-0607	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	0-91610-505-0	01	1	0608-	●	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	05	1	9601-9610	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	05	1	9611-9702	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	05	1	9703-9810	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) ID=5.1	9-09150-505-0	05	1	9811-0004	●	●	●	●		●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	05	1	0005-0603	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	0-91510-505-0	05	1	0604-0607	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	0-91510-505-0	05	1	0608-	●	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) ID=5.1	9-09150-505-0	01	1	9811-0004	●	●	●	●		●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	9601-9610	●	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	9611-9702	●	●	●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	9703-9810	●	●	●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	9811-0004	●	●	●	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	0005-0604	●	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	0-34218-510-0	05	1	0605-0607	●	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	0-34218-510-0	05	1	0608-	●	●	●	●	●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	9601-9610	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=650	1-22553-022-1	02	1	9611-9702	●	●	●	●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	9703-9810	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> L=650	1-22553-022-1	02	1	9703-9810	●	●	●	●
38	INSULATION; SUPPORT BELT EXC. TAIWAN EQUIPMENT(WW5) L=650	1-22553-022-1	02	1	9811-0004	●	●	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> L=650	1-22553-022-1	02	1	9811-0004	●	●	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=650	1-22553-022-1	02	1	0005-0607	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=650	1-22553-022-1	02	1	0608-	●	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) L=540	1-22553-014-2	02	1	9811-0004	●	●	●	●		●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	0005-0607	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	0608-	●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-1	02	1	9601-9610	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-1	02	1	9611-9702	●	●	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-1	02	1	9703-9810	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-1	02	1	9703-9810	●	●	●	●
40	BELT; SUPPORT,FUEL TANK EXC. TAIWAN EQUIPMENT(WW5) L=1030	1-22550-204-1	02	1	9811-0004	●	●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-1	02	1	9811-0004	●	●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-2	02	1	0005-0607	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-2	02	1	0608-	●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) L=775	1-22550-211-1	02	1	9811-0004	●	●	●	●		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1205	1-22550-227-2	02	1	0005-0607	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1205	1-22550-227-2	02	1	0608-	●	●	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9601-9610	●	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	04	1	9611-9702	●	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9703-0004	●	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	9703-0004	●	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0005-	●	●	●	●		●
42	NUT; SUPPORT BELT FUEL TANK 400L<SDH> M10	9-09110-510-0	04	1	0005-	●	●	●	●		●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0204-0512	●	●	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-0607	●	●	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0608-	●	●	●	●	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	9601-9610	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	9611-9702	●	●	●	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	9703-9810	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7>	1-53461-279-4	02	1	9703-9810	●	●	●	●
43	BRACKET; FUEL TANK EXC. TAIWAN EQUIPMENT(WW5)	1-53461-279-4	02	1	9811-0004	●	●	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7>	1-53461-279-4	02	1	9811-0004	●	●	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	0005-0607	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	0608-	●	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5)	1-53461-206-1	02	1	9811-0004	●	●	●	●		●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-458-2	02	1	0005-0012	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	0101-0607	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	0608-	●	●	●	●	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91150-212-0	09	1	0005-0602			●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91180-212-0	09	1	0603-0607			●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91180-212-0	09	1	0608-			●		●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9601-9612		●	●	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12	9-99110-512-0	12	1	9701-9702	●	●	●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9703-9703	●	●	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	9703-9803	●	●	●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9804-9806	●	●	●	●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9807-9808	●		●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9809-0004	●	●	●	●		●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91150-212-0	12	1	0005-0602	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91180-212-0	12	1	0603-0612	●
49	NUT; BRKT MIDDLE CHASSIS(FV***F) FUEL TANK 400L<SDH> M12 FLANGE	0-91180-212-0	12	1	0701-	●
49	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M12	9-99110-512-0	12	1	9601-9612	●	●	●	●
49	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9701-9702	●	●	●	●
49	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	11	1	9703-9803	●	●	●	●
49	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9804-9806	●	●	●	●
49	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M12	9-99110-512-0	12	1	9807-9808	●	●	●	●		●
49	NUT; BRKT M12	9-99110-512-0	11	1	9809-0004	●	●	●	●		●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	0005-0512	●	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	0-91110-512-0	12	1	0601-0607	●	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	0-91110-512-0	12	1	0608-	●	●	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) M12 FLANGE	0-91150-212-0	12	1	9811-9908	●	●	●	●		●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●	●	●	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9701-9805	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28681-235-0	12	1	9701-9805	●	●	●	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9806-0004	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	12	1	9806-0004	●	●	●	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	0005-0005	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	12	1	0006-0512	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28651-240-0	12	1	0601-	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L<SDH> M12X45 FLANGE	0-28081-245-0	12	1	0005-0512	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L<SDH> M12X45 FLANGE	0-28051-245-0	12	1	0601-	●	●	●	●
53	GASKET; COCK,FUEL TANK MIDDLE CHASSIS(FV***F) WHEEL BASE 4600MM(46W) FUEL TANK 200L+200L<NF7> (A) T=1.60	1-22416-001-0	02	1	9703-9803				●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (A) T=1.60	1-22416-001-0	02	1	9804-0004				●
53	GASKET; COCK,FUEL TANK MIDDLE CHASSIS(FV***F) WHEEL BASE 4600MM(46W) FUEL TANK 200L+200L<NF7> (B) T=2.0	1-22416-002-0	06	1	9703-9803				●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (B) T=2.0	1-22416-002-0	06	1	9804-0004				●
54	COCK ASM; FUEL TANK MIDDLE CHASSIS(FV***F) WHEEL BASE 4600MM(46W) FUEL TANK 200L+200L<NF7>	9-09904-176-0	02	1	9703-9803				●
54	COCK ASM; FUEL TANK FUEL TANK 200L+200L<NF7>	9-09904-176-0	02	1	9804-0004				●
55	CLIP; FUEL PIPE FUEL TANK 200L+200L<NF7> ID=14	1-09704-102-0	02	1	9703-0004	●	●	●	●
56	PIPE; FUEL SHUTTER FUEL TANK 200L+200L<NF7> L=260 SERVICED BY L=3000	0-01260-300-0	01	1	9703-0004	●	●	●	●
72	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	03	1	9601-9702		●	●	●
72	NUT; BRKT WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	03	1	9703-9803		●	●	●
72	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	03	1	9804-9806		●	●	●
72	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	03	1	9807-9810			●	●		●
72	NUT; BRKT WHEEL BASE 5000MM(50W) EXC. TAIWAN EQUIPMENT(WW5) M12	9-99110-512-0	03	1	9811-0004			●	●		●
72	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M12	9-99110-512-0	04	1	9601-9703	●	●	●	●
72	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M12 FLANGE	0-91150-212-0	04	1	9703-9803	●	●	●	●
72	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M12	9-99110-512-0	04	1	9804-9806	●	●	●	●
72	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M12	9-99110-512-0	04	1	9807-0004	●	●	●	●		●
72	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	04	1	0005-0512	●	●	●	●
72	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	0-91110-512-0	04	1	0601-0607	●	●	●	●
72	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	0-91110-512-0	04	1	0608-	●	●	●	●	●
176	CAP ASM; FILLER,SUB TANK FUEL TANK 200L+200L<NF7>	1-22440-033-2	01	1	9703-0003	●	●	●	●
176	CAP ASM; FILLER,SUB TANK FUEL TANK 200L+200L<NF7>	1-22440-067-0	01	1	0004-0004	●	●	●	●
183	WASHER; LK,SUB TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.1	9-09150-505-0	05	1	9703-0004	●	●	●	●
184	WASHER; PL,SUB TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.3	9-09160-505-0	01	1	9703-0004	●	●	●	●
217	BRACKET; FUEL TANK,LOW	1-53461-283-2	02	1	9601-9610	●	●	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FRAME SIDE<N20>	1-53461-283-2	02	1	9611-9702	●	●	●	●
217	BRACKET; FUEL TANK,LOW	1-53461-283-2	02	1	9703-9810	●	●	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L<NF7>	1-53461-283-2	02	1	9703-9810	●	●	●	●
217	BRACKET; FUEL TANK,LOW EXC. TAIWAN EQUIPMENT(WW5)	1-53461-283-2	02	1	9811-0004	●	●	●	●	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L<NF7>	1-53461-283-2	02	1	9811-0004	●	●	●	●	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FRAME SIDE<N20>	1-53461-283-2	02	1	0005-0607	●	●	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FRAME SIDE<N20>	1-53461-283-2	02	1	0608-	●	●	●	●	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9601-9702	●	●	●	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9703-9703	●	●	●	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L<NF7> ID=12.5 OD=26	9-09160-612-0	04	1	9703-9703	●	●	●	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9804-0004	●	●	●	●	●	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L<NF7> ID=12.5 OD=26	9-09160-612-0	04	1	9804-0004				●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L FRAME SIDE<N20> ID=12.5 OD=26	9-09160-612-0	04	1	0005-0006	●	●	●	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	9601-9610	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	9611-9702	●	●	●	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	9703-9810	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L<NF7> L=580	1-22553-003-0	02	1	9703-9810	●	●	●	●
237	GASKET; BRKT TO FUEL TANK EXC. TAIWAN EQUIPMENT(WW5) L=580	1-22553-003-0	02	1	9811-0004	●	●	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L<NF7> L=580	1-22553-003-0	02	1	9811-0004	●	●	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	0005-0607	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	0608-	●	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) L=480	1-22553-002-0	02	1	9811-0004	●	●	●	●		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	0005-0607	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	0608-	●	●	●	●	●
285	BOLT; BRKT M12X35 FLANGE	0-28081-235-0	04	1	9601-9606	●	●	●	●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	9607-9702	●	●	●	●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	9703-0004	●	●	●	●
285	BOLT; BRKT FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	04	1	9703-0004	●	●	●	●
285	BOLT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	04	1	0005-0512	●	●	●	●
285	BOLT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28651-240-0	04	1	0601-0607	●	●	●	●
285	BOLT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28651-240-0	04	1	0608-	●	●	●	●	●

51 43 43 49 40 285 38 217 40 51 38 237 223 35 32 72 35 237 32 29 42 42 49 42 42 22 25 19 1 8 11 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; FUEL FUEL TANK 400L<SDH> 1020X680X625 400L	1-87411-168-0	01	1	0005-0607	●	●	●	●
1	TANK; FUEL FUEL TANK 400L<SDH> 1020X680X625 400L	1-87411-168-0	01	1	0608-1202	●	●	●	●	●
1	TANK; FUEL FUEL TANK 400L<SDH> 1020X685X625 400L	1-87412-052-0	01	1	1203-	●	●	●	●	●
1	TANK; FUEL 720X610X496 200L	1-22400-996-0	01	1	9601-9610	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22400-996-0	01	1	9611-9702	●	●	●	●
1	TANK; FUEL 720X610X496 200L	1-22400-996-0	01	1	9703-9810	●	●	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) 720X610X496 200L	1-22400-996-0	01	1	9811-0003	●	●	●	●		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) 720X610X496 200L	1-22401-120-0	01	1	0004-0004	●	●	●	●		●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-120-1	01	1	0005-0112	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-192-2	01	1	0201-0607	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-192-2	01	1	0608-1505	●	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	8-98299-274-0	01	1	1506-	●	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) 1220X533X323 200L	1-22400-995-0	01	1	9811-0004	●	●	●	●		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L<SDH> (C) ID=18.2 T=1.6	8-98030-453-0	01	1	1211-	●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (A) T=1.60	1-22416-001-0	01	1	9601-9610	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) T=1.60	1-22416-001-0	01	1	9611-9702	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (A) T=1.60	1-22416-001-0	01	1	9703-9810	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) (A) T=1.60	1-22416-001-0	01	1	9811-0004	●	●	●	●		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) T=1.60	1-22416-001-0	01	1	0005-0112	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	9601-9610	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) T=2.0	9-09923-030-0	01	1	9611-9702	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	9703-9810	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	9811-0004	●	●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) T=2.0	9-09923-030-0	01	1	0005-0106	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-0112	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) ID=14.2 OD=23.0	9-09572-014-0	02	1	0201-0607	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) ID=14.2 OD=23.0	9-09572-014-0	02	1	0608-	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> (C) M18X12	0-92002-418-0	01	1	1211-	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	9601-9610	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M36	1-09604-052-0	01	1	9611-9702	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	9703-9810	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	9811-0003	●	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (B) M36	1-09604-052-0	01	1	0004-0004	●	●	●	●		●
11	PLUG; DRAIN,FUEL TANK (A) M18X12	1-09604-081-0	01	1	9601-9610	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M18X12	1-09604-081-0	01	1	9611-9702	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (A) M18X12	1-09604-081-0	01	1	9703-9810	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) (A) M18X12	1-09604-081-0	01	1	9811-0004	●	●	●	●		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M18X12	1-09604-081-0	01	1	0005-0112	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) (A) M36	1-09604-052-0	01	1	0004-0004	●	●	●	●		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M36	1-09604-052-0	01	1	0005-0106	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M14X14	9-09862-156-0	01	1	0107-0112	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M14X14	9-09862-156-0	02	1	0201-0607	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M14X14	9-09862-156-0	02	1	0608-	●	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71	5-83148-001-0	01	1	0005-0612	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71	5-83148-001-0	01	1	0701-	●	●	●	●	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	9601-9610	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20>	9-83135-003-0	01	1	9611-9702	●	●	●	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	9703-9810	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5)	9-83135-003-0	01	1	9811-0004	●	●	●	●		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) ID=42	9-83135-011-0	01	1	9811-0004	●	●	●	●		●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	0005-0607	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	0608-1210	●	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=54.5	8-98299-580-0	01	1	1211-	●	●	●	●	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	9601-9610	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	9611-9702	●	●	●	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	9703-9810	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5)	1-83141-124-0	01	1	9811-0004	●	●	●	●		●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	0005-0607	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	0608-1505	●	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	8-98296-671-0	01	1	1506-	●	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5)	1-83141-084-1	01	1	9811-0004	●	●	●	●		●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	0005-0607	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	0608-1210	●	●	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-033-2	01	1	9601-9610	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-033-2	01	1	9611-9702	●	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-033-2	01	1	9703-9810	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5)	1-22440-033-2	01	1	9811-0003	●	●	●	●		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5)	1-22440-067-0	01	1	0004-0004	●	●	●	●		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-067-0	01	1	0005-0109	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-069-0	01	1	0110-0112	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-067-0	01	1	0201-0309	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-070-0	01	1	0310-0404	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-046-1	01	1	0405-0607	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-046-1	01	1	0608-	●	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5)	1-22440-028-0	01	1	9811-0004	●	●	●	●		●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH>	1-22440-056-0	01	1	0005-0607	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH>	1-22440-056-0	01	1	0608-	●	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	9601-9610	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	01	1	9611-9702	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	9703-9810	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	9811-0004	●	●	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	01	1	0005-0605	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	0-91610-505-0	01	1	0606-0607	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	0-91610-505-0	01	1	0608-	●	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	05	1	9601-9610	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	05	1	9611-9702	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	05	1	9703-9810	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) ID=5.1	9-09150-505-0	05	1	9811-0004	●	●	●	●		●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	05	1	0005-0603	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	0-91510-505-0	05	1	0604-0607	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	0-91510-505-0	05	1	0608-	●	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) ID=5.1	9-09150-505-0	01	1	9811-0004	●	●	●	●		●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	9601-9610	●	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	9611-9702	●	●	●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	9703-9810	●	●	●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	9811-0004	●	●	●	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	0005-0604	●	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	0-34218-510-0	05	1	0605-0607	●	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	0-34218-510-0	05	1	0608-	●	●	●	●	●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	9601-9610	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=650	1-22553-022-1	02	1	9611-9702	●	●	●	●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	9703-9810	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> L=650	1-22553-022-1	02	1	9703-9810	●	●	●	●
38	INSULATION; SUPPORT BELT EXC. TAIWAN EQUIPMENT(WW5) L=650	1-22553-022-1	02	1	9811-0004	●	●	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> L=650	1-22553-022-1	02	1	9811-0004	●	●	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=650	1-22553-022-1	02	1	0005-0607	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=650	1-22553-022-1	02	1	0608-	●	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) L=540	1-22553-014-2	02	1	9811-0004	●	●	●	●		●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	0005-0607	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	0608-	●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-1	02	1	9601-9610	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-1	02	1	9611-9702	●	●	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-1	02	1	9703-9810	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-1	02	1	9703-9810	●	●	●	●
40	BELT; SUPPORT,FUEL TANK EXC. TAIWAN EQUIPMENT(WW5) L=1030	1-22550-204-1	02	1	9811-0004	●	●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-1	02	1	9811-0004	●	●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-2	02	1	0005-0607	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-2	02	1	0608-	●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) L=775	1-22550-211-1	02	1	9811-0004	●	●	●	●		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1205	1-22550-227-2	02	1	0005-0607	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1205	1-22550-227-2	02	1	0608-	●	●	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9601-9610	●	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	04	1	9611-9702	●	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9703-0004	●	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	9703-0004	●	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0005-	●	●	●	●		●
42	NUT; SUPPORT BELT FUEL TANK 400L<SDH> M10	9-09110-510-0	04	1	0005-	●	●	●	●		●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0204-0512	●	●	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-0607	●	●	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0608-	●	●	●	●	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	9601-9610	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	9611-9702	●	●	●	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	9703-9810	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7>	1-53461-279-4	02	1	9703-9810	●	●	●	●
43	BRACKET; FUEL TANK EXC. TAIWAN EQUIPMENT(WW5)	1-53461-279-4	02	1	9811-0004	●	●	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7>	1-53461-279-4	02	1	9811-0004	●	●	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	0005-0607	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	0608-	●	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5)	1-53461-206-1	02	1	9811-0004	●	●	●	●		●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-458-2	02	1	0005-0012	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	0101-0607	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	0608-	●	●	●	●	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91150-212-0	09	1	0005-0602			●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91180-212-0	09	1	0603-0607			●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91180-212-0	09	1	0608-			●		●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9601-9612		●	●	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12	9-99110-512-0	12	1	9701-9702	●	●	●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9703-9703	●	●	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	9703-9803	●	●	●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9804-9806	●	●	●	●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9807-9808	●		●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9809-0004	●	●	●	●		●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91150-212-0	12	1	0005-0602	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91180-212-0	12	1	0603-0612	●
49	NUT; BRKT MIDDLE CHASSIS(FV***F) FUEL TANK 400L<SDH> M12 FLANGE	0-91180-212-0	12	1	0701-	●
49	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M12	9-99110-512-0	12	1	9601-9612	●	●	●	●
49	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9701-9702	●	●	●	●
49	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	11	1	9703-9803	●	●	●	●
49	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9804-9806	●	●	●	●
49	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M12	9-99110-512-0	12	1	9807-9808	●	●	●	●		●
49	NUT; BRKT M12	9-99110-512-0	11	1	9809-0004	●	●	●	●		●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	0005-0512	●	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	0-91110-512-0	12	1	0601-0607	●	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	0-91110-512-0	12	1	0608-	●	●	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) M12 FLANGE	0-91150-212-0	12	1	9811-9908	●	●	●	●		●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●	●	●	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9701-9805	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28681-235-0	12	1	9701-9805	●	●	●	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9806-0004	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	12	1	9806-0004	●	●	●	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	0005-0005	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	12	1	0006-0512	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28651-240-0	12	1	0601-	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L<SDH> M12X45 FLANGE	0-28081-245-0	12	1	0005-0512	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L<SDH> M12X45 FLANGE	0-28051-245-0	12	1	0601-	●	●	●	●
72	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	03	1	9601-9702		●	●	●
72	NUT; BRKT WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	03	1	9703-9803		●	●	●
72	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	03	1	9804-9806		●	●	●
72	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	03	1	9807-9810			●	●		●
72	NUT; BRKT WHEEL BASE 5000MM(50W) EXC. TAIWAN EQUIPMENT(WW5) M12	9-99110-512-0	03	1	9811-0004			●	●		●
72	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M12	9-99110-512-0	04	1	9601-9703	●	●	●	●
72	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M12 FLANGE	0-91150-212-0	04	1	9703-9803	●	●	●	●
72	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M12	9-99110-512-0	04	1	9804-9806	●	●	●	●
72	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M12	9-99110-512-0	04	1	9807-0004	●	●	●	●		●
72	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	04	1	0005-0512	●	●	●	●
72	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	0-91110-512-0	04	1	0601-0607	●	●	●	●
72	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	0-91110-512-0	04	1	0608-	●	●	●	●	●
217	BRACKET; FUEL TANK,LOW	1-53461-283-2	02	1	9601-9610	●	●	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FRAME SIDE<N20>	1-53461-283-2	02	1	9611-9702	●	●	●	●
217	BRACKET; FUEL TANK,LOW	1-53461-283-2	02	1	9703-9810	●	●	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L<NF7>	1-53461-283-2	02	1	9703-9810	●	●	●	●
217	BRACKET; FUEL TANK,LOW EXC. TAIWAN EQUIPMENT(WW5)	1-53461-283-2	02	1	9811-0004	●	●	●	●	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L<NF7>	1-53461-283-2	02	1	9811-0004	●	●	●	●	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FRAME SIDE<N20>	1-53461-283-2	02	1	0005-0607	●	●	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FRAME SIDE<N20>	1-53461-283-2	02	1	0608-	●	●	●	●	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9601-9702	●	●	●	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9703-9703	●	●	●	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L<NF7> ID=12.5 OD=26	9-09160-612-0	04	1	9703-9703	●	●	●	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9804-0004	●	●	●	●	●	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L<NF7> ID=12.5 OD=26	9-09160-612-0	04	1	9804-0004				●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L FRAME SIDE<N20> ID=12.5 OD=26	9-09160-612-0	04	1	0005-0006	●	●	●	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	9601-9610	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	9611-9702	●	●	●	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	9703-9810	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L<NF7> L=580	1-22553-003-0	02	1	9703-9810	●	●	●	●
237	GASKET; BRKT TO FUEL TANK EXC. TAIWAN EQUIPMENT(WW5) L=580	1-22553-003-0	02	1	9811-0004	●	●	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L<NF7> L=580	1-22553-003-0	02	1	9811-0004	●	●	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	0005-0607	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	0608-	●	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) L=480	1-22553-002-0	02	1	9811-0004	●	●	●	●		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	0005-0607	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	0608-	●	●	●	●	●
285	BOLT; BRKT M12X35 FLANGE	0-28081-235-0	04	1	9601-9606	●	●	●	●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	9607-9702	●	●	●	●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	9703-0004	●	●	●	●
285	BOLT; BRKT FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	04	1	9703-0004	●	●	●	●
285	BOLT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	04	1	0005-0512	●	●	●	●
285	BOLT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28651-240-0	04	1	0601-0607	●	●	●	●
285	BOLT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28651-240-0	04	1	0608-	●	●	●	●	●

40 38 43 51 43 237 237 35 49 42 42 40 38 32 29 35 411 42 42 22 19 25 1 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; FUEL FUEL TANK 400L<SDH> 1020X680X625 400L	1-87411-168-0	01	1	0005-0607	●	●	●	●
1	TANK; FUEL FUEL TANK 400L<SDH> 1020X680X625 400L	1-87411-168-0	01	1	0608-1202	●	●	●	●	●
1	TANK; FUEL FUEL TANK 400L<SDH> 1020X685X625 400L	1-87412-052-0	01	1	1203-	●	●	●	●	●
1	TANK; FUEL 720X610X496 200L	1-22400-996-0	01	1	9601-9610	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22400-996-0	01	1	9611-9702	●	●	●	●
1	TANK; FUEL 720X610X496 200L	1-22400-996-0	01	1	9703-9810	●	●	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) 720X610X496 200L	1-22400-996-0	01	1	9811-0003	●	●	●	●		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) 720X610X496 200L	1-22401-120-0	01	1	0004-0004	●	●	●	●		●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-120-1	01	1	0005-0112	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-192-2	01	1	0201-0607	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-192-2	01	1	0608-1505	●	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	8-98299-274-0	01	1	1506-	●	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) 1220X533X323 200L	1-22400-995-0	01	1	9811-0004	●	●	●	●		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L<SDH> (C) ID=18.2 T=1.6	8-98030-453-0	01	1	1211-	●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (A) T=1.60	1-22416-001-0	01	1	9601-9610	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) T=1.60	1-22416-001-0	01	1	9611-9702	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (A) T=1.60	1-22416-001-0	01	1	9703-9810	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) (A) T=1.60	1-22416-001-0	01	1	9811-0004	●	●	●	●		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) T=1.60	1-22416-001-0	01	1	0005-0112	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	9601-9610	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) T=2.0	9-09923-030-0	01	1	9611-9702	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	9703-9810	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	9811-0004	●	●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) T=2.0	9-09923-030-0	01	1	0005-0106	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-0112	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) ID=14.2 OD=23.0	9-09572-014-0	02	1	0201-0607	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) ID=14.2 OD=23.0	9-09572-014-0	02	1	0608-	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> (C) M18X12	0-92002-418-0	01	1	1211-	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	9601-9610	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M36	1-09604-052-0	01	1	9611-9702	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	9703-9810	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	9811-0003	●	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (B) M36	1-09604-052-0	01	1	0004-0004	●	●	●	●		●
11	PLUG; DRAIN,FUEL TANK (A) M18X12	1-09604-081-0	01	1	9601-9610	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M18X12	1-09604-081-0	01	1	9611-9702	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (A) M18X12	1-09604-081-0	01	1	9703-9810	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) (A) M18X12	1-09604-081-0	01	1	9811-0004	●	●	●	●		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M18X12	1-09604-081-0	01	1	0005-0112	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) (A) M36	1-09604-052-0	01	1	0004-0004	●	●	●	●		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M36	1-09604-052-0	01	1	0005-0106	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M14X14	9-09862-156-0	01	1	0107-0112	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M14X14	9-09862-156-0	02	1	0201-0607	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M14X14	9-09862-156-0	02	1	0608-	●	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71	5-83148-001-0	01	1	0005-0612	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71	5-83148-001-0	01	1	0701-	●	●	●	●	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	9601-9610	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20>	9-83135-003-0	01	1	9611-9702	●	●	●	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	9703-9810	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5)	9-83135-003-0	01	1	9811-0004	●	●	●	●		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) ID=42	9-83135-011-0	01	1	9811-0004	●	●	●	●		●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	0005-0607	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	0608-1210	●	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=54.5	8-98299-580-0	01	1	1211-	●	●	●	●	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	9601-9610	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	9611-9702	●	●	●	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	9703-9810	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5)	1-83141-124-0	01	1	9811-0004	●	●	●	●		●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	0005-0607	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	0608-1505	●	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	8-98296-671-0	01	1	1506-	●	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5)	1-83141-084-1	01	1	9811-0004	●	●	●	●		●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	0005-0607	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	0608-1210	●	●	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-033-2	01	1	9601-9610	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-033-2	01	1	9611-9702	●	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-033-2	01	1	9703-9810	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5)	1-22440-033-2	01	1	9811-0003	●	●	●	●		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5)	1-22440-067-0	01	1	0004-0004	●	●	●	●		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-067-0	01	1	0005-0109	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-069-0	01	1	0110-0112	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-067-0	01	1	0201-0309	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-070-0	01	1	0310-0404	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-046-1	01	1	0405-0607	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-046-1	01	1	0608-	●	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5)	1-22440-028-0	01	1	9811-0004	●	●	●	●		●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH>	1-22440-056-0	01	1	0005-0607	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH>	1-22440-056-0	01	1	0608-	●	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	9601-9610	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	01	1	9611-9702	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	9703-9810	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	9811-0004	●	●	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	01	1	0005-0605	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	0-91610-505-0	01	1	0606-0607	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	0-91610-505-0	01	1	0608-	●	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	05	1	9601-9610	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	05	1	9611-9702	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	05	1	9703-9810	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) ID=5.1	9-09150-505-0	05	1	9811-0004	●	●	●	●		●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	05	1	0005-0603	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	0-91510-505-0	05	1	0604-0607	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	0-91510-505-0	05	1	0608-	●	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) ID=5.1	9-09150-505-0	01	1	9811-0004	●	●	●	●		●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	9601-9610	●	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	9611-9702	●	●	●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	9703-9810	●	●	●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	9811-0004	●	●	●	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	0005-0604	●	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	0-34218-510-0	05	1	0605-0607	●	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	0-34218-510-0	05	1	0608-	●	●	●	●	●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	9601-9610	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=650	1-22553-022-1	02	1	9611-9702	●	●	●	●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	9703-9810	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> L=650	1-22553-022-1	02	1	9703-9810	●	●	●	●
38	INSULATION; SUPPORT BELT EXC. TAIWAN EQUIPMENT(WW5) L=650	1-22553-022-1	02	1	9811-0004	●	●	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> L=650	1-22553-022-1	02	1	9811-0004	●	●	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=650	1-22553-022-1	02	1	0005-0607	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=650	1-22553-022-1	02	1	0608-	●	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) L=540	1-22553-014-2	02	1	9811-0004	●	●	●	●		●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	0005-0607	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	0608-	●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-1	02	1	9601-9610	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-1	02	1	9611-9702	●	●	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-1	02	1	9703-9810	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-1	02	1	9703-9810	●	●	●	●
40	BELT; SUPPORT,FUEL TANK EXC. TAIWAN EQUIPMENT(WW5) L=1030	1-22550-204-1	02	1	9811-0004	●	●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-1	02	1	9811-0004	●	●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-2	02	1	0005-0607	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-2	02	1	0608-	●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) L=775	1-22550-211-1	02	1	9811-0004	●	●	●	●		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1205	1-22550-227-2	02	1	0005-0607	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1205	1-22550-227-2	02	1	0608-	●	●	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9601-9610	●	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	04	1	9611-9702	●	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9703-0004	●	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	9703-0004	●	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0005-	●	●	●	●		●
42	NUT; SUPPORT BELT FUEL TANK 400L<SDH> M10	9-09110-510-0	04	1	0005-	●	●	●	●		●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0204-0512	●	●	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-0607	●	●	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0608-	●	●	●	●	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	9601-9610	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	9611-9702	●	●	●	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	9703-9810	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7>	1-53461-279-4	02	1	9703-9810	●	●	●	●
43	BRACKET; FUEL TANK EXC. TAIWAN EQUIPMENT(WW5)	1-53461-279-4	02	1	9811-0004	●	●	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7>	1-53461-279-4	02	1	9811-0004	●	●	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	0005-0607	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	0608-	●	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5)	1-53461-206-1	02	1	9811-0004	●	●	●	●		●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-458-2	02	1	0005-0012	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	0101-0607	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	0608-	●	●	●	●	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91150-212-0	09	1	0005-0602			●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91180-212-0	09	1	0603-0607			●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91180-212-0	09	1	0608-			●		●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9601-9612		●	●	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12	9-99110-512-0	12	1	9701-9702	●	●	●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9703-9703	●	●	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	9703-9803	●	●	●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9804-9806	●	●	●	●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9807-9808	●		●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9809-0004	●	●	●	●		●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91150-212-0	12	1	0005-0602	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91180-212-0	12	1	0603-0612	●
49	NUT; BRKT MIDDLE CHASSIS(FV***F) FUEL TANK 400L<SDH> M12 FLANGE	0-91180-212-0	12	1	0701-	●
49	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M12	9-99110-512-0	12	1	9601-9612	●	●	●	●
49	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9701-9702	●	●	●	●
49	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	11	1	9703-9803	●	●	●	●
49	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9804-9806	●	●	●	●
49	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M12	9-99110-512-0	12	1	9807-9808	●	●	●	●		●
49	NUT; BRKT M12	9-99110-512-0	11	1	9809-0004	●	●	●	●		●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	0005-0512	●	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	0-91110-512-0	12	1	0601-0607	●	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	0-91110-512-0	12	1	0608-	●	●	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) M12 FLANGE	0-91150-212-0	12	1	9811-9908	●	●	●	●		●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●	●	●	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9701-9805	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28681-235-0	12	1	9701-9805	●	●	●	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9806-0004	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	12	1	9806-0004	●	●	●	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	0005-0005	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	12	1	0006-0512	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28651-240-0	12	1	0601-	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L<SDH> M12X45 FLANGE	0-28081-245-0	12	1	0005-0512	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L<SDH> M12X45 FLANGE	0-28051-245-0	12	1	0601-	●	●	●	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	9601-9610	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	9611-9702	●	●	●	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	9703-9810	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L<NF7> L=580	1-22553-003-0	02	1	9703-9810	●	●	●	●
237	GASKET; BRKT TO FUEL TANK EXC. TAIWAN EQUIPMENT(WW5) L=580	1-22553-003-0	02	1	9811-0004	●	●	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L<NF7> L=580	1-22553-003-0	02	1	9811-0004	●	●	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	0005-0607	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	0608-	●	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) L=480	1-22553-002-0	02	1	9811-0004	●	●	●	●		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	0005-0607	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	0608-	●	●	●	●	●
411	CLIP; FUEL TANK UNIT HARNESS FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) L=50	1-09700-416-0	01	1	9811-0004	●	●	●	●		●

51 49 43 43 237 237 42 42 42 42 40 40 38 38 49 25 516 8 16 13 11 274 19 3 19 22 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; FUEL FUEL TANK 400L<SDH> 1020X680X625 400L	1-87411-168-0	01	1	0005-0607	●	●	●	●
1	TANK; FUEL FUEL TANK 400L<SDH> 1020X680X625 400L	1-87411-168-0	01	1	0608-1202	●	●	●	●	●
1	TANK; FUEL FUEL TANK 400L<SDH> 1020X685X625 400L	1-87412-052-0	01	1	1203-	●	●	●	●	●
1	TANK; FUEL 720X610X496 200L	1-22400-996-0	01	1	9601-9610	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22400-996-0	01	1	9611-9702	●	●	●	●
1	TANK; FUEL 720X610X496 200L	1-22400-996-0	01	1	9703-9810	●	●	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) 720X610X496 200L	1-22400-996-0	01	1	9811-0003	●	●	●	●		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) 720X610X496 200L	1-22401-120-0	01	1	0004-0004	●	●	●	●		●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-120-1	01	1	0005-0112	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-192-2	01	1	0201-0607	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-192-2	01	1	0608-1505	●	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	8-98299-274-0	01	1	1506-	●	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) 1220X533X323 200L	1-22400-995-0	01	1	9811-0004	●	●	●	●		●
3	UNIT; FUEL TANK,SUB FUEL TANK 400L<SDH>	8-98217-749-0	01	1	1211-	●	●	●	●	●
3	UNIT; FUEL TANK,SUB FUEL TANK 200L+200L<NF7>	1-83141-124-0	01	1	9703-0004	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L<SDH> (C) ID=18.2 T=1.6	8-98030-453-0	01	1	1211-	●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (A) T=1.60	1-22416-001-0	01	1	9601-9610	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) T=1.60	1-22416-001-0	01	1	9611-9702	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (A) T=1.60	1-22416-001-0	01	1	9703-9810	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) (A) T=1.60	1-22416-001-0	01	1	9811-0004	●	●	●	●		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) T=1.60	1-22416-001-0	01	1	0005-0112	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	9601-9610	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) T=2.0	9-09923-030-0	01	1	9611-9702	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	9703-9810	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	9811-0004	●	●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) T=2.0	9-09923-030-0	01	1	0005-0106	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-0112	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) ID=14.2 OD=23.0	9-09572-014-0	02	1	0201-0607	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) ID=14.2 OD=23.0	9-09572-014-0	02	1	0608-	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> (C) M18X12	0-92002-418-0	01	1	1211-	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	9601-9610	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M36	1-09604-052-0	01	1	9611-9702	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	9703-9810	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	9811-0003	●	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (B) M36	1-09604-052-0	01	1	0004-0004	●	●	●	●		●
11	PLUG; DRAIN,FUEL TANK (A) M18X12	1-09604-081-0	01	1	9601-9610	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M18X12	1-09604-081-0	01	1	9611-9702	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (A) M18X12	1-09604-081-0	01	1	9703-9810	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) (A) M18X12	1-09604-081-0	01	1	9811-0004	●	●	●	●		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M18X12	1-09604-081-0	01	1	0005-0112	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) (A) M36	1-09604-052-0	01	1	0004-0004	●	●	●	●		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M36	1-09604-052-0	01	1	0005-0106	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M14X14	9-09862-156-0	01	1	0107-0112	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M14X14	9-09862-156-0	02	1	0201-0607	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M14X14	9-09862-156-0	02	1	0608-	●	●	●	●	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 400L<SDH> M18X12	9-99202-318-0	01	1	0005-0606	●	●	●	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 400L<SDH> M18X12	0-92002-418-0	01	1	0607-0607	●	●	●	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 400L<SDH> M18X12	0-92002-418-0	01	1	0608-1210	●	●	●	●	●
16	GASKET; PLUG FUEL TANK 400L<SDH> T=1.60	1-22416-001-0	01	1	0005-0509	●	●	●	●
16	GASKET; PLUG FUEL TANK 400L<SDH> ID=18.2 T=1.6	8-98030-453-0	01	1	0510-0607	●	●	●	●
16	GASKET; PLUG FUEL TANK 400L<SDH> ID=18.2 T=1.6	8-98030-453-0	01	1	0608-1210	●	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71	5-83148-001-0	01	1	0005-0612	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71	5-83148-001-0	01	1	0701-	●	●	●	●	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	9601-9610	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20>	9-83135-003-0	01	1	9611-9702	●	●	●	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	9703-9810	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5)	9-83135-003-0	01	1	9811-0004	●	●	●	●		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) ID=42	9-83135-011-0	01	1	9811-0004	●	●	●	●		●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	0005-0607	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	0608-1210	●	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=54.5	8-98299-580-0	01	1	1211-	●	●	●	●	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	9601-9610	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	9611-9702	●	●	●	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	9703-9810	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5)	1-83141-124-0	01	1	9811-0004	●	●	●	●		●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	0005-0607	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	0608-1505	●	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	8-98296-671-0	01	1	1506-	●	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5)	1-83141-084-1	01	1	9811-0004	●	●	●	●		●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	0005-0607	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	0608-1210	●	●	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-033-2	01	1	9601-9610	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-033-2	01	1	9611-9702	●	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-033-2	01	1	9703-9810	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5)	1-22440-033-2	01	1	9811-0003	●	●	●	●		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5)	1-22440-067-0	01	1	0004-0004	●	●	●	●		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-067-0	01	1	0005-0109	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-069-0	01	1	0110-0112	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-067-0	01	1	0201-0309	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-070-0	01	1	0310-0404	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-046-1	01	1	0405-0607	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-046-1	01	1	0608-	●	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5)	1-22440-028-0	01	1	9811-0004	●	●	●	●		●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH>	1-22440-056-0	01	1	0005-0607	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH>	1-22440-056-0	01	1	0608-	●	●	●	●	●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	9601-9610	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=650	1-22553-022-1	02	1	9611-9702	●	●	●	●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	9703-9810	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> L=650	1-22553-022-1	02	1	9703-9810	●	●	●	●
38	INSULATION; SUPPORT BELT EXC. TAIWAN EQUIPMENT(WW5) L=650	1-22553-022-1	02	1	9811-0004	●	●	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> L=650	1-22553-022-1	02	1	9811-0004	●	●	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=650	1-22553-022-1	02	1	0005-0607	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=650	1-22553-022-1	02	1	0608-	●	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) L=540	1-22553-014-2	02	1	9811-0004	●	●	●	●		●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	0005-0607	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	0608-	●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-1	02	1	9601-9610	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-1	02	1	9611-9702	●	●	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-1	02	1	9703-9810	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-1	02	1	9703-9810	●	●	●	●
40	BELT; SUPPORT,FUEL TANK EXC. TAIWAN EQUIPMENT(WW5) L=1030	1-22550-204-1	02	1	9811-0004	●	●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-1	02	1	9811-0004	●	●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-2	02	1	0005-0607	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-2	02	1	0608-	●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) L=775	1-22550-211-1	02	1	9811-0004	●	●	●	●		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1205	1-22550-227-2	02	1	0005-0607	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1205	1-22550-227-2	02	1	0608-	●	●	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9601-9610	●	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	04	1	9611-9702	●	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9703-0004	●	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	9703-0004	●	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0005-	●	●	●	●		●
42	NUT; SUPPORT BELT FUEL TANK 400L<SDH> M10	9-09110-510-0	04	1	0005-	●	●	●	●		●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0204-0512	●	●	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-0607	●	●	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0608-	●	●	●	●	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	9601-9610	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	9611-9702	●	●	●	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	9703-9810	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7>	1-53461-279-4	02	1	9703-9810	●	●	●	●
43	BRACKET; FUEL TANK EXC. TAIWAN EQUIPMENT(WW5)	1-53461-279-4	02	1	9811-0004	●	●	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7>	1-53461-279-4	02	1	9811-0004	●	●	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	0005-0607	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	0608-	●	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5)	1-53461-206-1	02	1	9811-0004	●	●	●	●		●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-458-2	02	1	0005-0012	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	0101-0607	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	0608-	●	●	●	●	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91150-212-0	09	1	0005-0602			●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91180-212-0	09	1	0603-0607			●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91180-212-0	09	1	0608-			●		●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9601-9612		●	●	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12	9-99110-512-0	12	1	9701-9702	●	●	●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9703-9703	●	●	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	9703-9803	●	●	●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9804-9806	●	●	●	●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9807-9808	●		●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9809-0004	●	●	●	●		●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91150-212-0	12	1	0005-0602	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91180-212-0	12	1	0603-0612	●
49	NUT; BRKT MIDDLE CHASSIS(FV***F) FUEL TANK 400L<SDH> M12 FLANGE	0-91180-212-0	12	1	0701-	●
49	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M12	9-99110-512-0	12	1	9601-9612	●	●	●	●
49	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9701-9702	●	●	●	●
49	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	11	1	9703-9803	●	●	●	●
49	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9804-9806	●	●	●	●
49	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M12	9-99110-512-0	12	1	9807-9808	●	●	●	●		●
49	NUT; BRKT M12	9-99110-512-0	11	1	9809-0004	●	●	●	●		●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	0005-0512	●	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	0-91110-512-0	12	1	0601-0607	●	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	0-91110-512-0	12	1	0608-	●	●	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) M12 FLANGE	0-91150-212-0	12	1	9811-9908	●	●	●	●		●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●	●	●	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9701-9805	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28681-235-0	12	1	9701-9805	●	●	●	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9806-0004	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	12	1	9806-0004	●	●	●	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	0005-0005	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	12	1	0006-0512	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28651-240-0	12	1	0601-	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L<SDH> M12X45 FLANGE	0-28081-245-0	12	1	0005-0512	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L<SDH> M12X45 FLANGE	0-28051-245-0	12	1	0601-	●	●	●	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	9601-9610	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	9611-9702	●	●	●	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	9703-9810	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L<NF7> L=580	1-22553-003-0	02	1	9703-9810	●	●	●	●
237	GASKET; BRKT TO FUEL TANK EXC. TAIWAN EQUIPMENT(WW5) L=580	1-22553-003-0	02	1	9811-0004	●	●	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L<NF7> L=580	1-22553-003-0	02	1	9811-0004	●	●	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	0005-0607	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	0608-	●	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) L=480	1-22553-002-0	02	1	9811-0004	●	●	●	●		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	0005-0607	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	0608-	●	●	●	●	●
274	CONNECTOR; ELBOW,FUEL TANK PIPE FUEL TANK 400L<SDH>	1-83149-006-0	02	1	0005-0612	●	●	●	●
274	CONNECTOR; ELBOW,FUEL TANK PIPE FUEL TANK 400L<SDH>	1-83149-006-0	02	1	0701-1210	●	●	●	●	●
516	GASKET; CAP FUEL TANK 400L<SDH> ID=78	8-98259-383-0	01	1	0005-0607	●	●	●	●
516	GASKET; CAP FUEL TANK 400L<SDH> ID=78	8-98259-383-0	01	1	0608-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
