◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50685 - WFR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#37409) — 70 parça

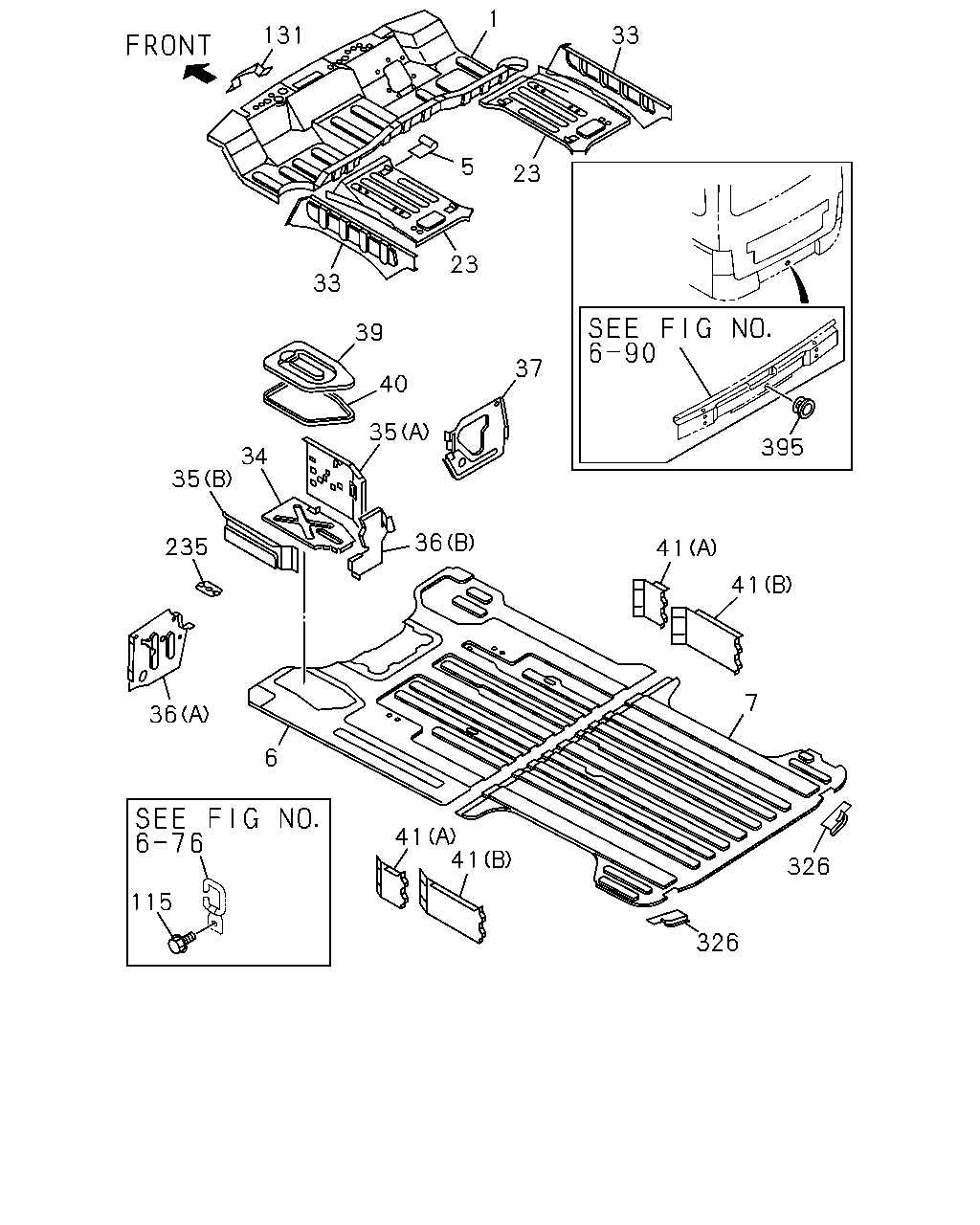

çizim 65901
1 131 33 5 23 23 33 39 37 40 35 395 34 35 36 235 41 41 7 36 6 41 41 326 115 326
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR
4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y) FLOOR REMOTE SHIFT<M11> 		8-94348-137-2 01 1 9307- ●
1 PANEL; FLOOR
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) EXC. FLOOR REMOTE SHIFT<M11> 		8-94348-137-2 01 1 9307- ●
1 PANEL; FLOOR
EXC. FLOOR REMOTE SHIFT<M11> 		8-94348-137-2 01 1 9307- ●
1 PANEL; FLOOR
4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) EXC. FLOOR REMOTE SHIFT<M11> 		8-94348-141-2 01 1 9307- ●
1 PANEL; FLOOR
5 DOOR PANEL VAN(V4P),4 DOOR WAGON(V4W),5 DOOR VAN(V4X),4 DOOR BUS(V4Z) FLOOR REMOTE SHIFT<M11> 		8-94348-136-2 01 1 9307- ●
1 PANEL; FLOOR
FLOOR REMOTE SHIFT<M11> 		8-94348-136-2 01 1 9307- ●
5 HINGE; SUPPORT COVER 8-94291-316-1 04 1 9307- ●
5 HINGE; SUPPORT COVER
EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-94291-316-1 04 1 9307- ●
6 PANEL; RR FLOOR,CENTER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z) 		8-94268-166-2 01 1 9307- ●
6 PANEL; RR FLOOR,CENTER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W) 		8-94268-161-2 01 1 9307- ●
6 PANEL; RR FLOOR,CENTER
4 DOOR BUS(V4Z) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94268-165-2 01 1 9307- ●
6 PANEL; RR FLOOR,CENTER
4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y) 		8-94268-152-2 01 1 9307- ●
6 PANEL; RR FLOOR,CENTER
4 DOOR WAGON(V4W) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94268-160-2 01 1 9307- ●
6 PANEL; RR FLOOR,CENTER
5 DOOR PANEL VAN(V4P),5 DOOR VAN(V4X) 		8-94268-154-2 01 1 9307- ●
6 PANEL; RR FLOOR,CENTER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z) 		8-94268-177-2 01 1 9307- ●
6 PANEL; RR FLOOR,CENTER
4 DOOR BUS(V4Z) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94268-176-2 01 1 9307- ●
6 PANEL; RR FLOOR,CENTER
4 DOOR VAN(V4V) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) EXC. REAR HEATER<C35> 		8-94264-474-1 01 1 9307- ●
6 PANEL; RR FLOOR,CENTER
4 DOOR VAN(V4V) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) 		8-94264-472-1 01 1 9307- ●
6 PANEL; RR FLOOR,CENTER
4 DOOR VAN(V4V) REAR HEATER<C35> AIR CONDITIONER MANUAL CONT FRT&RR(EM2) SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) 		8-94348-560-1 01 1 9307- ●
6 PANEL; RR FLOOR,CENTER
4 DOOR VAN(V4V) REAR HEATER<C35> SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94348-561-1 01 1 9307- ●
6 PANEL; RR FLOOR,CENTER
4 DOOR VAN(V4V) SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) EXC. REAR HEATER<C35>,AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94268-170-2 01 1 9307- ●
6 PANEL; RR FLOOR,CENTER
4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2), SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) 		8-94268-169-2 01 1 9307- ●
6 PANEL; RR FLOOR,CENTER
5 DOOR PANEL VAN(V4P),5 DOOR VAN(V4X) EXC. SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) 		8-94268-174-2 01 1 9307- ●
6 PANEL; RR FLOOR,CENTER
5 DOOR VAN(V4X) SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) 		8-94346-873-1 01 1 9307- ●
7 PANEL; RR FLOOR,RR
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z) 		8-94268-244-1 01 1 9307- ●
7 PANEL; RR FLOOR,RR
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W) 		8-94268-239-0 01 1 9307-9307 ●
7 PANEL; RR FLOOR,RR
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W) '930719- 		8-94353-924-0 01 1 9307- ●
7 PANEL; RR FLOOR,RR
4 DOOR BUS(V4Z) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94268-243-1 01 1 9307- ●
7 PANEL; RR FLOOR,RR
4 DOOR WAGON(V4W) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94268-240-1 01 1 9307- ●
7 PANEL; RR FLOOR,RR
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) 		8-94348-462-0 01 1 9307- ● ●
7 PANEL; RR FLOOR,RR
4 DOOR BUS(V4Z) 		8-94268-248-2 01 1 9307- ●
23 PANEL; FLOOR,SIDE 8-94264-390-2 01 1 9307- ●
23 PANEL; FLOOR,SIDE
EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-94264-390-2 01 1 9307- ●
23 PANEL; FLOOR,SIDE 8-94264-389-2 01 1 9307- ●
23 PANEL; FLOOR,SIDE
EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-94264-389-2 01 1 9307- ●
23 PANEL; FLOOR,SIDE
SOUTH AFRICA EQUIPMENT(SW2) 4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) 		8-94264-923-2 01 1 9307- ●
23 PANEL; FLOOR,SIDE
SOUTH AFRICA EQUIPMENT(SW2) 4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) 		8-94274-997-2 01 1 9307- ●
33 PANEL; VALANCE 8-94346-767-1 01 1 9307- ●
33 PANEL; VALANCE
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),4 DOOR PANELVAN(V4Y) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-94346-767-1 01 1 9307- ●
33 PANEL; VALANCE
5 DOOR VAN(V4X) EXC. SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) 		8-94346-767-1 01 1 9307- ●
33 PANEL; VALANCE 8-94277-870-5 01 1 9307- ●
33 PANEL; VALANCE
EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-94277-870-5 01 1 9307- ●
33 PANEL; VALANCE
SOUTH AFRICA EQUIPMENT(SW2) 4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) 		8-94346-729-2 01 1 9307- ●
33 PANEL; VALANCE
SOUTH AFRICA EQUIPMENT(SW2) 4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) 		8-94277-759-4 01 1 9307- ●
33 PANEL; VALANCE
5 DOOR VAN(V4X) SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) 		8-94277-871-3 01 1 9307- ●
34 PANEL; BASE,BATTERY 8-94346-057-0 01 1 9307- ● ●
35 PANEL; BATTERY
(B) 		8-94277-147-2 01 1 9307- ● ●
35 PANEL; BATTERY
(A) 		8-94346-792-0 01 1 9307- ● ●
36 CLOSING; BATTERY
(B) REAR 		8-94277-143-2 01 1 9307- ● ●
36 CLOSING; BATTERY
(A) FRONT 		8-94285-015-4 01 1 9307- ● ●
37 CLOSING ASM; ACL
4 DOOR VAN(V4V),4 DOOR WAGON(V4W),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) 		8-94274-751-1 01 1 9307- ● ●
37 CLOSING ASM; ACL
5 DOOR PANEL VAN(V4P),5 DOOR VAN(V4X) 		8-94274-752-1 01 1 9307- ● ●
39 LID; BATTERY COVER 8-94291-652-1 01 1 9307- ●
39 LID; BATTERY COVER
EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-94291-652-1 01 1 9307- ●
39 LID; BATTERY COVER
SOUTH AFRICA EQUIPMENT(SW2) 		8-94346-049-1 01 1 9307- ●
40 SEAL; LID,BATTERY COVER 8-94291-537-1 01 1 9307- ● ●
41 SUPPORT; STEP,RR
(A) 		8-94292-751-1 01 1 9307- ●
41 SUPPORT; STEP,RR
5 DOOR PANEL VAN(V4P),5 DOOR VAN(V4X) (A) 		8-94292-750-1 01 1 9307- ●
41 SUPPORT; STEP,RR
(B) 		8-94287-387-1 01 1 9307- ●
41 SUPPORT; STEP,RR
5 DOOR PANEL VAN(V4P),5 DOOR VAN(V4X) (B) 		8-94292-559-0 01 1 9307- ●
115 BOLT; ROPE HOOK
RR SEAT FOLD<6KV> ROPE HOOK LUGGAGE<6TR> M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9307- ●
115 BOLT; ROPE HOOK
RR SEAT FOLD<6KV> ROPE HOOK LUGGAGE<6TR> EXC. SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9307- ●
115 BOLT; ROPE HOOK
ROPE HOOK LUGGAGE<6TR> EXC. RR SEAT FOLD<6KV> M8X20 W/LK&PL WASHER 		0-50140-820-0 06 1 9307- ● ●
131 BRACKET ASM; WATER VLV 8-94291-967-0 01 1 9307- ● ●
235 PLUG; HTR PIPE
4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) 		8-94293-806-0 01 1 9307- ●
235 PLUG; HTR PIPE
SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) 		8-94293-806-0 01 1 9307- ●
235 PLUG; HTR PIPE
4 DOOR BUS(V4Z) 		8-94293-806-0 01 1 9307- ●
326 PATCH; RR FLOOR 8-94291-878-0 01 1 9307- ● ●
326 PATCH; RR FLOOR 8-94291-877-0 01 1 9307- ● ●
395 PROTECTOR; SPARE TIRE HOLE 8-94353-612-0 01 1 9307- ● ●
