◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50685 - WFR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#37405) — 18 parça

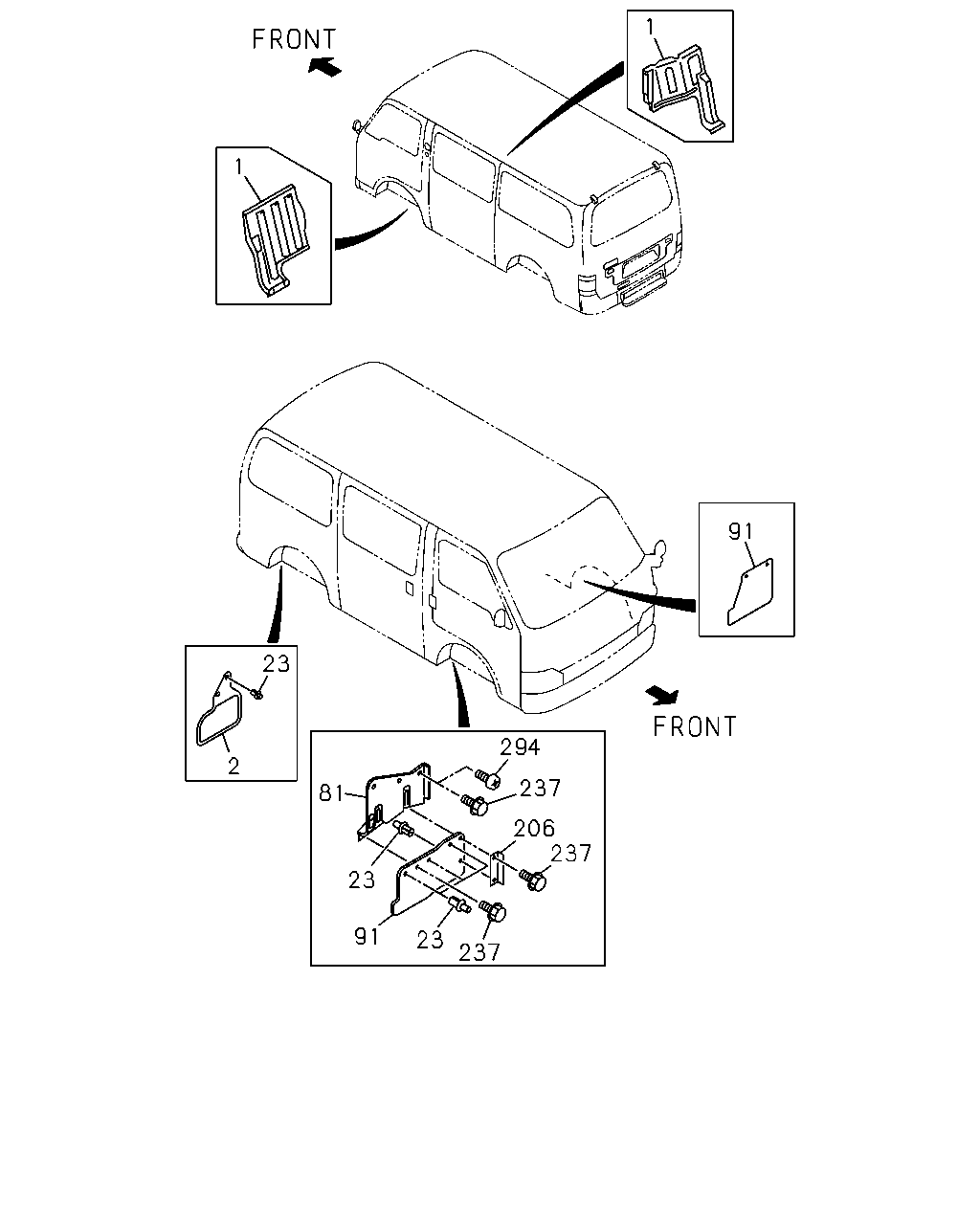

çizim 68550
1 1 91 23 294 2 237 81 206 237 23 91 23 237
BalonParca AdiParca NoAdetTipApplied Date A B
1 GUARD; MUD,FRT 8-94348-566-0 01 1 9307- ●
1 GUARD; MUD,FRT
EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-94348-566-0 01 1 9307- ●
1 GUARD; MUD,FRT 8-94346-005-0 01 1 9307- ●
1 GUARD; MUD,FRT
EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-94346-005-0 01 1 9307- ●
1 GUARD; MUD,FRT
SOUTH AFRICA EQUIPMENT(SW2) 4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) 		8-94348-567-0 01 1 9307- ●
1 GUARD; MUD,FRT
SOUTH AFRICA EQUIPMENT(SW2) 4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) 		8-94346-004-0 01 1 9307- ●
2 COVER; MUD,TIRE RR
MUD FLAP<VH4> 		8-94291-737-2 02 1 9307- ● ●
23 FASTENER; MUD COVER
MUD FLAP<VH4> 		5-09989-002-0 10 1 9307- ● ●
23 FASTENER; MUD COVER
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) EXC. MUD FLAP<VH4> 		5-09989-002-0 03 1 9307- ● ●
81 GUARD; MUD,FRT WHEEL HOUSE 8-94280-787-1 01 1 9307- ● ●
91 COVER; MUD,FRT
MUD FLAP<VH4> 		8-94291-775-0 01 1 9307- ● ●
91 COVER; MUD,FRT
MUD FLAP<VH4> 		8-94291-774-2 01 1 9307- ● ●
91 COVER; MUD,FRT
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) EXC. MUD FLAP<VH4> 		8-94284-503-0 01 1 9307- ● ●
206 STAY; MUD COVER,FRT 8-94282-967-0 01 1 9307- ● ●
237 BOLT; MUD GUARD
4ZC1 ENG(LR9) EXC. POWER STEERING<N40> M6X18 		1-09980-046-0 06 1 9307- ● ●
237 BOLT; MUD GUARD
4FG1 ENG(RLL) M6X18 		1-09980-046-0 06 1 9307- ● ●
237 BOLT; MUD GUARD
4ZC1 ENG(LR9) POWER STEERING<N40> M6X18 		1-09980-046-0 05 1 9307- ● ●
294 CLIP; MUD COVER
4ZC1 ENG(LR9) POWER STEERING<N40> D4.7X15 GRAY 		8-94279-801-0 01 1 9311- ● ●
