◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50685 - WFR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-45 - MOLDING AND STRIPE ▶
6-45 — MOLDING AND STRIPE (#37404) — 60 parça

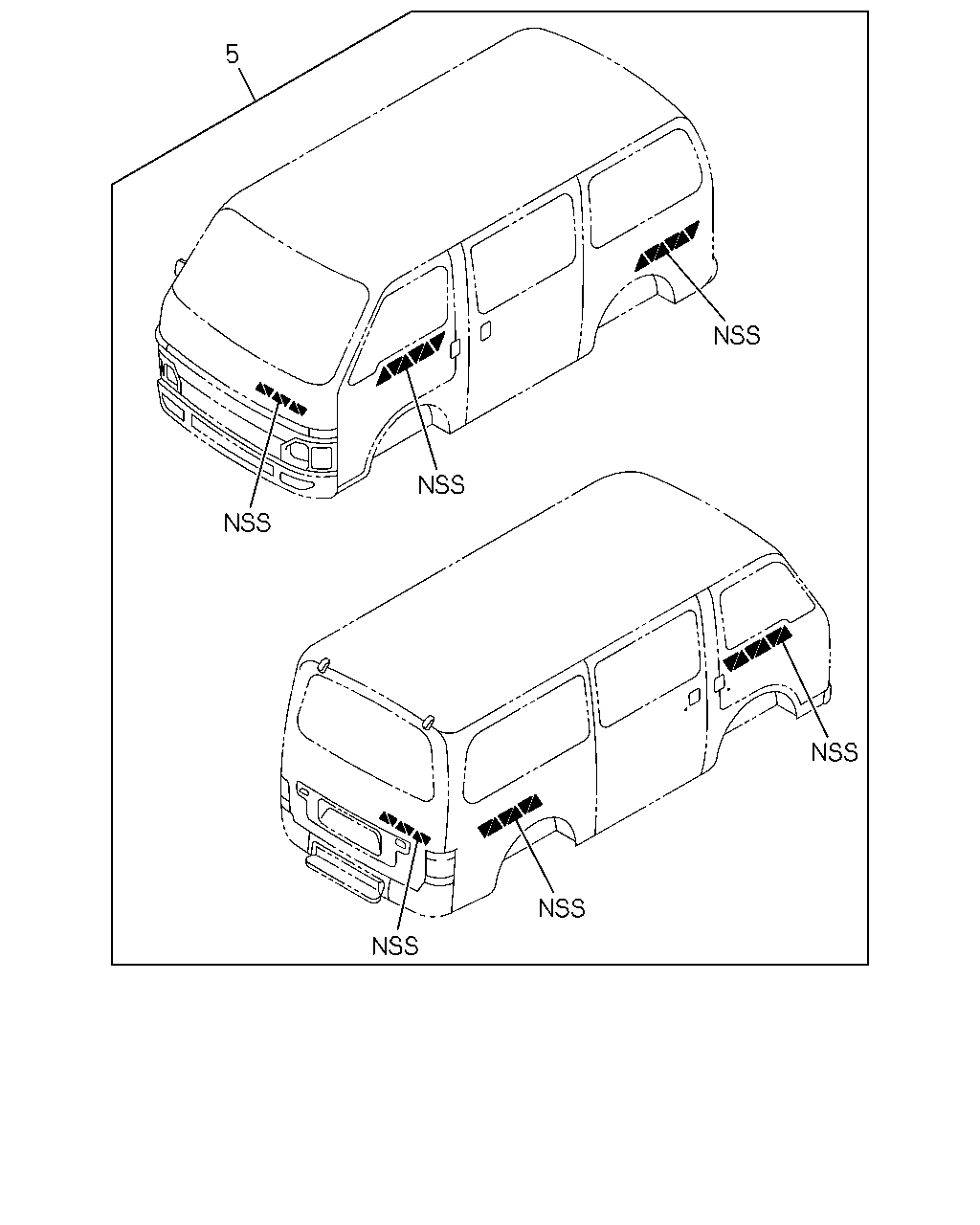

çizim 18472
5
BalonParca AdiParca NoAdetTipApplied Date A B
5 STRIPE KIT; BODY
BODY COLOR BRILLIANT RED/ROMANESQUE SILVER(739), BODY COLOR BRILLIANT RED MICA(808),BODY COLOR IRON GRAY MET(849) DECAL Y TYPE(7DY) ORANGE 		8-94353-839-0 01 1 9307- ● ●
5 STRIPE KIT; BODY
BODY COLOR GALE WIND BLUE(864),BODY COLOR GALE WIND BLUE/ROMANESQUE SILVER(893) DECAL Y TYPE(7DY) LIGHT BLUE 		8-94353-841-0 01 1 9307- ● ●
5 STRIPE KIT; BODY
BODY COLOR SAND BEIGE(707),BODY COLOR PURE WHITE(811),BODY COLOR ROMANESQUE SILVER(851) DECAL Y TYPE(7DY) RED 		8-94353-840-0 01 1 9307- ● ●

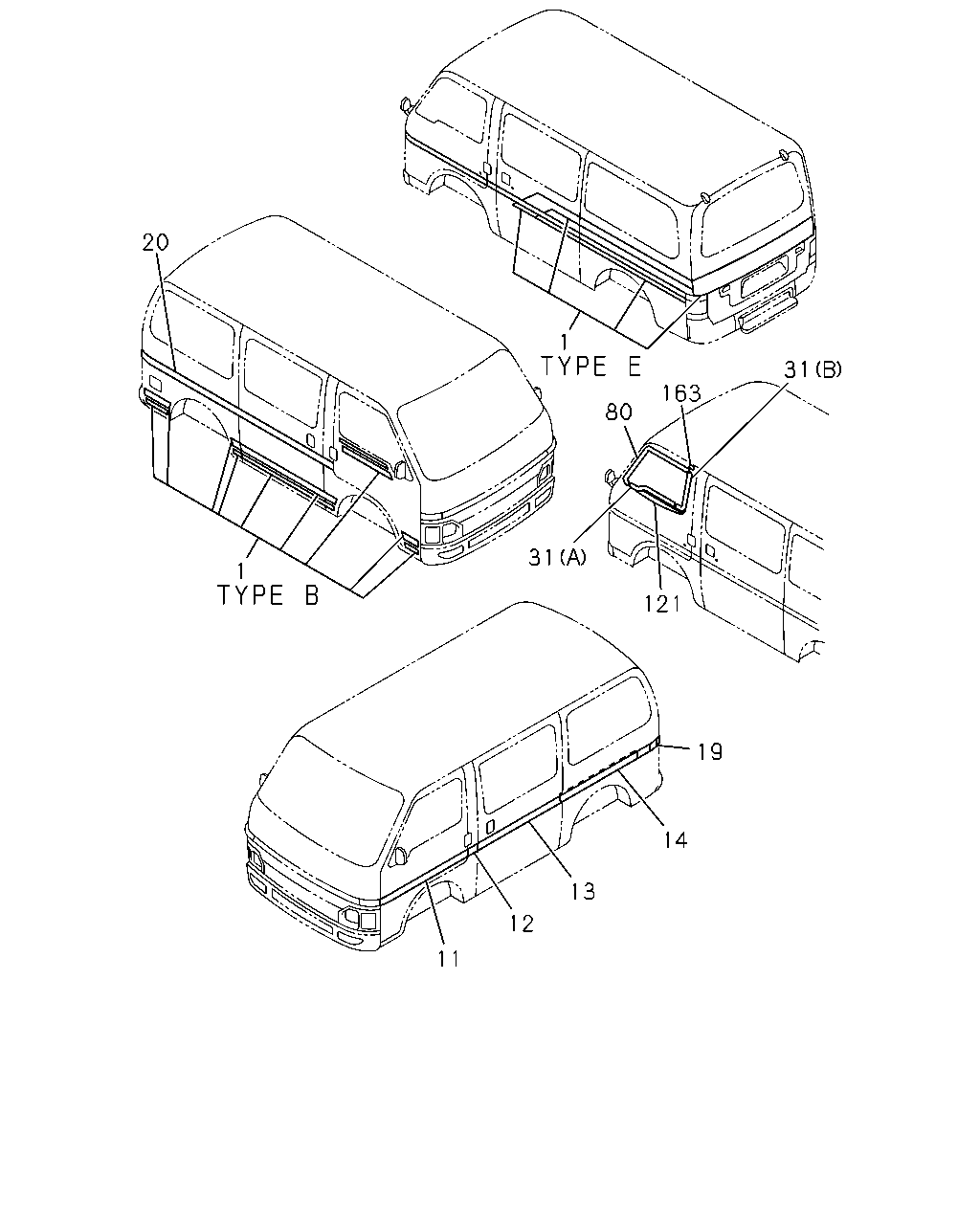

çizim 65766
20 1 31 163 80 31 1 121 19 14 13 12 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 STRIPE SET; BODY SIDE
STANDARD(WFB5VC) BODY COLOR BRILLIANT RED/ROMANESQUE SILVER(739), BODY COLOR BRILLIANT RED MICA(808),BODY COLOR IRON GRAY MET(849),BODY COLOR GALE WIND BLUE(864),BODY COLOR GALE WIND BLUE/ROMANESQUE SILVER(893) STRIPE TYPE E(S4T) TYPE E ORANGE 		8-94282-578-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
BODY COLOR BRILLIANT RED/ROMANESQUE SILVER(739), BODY COLOR BRILLIANT RED MICA(808),BODY COLOR IRON GRAY MET(849),BODY COLOR GALE WIND BLUE(864),BODY COLOR GALE WIND BLUE/ROMANESQUE SILVER(893) STRIPE TYPE E(S4T) TYPE E ORANGE 		8-94282-578-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
STANDARD(WFB5VC) BODY COLOR BRILLIANT RED/ROMANESQUE SILVER(739), BODY COLOR BRILLIANT RED MICA(808),BODY COLOR IRON GRAY MET(849),BODY COLOR GALE WIND BLUE(864),BODY COLOR GALE WIND BLUE/ROMANESQUE SILVER(893) STRIPE TYPE E(S4T) EXC. 5 DOOR<6KU> TYPE E ORANGE 		8-94282-574-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
BODY COLOR BRILLIANT RED/ROMANESQUE SILVER(739), BODY COLOR BRILLIANT RED MICA(808),BODY COLOR IRON GRAY MET(849),BODY COLOR GALE WIND BLUE(864),BODY COLOR GALE WIND BLUE/ROMANESQUE SILVER(893) STRIPE TYPE E(S4T) EXC. 5 DOOR<6KU> TYPE E ORANGE 		8-94282-574-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
STANDARD(WFB5VC) BODY COLOR BRILLIANT RED/ROMANESQUE SILVER(739), BODY COLOR BRILLIANT RED MICA(808),BODY COLOR IRON GRAY MET(849),BODY COLOR GALE WIND BLUE(864),BODY COLOR GALE WIND BLUE/ROMANESQUE SILVER(893) STRIPE TYPE E(S4T) 5 DOOR<6KU> TYPE E ORANGE 		8-94282-576-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
BODY COLOR BRILLIANT RED/ROMANESQUE SILVER(739), BODY COLOR BRILLIANT RED MICA(808),BODY COLOR IRON GRAY MET(849),BODY COLOR GALE WIND BLUE(864),BODY COLOR GALE WIND BLUE/ROMANESQUE SILVER(893) STRIPE TYPE E(S4T) 5 DOOR<6KU> TYPE E ORANGE 		8-94282-576-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
STANDARD(WFB5VC) BODY COLOR SAND BEIGE(707),BODY COLOR PURE WHITE(811),BODY COLOR ROMANESQUE SILVER(851) STRIPE TYPE E(S4T) TYPE E DARK ORANGE 		8-94282-579-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
BODY COLOR SAND BEIGE(707),BODY COLOR PURE WHITE(811),BODY COLOR ROMANESQUE SILVER(851) STRIPE TYPE E(S4T) TYPE E DARK ORANGE 		8-94282-579-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
STANDARD(WFB5VC) BODY COLOR SAND BEIGE(707),BODY COLOR PURE WHITE(811),BODY COLOR ROMANESQUE SILVER(851) STRIPE TYPE E(S4T) EXC. 5 DOOR<6KU> TYPE E DARK ORANGE 		8-94282-575-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
BODY COLOR SAND BEIGE(707),BODY COLOR PURE WHITE(811),BODY COLOR ROMANESQUE SILVER(851) STRIPE TYPE E(S4T) EXC. 5 DOOR<6KU> TYPE E DARK ORANGE 		8-94282-575-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
STANDARD(WFB5VC) BODY COLOR SAND BEIGE(707),BODY COLOR PURE WHITE(811),BODY COLOR ROMANESQUE SILVER(851) STRIPE TYPE E(S4T) 5 DOOR<6KU> TYPE E DARK ORANGE 		8-94282-577-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
BODY COLOR SAND BEIGE(707),BODY COLOR PURE WHITE(811),BODY COLOR ROMANESQUE SILVER(851) STRIPE TYPE E(S4T) 5 DOOR<6KU> TYPE E DARK ORANGE 		8-94282-577-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
STANDARD(WFB5VC) STRIPE SPORT(D88) TYPE B GOLD 		8-94269-244-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
STRIPE SPORT(D88) TYPE B GOLD 		8-94269-244-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
STANDARD(WFB5VC) STRIPE SPORT(D88) 5 DOOR<6KU> TYPE B GOLD 		8-94269-242-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
STRIPE SPORT(D88) 5 DOOR<6KU> TYPE B GOLD 		8-94269-242-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
STANDARD(WFB5VC) STRIPE SPORT(D88) EXC. 5 DOOR<6KU> TYPE B GOLD 		8-94269-240-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
STRIPE SPORT(D88) EXC. 5 DOOR<6KU> TYPE B GOLD 		8-94269-240-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
LONG(WFB5VF) BODY COLOR BRILLIANT RED/ROMANESQUE SILVER(739), BODY COLOR BRILLIANT RED MICA(808),BODY COLOR IRON GRAY MET(849),BODY COLOR GALE WIND BLUE(864),BODY COLOR GALE WIND BLUE/ROMANESQUE SILVER(893) STRIPE TYPE E(S4T) TYPE E ORANGE 		8-94282-584-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
LONG(WFB5VF) BODY COLOR BRILLIANT RED/ROMANESQUE SILVER(739), BODY COLOR BRILLIANT RED MICA(808),BODY COLOR IRON GRAY MET(849),BODY COLOR GALE WIND BLUE(864),BODY COLOR GALE WIND BLUE/ROMANESQUE SILVER(893) STRIPE TYPE E(S4T) EXC. 5 DOOR<6KU> TYPE E ORANGE 		8-94282-580-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
LONG(WFB5VF) BODY COLOR BRILLIANT RED/ROMANESQUE SILVER(739), BODY COLOR BRILLIANT RED MICA(808),BODY COLOR IRON GRAY MET(849),BODY COLOR GALE WIND BLUE(864),BODY COLOR GALE WIND BLUE/ROMANESQUE SILVER(893) STRIPE TYPE E(S4T) 5 DOOR<6KU> TYPE E ORANGE 		8-94282-582-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
LONG(WFB5VF) BODY COLOR SAND BEIGE(707),BODY COLOR PURE WHITE(811),BODY COLOR ROMANESQUE SILVER(851) STRIPE TYPE E(S4T) TYPE E DARK ORANGE 		8-94282-585-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
LONG(WFB5VF) BODY COLOR SAND BEIGE(707),BODY COLOR PURE WHITE(811),BODY COLOR ROMANESQUE SILVER(851) STRIPE TYPE E(S4T) EXC. 5 DOOR<6KU> TYPE E DARK ORANGE 		8-94282-581-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
LONG(WFB5VF) BODY COLOR SAND BEIGE(707),BODY COLOR PURE WHITE(811),BODY COLOR ROMANESQUE SILVER(851) STRIPE TYPE E(S4T) 5 DOOR<6KU> TYPE E DARK ORANGE 		8-94282-583-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
LONG(WFB5VF) STRIPE SPORT(D88) TYPE B GOLD 		8-94269-252-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
LONG(WFB5VF) STRIPE SPORT(D88) 5 DOOR<6KU> TYPE B GOLD 		8-94269-250-0 01 1 9307- ●
1 STRIPE SET; BODY SIDE
LONG(WFB5VF) STRIPE SPORT(D88) EXC. 5 DOOR<6KU> TYPE B 		8-94269-248-0 01 1 9307- ●
11 MOLDING; WIDE,SIDE PROTECTIVE,FRT DOOR
BODY SIDE MOLDING WIDE(BX4) 		8-94352-914-0 01 1 9307- ● ●
11 MOLDING; WIDE,SIDE PROTECTIVE,FRT DOOR
BODY SIDE MOLDING WIDE(BX4) 		8-94352-913-0 01 1 9307- ● ●
12 MOLDING; SIDE PROTECTOR,B-C POST
BODY SIDE MOLDING WIDE(BX4) WHITE 		8-94352-904-0 01 1 9307- ● ●
12 MOLDING; SIDE PROTECTOR,B-C POST
BODY SIDE MOLDING WIDE(BX4) 5 DOOR<6KU> 		8-94352-903-0 01 1 9307- ● ●
13 MOLDING; SIDE PROTECTOR,SLIDE DOOR
BODY SIDE MOLDING WIDE(BX4) 5 DOOR<6KU> WHITE 		8-94352-908-0 02 1 9307- ● ●
13 MOLDING; SIDE PROTECTOR,SLIDE DOOR
BODY SIDE MOLDING WIDE(BX4) EXC. 5 DOOR<6KU> WHITE 		8-94352-908-0 01 1 9307- ● ●
14 MOLDING; SIDE PROTECTOR,CENTER RAIL
BODY SIDE MOLDING WIDE(BX4) 		8-94352-965-0 01 1 9307- ● ●
14 MOLDING; SIDE PROTECTOR,CENTER RAIL
BODY SIDE MOLDING WIDE(BX4) 5 DOOR<6KU> 		8-94352-964-0 01 1 9307- ● ●
19 MOLDING; SIDE PROTECTOR,SIDE PANEL,RR
STANDARD(WFB5VC) BODY SIDE MOLDING WIDE(BX4) 5 DOOR<6KU> 		8-94352-909-0 02 1 9307- ●
19 MOLDING; SIDE PROTECTOR,SIDE PANEL,RR
BODY SIDE MOLDING WIDE(BX4) 5 DOOR<6KU> 		8-94352-909-0 02 1 9307- ●
19 MOLDING; SIDE PROTECTOR,SIDE PANEL,RR
STANDARD(WFB5VC) BODY SIDE MOLDING WIDE(BX4) EXC. 5 DOOR<6KU> 		8-94352-909-0 01 1 9307- ●
19 MOLDING; SIDE PROTECTOR,SIDE PANEL,RR
BODY SIDE MOLDING WIDE(BX4) EXC. 5 DOOR<6KU> 		8-94352-909-0 01 1 9307- ●
19 MOLDING; SIDE PROTECTOR,SIDE PANEL,RR
LONG(WFB5VF) BODY SIDE MOLDING WIDE(BX4) 5 DOOR<6KU> BEIGE 		8-94352-910-0 02 1 9307- ●
19 MOLDING; SIDE PROTECTOR,SIDE PANEL,RR
LONG(WFB5VF) BODY SIDE MOLDING WIDE(BX4) EXC. 5 DOOR<6KU> BEIGE 		8-94352-910-0 01 1 9307- ●
20 MOLDING; SIDE PROTECTOR
STANDARD(WFB5VC) BODY SIDE MOLDING WIDE(BX4) EXC. 5 DOOR<6KU> 		8-94352-899-0 01 1 9307- ●
20 MOLDING; SIDE PROTECTOR
BODY SIDE MOLDING WIDE(BX4) EXC. 5 DOOR<6KU> 		8-94352-899-0 01 1 9307- ●
20 MOLDING; SIDE PROTECTOR
LONG(WFB5VF) BODY SIDE MOLDING WIDE(BX4) EXC. 5 DOOR<6KU> 		8-94352-901-0 01 1 9307- ●
31 MOLDING; FRT DOOR
WINDOW MOLDING FRT SIDE RR<B81> (A) 		8-94280-600-0 01 1 9307- ● ●
31 MOLDING; FRT DOOR
WINDOW MOLDING FRT SIDE RR<B81> (B) 		8-94280-602-0 01 1 9307- ● ●
31 MOLDING; FRT DOOR
WINDOW MOLDING FRT SIDE RR<B81> (A) 		8-94280-599-0 01 1 9307- ● ●
31 MOLDING; FRT DOOR
WINDOW MOLDING FRT SIDE RR<B81> (B) 		8-94280-601-0 01 1 9307- ● ●
80 MOLDING; FRT DOOR FRAME,FRT
WINDOW MOLDING FRT SIDE RR<B81> 		8-94280-598-0 01 1 9307- ● ●
80 MOLDING; FRT DOOR FRAME,FRT
WINDOW MOLDING FRT SIDE RR<B81> 		8-94280-597-0 01 1 9307- ● ●
121 STRIPE; DOOR
BODY COLOR BRILLIANT RED/ROMANESQUE SILVER(739), BODY COLOR BRILLIANT RED MICA(808),BODY COLOR IRON GRAY MET(849) DECAL Z TYPE<7DZ> ORANGE 		8-94353-545-0 01 1 9307- ● ●
121 STRIPE; DOOR
BODY COLOR BRILLIANT RED/ROMANESQUE SILVER(739), BODY COLOR BRILLIANT RED MICA(808),BODY COLOR IRON GRAY MET(849) DECAL Z TYPE<7DZ> ORANGE 		8-94353-546-0 01 1 9307- ● ●
121 STRIPE; DOOR
BODY COLOR GALE WIND BLUE(864),BODY COLOR GALE WIND BLUE/ROMANESQUE SILVER(893) DECAL Z TYPE<7DZ> PURPLE 		8-94353-541-0 01 1 9307- ● ●
121 STRIPE; DOOR
BODY COLOR GALE WIND BLUE(864),BODY COLOR GALE WIND BLUE/ROMANESQUE SILVER(893) DECAL Z TYPE<7DZ> PURPLE 		8-94353-542-0 01 1 9307- ● ●
121 STRIPE; DOOR
BODY COLOR SAND BEIGE(707),BODY COLOR PURE WHITE(811),BODY COLOR ROMANESQUE SILVER(851) DECAL Z TYPE<7DZ> DARK RED 		8-94353-543-0 01 1 9307- ● ●
121 STRIPE; DOOR
BODY COLOR SAND BEIGE(707),BODY COLOR PURE WHITE(811),BODY COLOR ROMANESQUE SILVER(851) DECAL Z TYPE<7DZ> DARK RED 		8-94353-544-0 01 1 9307- ● ●
163 JOINT; MOLDING
WINDOW MOLDING FRT SIDE RR<B81> 		8-94289-162-2 06 1 9307- ● ●
