Sayfa 6-43 - Isuzu EPC

6-43 — SIDE TRIM (#37403) — 175 parça

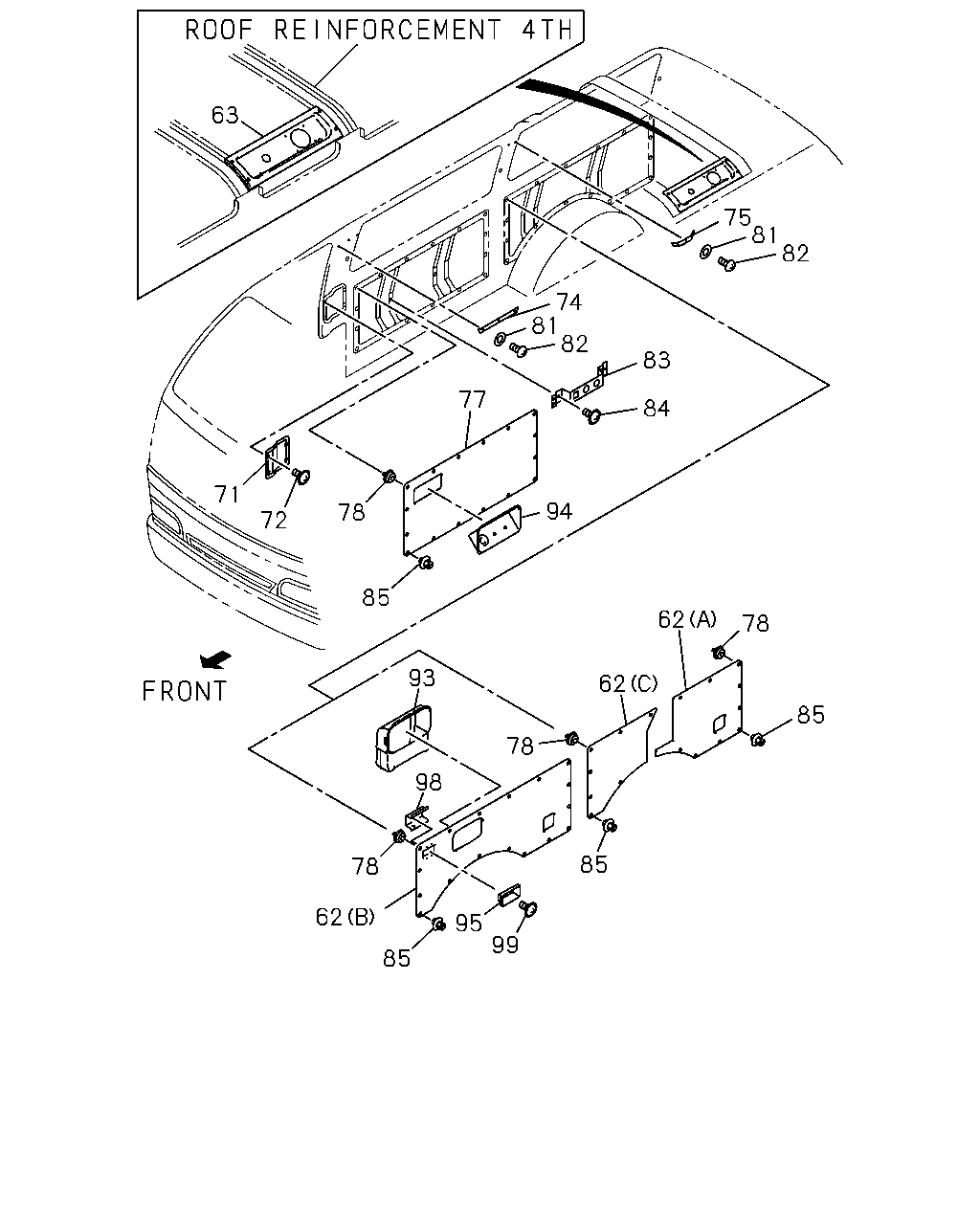

63 75 81 82 74 81 82 83 77 84 71 94 78 72 85 62 78 93 62 85 78 98 85 78 62 95 99 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	PAD; TRIM,SIDE PANEL,RR STANDARD(WFB5VC) INTERIOR COLOR MED SAND(129) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z) EXC. RR WIPER<C25> (A) BEIGE	8-94350-261-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR STANDARD(WFB5VC) INTERIOR COLOR MED SAND(129) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z) (C) BEIGE	8-94350-272-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR STANDARD(WFB5VC) INTERIOR COLOR MED SAND(129) RR WIPER<C25> AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z) (A) BEIGE	8-94350-265-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR STANDARD(WFB5VC) INTERIOR COLOR MED SAND(129) RR WIPER<C25> 4 DOOR BUS(V4Z) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) BEIGE	8-94350-225-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR STANDARD(WFB5VC) INTERIOR COLOR MED SAND(129) 4 DOOR BUS(V4Z) (B) BEIGE	8-94350-220-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR STANDARD(WFB5VC) INTERIOR COLOR MED SAND(129) 4 DOOR BUS(V4Z) EXC. RR WIPER<C25>,AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) BEIGE	8-94350-221-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR STANDARD(WFB5VC) RR WIPER<C25> 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) (A)	8-94350-196-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR RR WIPER<C25> 4 DOOR PANEL VAN(V4Y) (A)	8-94350-196-0	01	1	9307-		●
62	PAD; TRIM,SIDE PANEL,RR STANDARD(WFB5VC) 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) (B)	8-94350-195-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR STANDARD(WFB5VC) 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) EXC. RR WIPER<C25> (B)	8-94350-197-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB5VF) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR VAN(V4V) (C)	8-94350-258-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB5VF) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR VAN(V4V) EXC. RR WIPER<C25> (A)	8-94350-256-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB5VF) INTERIOR COLOR MED SAND(129) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z) EXC. RR WIPER<C25> (A) BEIGE	8-94350-263-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB5VF) INTERIOR COLOR MED SAND(129) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z) (C) BEIGE	8-94350-274-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB5VF) INTERIOR COLOR MED SAND(129) RR WIPER<C25> AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) BEIGE	8-94350-264-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB5VF) INTERIOR COLOR MED SAND(129) RR WIPER<C25> AIR CONDITIONER MANUAL CONT FRT&RR(EM2) SOUTH AFRICA EQUIPMENT(SW2) 4 DOOR BUS(V4Z) (A) BEIGE	8-94352-576-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB5VF) INTERIOR COLOR MED SAND(129) RR WIPER<C25> SOUTH AFRICA EQUIPMENT(SW2) 4 DOOR BUS(V4Z) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) BEIGE	8-94352-546-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB5VF) INTERIOR COLOR MED SAND(129) RR WIPER<C25> 4 DOOR BUS(V4Z) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2), SOUTHAFRICA EQUIPMENT(SW2) (B) BEIGE	8-94350-222-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB5VF) INTERIOR COLOR MED SAND(129) 4 DOOR BUS(V4Z) (B) BEIGE	8-94350-223-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB5VF) INTERIOR COLOR MED SAND(129) 4 DOOR BUS(V4Z) EXC. RR WIPER<C25>,AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) BEIGE	8-94350-224-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB5VF) RR WIPER<C25> AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR VAN(V4V) (A)	8-94350-257-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB5VF) RR WIPER<C25> 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B)	8-94350-199-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB5VF) 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) (B)	8-94350-198-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB5VF) 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) EXC. RR WIPER<C25>,AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B)	8-94350-200-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR INTERIOR COLOR MEDIUM GRAY(113) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W) (B) GRAY	8-94350-262-0	01	1	9307-		●
62	PAD; TRIM,SIDE PANEL,RR INTERIOR COLOR MEDIUM GRAY(113) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W) (C) GRAY	8-94350-273-0	01	1	9307-		●
62	PAD; TRIM,SIDE PANEL,RR INTERIOR COLOR MEDIUM GRAY(113) 4 DOOR WAGON(V4W) SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) GRAY	8-94350-219-0	01	1	9307-		●
62	PAD; TRIM,SIDE PANEL,RR INTERIOR COLOR MEDIUM GRAY(113) 4 DOOR WAGON(V4W) SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) (B) GRAY	8-94350-218-0	01	1	9307-		●
63	REINFORCEMENT; RR SPEAKER 4 DOOR WAGON(V4W)	8-94278-480-2	01	1	9307-		●
63	REINFORCEMENT; RR SPEAKER 4 DOOR WAGON(V4W)	8-94278-479-2	01	1	9307-		●
71	COVER; B-C POST,TOOL HOLE LONG(WFB5VF) EXC. FRT SEAT BELT W/RETRACTOR<A49>,SOUTH AFRICA EQUIPMENT(SW2)	8-94285-490-0	02	1	9307-9308	●
71	COVER; B-C POST,TOOL HOLE EXC. FRT SEAT BELT W/RETRACTOR<A49>	8-94285-490-0	02	1	9307-9308		●
71	COVER; B-C POST,TOOL HOLE LONG(WFB5VF) EXC. FRT SEAT BELT W/RETRACTOR<A49>,SOUTH AFRICA EQUIPMENT(SW2)	8-94348-491-0	02	1	9309-	●
71	COVER; B-C POST,TOOL HOLE EXC. FRT SEAT BELT W/RETRACTOR<A49>	8-94348-491-0	02	1	9309-		●
72	SCREW; COVER TO B-C POST LONG(WFB5VF) EXC. FRT SEAT BELT W/RETRACTOR<A49>,SOUTH AFRICA EQUIPMENT(SW2) M4X12 TAPPING	9-07066-412-0	08	1	9307-	●
72	SCREW; COVER TO B-C POST EXC. FRT SEAT BELT W/RETRACTOR<A49> M4X12 TAPPING	9-07066-412-0	08	1	9307-		●
74	RETAINER; B-C POST AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z)	8-94352-589-0	01	1	9307-	●	●
74	RETAINER; B-C POST AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z)	8-94352-583-0	01	1	9307-	●	●
74	RETAINER; B-C POST 4 DOOR VAN(V4V),4 DOOR WAGON(V4W)	8-94352-582-0	01	1	9307-9307		●
74	RETAINER; B-C POST 4 DOOR WAGON(V4W)	8-94352-582-0	01	1	9308-		●
74	RETAINER; B-C POST 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X)	8-94352-587-0	01	1	9307-		●
75	RETAINER; D POST AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z)	8-94352-593-0	01	1	9307-	●	●
75	RETAINER; D POST 4 DOOR VAN(V4V)	8-94352-596-0	01	1	9307-		●
75	RETAINER; D POST 4 DOOR WAGON(V4W),5 DOOR VAN(V4X) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94352-596-0	01	1	9307-		●
75	RETAINER; D POST 4 DOOR VAN(V4V),4 DOOR WAGON(V4W)	8-94352-592-0	01	1	9307-		●
77	PAD; TRIM,SIDE PANEL,FRT AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR VAN(V4V) EXC. RR SEAT FOLD<6KV>	8-94350-160-0	01	1	9307-	●
77	PAD; TRIM,SIDE PANEL,FRT INTERIOR COLOR MED SAND(129) 4 DOOR VAN(V4V) RR SEAT FOLD<6KV> EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2), ACCESSORY PACK<ET6> BEIGE	8-94352-514-0	01	1	9307-	●
77	PAD; TRIM,SIDE PANEL,FRT INTERIOR COLOR MEDIUM GRAY(113) ACCESSORY PACK<ET6> 4 DOOR VAN(V4V) LUGGAGE BOX RR<X73> EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) GRAY	8-94352-534-0	01	1	9307-	●
77	PAD; TRIM,SIDE PANEL,FRT INTERIOR COLOR MEDIUM GRAY(113) 4 DOOR WAGON(V4W) EXC. REAR HEATER<C35>,AIR CONDITIONER MANUAL CONT FRT&RR(EM2) GRAY	8-94352-534-0	01	1	9307-		●
77	PAD; TRIM,SIDE PANEL,FRT 4 DOOR VAN(V4V) 4 DOOR PANEL VAN(V4Y) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2),RR SEAT FOLD<6KV>	8-94350-159-0	01	1	9307-	●
77	PAD; TRIM,SIDE PANEL,FRT STANDARD(WFB5VC) INTERIOR COLOR MEDIUM GRAY(113) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ACCESSORY PACK<ET6> 4 DOOR VAN(V4V) LUGGAGE BOX RR<X73> GRAY	8-94352-532-0	01	1	9307-	●
77	PAD; TRIM,SIDE PANEL,FRT INTERIOR COLOR MEDIUM GRAY(113) REAR HEATER<C35> 4 DOOR WAGON(V4W) GRAY	8-94352-532-0	01	1	9307-		●
77	PAD; TRIM,SIDE PANEL,FRT INTERIOR COLOR MEDIUM GRAY(113) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W) EXC. REAR HEATER<C35> GRAY	8-94352-532-0	01	1	9307-		●
77	PAD; TRIM,SIDE PANEL,FRT INTERIOR COLOR MED SAND(129) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR VAN(V4V) RR SEAT FOLD<6KV> EXC. LUGGAGE BOX RR<X73> BEIGE	8-94352-520-0	01	1	9307-	●	●
77	PAD; TRIM,SIDE PANEL,FRT INTERIOR COLOR MED SAND(129) REAR HEATER<C35> 4 DOOR BUS(V4Z) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) BEIGE	8-94352-522-0	01	1	9307-	●	●
77	PAD; TRIM,SIDE PANEL,FRT INTERIOR COLOR MED SAND(129) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR VAN(V4V),4 DOOR BUS(V4Z) LUGGAGE BOX RR<X73> BEIGE	8-94352-522-0	01	1	9307-	●	●
77	PAD; TRIM,SIDE PANEL,FRT INTERIOR COLOR MED SAND(129) 4 DOOR VAN(V4V) LUGGAGE BOX RR<X73> EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2), ACCESSORY PACK<ET6> BEIGE	8-94352-516-0	01	1	9307-	●	●
77	PAD; TRIM,SIDE PANEL,FRT INTERIOR COLOR MED SAND(129) 4 DOOR BUS(V4Z) EXC. REAR HEATER<C35>,AIR CONDITIONER MANUAL CONT FRT&RR(EM2) BEIGE	8-94352-516-0	01	1	9307-	●	●
78	CLIP; TRIM PAD,SIDE PANEL 4 DOOR VAN(V4V) RR SEAT FOLD<6KV> EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2), ACCESSORY PACK<ET6>	1-09987-119-1	16	1	9307-	●
78	CLIP; TRIM PAD,SIDE PANEL 4 DOOR WAGON(V4W) 4 DOOR BUS(V4Z) EXC. REAR HEATER<C35>,AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	1-09987-119-1	16	1	9307-	●
78	CLIP; TRIM PAD,SIDE PANEL STANDARD(WFB5VC) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z)	1-09987-119-1	33	1	9307-	●
78	CLIP; TRIM PAD,SIDE PANEL AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z)	1-09987-119-1	33	1	9307-		●
78	CLIP; TRIM PAD,SIDE PANEL STANDARD(WFB5VC) 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	1-09987-119-1	34	1	9307-	●
78	CLIP; TRIM PAD,SIDE PANEL 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	1-09987-119-1	34	1	9307-		●
78	CLIP; TRIM PAD,SIDE PANEL LONG(WFB5VF) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z)	1-09987-119-1	41	1	9307-	●
78	CLIP; TRIM PAD,SIDE PANEL LONG(WFB5VF) 4 DOOR BUS(V4Z) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	1-09987-119-1	42	1	9307-	●
78	CLIP; TRIM PAD,SIDE PANEL AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR VAN(V4V) RR SEAT FOLD<6KV> EXC. ACCESSORY PACK<ET6>,LUGGAGE BOX RR<X73>	1-09987-119-1	19	1	9307-	●	●
78	CLIP; TRIM PAD,SIDE PANEL REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR BUS(V4Z) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	1-09987-119-1	19	1	9307-	●
78	CLIP; TRIM PAD,SIDE PANEL AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR VAN(V4V),4 DOOR BUS(V4Z)	1-09987-119-1	19	1	9307-	●
78	CLIP; TRIM PAD,SIDE PANEL ACCESSORY PACK<ET6> 4 DOOR VAN(V4V) LUGGAGE BOX RR<X73>	1-09987-119-1	19	1	9307-	●
78	CLIP; TRIM PAD,SIDE PANEL 4 DOOR VAN(V4V),4 DOOR WAGON(V4W)	1-09987-119-1	19	1	9307-		●
81	WASHER; FULL TRIM AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z)	5-09985-053-0	09	1	9307-	●
81	WASHER; FULL TRIM AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z)	5-09985-053-0	09	1	9307-		●
81	WASHER; FULL TRIM STANDARD(WFB5VC) 4 DOOR WAGON(V4W) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-09985-053-0	12	1	9307-	●
81	WASHER; FULL TRIM 4 DOOR WAGON(V4W) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-09985-053-0	12	1	9307-		●
82	SCREW; FULL TRIM AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z) M4X12 TAPPING OVAL-HEAD	9-07037-412-0	09	1	9307-	●
82	SCREW; FULL TRIM AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) M4X12 TAPPING OVAL-HEAD	9-07037-412-0	09	1	9307-		●
82	SCREW; FULL TRIM STANDARD(WFB5VC) 4 DOOR WAGON(V4W) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M4X12 TAPPING OVAL-HEAD	9-07037-412-0	12	1	9307-	●
82	SCREW; FULL TRIM 4 DOOR WAGON(V4W) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M4X12 TAPPING OVAL-HEAD	9-07037-412-0	12	1	9307-		●
83	REINFORCEMENT; TRIM PAD 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),4 DOOR BUS(V4Z)	8-94287-495-1	01	1	9307-	●	●
84	SCREW; REINF TO PANEL 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) M4X12 TAPPING	9-07066-412-0	02	1	9307-	●	●
85	FASTENER; SCREW & GROMMET 4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2),RR SEAT FOLD<6KV>	8-94345-606-0	16	1	9307-	●
85	FASTENER; SCREW & GROMMET STANDARD(WFB5VC) 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y)	8-94345-606-0	34	1	9307-	●
85	FASTENER; SCREW & GROMMET LONG(WFB5VF) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR VAN(V4V)	8-94345-606-0	41	1	9307-	●
85	FASTENER; SCREW & GROMMET LONG(WFB5VF) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR VAN(V4V) EXC. RR SEAT FOLD<6KV>	8-94345-606-0	19	1	9307-	●
85	FASTENER; SCREW & GROMMET LONG(WFB5VF) 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94345-606-0	42	1	9307-	●
93	BOX; LUGGAGE INTERIOR COLOR MED SAND(129) LUGGAGE BOX RR<X73> BEIGE	8-94345-692-1	01	1	9307-	●	●
93	BOX; LUGGAGE INTERIOR COLOR MEDIUM GRAY(113) LUGGAGE BOX RR<X73> GRAY	8-94345-691-1	01	1	9307-	●	●
93	BOX; LUGGAGE INTERIOR COLOR MEDIUM GRAY(113) 4 DOOR WAGON(V4W) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) GRAY	8-94345-691-1	01	1	9307-		●
94	BEZEL; REAR HTR & COOLER INTERIOR COLOR MED SAND(129) REAR HEATER<C35> 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) BEIGE	8-94345-896-2	01	1	9307-	●	●
94	BEZEL; REAR HTR & COOLER INTERIOR COLOR MED SAND(129) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) BEIGE	8-94345-896-2	01	1	9307-	●	●
94	BEZEL; REAR HTR & COOLER INTERIOR COLOR MEDIUM GRAY(113) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ACCESSORY PACK<ET6> GRAY	8-94345-895-2	01	1	9307-	●	●
94	BEZEL; REAR HTR & COOLER INTERIOR COLOR MEDIUM GRAY(113) REAR HEATER<C35> 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) GRAY	8-94345-895-2	01	1	9307-	●	●
94	BEZEL; REAR HTR & COOLER INTERIOR COLOR MEDIUM GRAY(113) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z) GRAY	8-94345-895-2	01	1	9307-	●	●
95	TRAY; ASH,SIDE BODY STANDARD(WFB5VC) AIR CONDITIONER MANUAL CONT FRT&RR(EM2),INTERIOR COLOR MEDIUM GRAY(113) SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) GRAY	8-94345-697-3	01	1	9307-	●
95	TRAY; ASH,SIDE BODY AIR CONDITIONER MANUAL CONT FRT&RR(EM2),INTERIOR COLOR MEDIUM GRAY(113) SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) GRAY	8-94345-697-3	01	1	9307-		●
95	TRAY; ASH,SIDE BODY STANDARD(WFB5VC) INTERIOR COLOR MEDIUM GRAY(113) SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) GRAY	8-94345-697-3	02	1	9307-	●
95	TRAY; ASH,SIDE BODY INTERIOR COLOR MEDIUM GRAY(113) SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) GRAY	8-94345-697-3	02	1	9307-		●
98	BRACKET; ASH TRAY STANDARD(WFB5VC) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY)	8-94278-126-1	01	1	9307-	●
98	BRACKET; ASH TRAY AIR CONDITIONER MANUAL CONT FRT&RR(EM2) SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY)	8-94278-126-1	01	1	9307-		●
98	BRACKET; ASH TRAY STANDARD(WFB5VC) SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94278-126-1	02	1	9307-	●
98	BRACKET; ASH TRAY SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94278-126-1	02	1	9307-		●
99	SCREW; ASH TRAY,SIDE BODY STANDARD(WFB5VC) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) M5X12 W/PL WASHER PAN-HD	9-03900-512-0	01	1	9307-	●
99	SCREW; ASH TRAY,SIDE BODY AIR CONDITIONER MANUAL CONT FRT&RR(EM2) SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) M5X12 W/PL WASHER PAN-HD	9-03900-512-0	01	1	9307-		●
99	SCREW; ASH TRAY,SIDE BODY STANDARD(WFB5VC) SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X12 W/PL WASHER PAN-HD	9-03900-512-0	02	1	9307-	●
99	SCREW; ASH TRAY,SIDE BODY SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X12 W/PL WASHER PAN-HD	9-03900-512-0	02	1	9307-		●
99	SCREW; ASH TRAY,SIDE BODY ASH TRAY BC POST<6ES> M4X16 TAPPING OVAL-HEAD	9-07037-416-0	02	1	9307-	●	●

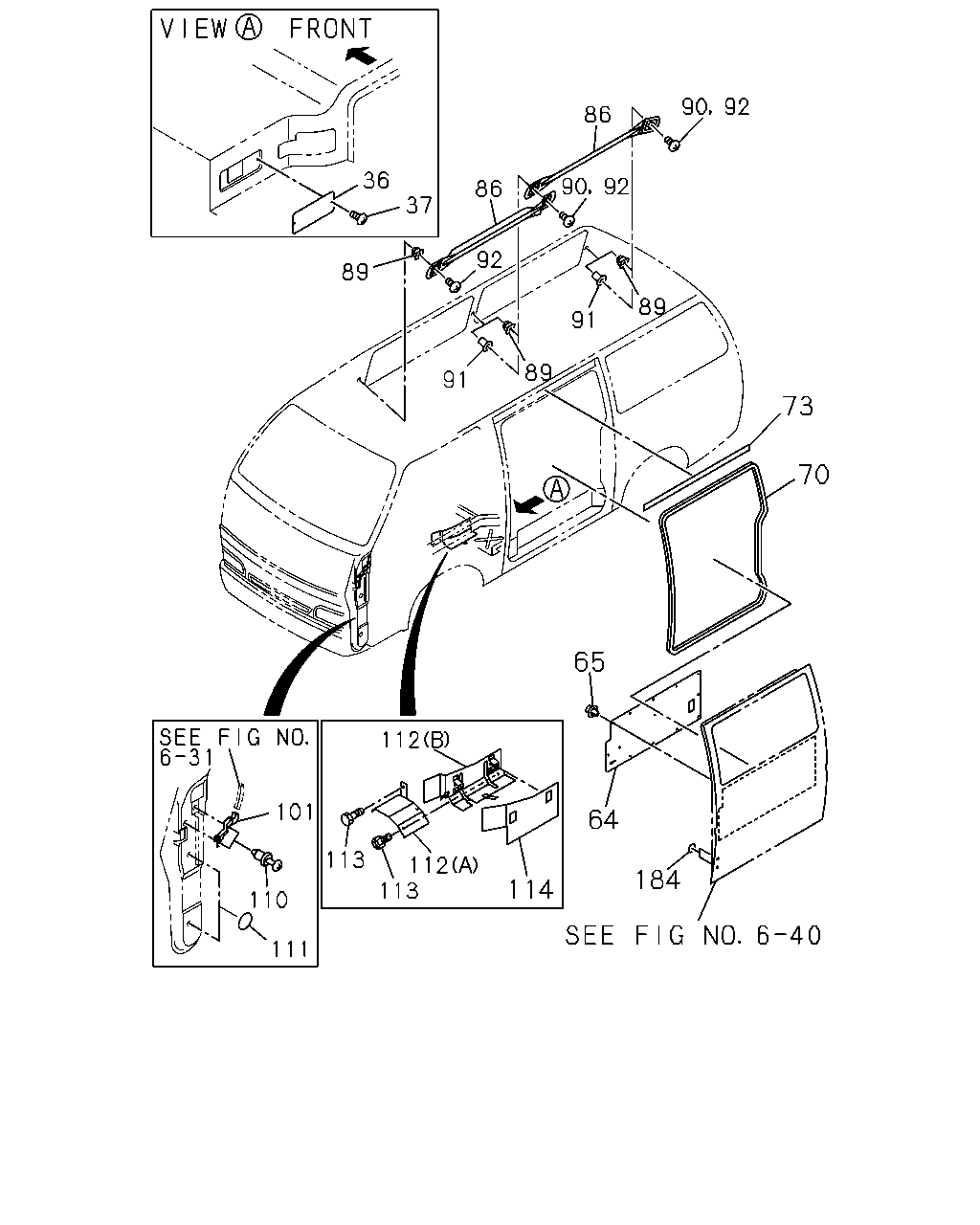

90 92 86 36 86 90 92 37 92 89 89 91 89 91 73 65 112 184 101 64 113 112 113 114 110 111 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
36	COVER; P/S HOLE 4ZC1 ENG(LR9)	8-94285-137-0	01	1	9307-	●	●
36	COVER; P/S HOLE 4FG1 ENG(RLL) EXC. POWER STEERING<N40>	8-94285-137-0	01	1	9307-	●	●
37	SCREW; COVER,P/S 4ZC1 ENG(LR9) M3X10	1-09981-146-0	02	1	9307-	●	●
37	SCREW; COVER,P/S 4FG1 ENG(RLL) EXC. POWER STEERING<N40> M3X10	1-09981-146-0	02	1	9307-	●	●
64	PAD; TRIM,SLIDE DOOR INTERIOR COLOR MED SAND(129) 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) BEIGE	8-94350-466-2	01	1	9307-	●
64	PAD; TRIM,SLIDE DOOR INTERIOR COLOR MED SAND(129) RR SEAT FOLD<6KV> EXC. ACCESSORY PACK<ET6> BEIGE	8-94350-466-2	01	1	9307-	●
64	PAD; TRIM,SLIDE DOOR INTERIOR COLOR MED SAND(129) 5 DOOR VAN(V4X) RR SEAT FOLD<6KV> EXC. ACCESSORY PACK<ET6> BEIGE	8-94350-467-2	01	1	9307-	●
64	PAD; TRIM,SLIDE DOOR INTERIOR COLOR MEDIUM GRAY(113) ACCESSORY PACK<ET6> RR SEAT FOLD<6KV> GRAY	8-94350-461-0	01	1	9307-	●
64	PAD; TRIM,SLIDE DOOR INTERIOR COLOR MEDIUM GRAY(113) ACCESSORY PACK<ET6> 5 DOOR VAN(V4X) RR SEAT FOLD<6KV> GRAY	8-94350-460-0	01	1	9307-	●
64	PAD; TRIM,SLIDE DOOR 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) EXC. ACCESSORY PACK<ET6>,RR SEAT FOLD<6KV>	8-94350-453-0	01	1	9307-	●
64	PAD; TRIM,SLIDE DOOR 5 DOOR PANEL VAN(V4P),5 DOOR VAN(V4X) EXC. RR SEAT FOLD<6KV>	8-94350-452-0	01	1	9307-	●
65	FASTENER; SCREW 4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y) EXC. RR SEAT FOLD<6KV>	8-94345-606-0	12	1	9307-	●
65	FASTENER; SCREW HANDLE BACK DOOR INNER<S2A> 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y)	8-94345-606-0	12	1	9307-	●
65	FASTENER; SCREW 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) EXC. HANDLE BACK DOOR INNER<S2A>	8-94345-606-0	13	1	9307-	●
65	FASTENER; SCREW 5 DOOR PANEL VAN(V4P),5 DOOR VAN(V4X) EXC. ACCESSORY PACK<ET6>,RR SEAT FOLD<6KV>	8-94345-606-0	24	1	9307-	●
70	SEAL; SLIDE DOOR 5 DOOR<6KU>	8-94274-165-1	02	1	9307-	●	●
70	SEAL; SLIDE DOOR EXC. 5 DOOR<6KU>	8-94274-165-1	01	1	9307-	●	●
73	SEAL; SUB,SLIDE DOOR 5 DOOR<6KU>	8-94280-982-1	02	1	9307-	●	●
73	SEAL; SUB,SLIDE DOOR EXC. 5 DOOR<6KU>	8-94280-982-1	01	1	9307-	●	●
86	PIPE; GUARD,SIDE WINDOW STANDARD(WFB5VC) WO/SIDE WINDOW GLASS<A27> 4 DOOR VAN(V4V) EXC. SEATING CAPACITY 6(R48),SEATING CAPACITY 5(X92) FRONT	8-94269-296-0	01	1	9307-	●
86	PIPE; GUARD,SIDE WINDOW WO/SIDE WINDOW GLASS<A27> 4 DOOR VAN(V4V) EXC. SEATING CAPACITY 6(R48),SEATING CAPACITY 5(X92) FRONT	8-94269-296-0	01	1	9307-		●
86	PIPE; GUARD,SIDE WINDOW STANDARD(WFB5VC) 4 DOOR VAN(V4V) EXC. WO/SIDE WINDOW GLASS<A27>,SEATING CAPACITY 6(R48),SLIDE GLASS<R80>,SEATING CAPACITY 5(X92) FRONT	8-94274-051-0	01	1	9307-	●
86	PIPE; GUARD,SIDE WINDOW 4 DOOR VAN(V4V) EXC. WO/SIDE WINDOW GLASS<A27>,SEATING CAPACITY 6(R48),SLIDE GLASS<R80>,SEATING CAPACITY 5(X92) FRONT	8-94274-051-0	01	1	9307-		●
86	PIPE; GUARD,SIDE WINDOW STANDARD(WFB5VC) 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. WO/SIDE WINDOW GLASS<A27>,SLIDE GLASS<R80> REAR	8-94274-056-0	01	1	9307-	●
86	PIPE; GUARD,SIDE WINDOW 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. WO/SIDE WINDOW GLASS<A27>,SLIDE GLASS<R80> REAR	8-94274-056-0	01	1	9307-		●
86	PIPE; GUARD,SIDE WINDOW STANDARD(WFB5VC) 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. WO/SIDE WINDOW GLASS<A27>,SLIDE GLASS<R80> REAR	8-94274-055-0	01	1	9307-	●
86	PIPE; GUARD,SIDE WINDOW 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. WO/SIDE WINDOW GLASS<A27>,SLIDE GLASS<R80> REAR	8-94274-055-0	01	1	9307-		●
86	PIPE; GUARD,SIDE WINDOW LONG(WFB5VF) WO/SIDE WINDOW GLASS<A27> 4 DOOR VAN(V4V) EXC. SEATING CAPACITY 6(R48),SEATING CAPACITY 9(R49),SOUTH AFRICA EQUIPMENT(SW2),SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92) FRONT	8-94269-297-0	01	1	9307-	●
86	PIPE; GUARD,SIDE WINDOW LONG(WFB5VF) 4 DOOR VAN(V4V) EXC. WO/SIDE WINDOW GLASS<A27>,AIR CONDITIONER MANUAL CONT FRT&RR(EM2),SEATING CAPACITY 6(R48),SEATI NG CAPACITY 9(R49),SLIDE GLASS<R80>,SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92) FRONT	8-94274-052-0	01	1	9307-	●
86	PIPE; GUARD,SIDE WINDOW LONG(WFB5VF) 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. WO/SIDE WINDOW GLASS<A27>,AIR CONDITIONER MANUAL CONT FRT&RR(EM2),SLIDE GLASS<R80> REAR	8-94274-058-0	01	1	9307-	●
86	PIPE; GUARD,SIDE WINDOW LONG(WFB5VF) 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. WO/SIDE WINDOW GLASS<A27>,AIR CONDITIONER MANUAL CONT FRT&RR(EM2),SLIDE GLASS<R80> REAR	8-94274-057-0	01	1	9307-	●
89	GROMMET; SCREW,GUARD PIPE STANDARD(WFB5VC) WO/SIDE WINDOW GLASS<A27> 4 DOOR VAN(V4V) EXC. SEATING CAPACITY 6(R48),SEATING CAPACITY 5(X92)	5-09983-006-0	02	1	9307-	●
89	GROMMET; SCREW,GUARD PIPE WO/SIDE WINDOW GLASS<A27> 4 DOOR VAN(V4V) EXC. SEATING CAPACITY 6(R48),SEATING CAPACITY 5(X92)	5-09983-006-0	02	1	9307-		●
89	GROMMET; SCREW,GUARD PIPE STANDARD(WFB5VC) 4 DOOR VAN(V4V) EXC. WO/SIDE WINDOW GLASS<A27>,SEATING CAPACITY 6(R48),SLIDE GLASS<R80>,SEATING CAPACITY 5(X92)	5-09983-006-0	01	1	9307-	●
89	GROMMET; SCREW,GUARD PIPE LONG(WFB5VF) 4 DOOR VAN(V4V) EXC. SEATING CAPACITY 6(R48),SEATING CAPACITY 9(R49),SLIDE GLASS<R80>,SOUTH AFRICA EQUIPMENT(SW2),SE ATING CAPACITY 8(X84),SEATING CAPACITY 5(X92)	5-09983-006-0	01	1	9307-	●
89	GROMMET; SCREW,GUARD PIPE 4 DOOR VAN(V4V) EXC. WO/SIDE WINDOW GLASS<A27>,SEATING CAPACITY 6(R48),SLIDE GLASS<R80>,SEATING CAPACITY 5(X92)	5-09983-006-0	01	1	9307-		●
89	GROMMET; SCREW,GUARD PIPE STANDARD(WFB5VC) 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. WO/SIDE WINDOW GLASS<A27>,SLIDE GLASS<R80>	5-09983-006-0	04	1	9307-	●
89	GROMMET; SCREW,GUARD PIPE 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. WO/SIDE WINDOW GLASS<A27>,SLIDE GLASS<R80>	5-09983-006-0	04	1	9307-		●
90	SCREW; SEMS GUARD PIPE LONG(WFB5VF) 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. WO/SIDE WINDOW GLASS<A27>,AIR CONDITIONER MANUAL CONT FRT&RR(EM2),SLIDE GLASS<R80> M6X20 W/LK&PL WASHER	9-03920-620-0	04	1	9307-	●
91	NUT; GRIP TO BODY LONG(WFB5VF) WO/SIDE WINDOW GLASS<A27> 4 DOOR VAN(V4V) EXC. SEATING CAPACITY 6(R48),SEATING CAPACITY 9(R49),SOUTH AFRICA EQUIPMENT(SW2),SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92)	1-09984-028-0	01	1	9307-	●
91	NUT; GRIP TO BODY LONG(WFB5VF) 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. WO/SIDE WINDOW GLASS<A27>,AIR CONDITIONER MANUAL CONT FRT&RR(EM2),SLIDE GLASS<R80>	1-09984-028-0	04	1	9307-	●
92	SCREW; GUARD STANDARD(WFB5VC) WO/SIDE WINDOW GLASS<A27> 4 DOOR VAN(V4V) EXC. SEATING CAPACITY 6(R48),SEATING CAPACITY 5(X92) M5X20	5-09981-058-0	02	1	9307-	●
92	SCREW; GUARD WO/SIDE WINDOW GLASS<A27> 4 DOOR VAN(V4V) EXC. SEATING CAPACITY 6(R48),SEATING CAPACITY 5(X92) M5X20	5-09981-058-0	02	1	9307-		●
92	SCREW; GUARD STANDARD(WFB5VC) 4 DOOR VAN(V4V) EXC. WO/SIDE WINDOW GLASS<A27>,SEATING CAPACITY 6(R48),SLIDE GLASS<R80>,SEATING CAPACITY 5(X92) M5X20	5-09981-058-0	01	1	9307-	●
92	SCREW; GUARD LONG(WFB5VF) 4 DOOR VAN(V4V) EXC. SEATING CAPACITY 6(R48),SEATING CAPACITY 9(R49),SLIDE GLASS<R80>,SOUTH AFRICA EQUIPMENT(SW2),SE ATING CAPACITY 8(X84),SEATING CAPACITY 5(X92) M5X20	5-09981-058-0	01	1	9307-	●
92	SCREW; GUARD 4 DOOR VAN(V4V) EXC. WO/SIDE WINDOW GLASS<A27>,SEATING CAPACITY 6(R48),SLIDE GLASS<R80>,SEATING CAPACITY 5(X92) M5X20	5-09981-058-0	01	1	9307-		●
92	SCREW; GUARD STANDARD(WFB5VC) 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. WO/SIDE WINDOW GLASS<A27>,SLIDE GLASS<R80> M5X20	5-09981-058-0	04	1	9307-	●
92	SCREW; GUARD 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. WO/SIDE WINDOW GLASS<A27>,SLIDE GLASS<R80> M5X20	5-09981-058-0	04	1	9307-		●
92	SCREW; GUARD LONG(WFB5VF) WO/SIDE WINDOW GLASS<A27> 4 DOOR VAN(V4V) EXC. SOUTH AFRICA EQUIPMENT(SW2),RR SEAT FOLD<6KV> M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	9307-	●
101	DRIP; A-POST UPR	8-94280-778-0	01	1	9307-	●	●
101	DRIP; A-POST UPR	8-94280-777-0	01	1	9307-	●	●
110	CLIP; A-POST D6X12.5	8-94146-425-0	04	1	9307-	●	●
111	SEAL; A-POST OD=20 T=0.05 BLACK	5-76777-036-0	04	1	9307-	●	●
112	PROTECTOR; HEAT,HARNESS LONG(WFB5VF) TURBOCHARGER(K51) (B)	8-94282-940-2	01	1	9407-	●
112	PROTECTOR; HEAT,HARNESS (B)	8-94269-732-1	01	1	9307-9406	●	●
112	PROTECTOR; HEAT,HARNESS EXC. TURBOCHARGER(K51) (B)	8-94269-732-1	01	1	9407-	●	●
112	PROTECTOR; HEAT,HARNESS 4FG1 ENG(RLL) (A)	8-94269-729-1	01	1	9307-9406	●	●
112	PROTECTOR; HEAT,HARNESS EXC. IRISH EQUIPMENT(6CU) (A)	8-94269-729-1	01	1	9407-	●	●
113	BOLT; HEAT PROTECTOR M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9307-	●	●
113	BOLT; HEAT PROTECTOR 4FG1 ENG(RLL) M6X14 W/LK&PL WASHER	0-50140-614-0	03	1	9307-9406	●	●
113	BOLT; HEAT PROTECTOR EXC. IRISH EQUIPMENT(6CU) M6X14 W/LK&PL WASHER	0-50140-614-0	03	1	9407-	●	●
114	INSULATOR; HEAT PROTECTOR LONG(WFB5VF) TURBOCHARGER(K51) L=288	8-94282-939-0	01	1	9407-	●
114	INSULATOR; HEAT PROTECTOR L=400	8-94284-679-0	01	1	9307-9406	●	●
114	INSULATOR; HEAT PROTECTOR STANDARD(WFB5VC) L=400	8-94284-679-0	01	1	9407-	●
114	INSULATOR; HEAT PROTECTOR LONG(WFB5VF) EXC. TURBOCHARGER(K51) L=400	8-94284-679-0	01	1	9407-	●
114	INSULATOR; HEAT PROTECTOR L=400	8-94284-679-0	01	1	9407-		●
184	SEAL; LOCATION HOLE 5 DOOR<6KU> OD=45 T=0.08 BLACK	8-94291-688-2	06	1	9307-	●	●
184	SEAL; LOCATION HOLE EXC. 5 DOOR<6KU> OD=45 T=0.08 BLACK	8-94291-688-2	03	1	9307-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
