◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50685 - WFR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-40 - SLIDE DOOR,LOCK AND CONTROL ▶
6-40 — SLIDE DOOR,LOCK AND CONTROL (#37401) — 139 parça

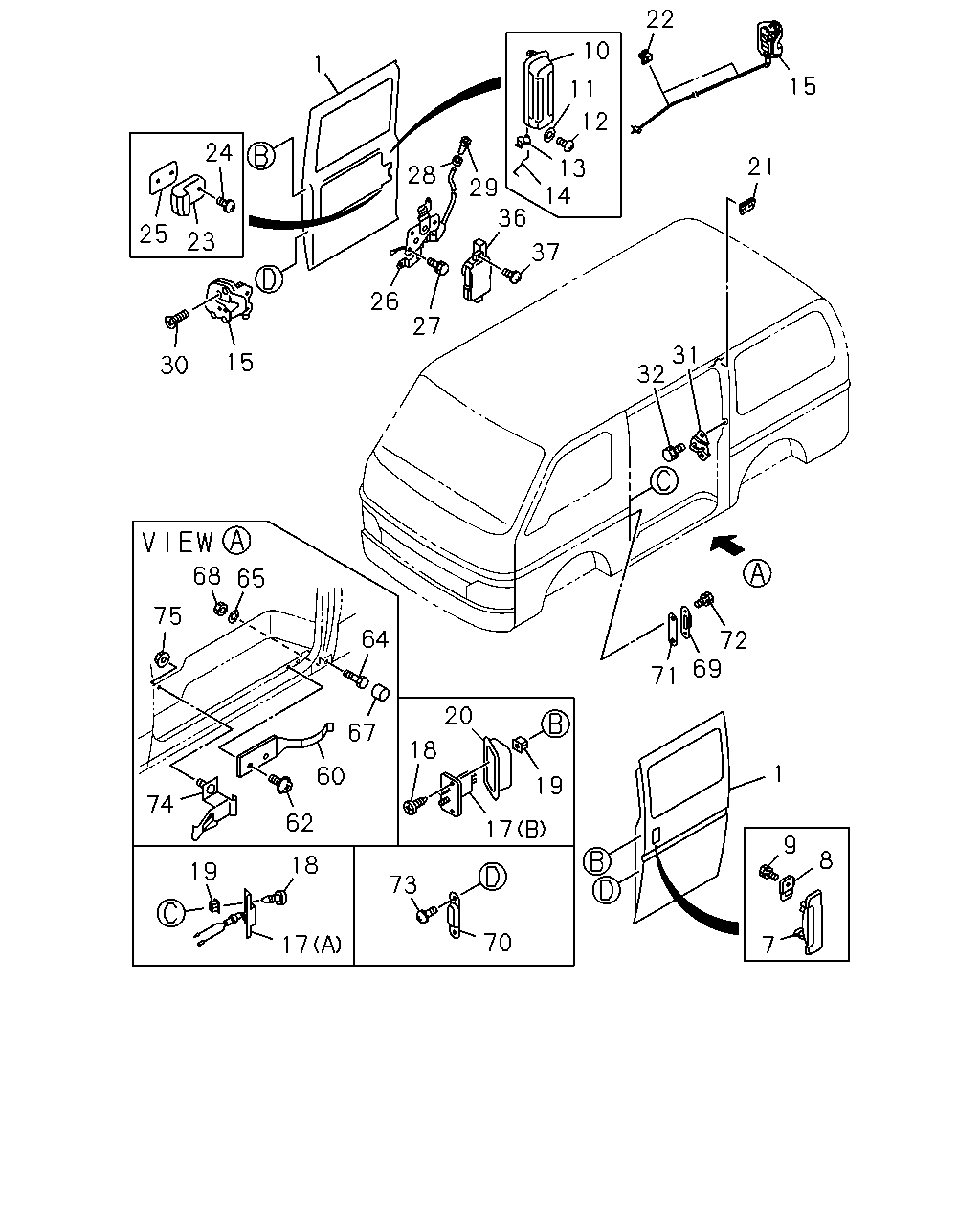

çizim 18470
22 15 21 10 11 12 13 14 37 36 29 28 1 24 25 23 30 15 26 27 31 32 72 69 71 1 9 8 7 70 73 17 19 20 18 67 64 60 62 18 17 19 74 75 68 65
BalonParca AdiParca NoAdetTipApplied Date A B
1 DOOR ASM; SLIDE
AUTO DOOR LOCK<AU4> 5 DOOR PANEL VAN(V4P) 		8-94348-539-0 01 1 9307-9406 ● ●
1 DOOR ASM; SLIDE
AUTO DOOR LOCK<AU4> 5 DOOR PANEL VAN(V4P),4 DOOR PANEL VAN(V4Y) 		8-94348-543-0 01 1 9307-9406 ● ●
1 DOOR ASM; SLIDE
AUTO DOOR LOCK<AU4> 5 DOOR VAN(V4X) 		8-94348-537-0 01 1 9307-9406 ● ●
1 DOOR ASM; SLIDE
4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X), 4 DOOR BUS(V4Z) EXC. AUTO DOOR LOCK<AU4> 		8-94348-542-0 01 1 9307-9406 ● ●
1 DOOR ASM; SLIDE
4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X), 4 DOOR BUS(V4Z) 		8-94348-542-0 01 1 9407- ● ●
1 DOOR ASM; SLIDE
5 DOOR PANEL VAN(V4P) EXC. AUTO DOOR LOCK<AU4> 		8-94348-540-0 01 1 9307-9406 ● ●
1 DOOR ASM; SLIDE
5 DOOR PANEL VAN(V4P) 		8-94348-540-0 01 1 9407- ● ●
1 DOOR ASM; SLIDE
5 DOOR PANEL VAN(V4P),4 DOOR PANEL VAN(V4Y) EXC. AUTO DOOR LOCK<AU4> 		8-94348-544-0 01 1 9307-9406 ● ●
1 DOOR ASM; SLIDE
5 DOOR PANEL VAN(V4P),4 DOOR PANEL VAN(V4Y) 		8-94348-544-0 01 1 9407- ● ●
1 DOOR ASM; SLIDE
5 DOOR VAN(V4X) EXC. AUTO DOOR LOCK<AU4> 		8-94348-538-0 01 1 9307-9406 ● ●
1 DOOR ASM; SLIDE
5 DOOR VAN(V4X) 		8-94348-538-0 01 1 9407- ● ●
7 HANDLE; OUTSIDE,SLIDE DOOR 8-94345-002-0 01 1 9307- ● ●
7 HANDLE; OUTSIDE,SLIDE DOOR
5 DOOR<6KU> 		8-94345-001-0 01 1 9307- ● ●
8 GASKET; HANDLE TO SLIDE DOOR
5 DOOR<6KU> 		8-94292-458-2 04 1 9307- ● ●
8 GASKET; HANDLE TO SLIDE DOOR
EXC. 5 DOOR<6KU> 		8-94292-458-2 02 1 9307- ● ●
9 SCREW; HANDLE TO SLIDE DOOR
5 DOOR<6KU> M6X8 W/LK WASHER 		1-09981-040-0 04 1 9307- ● ●
9 SCREW; HANDLE TO SLIDE DOOR
EXC. 5 DOOR<6KU> M6X8 W/LK WASHER 		1-09981-040-0 02 1 9307- ● ●
10 HANDLE; SLIDE DOOR
GRADE BASIC(RBA) ACCESSORY PACK<ET6> 5 DOOR<6KU> 		8-94345-859-0 02 1 9307- ● ●
10 HANDLE; SLIDE DOOR
GRADE LT(RBC) 5 DOOR<6KU> 		8-94345-859-0 02 1 9307- ●
10 HANDLE; SLIDE DOOR
GRADE BASIC(RBA) ACCESSORY PACK<ET6> EXC. 5 DOOR<6KU> 		8-94345-859-0 01 1 9307- ● ●
10 HANDLE; SLIDE DOOR
GRADE LT(RBC) EXC. 5 DOOR<6KU> 		8-94345-859-0 01 1 9307- ●
10 HANDLE; SLIDE DOOR
GRADE BASIC(RBA) EXC. ACCESSORY PACK<ET6>,5 DOOR<6KU> 		8-94345-860-0 01 1 9307- ● ●
10 HANDLE; SLIDE DOOR
GRADE BASIC(RBA) 5 DOOR<6KU> EXC. ACCESSORY PACK<ET6> 		8-94345-860-0 02 1 9307- ● ●
11 WASHER; PL,INSIDE HANDLE
5 DOOR<6KU> ID=5.3 		9-09160-505-0 04 1 9307- ● ●
11 WASHER; PL,INSIDE HANDLE
EXC. 5 DOOR<6KU> ID=5.3 		9-09160-505-0 02 1 9307- ● ●
12 SCREW; HANDLE TO SLIDE DOOR
5 DOOR<6KU> M5X14 		9-93490-514-0 04 1 9307-9406 ● ●
12 SCREW; HANDLE TO SLIDE DOOR
5 DOOR<6KU> M5X16 		9-93490-516-0 04 1 9407- ● ●
12 SCREW; HANDLE TO SLIDE DOOR
EXC. 5 DOOR<6KU> M5X14 		9-93490-514-0 02 1 9307-9406 ● ●
12 SCREW; HANDLE TO SLIDE DOOR
EXC. 5 DOOR<6KU> M5X16 		9-93490-516-0 02 1 9407- ● ●
13 CLIP; SLIDE DOOR LINK
5 DOOR<6KU> 		8-94289-147-0 02 1 9307- ● ●
13 CLIP; SLIDE DOOR LINK
EXC. 5 DOOR<6KU> 		8-94289-147-0 01 1 9307- ● ●
14 ROD; SLIDE DOOR,INSIDE OPEN 8-94292-329-1 01 1 9307- ● ●
14 ROD; SLIDE DOOR,INSIDE OPEN
5 DOOR<6KU> 		8-94292-328-1 01 1 9307- ● ●
15 LOCK; SLIDE DOOR 8-94278-625-0 01 1 9307- ●
15 LOCK; SLIDE DOOR
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) 		8-94278-625-0 01 1 9307- ●
15 LOCK; SLIDE DOOR
5 DOOR<6KU> 		8-94278-624-0 01 1 9307- ● ●
17 CONNECTOR; SLIDE DOOR LOCK
AUTO DOOR LOCK<AU4> 5 DOOR<6KU> (A) B-C POST 		8-94282-411-1 02 1 9307-9406 ● ●
17 CONNECTOR; SLIDE DOOR LOCK
AUTO DOOR LOCK<AU4> 5 DOOR<6KU> (B) SLIDE DOOR 		8-94282-412-1 02 1 9307-9406 ● ●
17 CONNECTOR; SLIDE DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. 5 DOOR<6KU> (A) B-C POST 		8-94282-411-1 01 1 9307-9406 ● ●
17 CONNECTOR; SLIDE DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. 5 DOOR<6KU> (B) SLIDE DOOR 		8-94282-412-1 01 1 9307-9406 ● ●
18 SCREW; CONNECTOR
AUTO DOOR LOCK<AU4> 5 DOOR<6KU> SLIDE DOOR M5X20 W/WASHER 		8-94279-379-0 04 1 9307-9406 ● ●
18 SCREW; CONNECTOR
AUTO DOOR LOCK<AU4> 5 DOOR<6KU> B-C POST M5X20 TAPPING 		8-94279-380-0 04 1 9307-9406 ● ●
18 SCREW; CONNECTOR
AUTO DOOR LOCK<AU4> EXC. 5 DOOR<6KU> SLIDE DOOR M5X20 W/WASHER 		8-94279-379-0 02 1 9307-9406 ● ●
18 SCREW; CONNECTOR
AUTO DOOR LOCK<AU4> EXC. 5 DOOR<6KU> B-C POST M5X20 TAPPING 		8-94279-380-0 02 1 9307-9406 ● ●
19 GROMMET; SCREW,CONN
AUTO DOOR LOCK<AU4> 5 DOOR<6KU> 		5-09983-006-0 08 1 9307-9406 ● ●
19 GROMMET; SCREW,CONN
AUTO DOOR LOCK<AU4> EXC. 5 DOOR<6KU> 		5-09983-006-0 04 1 9307-9406 ● ●
20 BOOT; RUBBER,DOOR LOCK
AUTO DOOR LOCK<AU4> 5 DOOR<6KU> 		8-94282-516-1 02 1 9307-9406 ● ●
20 BOOT; RUBBER,DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. 5 DOOR<6KU> 		8-94282-516-1 01 1 9307-9406 ● ●
21 STOPPER; SLIDE DOOR,UPR
5 DOOR<6KU> 		8-94292-836-2 02 1 9307- ● ●
21 STOPPER; SLIDE DOOR,UPR
EXC. 5 DOOR<6KU> 		8-94292-836-2 01 1 9307- ● ●
22 CLIP; LINK ROD,SLIDE DOOR
5 DOOR<6KU> 		8-94292-789-0 04 1 9307- ● ●
22 CLIP; LINK ROD,SLIDE DOOR
EXC. 5 DOOR<6KU> 		8-94292-789-0 02 1 9307- ● ●
23 STOPPER; SLIDE DOOR
5 DOOR<6KU> 		8-94293-539-1 02 1 9307- ● ●
23 STOPPER; SLIDE DOOR
EXC. 5 DOOR<6KU> 		8-94293-539-1 01 1 9307- ● ●
24 SCREW; STOPPER TO SLIDE DOOR
5 DOOR<6KU> M6X20 		9-03910-620-0 04 1 9307- ● ●
24 SCREW; STOPPER TO SLIDE DOOR
EXC. 5 DOOR<6KU> M6X20 		9-03910-620-0 02 1 9307- ● ●
25 SHIM; STOPPER,SLIDE DOOR 8-94293-551-1 AR 1 9307- ● ●
26 CONTROL; REMOTE,SLIDE DOOR 8-94284-778-1 01 1 9307- ● ●
26 CONTROL; REMOTE,SLIDE DOOR
5 DOOR<6KU> 		8-94284-844-1 01 1 9307- ● ●
27 BOLT; REMOTE CONT TO DOOR
5 DOOR<6KU> M6X16 W/LK&PL WASHER 		0-50140-616-0 06 1 9307- ● ●
27 BOLT; REMOTE CONT TO DOOR
EXC. 5 DOOR<6KU> M6X16 W/LK&PL WASHER 		0-50140-616-0 03 1 9307- ● ●
28 ESCUTCHEON; SILL CONT
5 DOOR<6KU> BLACK 		9-67521-226-1 02 1 9307- ● ●
28 ESCUTCHEON; SILL CONT
EXC. 5 DOOR<6KU> BLACK 		9-67521-226-1 01 1 9307- ● ●
29 BUTTON; DOOR LOCK
5 DOOR<6KU> 		8-94269-497-0 02 1 9307- ● ●
29 BUTTON; DOOR LOCK
EXC. 5 DOOR<6KU> 		8-94269-497-0 01 1 9307- ● ●
30 SCREW; SLIDE DOOR LOCK
5 DOOR<6KU> M6X20 		8-94279-344-0 06 1 9307- ● ●
30 SCREW; SLIDE DOOR LOCK
EXC. 5 DOOR<6KU> M6X20 		8-94279-344-0 03 1 9307- ● ●
31 STRIKER; SLIDE DOOR LOCK
5 DOOR<6KU> 		8-94282-534-0 02 1 9307- ● ●
31 STRIKER; SLIDE DOOR LOCK
EXC. 5 DOOR<6KU> 		8-94282-534-0 01 1 9307- ● ●
32 SCREW; STRIKER TO SLIDE DOOR
5 DOOR<6KU> 		8-94279-105-0 04 1 9307- ● ●
32 SCREW; STRIKER TO SLIDE DOOR
EXC. 5 DOOR<6KU> 		8-94279-105-0 02 1 9307- ● ●
36 ACTUATOR; LOCK SLIDE
AUTO DOOR LOCK<AU4> 		8-94284-780-1 01 1 9307-9406 ● ●
36 ACTUATOR; LOCK SLIDE
AUTO DOOR LOCK<AU4> 5 DOOR<6KU> 		8-94284-824-1 01 1 9307-9406 ● ●
37 SCREW; ACTUATOR TO BODY
AUTO DOOR LOCK<AU4> 5 DOOR<6KU> M6X14 W/LK&PL WASHER 		9-03920-614-0 04 1 9307-9406 ● ●
37 SCREW; ACTUATOR TO BODY
AUTO DOOR LOCK<AU4> EXC. 5 DOOR<6KU> M6X14 W/LK&PL WASHER 		9-03920-614-0 02 1 9307-9406 ● ●
60 SPRING; STOPPER,SLIDE DOOR 8-94292-667-3 01 1 9307- ● ●
60 SPRING; STOPPER,SLIDE DOOR
5 DOOR<6KU> 		8-94292-666-3 01 1 9307- ● ●
62 SCREW; SPR TO SLIDE DOOR
5 DOOR<6KU> M6X14 W/LK&PL WASHER 		9-03920-614-0 04 1 9307- ● ●
62 SCREW; SPR TO SLIDE DOOR
EXC. 5 DOOR<6KU> M6X14 W/LK&PL WASHER 		9-03920-614-0 02 1 9307- ● ●
64 BOLT; STOPPER RUBBER
5 DOOR<6KU> 		8-94279-186-0 02 1 9307- ● ●
64 BOLT; STOPPER RUBBER
EXC. 5 DOOR<6KU> 		8-94279-186-0 01 1 9307- ● ●
65 WASHER; LK,STOPPER RUBBER
5 DOOR<6KU> 		1-09985-179-0 02 1 9307- ● ●
65 WASHER; LK,STOPPER RUBBER
EXC. 5 DOOR<6KU> 		1-09985-179-0 01 1 9307- ● ●
67 STOPPER; RUBBER,SLIDE DOOR
5 DOOR<6KU> 		5-23249-003-0 02 1 9307- ● ●
67 STOPPER; RUBBER,SLIDE DOOR
EXC. 5 DOOR<6KU> 		5-23249-003-0 01 1 9307- ● ●
68 NUT; STOPPER RUBBER
5 DOOR<6KU> M6 FLANGE 		1-09984-123-0 02 1 9307- ● ●
68 NUT; STOPPER RUBBER
EXC. 5 DOOR<6KU> M6 FLANGE 		1-09984-123-0 01 1 9307- ● ●
69 DOVETAIL; SLIDE DOOR,MALE
5 DOOR<6KU> 		8-94291-359-2 04 1 9307- ● ●
69 DOVETAIL; SLIDE DOOR,MALE
EXC. 5 DOOR<6KU> 		8-94291-359-2 02 1 9307- ● ●
70 DOVETAIL; SLIDE DOOR,FEMALE
5 DOOR<6KU> 		8-94280-693-2 04 1 9307- ● ●
70 DOVETAIL; SLIDE DOOR,FEMALE
EXC. 5 DOOR<6KU> 		8-94280-693-2 02 1 9307- ● ●
71 SHIM; DOVETAIL
5 DOOR<6KU> 		8-94291-360-1 04 1 9307- ● ●
71 SHIM; DOVETAIL
EXC. 5 DOOR<6KU> 		8-94291-360-1 02 1 9307- ● ●
72 SCREW; DOVETAIL TO DOOR
5 DOOR<6KU> M6X20 W/LK&PL WASHER 		8-94279-347-0 08 1 9307- ● ●
72 SCREW; DOVETAIL TO DOOR
EXC. 5 DOOR<6KU> M6X20 W/LK&PL WASHER 		8-94279-347-0 04 1 9307- ● ●
73 SCREW; DOVETAIL TO SLIDE DOOR
5 DOOR<6KU> M6X20 W/LK&PL WASHER 		8-94279-347-0 08 1 9307- ● ●
73 SCREW; DOVETAIL TO SLIDE DOOR
EXC. 5 DOOR<6KU> M6X20 W/LK&PL WASHER 		8-94279-347-0 04 1 9307- ● ●
74 BRACKET ASM; SCREW JACK 8-94284-529-1 01 1 9307- ● ●
75 NUT; BRKT TO JACK
M6 FLANGE 		5-09440-004-0 02 1 9307- ● ●

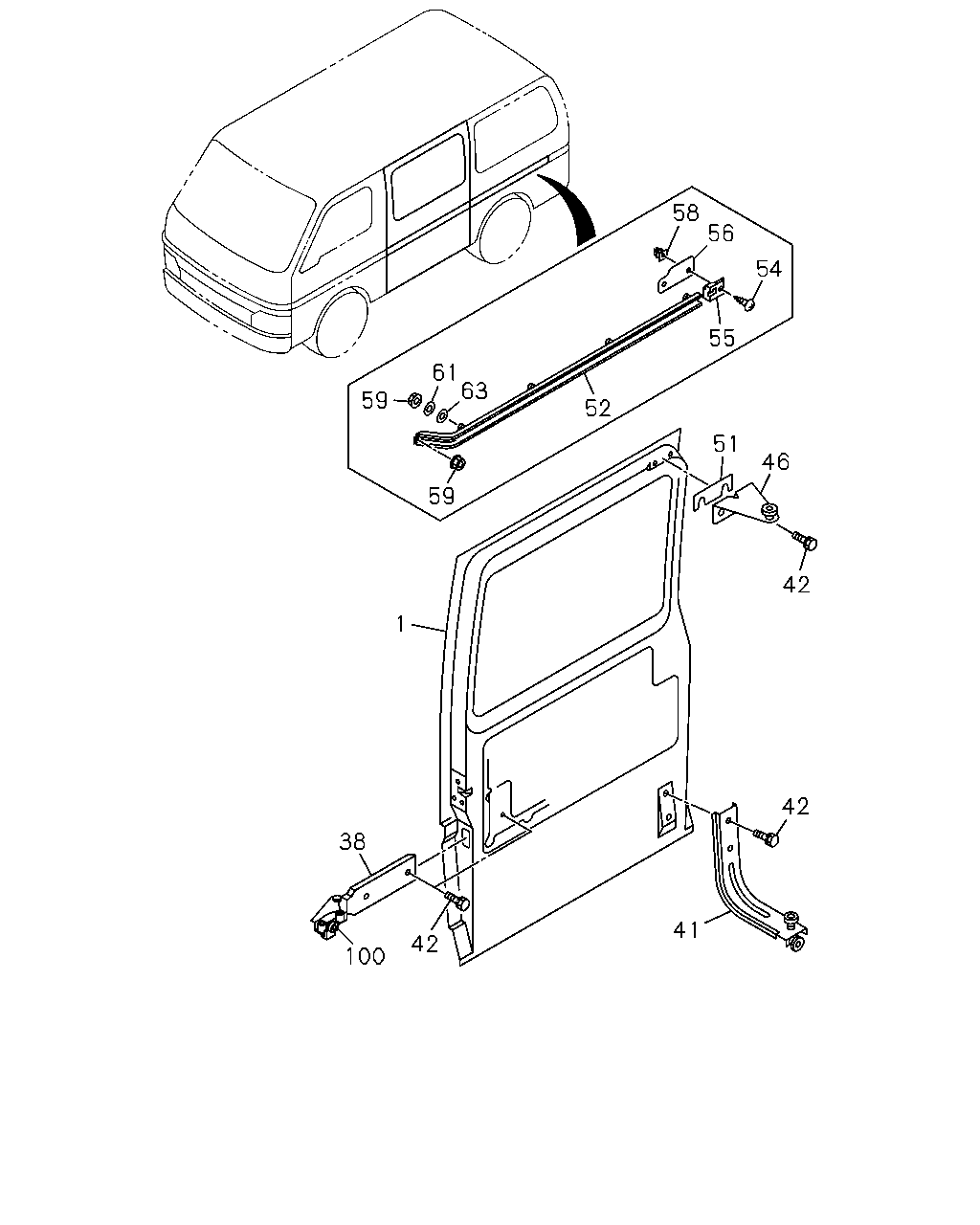

çizim 67218
58 56 54 55 52 63 61 59 59 51 46 42 42 41 42 100 38 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 DOOR ASM; SLIDE
AUTO DOOR LOCK<AU4> 5 DOOR PANEL VAN(V4P) 		8-94348-539-0 01 1 9307-9406 ● ●
1 DOOR ASM; SLIDE
AUTO DOOR LOCK<AU4> 5 DOOR PANEL VAN(V4P),4 DOOR PANEL VAN(V4Y) 		8-94348-543-0 01 1 9307-9406 ● ●
1 DOOR ASM; SLIDE
AUTO DOOR LOCK<AU4> 5 DOOR VAN(V4X) 		8-94348-537-0 01 1 9307-9406 ● ●
1 DOOR ASM; SLIDE
4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X), 4 DOOR BUS(V4Z) EXC. AUTO DOOR LOCK<AU4> 		8-94348-542-0 01 1 9307-9406 ● ●
1 DOOR ASM; SLIDE
4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X), 4 DOOR BUS(V4Z) 		8-94348-542-0 01 1 9407- ● ●
1 DOOR ASM; SLIDE
5 DOOR PANEL VAN(V4P) EXC. AUTO DOOR LOCK<AU4> 		8-94348-540-0 01 1 9307-9406 ● ●
1 DOOR ASM; SLIDE
5 DOOR PANEL VAN(V4P) 		8-94348-540-0 01 1 9407- ● ●
1 DOOR ASM; SLIDE
5 DOOR PANEL VAN(V4P),4 DOOR PANEL VAN(V4Y) EXC. AUTO DOOR LOCK<AU4> 		8-94348-544-0 01 1 9307-9406 ● ●
1 DOOR ASM; SLIDE
5 DOOR PANEL VAN(V4P),4 DOOR PANEL VAN(V4Y) 		8-94348-544-0 01 1 9407- ● ●
1 DOOR ASM; SLIDE
5 DOOR VAN(V4X) EXC. AUTO DOOR LOCK<AU4> 		8-94348-538-0 01 1 9307-9406 ● ●
1 DOOR ASM; SLIDE
5 DOOR VAN(V4X) 		8-94348-538-0 01 1 9407- ● ●
38 ROLLER; SLIDE DOOR,CENTER 8-94353-614-1 01 1 9307- ● ●
38 ROLLER; SLIDE DOOR,CENTER
5 DOOR<6KU> 		8-94353-613-1 01 1 9307- ● ●
41 ROLLER; SLIDE DOOR,LWR 8-94274-218-0 01 1 9307- ● ●
41 ROLLER; SLIDE DOOR,LWR
5 DOOR<6KU> 		8-94274-217-0 01 1 9307- ● ●
42 BOLT; ROLLER TO SLIDE DOOR
5 DOOR<6KU> M6X22 		8-94279-147-0 04 1 9307- ● ●
42 BOLT; ROLLER TO SLIDE DOOR
5 DOOR<6KU> M8X22 W/LK&PL WASHER 		8-94279-148-1 08 1 9307- ● ●
42 BOLT; ROLLER TO SLIDE DOOR
EXC. 5 DOOR<6KU> M6X22 		8-94279-147-0 02 1 9307- ● ●
42 BOLT; ROLLER TO SLIDE DOOR
EXC. 5 DOOR<6KU> M8X22 W/LK&PL WASHER 		8-94279-148-1 04 1 9307- ● ●
46 ROLLER; SLIDE DOOR,UPR
5 DOOR<6KU> 		8-94291-823-0 02 1 9307- ● ●
46 ROLLER; SLIDE DOOR,UPR
EXC. 5 DOOR<6KU> 		8-94291-823-0 01 1 9307- ● ●
51 SHIM; ROLLER,UPR 8-94292-532-0 AR 1 9307- ● ●
52 RAIL; SLIDE DOOR,CENTER 8-94269-922-0 01 1 9307- ● ●
52 RAIL; SLIDE DOOR,CENTER
5 DOOR<6KU> 		8-94269-921-0 01 1 9307- ● ●
54 SCREW; CENTER RAIL
5 DOOR<6KU> M5X20 TAPPING 		0-71090-520-0 02 1 9307- ● ●
54 SCREW; CENTER RAIL
EXC. 5 DOOR<6KU> M5X20 TAPPING 		0-71090-520-0 01 1 9307- ● ●
55 PLATE; END,CENTER RAIL 8-94278-821-0 01 1 9307- ● ●
55 PLATE; END,CENTER RAIL
5 DOOR<6KU> 		8-94278-820-0 01 1 9307- ● ●
56 SEAL
5 DOOR<6KU> 		8-94269-496-0 02 1 9307- ● ●
56 SEAL
EXC. 5 DOOR<6KU> 		8-94269-496-0 01 1 9307- ● ●
58 GROMMET; SCREW,CENTER RAIL
5 DOOR<6KU> 		5-09983-006-0 02 1 9307- ● ●
58 GROMMET; SCREW,CENTER RAIL
EXC. 5 DOOR<6KU> 		5-09983-006-0 01 1 9307- ● ●
59 NUT; CENTER RAIL
5 DOOR<6KU> 		8-94279-524-0 10 1 9307- ● ●
59 NUT; CENTER RAIL
EXC. 5 DOOR<6KU> 		8-94279-524-0 05 1 9307- ● ●
61 GASKET; CENTER RAIL
5 DOOR<6KU> 		8-94292-119-0 08 1 9307- ● ●
61 GASKET; CENTER RAIL
EXC. 5 DOOR<6KU> 		8-94292-119-0 04 1 9307- ● ●
63 WASHER; CENTER RAIL
5 DOOR<6KU> 		8-94292-135-0 08 1 9307- ● ●
63 WASHER; CENTER RAIL
EXC. 5 DOOR<6KU> 		8-94292-135-0 04 1 9307- ● ●
100 ROLLER; GUIDE 8-94345-222-0 01 1 9307-9406 ● ●
100 ROLLER; GUIDE 8-94345-222-0 02 1 9407- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
